		Partition Wall Making - Course: Timberwork techniques. Instruction examples for practical vocational training (Institut für Berufliche Entwicklung, 35 p.)
			(introduction...)
			Preliminary Remarks
			Instruction Example 5.1.: Calculation of the Pitch Size
			Instruction Example 5.2.: Scribing of the Runners
			Instruction Example 5.3.: Scribing of the Posts
			Instruction Example 5.4.: Scribing of the Stiffening Transoms
			Instruction Example 5.5.: Scribing of the Door Framework
			Instruction Example 5.6.: Assembly and Erection of the Partition Wall

Preliminary Remarks

The present booklet contains 6 selected instruction examples. They have been selected so that the individual exercises can be practised separately or successively, one based on the previous one.

They all refer to the partition wall to be made which is shown in the detailed drawing on page 5 in the scale of 1: 100. The sizes in the detailed drawing have been freely selected to provide feasible sequences of operations in the instruction examples.

The room limitation in the detailed drawing indicates that a corner post will be requires for the partition wall to be made and that the new room has to be made accessible.

The partition wall is to be built between wooden beam ceilings with wall (1) at right angles and wall (2) parallel to the straining direction of the wooden beams.

The instruction examples include the sequence of operations and necessary comments. For instruction examples 2. to 5., working drawings are attached. The individual instruction examples also include information as to the required hand tools, measuring and testing means, auxiliary accessories and the necessary previous knowledge.

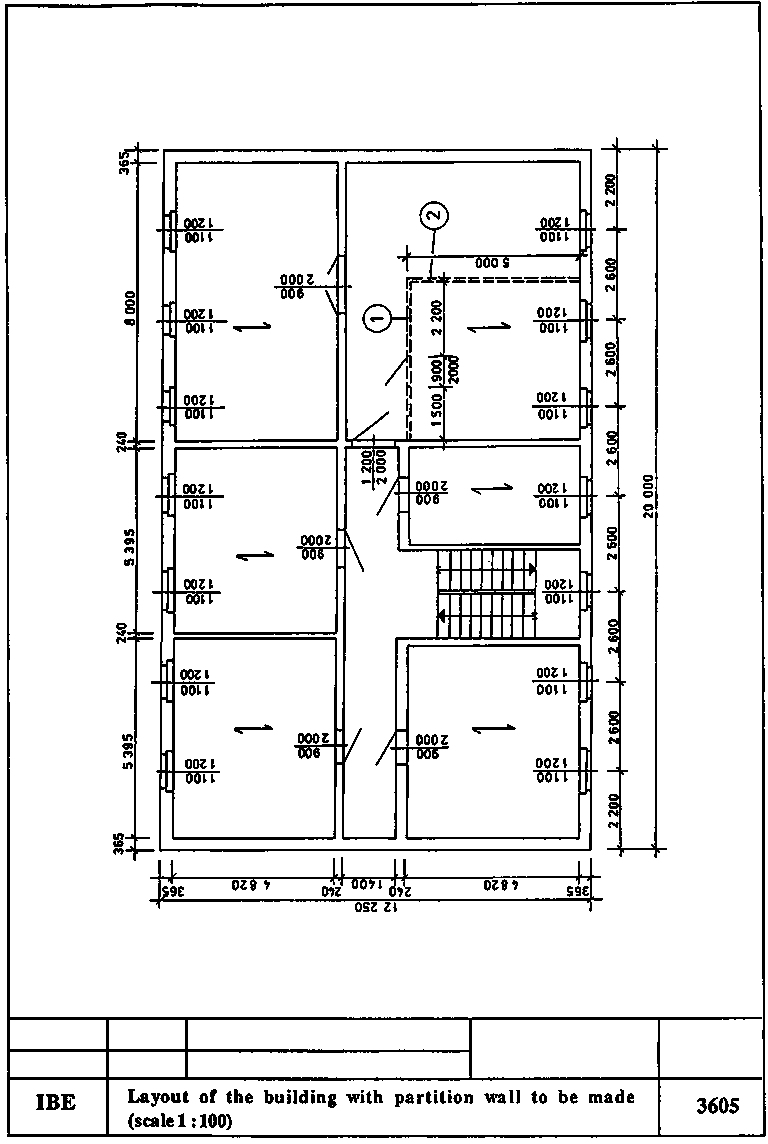

Layout of the building with partition wall to be made (scale 1:100)
