These machines, which are similar to extruders, are used for extracting oil from oilseeds or nuts. They consist of a horizontal cylinder which contains a rotating screw. The seeds or nuts are carried along by the screw and the pressure is gradually increased. The material is heated by friction and/or electric heaters. The oil escapes from the cylinder through small holes or slots and the press cake emerges from the end of the cylinder. Both the pressure and temperature can be adjusted for different kinds of raw material.
TINY OIL MILL
This is a variable pitch screw expeller, capable of up to 73% extraction rates on a single pass of material. Up to 100kg per hour of groundnut and 80kg per hour of sunflower seed can be processed. The expeller is fitted with a steam kettle for preheating the seed. Optional extras include a boiler for the steam kettle which uses the husk as a fuel, filter press, filter pump and ground nut decorticator. The complete plant is driven via a belt and pulleys from a line shaft powered by a 7.5kW three phase electric motor or a 10kW diesel engine.
PRICE CODE: 2
TINYTECH PLANTS PRIVATE LTD
Near Mallavia Wadi
Gandal Road
RAJKOT - 360 002
INDIA
27.1 Hot extruders
EXTRUDER TYPE IIB265
This machine makes extruded products such as snack foods from cereals. The food used to make the extruded product is fed into the hopper and milled where it is mixed to form a dough paste mixture. The substance is then fed through the heated extrusion unit and is shaped into the required form. Dimensions: 1480 x 2570 x 1100mm. Smaller models are available: EXTRUDER R32-S35, and EXTRUDER II B275.
PRICE CODE: 4
PABRIK MESIN
P.T. Mata Hari
SS JL Cempala 18
INDONESIA
27.2 Cold extruders
SAUSAGE MAKER KIT
This hand-operated sausage kit is designed for use on a small scale. The mixture is placed inside the gun and extruded into sat/sage skins through a nozzle. Included in the kit are standard and chippolata nozzles, premix, sausage skins and a recipe book.
PRICE CODE: 1
SAUSAGE MAKER KIT
LAKELAND PLASTICS
38 Alexandra Buildings
WINDERMERE
LA23 1BQ
UK
ROTARY TYPE EXTRUDER
This hand-operated stainless steel extruder consists of two main components: a hollow body fitted with an interchangeable die plate, and a lid fixed to a movable central screw.
PRICE CODE: 1
HAND-HELD EXTRUDER
This is a hand-operated piston-type extruder for dough-like materials, and is available in many variations in Asia. It can be fabricated from metal or wood, with either a fixed or interchangeable die plate. Dimensions: 8 x 25 x 7cm.
PRICE CODE: 1
ANJALI KITCHEN COMPONENTS
Mahavir Brothers
202 Trivani House
Kelivadi Back Road
BOMBAY
400004
INDIA
Powered oil expellers
|
Commodity |
Country |
Manufacturer |
Equipment name |
Throughput kg per hour |
Price code |
Power (kW) |
|
Coconut |
Philippines |
Sev Corporation |
OIL EXPELLER |
50 |
4 |
|
|
Groundnut |
Ghana |
Agricultural Engineers Ltd |
AGRICO OIL EXPELLER: CAPTAIN MODEL |
512 |
3 |
|
|
Sunflower |
Tanzania |
Tanzania Engineering & Manufacturing Design Organization |
OIL EXPELLER EXP 10 |
110 |
4 |
4 |
|
Oil seeds (various)
|
Germany |
IBG Monforts & Reiners Gmbh & Co. |
KOMET CA59 |
8-15 |
4 |
0.37 |
|
KOMET DD85 |
25-70 |
4 |
1.75/3.5 |
|||
|
OIL EXPELLERS |
2-5 |
4 |
|
|||
|
Japan |
Cecoco |
OIL EXPELLER (3 models) |
30-50 |
3 |
|
|
|
50-80 |
3 |
|
||||
|
80-100 |
4 |
|
||||
|
Tanzania |
Tanzania Engineering & Manufacturing Design Organization |
OIL EXPELLER EXP 20 |
110 |
3 |
7.5 |
The four basic methods for liquid filling are: vacuum filling, measured dosing, gravity filling and pressure filling. Filling by vacuum is the cleanest and most economical way to fill many products ranging from low to high viscosities, whereas gravity and pressure filling are best suited to the moderately rapid filling of low viscosity liquids such as fruit juices, which flow easily.
28.1 Liquid fillers
Manual liquid fillers
LIQUID FILLER
This filler fills different sized bottles with liquids and is operated by two people. There are 14 nozzles of 13 or 15mm diameter, each with a flow rate of 57 litres per hour. Dimensions: 75 x 74 x 100cm.
PRICE CODE: 3
YUNAN GENERAL MACHINE WORKS
24 Dadi Lu
Duncheng Zheng
Yunan County
Guangdong Province
CHINA
10500 DANA API MANA
This hand-operated filling unit for honey consists of a free-standing frame fitted with a plastic tank. The honey is gravity fed into the containers. Throughput: 300-400 jars per hour.
PRICE CODE: 2
SWIENTY
Hortoftvej 16
Ragebol
Sonderborg DK 6400
DENMARK
HAND-OPERATED DISPENSER
This equipment can dispense two products into one container. In addition, different volumes can be dispensed, as the pumps are adjustable.
PRICE CODE: 3
ADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH
RH16 1XQ
UK
JAM FUNNEL
This stainless steel funnel is used for filling jars, and has a splash guard around the top.
PRICE CODE: 1
LAKELAND PLASTICS
38 Alexandra buildings
WINDERMERE
LA23 1BQ
UK
ASPIRATOR, HEAVY DUTY POLYTHENE
These liquid containers each have a tap for filling. They also have clamping handles and a screw cap closure for the necks. Size range: 2.5-50 litres.
PRICE CODE: 1
THE NORTHERN MEDIA SUPPLY LTD
Sainsbury Way
HESSLE
HU13 9NX
UK
GRAVITY FILLER
This machine is used for filling liquids, operating on a vertical plunger principle. Hoppers are available in several sizes to meet varying production requirements. The operator holds the container under the nozzle and the filler handle dispenses up to 454g per stroke. The quantity can be adjusted by a clamp block on the piston rod. Dimensions: 61 x 61 x 102cm.
PRICE CODE: 2
GRAVITY FILLER
FMC CORPORATION
Machinery International Division
P.O. Box 1178
SAN JOSE
California 95108
USA
STRAIDLE
This ladle is made from heavy duty stainless steel and is equipped with a convenient strainer that swings under the pouring liquid. Alternatively, the strainer can be moved for 'strainless' pouring. Length: 35.6cm.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
Funnels also manufactured by:
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
Fillers also manufactured by:
ADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH
RH16 1XQ
UK
Powered liquid fillers
VOLUMETRIC FILLING MACHINE
This is a synchronized filling machine for cans, cartons etc. There are two filling outlets with a filling volume per stroke of 0-5kg.
PRICE CODE: 2
VOLUMETRIC FILLING MACHINE
GERSTENBERG OG AGGER A/S
Frydendalsvej 19
1809
FREDERSIKSBERG
DENMARK
SEMI-AUTOMATIC FILLER D1000
This is used for filling liquid or semi-liquid products. It is operated by a foot-activated switch, and the filling volume for one stroke can be adjusted. Max quantity per stroke = 1 litre.
The models available are: DA 1000 & DOUBLE D1000.
PRICE CODE: 3
PRIMODAN FOOD MACHINERY A/S
Oesterled 20-26
P.O. Box 177
DK-4300 HOLBAEK
DENMARK
ADELPHI SEMI-AUTOMATIC LIQUID FILLER
This filler is used for the non-measured filling of a variety of liquids (e.g. spirits, oils and syrups) into most types of bottles. It can either be gravity fed from a container, or a mixer can be fitted with a feed pump. The stainless steel filling valve is fitted with a 0.95cm diameter nozzle. Other sizes are available.
PRICE CODE: 2
ADELPHI SEMI-AUTOMATIC LIQUID FILLER
ADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH
RH16 1XQ
UK

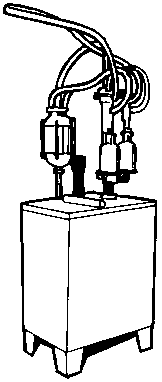

VACUFIL
This automatic vacuum bottle filler is fitted with two heads so that two bottles can be filled at the same time. There is also a glass reservoir flask to collect excess liquid. The pump is fitted to a 0.19kW (0.25hp) motor, suitable for 220V AC. Throughput: 600 bottles per hour.
PRICE CODE: 3
J T JAGTIANI
National House
Tulloch Road
Apollo Bunder
BOMBAY 400 039
INDIA
VACUFIL
MASTER ROTARY MULTIHEADS GRAVI-FILL
This machine fills containers with any free-flowing liquid. It has a stainless steel overhead rotating tank fitted with a float valve inlet, which is connected to a main supply tank. The machine has a variable speed drive mechanism (power: 0.75kW/1hp) and a 'no bottle, no fill' mechanism. Dimensions: length 244 x width 122 x height 244cm.
PRICE CODE: 3
MASTER MECHANICAL WORKS PVT LTD
Pushpanjali SV Road
Santa Cruz (W)
BOMBAY 400 054
INDIA
LIQUID & VISCOUS MATERIAL FILLERS
Model PSF1 is a pneumatically-operated filling machine, comprising a hopper with a 40 litre capacity. The machine itself is operated by a foot switch for a single or continuous operation and has a filling range of: 50-100ml or grams, 100-250ml or grams, 250-1000ml or grams. Throughput: 10-15 containers/mint
LIQUID & VISCOUS MATERIAL FILLERS
PRICE CODE: 3
PANCHAL WORKSHOP
P B No 62, Anand Sojitra Road
ANAND 388 001
INDIA
SMALL-SCALE BOTTLING EQUIPMENT
This equipment comprises a mixer/dispenser, a crown corker and a pasteurizer and can be used for most liquids including palm sap and high acid juices (pH 1.5-4.6). Throughput: 200 x 0.291 crown corked bottles per hour.
PRICE CODE: 4
NIGERIAN INSTITUTE FOR OIL PALM
RESEARCH
Private Mail Bag 1030
BENIN CITY
NIGERIA
PISTON FILLER, MODEL A
This machine will fill a wide range of jars or plastic containers with liquids or semi-liquids (such as ice cream, honey and cottage cheese) in predetermined amounts from 28.3 grammes to 936 grammes. It comprises a 45.5-litre cone hopper and a positive piston filler driven by a 0.19kW (0.25hp) motor. The containers are fed under a discharge spout to achieve a bottom fill. Dimensions: 58 x 102 x 86cm. Versions available include: Table, Twin, Gallon models.
PRICE CODE: 3
FMC CORPORATION
Machinery International Division
P.O. Box 1178
SAN JOSE
California 95108
USA
Liquid fillers a/so manufactured by:
DAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIAPANCHAL WORKSHOP
PB No 62
Anand Sojitra Road
ANAND 388 001
INDIA
28.2 Solid fillers
Two basic methods are used for filling powders, granules and high viscosity products. They are volumetric filling and filling after weighing. The nature of the product usually determines which method is used. Volumetric filling includes filling by auger flask fillers and vacuum filling. Filling by weight is perhaps the most satisfactory way of meeting the requirements of Weights and Measures Acts or similar legislation, as the product is weighed before being filled.
Manual solid fillers

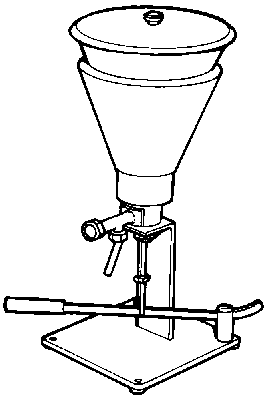

HAND-OPERATED JAM FILLER
This filler is suitable for filling jars and cans. It comprises a hopper of 20kg capacity and can be fitted with either a vertical or horizontal filling attachment, both capable of filling from 50-500 grammes per lever stroke.
PRICE CODE: 2
RAYLONS METAL WORKS
Kondivitta Lane
Andheri-Kurla Road
BOMBAY 400 059
INDIA
Powered solid fillers
DOSING UNIT
This machine is used for dosing viscous products.
The product is fed into a funnel and via the transfer valve and dosing nozzle into the container. The stainless steel unit has an adjustable filling temperature and a dosing volume of 80-500ml and a filling temperature of 5-60°C (optional up to 90°C). The doser may be stopped at any time by a lever which controls the transfer valve. A support table is available as an optional extra. Power requirements: 220/380V.
PRICE CODE: 3
BRAS HOLANDA
P.O. BOX 1250
CURITIBA PR-80.001
BRAZIL
AUTO HYDRAULIC FILLER/STUFFER
AUTO HYDRAULIC FILLER/STUFFER
This machine is Used for producing sausages, and is available with single-phase or three-phase motors. It operates when the knee lever is pressed, leaving both hands free. The piston has two gaskets to prevent the product from escaping between the joints. Three nozzle sizes are available: 13, 20, 30mm diameter. Capacity: 15 litres or 12kg.
PRICE CODE: 2
TALSABELL S.A.
Poligono Industrial V
Salud 8-46.950
VALENCIA
SPAIN
WEIGH FILLER, MODEL GBF 20
This semi-automatic bulk filling machine operates by gravity feed. Two containers are placed on pans beside each other and are then filled alternately until they weigh the required amount. The machine has a filling range of: 5, 10, 15 and 20kg, with a throughput of 3-5 fills per minute.
PRICE CODE: 2
WEIGH FILLER, MODEL GBF 20
PANCHAL WORKSHOP
P B No 62, Anand Sojitra Road
ANAND 388 001
INDIA
FILLING MACHINE
This semi-automatic filling machine is suitable for pulp, jam and jelly. It has a power requirement of 0.56kW (0.75hp) 110/220v AC with a hopper capacity of 20-30 litres.
Throughput: 1500 fillings per hour. Dimensions: 1.60 x 0.53 x 0.53m.
PRICE CODE: 4
VILLAMEX S.A DE C.V
Sur 69-A No. 407
Col Bandjidal
MEXICO DF 09450
MEXICO
Solid fillers also manufactured by:
FRAGOL LTDA
Av Libertador Brig Gral
Lavalleja 1641-Esc 203
MONTEVIDEO
URUGUAYRAYLONS METAL WORKS
Kondivitta Lane
Andheri-Kurla Road
BOMBAY 400 059
INDIA
28.3 Paste fillers

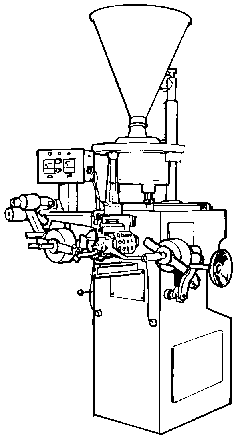

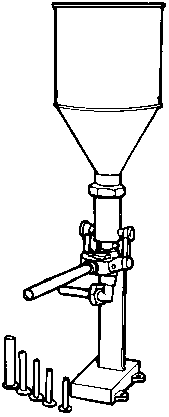

MULTI-PURPOSE PASTE FILLING MACHINE
This is used for filling tubes, bottles, cans etc. and is suitable for measures between 5g and 100g. All contact parts, including the hopper, are made from stainless steel.
PRICE CODE: 2
MULTI-PURPOSE PASTE FILLING MACHINE
J T JAGTIANI
National House
Tulloch Road
Apollo Bunder
BOMBAY 400 039
INDIA
SAUSAGE FILLERS
This unit is made from stainless steel and is available in two sizes (5 litres and 10 litres capacity). Different-sized nozzles are also available.
PRICE CODE: 2
In addition, a hydraulic filler for sausages and pastes is available from:
STADLER CORPORATION
P.O. Box 7177
BOMBAY
400 070
INDIA
28.4 Powder fillers
FORM FILL SEAL MACHINE
This machine packages powders, granules and particulate products. Optional features include: batch coder, perforation and a notching unit.
PRICE CODE: 3
KAPS ENGINEERS
831 GIDC
Makapura
VADODARA 390 010
INDIA
ALITE LF 6, POWDER FILLING MACHINE
This single-head powder filling machine has a stainless steel loading hopper. It is controlled by a foot pedal. The vee belt drive is from a 0.75kW (1hp) motor and is mounted on a stand.
PRICE CODE: 3
WINKWORTH MACHINERY LTD
Willow Tree works
Swallowfield Street
Swallowfield
READING RG7 1QX
UK
POWDER FILLING SYSTEMS
This is suitable for small volume filling. A screw displaces a measured quantity of powder and revolutions of the auger are sensed by photoelectric pulses. The thumbwheel selectors can change the fill quantity without stopping the machine. Throughput: 900 to 2400 fills per hour.
PRICE CODE: 4
SQUARE TEC
35 Industrial Estate
LONAVLA 410 401
INDIA
AUTO FILLER FOR POWDERS
This machine fills bottles and cans with powders. It has an infinitely variable speed drive. Throughput: 240-600 containers per hour per head. Hopper capacity: 50 litres. Power requirements: 2.2kW.
PRICE CODE: 4
RECON MACHINE TOOLS PVT LTD
37 Sarvodaya Industrial Estate
Mahakali Caves Rd. Anderi (E)
BOMBAY 400 093
INDIA
FILLING MACHINE
This stainless steel machine is designed for powders.
PRICE CODE: 1
INDUSTRIAS TECHNICAS 'DOLORIER'
Alfredo Mendiola 690 urbanization Ingenieria
LIMA
PERU
29.1 Filters
MESH FILTER
This equipment is suitable for oil, water etc., and comprises a filter and a sieve. The filter is carbon steel and the sieve is made from stainless steel. The unit is heat-resistant up to 200°C and has a maximum working pressure of 2942kPa (427psi). The mesh has a filtering surface of 40cm².
PRICE CODE: 1
ECICASA INDUSTRIA E COMERCIO LTDA
Rua Guaranesia 900
SAO PAULO
BRAZIL
29.2 Filter presses

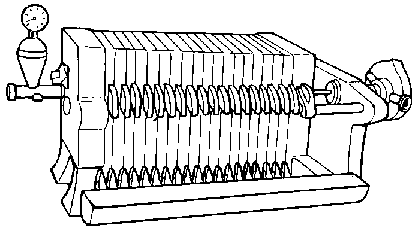

AGRICO FILTER PRESS
The liquid to be filtered is pumped into the press and fills the spaces between each set of filter cloths. It then passes through the cloths to the outlet at the bottom of the plate. Solids are retained on the filter cloths. A tray is provided to collect the liquid. Models are available with 16, 18 or 24 plates.
PRICE CODE: 3
AGRICO FILTER PRESS
AGRICULTURAL ENGINEERS LIMITED
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANA
FILTER PRESS
This press is designed for the purification of oil and consists of a series of iron plates with fabric filters mounted on an iron base. Throughput: up to 600 litres per hour. Two sizes are available: 43 x 43cm, or 58 x 58cm.
PRICE CODE: 4
LAXMI BRASS AND IRON WORKS
Opp. Patel Industrial Estate, Yumana
Mill Road, Pratapnagar
BARODA 390 004
INDIA
STAINLESS STEEL, HORIZONTAL PLATE PRESS
STAINLESS STEEL, HORIZONTAL PLATE PRESS
This press filters beverages to clarify them. It comprises a stainless steel tank with a cover containing the filtering unit, which is coupled to a stainless steel pump and motor. The filtering unit consists of a series of disc-type filter plates, perforated screens, filter media and interlocking cups. Feed liquid reaches the plates via several circular openings and suspended solids are retained by the filter media Finally, the clear liquid runs down the central channel formed by the interlocking cups and leaves the machine via an outlet pipe. Throughput: 400 litres per hour. Two sizes are available (36 x 20cm, or 46 x 30cm).
PRICE CODE: 4
MASTER MECHANICAL WORKS PVT LTD
Pushpanjali SV Road
Santa Cruz (W)
BOMBAY 400 054
INDIA
FILTER PRESS
This press is fabricated from cast iron and is designed to have a loading of 6kg/cm² working area for filtering oil. The filter plates are truncated square pyramids, arranged in evenly spaced lines. Thus, only a small area of filter cloth is in contact with the metal and a greater proportion is free for filtration. An electrically-driven plunger pump is used for pumping oil to the press.
PRICE CODE: 4
BHARAT INDUSTRIAL CORPORATION
Petit Compound, Nana Chowk
Grant Road
BOMBAY 400 007
INDIA
FILTER PRESS
This press is designed for oil clarification. All chambers are lined with filter cloth and all plates have intersecting shallow channels over their surface with a feed hole in their centre. It operates in a similar way to the presses described above.
PRICE CODE: 4
AULIA AGRO EQUIP INDUSTRIES PVT LTD
36-A Lawerence Road
LAHORE
PAKISTAN
29.3 Sieves
FRUIT SIEVE
This hand-operated sieve will separate fruit pulp and juice.
PRICE CODE: 1
GROUPE DE RECHERCHE ET
D'ECHANGES TECHNOLOGIQUES
213 Rue Lafayette
75010 PARIS
FRANCE

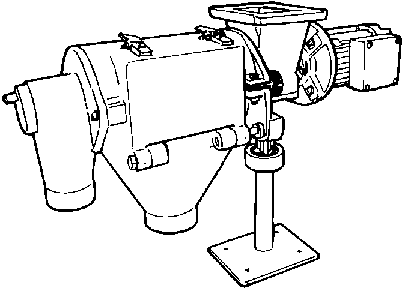

MINI-SIFTER
MINI-SIFTER
This sieving machine is used for small-scale production. The drive to the machine is fixed and the casing has an inspection door. Throughput: up to 150kg per hour.
PRICE CODE: 2
KEMUTEC GROUP LTD
Hulley Road
Hurdsfield Industrial Estate
MACCLESFIELD
SK10 2ND
UK
SIEVING MACHINE
This simple sieving machine is designed for use with cassava flour. The cassava is fed into the machine from a hopper. The sieved flour is then ready for roasting. The machine has a 0.75kW (1hp) electric motor with a reduction unit.
PRICE CODE: 1
AGRICULTURAL ENGINEERS LTD
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANA
VIBRATING SIEVE
This large sieve is designed for processing any starchy foodstuff. It requires a 0.89kW (1.2hp) motor. Throughput: 300kg per hour.
PRICE CODE: 4
INDUSTRIAS TECHNICAS 'DOLORIER'
Alfredo Mendiola 690
Urbanizacion Ingenieria
LIMA
PERU
AGRICO KERNEL/SHELL SEPERATOR
This separates palm kernels from shells. It comprises a simple cylindrical drum covered with a sieve, and rotates on ball bearings. A mixture of broken shells/kernels are fed into the hopper and the drum is turned at a very low speed. The result is clean kernels and the shells are separated into three compartments. Throughput: 500kg material per hour.
PRICE CODE: 1
AGRICULTURAL ENGINEERS LTD
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANA
MINI FLOUR-SIFTING MACHINE
This machine sifts flour using a flow of air. The machine has a 0.37kW (0.5hp) electric motor.
PRICE CODE: 2
BUOY ENGINEERS
Mini Industrial Estate
P.O. Arimpur
Trichur District
KERALA 680 620
INDIA
ROTATING SIEVE (PLANSIFIER)
This sieve separates rice into grades for polishing, using a vibrating round sieve which causes the finer and heavier particles to separate. Single- or double-decked versions are available. Depending on the model, the machine requires 0.75kW to 1.5kW (1-2hp) power. Throughput: Single: 1500kg per hour, Double: 2200kg per hour.
PRICE CODE: 2
DEVRAJ & COMPANY
Krishan Sudama Marg
Firozpur City
PUNJAB
INDIA
ROTARY FLAT SIEVE
This separates the meal/broken grains from rice after pearling. The rotating sieve sets up a circular eddying motion in the stock which causes the finer and heavier particles to gravitate to the shifting surfaces, leaving the coarser and lighter particles on the top layer. Depending on the model, it requires 0.75kW to 1.5kW (1-1.5hp) power. Throughput: 1500-2500 kg per hour. Two sizes are available: 100 x 200cm and 150 x 200cm.
PRICE CODE: 2
DANDEKAR MACHINE WORKS LTD
Dandekarwadi, Bhiwandi
District Thane
Maharashtra 421 302
INDIA
REFINING MACHINE S40
This machine is used to refine flour. It is fabricated from cast iron and aluminium. Power requirements: 3hp, 60Hz and 3 phase supply. Capacity: 40kg dough. Dimensions: 120 x 100 x 15cm.
PRICE CODE: 4
MAQUINARIA OVERENA S.A DE C.V
Av Division del Norte 2894
Col Parque San Andres
MEXICO DF 04040
MEXICO
IMPROVED PULVERISER AND SIFTER
This is a prototype gari sieve which cuts up the cake into small pieces which then pass on to a conveyor belt to a vibrating sieve. Throughput: 125kg gari per hour.
PRICE CODE: 3
AGRICULTURE ENGINEERING
DEPARTMENT
University of Ife
NIGERIA
29.4 Strainers

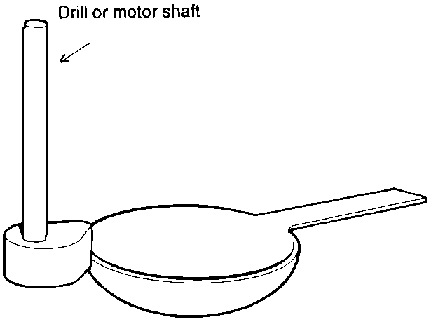

A common operation which often causes problems is the sieving/straining of wet products. This can be carried out in a pulper/finisher machine, or on a small scale, hand strainers can be used. Hand strainers are effective provided they are made to vibrate, which prevents blockage of the mesh. The following is a simple system that has been used with some success.
A large plastic or stainless steel sieve is hand held against the rotating shaft of a power drill or small electric motor. The shaft end is fitted with an eccentric cam which imparts a rapid vibration to the sieve.
JELLY BAG
This bag is used to filter juice, jelly and syrups in order to make crystal clear products. It is vital that the bag should be clean and it should be thoroughly washed and boiled after each use.
PRICE CODE: 1
BRITAM
5 Ferry Lane Industrial Estate
BRENTFORD
TWO OAW
UK

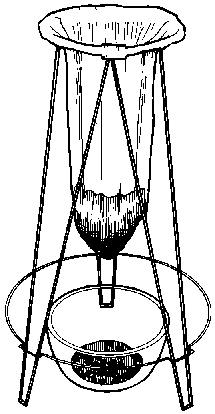

JELLY STRAINER
This will strain jelly, juices, saps, wine, beer etc. It is free-standing with a strainer bag, and will fold flat for storage. The bag has a capacity of 2kg. Height: 51cm.
JELLY STRAINER
PRICE CODE: 1
JELLY STRAINER BAG
Designed for the straining of juices etc. this has a bag which acts as a filter. In addition, it can be used in conjunction with the jelly-strainer stand. Capacity: 2kg. Dimensions: diameter 15cm x length 30cm.
PRICE CODE: 1
LAKELAND PLASTICS
38 Alexandra Buildings
WINDERMERE LA23 1BQ
UK
CONICAL STRAINER
This honey strainer has a fine grading. It is made from stainless steel and is fitted with a rim. A round strainer is also available.
PRICE CODE: 1
SWIENTY
Hortoftvej 16
Ragebol
Sonderborg
DK 6400
DENMARK
CONICAL TAP STRAINER
This honey strainer is made from stainless steel. It operates by attachment to the extractor tap for the initial coarse straining. Other versions include a double-slide strainer. Diameter: 13cm.
PRICE CODE: 1
STEELE & BROODIE
Stevens Drove
Houghton
STOCKBRIDGE
Hampshire
UK
UNCAPPING CAN
This drains the honey from cappings. While the honey drains through and is removed from the base of the can by the honey gate, the capings fall onto the strainer. The can is made from 61cm gauge, heavy tinned steel. Dimensions: 77.5 x 40.6cm.
PRICE CODE: 1
PENDER BEEKEEPING SUPPLIES PTY LTD 17
Gardiner Street
Rutherford
NSW
2320
AUSTRALIA
FILTER SOCKS
These are used to filter milk. Various brands are available: Maxiflow, Blueline, Redline and Flowmade. All brands are packed in boxes of one hundred.
PRICE CODE: 1
FILTER MASTER MILK FILTER This filters and strains milk.
PRICE CODE: 1
UNIFLOW STRAINER
This is capable of straining up to 18 litres of milk at a time.
PRICE CODE: 1
MILK STRAINER
This milk strainer is made from anodized aluminium. A heavy gauge stainless steel strainer is also available.
PRICE CODE: 1
HOMILEAF MILK STRAINER
This aluminium hand-operated milk strainer has a total capacity of 6.8 litres.
PRICE CODE: 1
STAINLESS STEEL SIEVE
This sieve is used primarily for straining cheese, but it can also be used for vegetables. It has a diameter of 18cm.
PRICE CODE: 1
PERFORATED FLAT LADLE
This stainless steel ladle is used for draining or straining cheeses. It has a diameter of 10cm.
PRICE CODE: 1
All the above strainers are available from:
R J FULLWOOD & BLAND
ELLESMERE
Shropshire
SY12 9DF
UK
DAL SPLITTER
This machine splits shelled pulses into dal. Its power requirements are 0.75kW (1hp). Throughput: 1000kg per hour.
PRICE CODE: 3
DANDEKAR MACHINE WORKS LTD.
Dandekarwadi, Bhiwandi
District Thane
Maharashtra
421 302
INDIA
Rice flaking equipment
LOW-COST ROLLER FLAKING MACHINE
This portable machine is used for both cereals and pulses. It consists of a hopper, hollow rollers, gear transmission system and support frame. The rollers are fabricated from mild steel pipe and are surface plated with nickel. The power requirements are a 0.75kW (1hp) single phase electric motor through a belt drive to the central roller. Throughput: 20kg per hour soybean or 10kg per hour rice. Weight: 80kg.
PRICE CODE: 2
CENTRAL INSTITUTE OF AGRICULTURE ENGINEERING
Nabi Bagh
Bersala Road
BHOPAL
462018
INDIA
RICE FLAKE MACHINE (POHA MILL)
This power-driven mill has a 28cm roller and a 76cm drum, both made of cast iron. 60-70kg of paddy can be made into poha per hour. The mill is free-standing. The roller revolves while the paddy is being pressed and can be adjusted according to the thickness of poha required. By pressing the roller against the rim of the drum, all poha can be collected near the centre of the drum.
PRICE CODE: 3
RICE FLAKE MACHINE (POHA MILL)
DANDEKAR BROTHERS (ENGINEERS & CO)
Shivaji Nagar, Factory Area
SANGLI 416 416
INDIA
Rice flaking equipment also manufactured by:
DANDEKAR MACHINE WORKS LTD.
Dandekarwadi, Bhiwandi
District Thane
Maharashtra
421 302
INDIABEHERE'S & UNION INDUSTRIAL WORKS
Jeevan Prakash
Masoli
DAHANU ROAD 401 602
District Thane
INDIA
These are more commonly found in larger-scale continuous processes where they are used to measure the flow of material through the process or the level of foods on storage tanks. There are a large number of different designs of varying complexity and cost. Simple flow meters may find application at the larger range of small-scale processing operations.

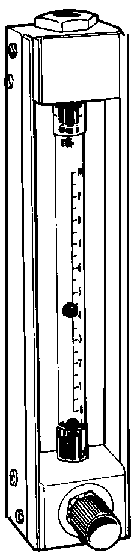

SERIES 1100 FLOW METERS
This flow meter has a steel channel at each end and a connection block containing the fittings which secure the tube. The block at the inlet end may also incorporate a needle valve. The front of the instrument is protected by a transparent plastic dust-cover. Available in a range of tube lengths (all calibrated). They have a working temperature of 60°C maximum.
PRICE CODE: 2
SERIES 1100 FLOW METERS
FISHER CONTROLS
Rotameter Works
330 Purley Way
CROYDON
UK
TROGAMID FLOW METERS
Suitable for measuring the flow of almost any liquid or gas.
PRICE CODE: 2
NIXON INSTRUMENTATION
Charlton Kings Industrial Estate
Cirencester Road
CHELTENHAM
UK
Flow meters also manufactured by:
PLATON FLOWBITS
Wella Road
BASINGSTOKE
UKDANFLOSS LTD
Instrumentation Division
Magflo House
Ebley Road
STONEHOUSE
UK
NON-ELECTRIC CHEST FREEZER
This freezer uses liquid petroleum gas, natural gas or kerosene. The unit has a childproof key lock and tight magnetic gaskets on the door. A parts kit is also available. Dimensions: height 102cm x weight 95cm x depth 77cm.
PRICE CODE: 4
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
Fryers (gas and electric)
|
Country |
Manufacturer |
Equipment name |
Capacity (litres of oil) |
Price code |
Power (kW) |
Other information |
|
Brazil |
Braxinox Brazil Equip Industr Ltda |
INDUSTRIAL FRYER ETE MM 220 |
40 |
4 |
36 |
|
|
Saveiro Comercio e Industria |
FRYER |
9 |
2 |
|
|
|
|
Croydon Ind de Mags Ltda |
FRYER MODEL FA2.5 |
27 |
3 |
5 |
|
|
|
MODEL F2C |
|
3 |
5-6 |
|
||
|
MODEL TFSL |
10 |
2 |
2.5-3 |
|
||
|
MODEL TF GLP |
11.5 |
2 |
|
Uses gas supply |
||
|
MODEL F1 |
12 |
2 |
2.5-3 |
Gas model available |
||
|
F2-5/F2-8 |
12 |
2 |
5 |
Gas model available |
||
|
F2GS |
12 |
2 |
|
Uses gas supply |
||
|
SAUSAGE HOT FRYER FG1 |
|
2 |
|
Uses gas supply |
||
|
SAUSAGE FRYER CH1 |
|
3 |
|
Temperature range: 50-300°C |
||
|
India |
Continental Equipments Pvt Ltd |
DEEP FAT FRYER |
8 |
2 |
3 |
|
|
Gardeners Corporation |
DEEP FAT FRYER |
|
3 |
Gas and electric fryers available |
|
|
|
Thakar Equipment Co. |
ELECTRIC FRYER |
30 |
3 |
9 |
|
|
|
MODEL ESF30 |
|
3 |
12 |
|
||
|
MODEL EDF1 |
|
3 |
|
Other sizes available |
||
|
GAS FRYER |
60 |
|
3 |
|
||
|
Nigeria |
Department of Agricultural Eng. |
GARI FRYING MACHINE |
|
3 |
|
Fries 66kg gari/h |
|
Philippines |
Somerville Stainless Steel Corp. |
FAT FRYER |
|
2 |
|
Other sizes available |
|
UK |
Olivertons |
M LINE ELECTRIC/GAS FRYERS |
|
3 |
|
Two electric and two gas models are available |
|
FRYMASTER RANGE |
|
3 |
|
Uses gas supply. BABY, MAJOR and STANDARD are available |
||
|
Zimbabwe |
GDI (Pvt) Ltd |
CHIP FRYERS |
|
2 |
|
SINGLE or DOUBLE model |
|
Mitchell and Johnson PVT Ltd |
DEEP FRYER |
12 |
2 |
6 |
|
|
|
Plaza Oriental(PVT) Ltd |
WOK |
|
1 |
|
Flat or rounded models available |
|
|
Stainless Steel Industries Pvt Ltd |
CHIP FRYER |
|
2 |
4 |
|
Deep fat fryers
34.1 Manual grating equipment
PEDAL-OPERATED COCONUT GRATER
This portable grater can be operated by two people. The rotary blades (which are detachable), are mounted onto a bicycle. While one operator presses half of the coconut against the blades, the other turns the pedals. The grater blades can be substituted for slicing, milling, shelling and winnowing operations.
PRICE CODE: 1
DEPT OF AGRICULTURE, CHEMISTRY & FOOD SCIENCE
Visayas State
College of Agriculture
Baybay, LEYTE 7127-A
PHILIPPINES
ROOT CROP GRATER/PULVERIZER
ROOT CROP GRATER/PULVERIZER
This machine is used to produce grated root crops for processing to various food products. The pulverizer can use either pedal or motor power. There is an easy-to-clean grating drum, power transmission hopper and an aluminum trough. Throughput: 50kg per hour.
PRICE CODE: 1
VISAYAS STATE COLLEGE OF AGRICULTURE
8 Lourdes st
PASAY CITY 3129
PHILIPPINES
Grating equipment also manufactured by:
LAKELAND PLASTICS
38 Alexandra Buildings
WINDERMERE
LA23 1BQ
UKILO - SDSR
P.O. Box 60598
NAIROBI
KENYA
34.2 Powered grating equipment
WADHWA CASSAVA GRATER
This machine, powered by a 3.7kW (5hp) diesel engine or electric motor has circular grating discs. The discs run at 1550 rpm and are self-cleaning. Throughput: 500kg cassava per hour.
PRICE CODE: 2
AGRICULTURAL ENGINEERS LTD
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANA
CASSAVA GRATER
Power: 1.5kW (2hp) or 2.2kW (3hp) or 3.7kW (5hp), depending on model. Throughput: 200-300kg per hour.
PRICE CODE: 2-3
CASSAVA GRATER
RAJAN UNIVERSAL EXPORTS (MFRS) LTD
Raj Buildings 162, Linghi
Chetty Street, P. Bag No. 250
MADRAS 600 001
INDIA
VERTICAL DRUM GRATER
Root crops such as cassava can be grated with this machine. The surface of the drum is covered with a sheet of perforated metal which rotates across the base of the feed hopper by a belt drive from a 2.9kW (4hp) diesel or electric motor. The cassava is pressed against the grating surface by a wooden block inserted into the hopper. The hopper, drum and frame can be made from timber or scrap metal.
PRICE CODE: 1
TIKONKO AG. EXTENSION CENTRE
Methodist Church Headquarters
Wesley House
P.O. Box 64
FREETOWN
SIERRA LEONE
Powered grating equipment also manufactured by:
INDUSTRIAS MAQUINA D'ANDREA S.A.
Rue General Jardim 645
SAO PAULO 01223
BRAZILINSTITUTE OF SCIENCE & TECHNOLOGY
University of the Philippines
Los Banos
LAGUNA
PHILIPPINES
PORTABLE FOOD GRILL
This grill is suitable for use both inside and outside. Charcoal is used, and there is a heat regulator and liquid gas/alcohol reservoir.
PRICE CODE: 1
DARMO METAL INDUSTRIES
Tempaurel Compound
BO Putatan, Muntinlupa
METRO MANILA
PHILIPPINES
Grills also manufactured by:
THAKAR EQUIPMENT CO.
66 Okhla Industrial Estate
NEW DELHI 110 020
INDIA
CHALLENGER WATER HEATERS
These models can be used for a continuous supply of boiling water. The urns are lined with copper for maximum heat transfer and all pipework is contained within a stainless steel cover. Optional extras include a draw-off swivel arm, drip tray and boiler stand. Three models are available with throughputs of 142-255 litres hour.
PRICE CODE: 2-3
BULK BOILING URNS
These stainless steel urns provide immediate hot water. There is a 'low-water' safety cut-out mechanism and a selector switch. Optional extras include: draw-off tap, swivel arm, drip tray and boiler stand. The urns are available as either gas or electric powered, and there are five sizes from 1854 litres.
PRICE CODE: 2-3

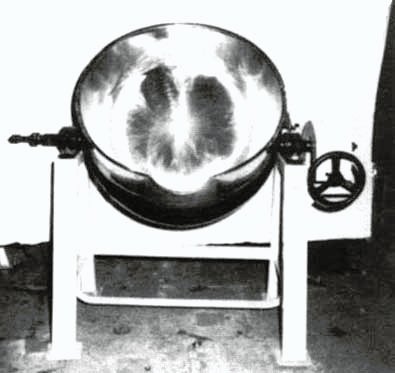

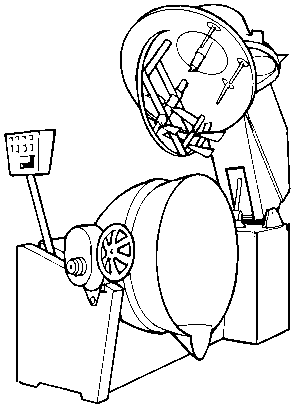

DIGITHERM
This electric tilting kettle has an insulated exterior surface which cannot exceed 40°C.
A thermostat ensures an even heat distribution, and prevents adhesion and boiling. There are four individually controlled heating elements. Other models available include: 40,60,80 and 100l. Capacity; 20l.
PRICE CODE: 2-4
All the above heaters are available from:
STOTT BENHAM LTD
P.O. Box 9, High Barn Street
Vernon Works
Royton
OLDHAM
OL2 6P
UK
Water heaters also manufactured by:
THAKAR EQUIPMENT COMPANY
66 Okhla Industrial Estate
NEW DELHI 110 020
INDIA
GAS HOTPLATES
These are designed for small-scale heating. Each hotplate consists of cast iron burners with holes and air mixers. The burners are easy to convert from liquid propane to natural gas. In addition, each burner is adjustable from a low to a simmer flame. The handles are made from bakelite to prevent burning. Versions available (i.e. no. of burners): 1, 2, 3.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
OLD ROMAN PIZZA STOVE
Pizza crusts can be made using this stove. The pizza mix is poured onto the stove, spread and heated.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
KRUMKAKE BAKER
This hotplate is designed for making thin biscuits. A wooden cone roller is provided to roll the biscuit into a cone.
KRUMKAKE BAKER
PRICE CODE: 1
VITANTONIO
Dept C
34355 yokes Dr
Eastlake
OHIO 44094
USA
HEAT EXCHANGER
This consists of plates which form a pair of concentric loops at even spaces. The edges of the loops are sealed so that liquid can flow through the channels. Models are available for an exchange temperature of up to 600°C.
PRICE CODE: 2
LARSEN & TOUBRO LTD
L & T House, Ballard Estate
P B No 278
BOMBAY 400 038
INDIA

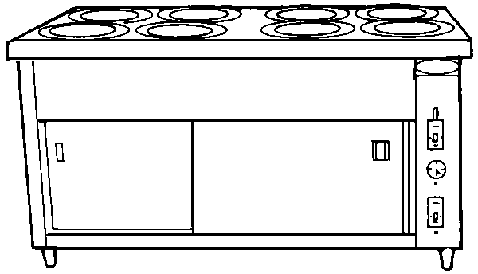

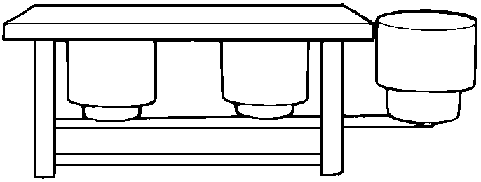

ELECTRIC BAIN-MARIE
This can be used as a crockery warmer or as a service counter. Dimensions: length 4.27m x width 1.07m.
ELECTRIC BAIN-MARIE
PRICE CODE: 2
THAKAR EQUIPMENT COMPANY
66 Okhla Industrial Estate
NEW DELHI 110 020
INDIA
COCINAS MODEL 2MMP
This kerosene stove is suitable for use in a small industrial setting. Two gas burners are encased in a cabinet with a flat heating surface. Many variations of this model are available.
COCINAS MODEL 2MMP
PRICE CODE: 1
CASTROVIRREYNA SRL
Jr Catsrovirreyna 876
Casila Postal 050033 Brena
LIMA
PERU
GRIDDLES
The following sizes are available:
(a) 24 x 18 x 15cm PRICE CODE: 1
(b) 24x 24 x 15cm PRICE CODE: 2
(c) 6 x 24 x 15cm PRICE CODE: 2
SOMERVILLE STAINLESS STEEL CORP.
90 Sen Gil J Pujat Ave
Makati
METRO MANILA
PHILIPPINES
ANAGI II
This ceramic stove is designed to burn all woods including rubber wood.
It has two pot positions and one fire box. The fuel is fed in at the side of the larger pot hole and both cooking positions are immediately in front of the cook. A connecting tunnel between the firebox and the second pot hole distributes approximately one third of the heat output which is sufficient to maintain gentle boiling. The fuel efficiency of this stove is approximately 20%. Construction details may be obtained from:
INTERMEDIATE TECHNOLOGY
DEVELOPMENT GROUP
Myson House
Railway Terrace
RUGBY CV21 3HT
UK
Hot plates also manufactured by:
ESSCO FURNACES (P) LTD
127 Velachery Road
Little Mount, Saidapet
MADRAS 600 015
INDIATHAKAR EQUIPMENT COMPANY
66 Okhla Industrial Estate
NEW DELHI 110 020
INDIACROYDON IND DE MAQS LTDA
Soci Gerente
R 24 de Fevereio 71 F75-77-79
RIO DE JANEIRO
RJ 21040
BRAZIL
Crêpe and waffle makers
CRÊPE MAKING MACHINE
This machine makes crêpes suitable for the catering industry. It is made of fibreglass and has an injector pump for dough and two grills. Power requirements are 110/220V. Throughput: 200 x 40g crepes per hour.
PRICE CODE: 2
MARQUINAS DE KREPS SUISSO
Rua Oscar Freidre 1784
01426 SAO PAULO SP
BRAZIL
WAFFLE IRON
This is designed for use on the top of a cooking stove. It has a non-stick teflon interior, heatproof bakelite handles, and a thermometer to ensure even baking. The batter is placed inside and the top is pressed down. Four waffles can be made per batch.
WAFFLE IRON
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
Sandwich and waffle makers are also manufactured by:
CROYDON IND DE MAQS LTDA
Soci Gerente
R 24 de Fevereio 71 F75-7779
RIO DE JANEIRO
RJ 21040
BRAZIL
Rice cookers
RICE COOKER
This automatic rice cooker has a power requirement of 0.35-1.5kW, depending on the model. Capacity 0.6-4.2 litres. Various other sizes are available.
PRICE CODE: 1
GUANGZHOU ELECTRIC RICE
COOKER FACTORY
Lianhe Suburbs
NORTH GUANGZHOU
CHINA
Rice cookers also manufactured by:
MR FABRICATION AND SERVICING CORP.
Carmelo & Bauermann Compound
EDSA, Guadalupe
Makati
METRO MANILA
PHILIPPINES
Food warmers

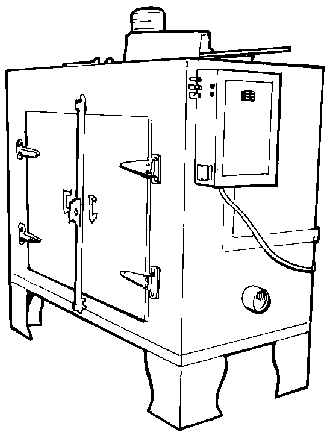

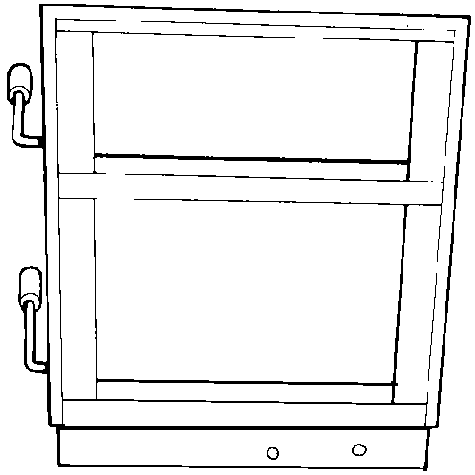

ELECTRIC HOT CUPBOARD
This keeps food hot (above 60°C) to prevent the growth of food poisoning bacteria during storage prior to serving, or it can be used to warm up food.
Three sizes are available:
|
MODEL |
SIZE |
POWER |
|
HCE-1 |
122 x 76cm |
1.0kW |
|
HCE-2 |
183 x 76cm |
1.5kW |
|
HCE-3 |
244 x 76cm |
3.0kW |
PRICE CODE: 1
THAKAR EQUIPMENT CO.
66 Okhla Industrial Estate
NEW DELHI 110 020
INDIA
FOOD WARMER
This has a removable stainless steel crumb tray with three slatted stainless steel shelves. The front is fitted with heat resistant glass and there is a glass sliding door at the rear.
PRICE CODE: 3
MITCHELL AND JOHNSON PVT LTD
P.O. Box 966
BULAWAYO
ZIMBABWE
Food warmers also manufactured by:
BRAXINOX BRASIL EQUIPAMENTOS
INDUSTRIAIS LTDA
Estrada da Servido 155 OSASCO
Caixa Postal 280
06170 SAO PAULO SP
BRAZILGRUENTHAL AND BEKKER (PVT) LTD
P.O. Box 2550
HARARE
ZIMBABWE
Gas ring burners
THAKAR BURNERS
MODEL GLR 2 This is a two-burner, gas cooking-range. Several other models (three- and four-burner versions) are also available.
PRICE CODE: 1
THAKAR EQUIPMENT CO.
66 Okhla Industrial Estate
NEW DELHI 110 020
INDIA
Homogenizers are used in the food industry to form a stable emulsion from two immiscible liquids, usually oil and water. Homogenization causes the breakdown and dispersal of fat globules to form an homogeneous liquid. In addition, it changes the functional properties or eating quality of foods, although it has no effect on the nutritional value or shelf-life. Products which are homogenized include dairy products such as milk (e.g. 'homogenized milk'), ice cream, butter and margarine. An emulsifying agent, such as lecithin may be added to assist in the process. All homogenizers work on one of three basic principles: pressure, rapid mixing or ultrasonic vibration. The second type is more likely to be suitable for small-scale operations, but all types of equipment are expensive to buy and maintain. Many different types of equipment are available, ranging from simple hand-operated machines to larger, powered homogenizers with greater throughputs.

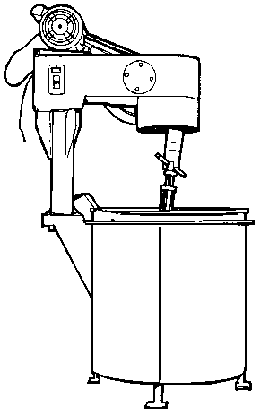

MIXER/HOMOGENIZER, SILVERSON L4R
This is a heavy duty, multi-purpose, high-speed mixer. Speed control is by means of an integral solid state electronic regulator incorporating an on/off switch. The mixer is supported on an electrically-operated rise and fall bench stand which is activated by push-button control.
The machine is supplied with an emulsifier head, square hole, high sheer screen, general purpose disintegrator head, axial flow head and a pump head. It requires a 220/240V, 50Hz mains supply. Capacity: 12 litres. Dimensions: 30 x 50 x 93cm.
PRICE CODE: 3
THE NORTHERN MEDIA SUPPLY LTD
Sainsbury Way
HESSLE
HU13 9NX
UK

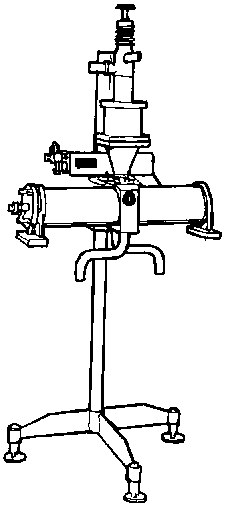

ELECTRICALLY-OPERATED BLUE CALF
Liquid is forced at a constant rate through a homogenizing jet giving good results on rough emulsions and suspensions, provided the liquid can flow through the pump. A safety valve, air vent and jet control are provided, and the equipment is easy to dismantle for cleaning purposes. All parts are manufactured from stainless steel. Throughput: 45 litres per hour. Larger units are also available.
ELECTRICALLY-OPERATED BLUE CALF
PRICE CODE: 4

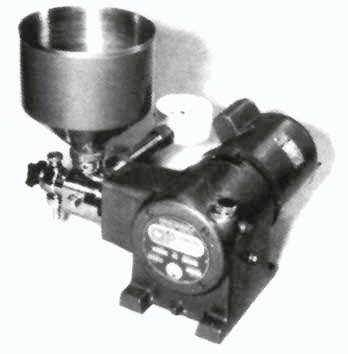

HAND-OPERATED QP
This laboratory homogenizer has stainless steel contact parts. There are also bench clamps and jets for fine and coarse suspensions. The 0.5-litre hopper is emptied every 2-3 minutes.
PRICE CODE: 2
The above are both available from:
ADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH
RH16 1XQ
UK

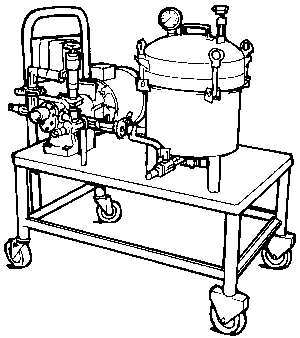

MINISONIC ULTRASONIC HOMOGEN 4065
This is a low-cost, small batch production homogenizer. The stainless steel gear pump takes process material from the vessels and delivers it at a pressure of 1240kPa (180psi) to the ultrasonic homogenizing head.
The homogenizer can be used in several ways:
(1) Rough premix pumped from the vessels through the homogenizing head and discharged into a separate vessel.(2) Emulsion traverses from one vessel to another and back again.
(3) Separate phases of the emulsion are put into the two vessels. The flow is controlled by a three-way valve.
(4) The continuous phase is recycled through the homogenizer, while the disperse phase is introduced at a controlled rate, via the three-way valve.
Requires 220V, 50-60Hz electricity supply. Motor power: 0.37kW (0.5hp). Throughput: 120 litres per hour. Dimensions: length 50 x width 26 x height 50cm.
MINISONIC ULTRASONIC HOMOGEN 4065
PRICE CODE: 4
LUCAS DAWE ULTRASONICS
Concord Road
Western Avenue
LONDON W3 OSD
UK
BUTTER WORKER
BUTTER WORKER
This hand-operated butter worker, mixes and works butter ready for forming.
PRICE CODE: 1
DAIRY UDYOG
C-229A/230A, Ghatkopar Ind Est
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIA
EMULSIFIERS/HOMOGENISER HSE 2/20
This machine operates in an up/down or sideways movement, and is available with a stand or a wall support. Capacity: 2-10 litres. Other sizes are available.
PRICE CODE: 2
MAMKO PROJECT ENGINEERING & CONSULTANCY
Yashodham Office Complex
Gen. Arunnkumar Vaidya Marg
Goregon (E)
BOMBAY 400 063
INDIA
HIGH-SPEED EMULSIFIER
This consists of a stainless steel perforated screen disc-impeller with a 0.19kW (0.25hp) motor.
PRICE CODE: 2
NARANGS CORPORATION
25/90 Connaught Place
Below Madras Hotel
NEW DELHI 110 001
INDIA
Homogenizers also manufactured by:
LAKSHMI MILK TESTING MACHINERY CO.
A90 Group Industrial Area
Wazirupa
NEW DELHI 110 052
INDIAJANKLE & KUNKEL (UK) LTD
P.O. Box 16
LEWES
BN7 3LR
UK
Manual ice cream makers

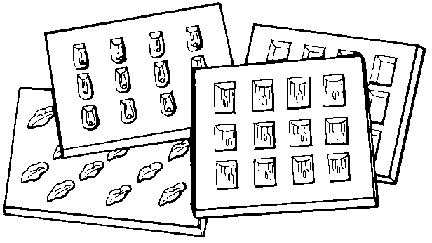

ICE CUBE TRAY
Small ice cubes can be made using these plastic trays which will not break or crack with the cold of the freezer.
PRICE CODE: 1

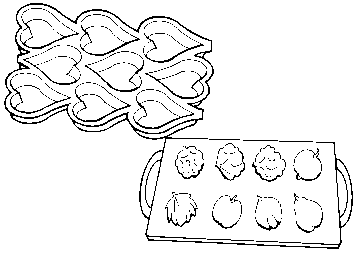

LOLLY MOULD
This comprises a mould and re-usable sticks for making up to six ice follies at a time.
PRICE CODE: 1
LAKELAND PLASTICS
38 Alexandra Buildings
WINDERMERE
LA23 1BQ
UK

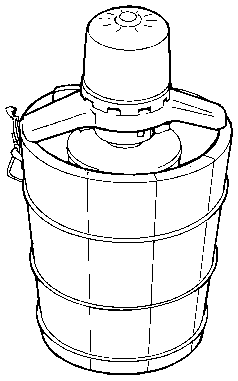

ICE CREAM FREEZER
This is a large hand-operated ice cream maker. It has cast iron mixers which are hot-dipped in tin to prevent rusting. The scrapers are made from hardwood and the machine has an extra thick tub for fast freezing. Capacity: 22.7 litres ice cream. Height: 61 cm.
ICE CREAM FREEZER
PRICE CODE: 3
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA

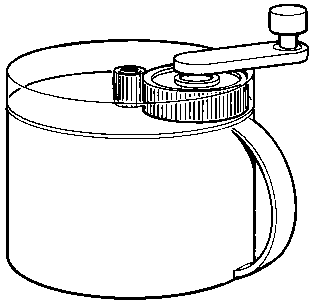

HOME ICE CREAM MAKER
A handle is turned to operate the machine and up to six servings can be made at once.
HOME ICE CREAM MAKER
PRICE CODE: 1
R J FULLWOOD & BLAND LTD
ELLESMERE
Shropshire
SY12 9DF
UK
ICE CREAM BEATER
Designed for the small scale, this manual ice cream beater has a lever arm which triggers a swivelling and up-and-down motion of the ice cream in the pan. The pan's base rotates, and the mixture is then blended. Input capacity: 9.1 litres. Dimensions: height 167.6cm x diameter 45.7cm.
PRICE CODE: 1
CORNELIO CARREON
9 Figeuroa St
Cebu City
CEBU
PHILIPPINES
Powered ice cream makers
ICE CRUSHER
This crusher has a 3kW (4hp) motor. Overall dimensions: 54 x 32 x 22cm.
PRICE CODE: 3
CROYDON INDUSTRIA DE MAQINAS
LTDA
Soci Gerente
R 24 de Fevereio 71 F75-77-79
RIO DE JANEIRO, RJ 21040
BRAZIL
HOME ICE CREAM MAKER
With this ice cream maker approximately 1.2 litres of ice cream can be made in 25-40 minutes.
PRICE CODE: 1
R J FULLWOOD & BLAND LTD
ELLESMERE
Shropshire
SY12 9DF
UK
WHITE MOUNTAIN ICE CREAM FREEZERS
This machine can be hand- or electrically-operated for small-scale ice cream production. The three-gear drive mixes and beats the entire contents of a wooden tub. The motor requires 115V AC and turns at 1200 rpm. Several sizes are available.
PRICE CODE: 2
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
Powered ice cream making equipment also manufactured by:
TAYLOR FREEZER UK PLC
Denmark House
Old Bath Road
TWYFORD
RG10 9QJ
UK
38.1 Ice cream scoops
ICE CREAM SCOOP
A plastic version.
PRICE CODE: 1
R J FULLWOOD & BLAND LTD
ELLESMERE
Shropshire
SY12 9DF
UK
BONZER 'EEZISCOOP' PORTIONER
This is used for portioning ice cream and similar foods. The design has a moulded bowl.
PRICE CODE: 1
BONZER LITEGRIP PORTIONER
This is used for portioning ice cream and similar foods. It is available in eight metric sizes, and the design includes lightweight arms with built in springs for ease of operation.
PRICE CODE: 1
MITCHELL & COOPER LTD
Framfield Road
UCKFIELD
TN22 5AO2
UK
ANTIFREEZE ICE CREAM SCOOP This small hand-operated scoop, has antifreeze sealed inside. Length: 17.8cm.
PRICE CODE: 1
ICE CREAM SCOOP
This hand-operated scoop is made of stainless steel, length 21cm.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
Scoops also manufactured by:
LAKELAND PLASTICS
38 Alexandra Buildings
WINDERMERE
LA23 1BQ
UKM J & D PRICE
Leworthy Mill
WOOLFARDISWORTHY
EX39 5PY
UK
This equipment comprises insulated, heated boxes which are used to hold food at a preset temperature, usually to allow micro-organisms to grow (e.g. incubation of dough and yoghurts).
COMMERCIAL YOGHURT MAKER
This is an electric incubator used for small- to medium-scale yoghurt production. Two sizes are available:
1. The Y140, with a capacity of 140 pots/cycle.2. The Y300 with a capacity of 300 pots/cycle.
COMMERCIAL YOGHURT MAKER
PRICE CODE: 3
BEL NATURAL YOGHURT MAKER
This is designed for small-scale yoghurt production and does not require electricity. A thermometer is included. Capacity: one litre.
BEL NATURAL YOGHURT MAKER
PRICE CODE: 1
R J FULLWOOD & BLAND LTD
Ellesmere
Shropshire
SY12 9DF
UK
CHEESE AND YOGHURT INCUBATOR
This incubator distributes heat evenly to yoghurt and cheese cultures.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
Incubators are also manufactured by:
LAKELAND PLASTICS
38 Alexandra Buildings
WINDERMERE LA23 1BQ
UKGEBR RADEMAKER
P.O. Box 81
3640 AB MIJDECHT
NETHERLANDSRR MILL INC.
45 West First North
Smithfield
UTAH
84335
USA
Manual labelling machines
LABEL GUMMING MACHINE
This hand-operated, label gumming machine is suitable for labels of up to 15cm width.
PRICE CODE: 1
NARANGS CORPORATION
25/90 Connaught Place
Below Madras Hotel
NEW DELHI 110 001
INDIA
LABEL GUMMING MACHINE
A pack of labels is placed at the feeding end of the machine and are automatically fed through. When the labels reach the other end they are uniformly gummed, and are ready to be picked up by the packers. Requires 230V AC. Throughput: 20-40 labels per operation. A hand-operated model is also available.
PRICE CODE: 2
J T JAGTIANI
National House, Tulloch Road
Apollo Bunder
BOMBAY 400 039
INDIA

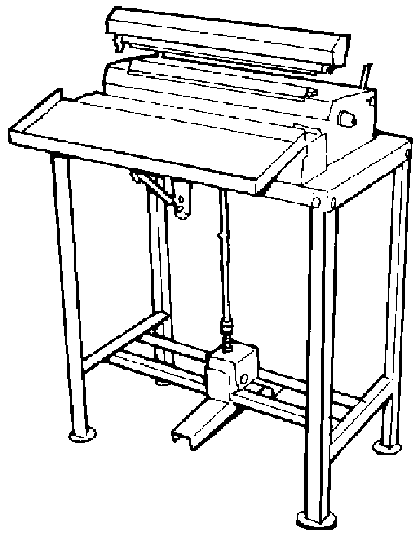

SEMI-AUTOMATIC GUMMING AND LABELLING MACHINE
This machine is designed for labelling onto round and flat surfaces. Depending on the size, the label can cover up to 50% of the circumference of a round bottle. Bottles are placed in the machine and taken out manually. Motor power: 0.37kW (0.5hp). Throughput: 1800 bottles per hour. Dimensions: Length 45.7 x Width 61 x Height 152.4cm.
SEMI-AUTOMATIC GUMMING AND LABELLING MACHINE
PRICE CODE: 2
In addition, another gumming/labelling machine is available with a range of roller sizes from 12.7cm to 45.7cm in length.
MASTER MECHANICAL WORKS PVT LTD
Pushpanjali SV Road
Santa Cruz (W)
BOMBAY 400 054
INDIA
LABELLER/GLUER
This all purpose gluer has brass rollers, guides, feed plate, and a corrosion-proof glue pot. The unit can use several sizes and shapes of labels, and uses a 0.02kW (0.03hp) motor. Dimensions: 42.5 x 24.1 x 14cm.
PRICE CODE: 2
FMC CORPORATION
Machinery International Division
P.O. Box 1178
SAN JOSE
California 95108
USA
41.1 Plate mills
No. 2 CAST HAND MILL
This is a small hand-operated mill suitable for all dry materials. It has a counterbalanced crank and cone shaped burrs. Throughput: 11.3kg per hour. Length: 40.6cm.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
THE 'LITTLE ARK' GRAIN MILL
This hand-operated small-scale milling machine is convertible from stones to burrs. Burrs are useful for pulses and beans, and stones are useful for flours. The mill can be safely motorized as it has bronze brushes on the drive shaft. It stands 37.5cm high.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
GRINDING MILL
This hand-grinding mill has adjustments for fine and coarse grinding. It is fabricated from metal and is powered by a large hand wheel.
PRICE CODE: 2
G NORTH & SON (PVT) LTD
P.O. Box BPX ST 111
Southerton
HARARE
ZIMBABWE
GRAIN GRINDING MILL
This is an all-metal hand-powered maize grinding mill. It has a simple adjustment for fine or coarse meal grinding and can also kibble grain for poultry. The mill is mounted on a cast iron pedestal and is turned by a handle on a large iron flywheel. Weight: 101kg.
PRICE CODE: 2
G NORTH & SON (PVT) LTD
P.O. Box BPX ST 111
Southerton
HARARE
ZIMBABWE
HAND FLOUR MILL
Designed for use with cereals, this bench mounted mill has a small hopper, handle and flywheel. Throughput: 5-50kg per hour.
PRICE CODE: 2
CECOCO
P.O. Box 8
Ibaraki City
OSAKA 567
JAPAN
HAND FLOUR MILL
This mill is used for cereals, although it uses meat chopper parts. Throughput is 6kg per hour.
PRICE CODE: 1
CECOCO
P.O. Box 8
Ibaraki City
OSAKA 567
JAPAN
Manual plate mills also manufactured by:
AGRO MACHINERY LTD
P.O. Box 3281
Bush Rod Island
Monrovia
LIBERIAINSTITUTE FOR AGRICULTURAL RESEARCH
Samaru, Ahmadu Bello Uni
PmB 1044
ZARIA
NIGERIAC.S. BELL CO.
170 W Davis Street
Box 291
Tiffin
OHIO 44883
USARR MILL INC.
45 West First North
Smithfield
UTAH 84335
USA
Powered plate mills
GRINDING MILL
This cast iron mill can be used for wheat, barley, peas, rice and wet/dry maize. The runner stone rotates with the shaft and the fixed stone is attached to the casing towards the pulley side. A safety spring ensures that the stones are protected from hard foreign matter. All parts should be lubricated and the stones should be chiselled once a week. Throughput is 90-260 kg per hour. Versions available include: 12V, 16V, 18V, 20V.
PRICE CODE: 3
SANJAY STEEL BUILDERS
Matru Chhaya N Subbash Road
Near Syndicate Bank, Mulund
BOMBAY 400 080
INDIA
DISC GRINDER
This machine reduces a crushed product to a fine particle size. The machine has two 20.3cm diameter grinding discs: one fixed, and one rotating. The rotating disc is mounted on a horizontal shaft and is driven by a 2.7hp (2kW) motor. The material falls from a feed chute through a central hole in the fixed disc into the grinding chamber and the ground material is discharged from a chute at the front of the machine. Throughput: 50kg per hour.
DISC GRINDER
PRICE CODE: 4
THE PASCALL ENGINEERING CO. LTD
Gatwick Rd
CRAWLEY
RH10 2RS
UK
UPLD IMPROVED VILLAGE RICE MILL
Rice can be milled using this machine which is operated by a 16hp (12kW) diesel engine or a 10hp (7.5kW) electric motor. It can be constructed from locally available materials. Throughput: 300kg paddy per hour. Dimensions: length 100 x height 180cm.
PRICE CODE: 3
AGRICULTURAL MECHANIZATION
DEVELOPMENT PROGRAMME
AMDP, CEAT, UP Los Banos College
LAGUNA 4031
PHILIPPINES
BEST GRAIN MILL
This small-scale grain mill comes with a balanced V-belt pulley that doubles as a flywheel for hand cranking. It requires 0.25kW (0.3hp) and produces a very fine flour. Throughput: (by hand) 9kg per hour. Dimensions: 35cm to top of hopper.
PRICE CODE: 2
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
COFFEE MILL RA23E
This small coffee mill is equipped with a 0.25kW (0.3hp) single phase motor, and box for the ground coffee.
PRICE CODE: 2
JR ARAUJO IND E COM DE MAQS LTDA
Division Internacional
Rua General Jardim 645
SAO PAULO SP
CEP 01223
BRAZIL
VERTICAL STONE GRINDER
This comprises stone grinders and has heavy dust-proof ball bearings for smooth running. The clearance between the stones can be adjusted easily. It requires a 5-15hp motor depending on the model. Throughput: 500-600kg per hour. Size range: 30, 40.6, 45.7, 50.8cm diameter stones.
PRICE CODE: 4
RAJAN UNIVERSAL EXPORTS (MFRS) P
LTD
Raj Buildings 162, Linghi
Chetty Street, P. Bag No. 250
MADRAS 600 001
INDIA
GROUNDNUT GRINDER
This consists of a feed hopper, grinding roller, outlet chute and motor drive, all mounted on a single frame. Throughput: 275kg per hour.
PRICE CODE: 3
KUNASIN MACHINERY
107-108 Sri-Satchanalai Road
Sawanankalok
Sukothai
THAILAND
'MILL RITE' ELECTRIC GRAIN MILL
This self-contained electric mill grinds flours or oily materials such as soy beans, corn etc. The motor has no brushes or slip rings to replace. The gear head is fully enclosed, lubricated and protected from dust. Throughput: 4.5-6.8kg per hour. Dimensions: height 33 x weight 33 x depth 30cm. Size range: 115V, 220-240V.
PRICE CODE: 2
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
NO. 60 CAST IRON POWER MILL
This fast, small grinding mill grinds roots, bones, soybeans, grains etc. The machine itself has a thrust bearing and an extra heavy feed auger. Throughput is 136kg per hour and dimensions are: Height 63.5 x Width 30cm.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
Powered plate mills also manufactured by:
JR ARAUJO IND E COM DE MAQS LTDA
Division Internacional
Rua General Jardim 645
SAO PAULO SP
CEP 01223
BRAZILRED STAR MACHINE WORKS OF JIANGXI
Bong Xiang Si
Jiangxi
CHINAPENAGOS HERMANOS & CIA. LTDA
Apartado Aereo 689
Bucaramanga
COLOMBIAPRESIDENT MOLLERMASKINER A/S
Springstrup
Box 20
DK-4300 Holbaek
DENMARKMASKINFABRIKKEN SKIOLD SAEBY
Kjeldgaardsvej
P.O. Box 143
SAEBY
DK 9300
DENMARKALVAN BLANCH DEVELOPMENT CO. LTD
Chelworth
Malmesbury
Wiltshire
SN16 9SG
UKAGRICULTURAL ENGINEERS LTD
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANAC.V. KARYA HIDUP SENTOSA
Jl. Magelang 144
Yogyakarta 55241
INDONESIADANDEKAR BROTHERS (ENGINEERS & CO.)
Shivaji Nagar, Factory Area
SANGLI 416 416
INDIARAJAN UNIVERSAL EXPORTS (MFRS) P
LTD
Raj Buildings 162, Linghi
Chetty Street, P. Bag No. 250
MADRAS 600 001
INDIACECOCO
P.O. Box 8
Ibaraki City
OSAKA 567
JAPANAGRO MACHINERY LTD
P.O. Box 3281
Bush Rod Island
Monrovia
LIBERIAMAQ INDUSTRIAL PARA LA
PULVERIZACI.
Ruben M Campos 2762
Col Villa de Cortes
03530 MEXICO DF
MEXICOMAQUINARIA PARA MOLIENDAS Y
MEZCLAS
Calle Playa Langosta 25
Col Refora Iztaccihuatl
MEXICO DF CP 08840
MEXICOALMEDA COTTAGE INDUSTRY
2326 S. Del Rosario St
Tondo
MANILA
PHILIPPINESAGROMAC
449 1/1 Darley Rd
Colombo 10
SRI LANKAUSA ECONOMIC DEVELOPMENT CO. LTD
56/7 Thung Song Hong Sub Dist.
Bangkhen
Bangkok 10210
THAILANDC.S. BELL CO.
170 W Davis Street
Box 291
Tiffin
OHIO 44883
USARR MILL INC.
45 West First North
Smithfield
UTAH 84335
USARUDARSKO METALURSKI KOMBINAT
Ulica 29
Novembra br. 15
Kostajnica
79224 Bos
YUGOSLAVIATONY ELECTRICAL MANUFACTURING
688 Cooleen Road
New Ardbennie
HARARE
ZIMBABWE
41.2 Roller mills
Manual roller mills
TRIPLE ROLL MILLS
MODELS 1 AND 2
These mills are used to disperse solids in liquid media. Model 1 can be supplied with either porcelain or stainless steel rolls, while Model 2 has either steel or stainless steel rolls which can be supplied hollow for heating or cooling. Throughputs: (Model 1): 2 litres per hour, (Model 2): 7 litres per hour. Dimensions: depth 48.2 x width 35.6 x height 35.6cm.
PRICE CODE: 4
ADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH
West Sussex
RH16 1XQ
UK
ROLLER MILL, UNATA 8000
This crushes oilseed cells to increase oil yields. Throughput: (Sunflower): 60kg per hour (kernel): 25kg per hour. Dimensions: 159x77x73cm.
PRICE CODE: 3
UNION FOR APPROPRIATE TECHNICAL
ASSISTANCE
G. Van den Heuvelstraat 131
3140
RAMSEL
BELGIUM
ROLLER MILL KIT, UNATA 8001
This flattens seeds before pressing. It is operated manually by two flywheels and consists of two steel flattening rollers with an adjustable gap. Oil output can be increased by 10-20% by the flattening process. Throughput: 25-60kg per hour.
PRICE CODE: 3
UNION FOR APPROPRIATE TECHNICAL
ASSISTANCE
G. Van den Heuvelstraat 131
3140
RAMSEL
BELGIUM
SUGAR-CANE JUICE EXTRACTOR
This manually-operated machine runs at 175rpm. It can also be powered by an electric or gasoline motor. Throughput: 100 litres juice per hour. Dimensions: 85 x 40 x 100cm.
PRICE CODE: 2
CIMAG - COM. E IND DE MAQUINAS
AGRICOLA
Rua St Terezinha 1381
13970 ITAPIRA SP
BRAZIL
Roller mills
MINI-TYPE DAL MILL
This mill consists of a pre-cleaning sieve, a sheller/roller, a dal separating sieve, a polisher, a dal grading sieve, an aspirator system, an elevator and an oiling drum machine. Throughput: 340-408kg per hour. Dimensions: length 48 x width 46 x height 51cm. Mills of various power levels available: 7.5, 15, and 22kW (10, 20, 30hp).
PRICE CODE: 4
DAHANU INDUSTRIAL WORKS
PB No. 12 Masoli
Dhanu Road 401602
DIST THANK (MAHARASTRA)
INDIA
ROLL CRUSHERS
This is used to crush dry products such as biscuits and bread. The rolls are supplied as either smooth or corrugated, and are operated at the same or differential speeds. Depending on the product specification, the rolls are assembled in single, double or triple configurations.
PRICE CODE: 4
GLEN CRESTON LTD
16 Dalston Gardens
STANMORE HA7 1DA
UK
GRANOMILL GRM 40
This machine is suitable for almonds, cocoa nibs, peanuts and hazelnuts. It is designed to grind materials into creamy pastes. Steel heads are agitated in a grind vessel, where impact, attrition or rolling ensures that the required particle size is achieved. Power requirements are a 4hp motor and there is a capacity of 3 litres or 20kg per hour.
PRICE CODE: 4
ALUMCRAFT AGENTINA S.C.A
Mercedes 568
1407 BUENOS AIRES
ARGENTINA
ROOT AND TUBER GRINDER, CNTA 2
This is a grinder for roots and tubers. It is powered by a 3CV engine. Dimensions: 105 x 86 x 86cm.
PRICE CODE: 2
MENEGOTTI - METALURGICA ERWINO
Menegotti Ltda
Rua 590 Erwino Menegotti 381
89250 JARAGUA DO SUL
BRAZIL
VERTICAL SUGAR-CANE CRUSHER
This machine has three crushing rollers, all of which are adjustable externally. It weighs 220kg in total. The power requirement is animal power equal to 1hp. Capacity 4-6 tonnes per day.
PRICE CODE:
HORIZONTAL SUGAR-CANE CRUSHER
This crusher has a 4.5kW (6hp) power requirement and consists of the following parts: high grade semi-steel grooved rollers and touch steel axles; cast iron gears and brass bearings in adjustable cast iron holders. The major rollers have a speed of 15rpm, and the driving pulley operates at 165 rpm. Pulley diameter: 96.5cm. Gross weight: 520kg. Throughput: 417kg cane per hour. Five other models are also available, with powers of up to 12kW (16hp), and throughputs of up to 1.7 tonnes per hour.
PRICE CODE: 3-4
Both the above crushers manufactured by:
PENAGOS HERMANOS & CIA. LTDA
Apartado Aereo 689
Bucaramanga
COLOMBIA
SUGAR-CANE CRUSHER
This machine is designed to squeeze the juice from sugar-cane. The cane is fed between rollers which proceed to crush the cane and squeeze out the juice. The crusher is electrically powered, requiring a 2.2kw/3hp, 3phase 1500rpm motor. It has a capacity of 20 litres per hour. The dimensions are 128 x 380 x 34cm.
PRICE CODE: 2
TANZANIA ENGINEERING &
MANUFACTURING DESIGN
ORGANIZATION
P.O. Box 6111
Arusha
TANZANIA
SUGAR-CANE CRUSHERS
This machine is a three-roller type with an adjustable upper roller. The power requirement is 6-8hp. The throughput is 3.5-4 tons cane in 8 hours. There is a small size, which can be operated either by hand or by a 2hp motor.
PRICE CODE: 3
DIAS & DIAS
690 Negombo Rd
Mabole
Wattala
SRI LANKA
Sugar-cane crushers also manufactured by:
AGRO MACHINERY LTD
P.O. Box 3281
Bush Rod Island
Monrovia
LIBERIANAFEES INDUSTRIES
Samundari Road
Faisalabad
PAKISTANP.M. MADURAI MUDALIAR, P.M. & SANG
Madurai Mudalliar Road
P.O. Box 7156
BANGELLERE
INDIA
41.3 Hammer mills
HAMMER MILL, JUNIOR MODEL
This mill is designed for grinding coarse material, particularly gari. It comes equipped with floating steel hammers, changeable perforated screens, feeding bin and a bagging outlet. The machine re quires a 2.2kW (3hp) electric motor. Throughput: 30-50kg gari per hour. Dimensions: 50 x 50cm.
PRICE CODE: 4
INDUSTRIAS MAQUINA D'ANDREA S.A.
Rue General Jardim 645
SAO PAULO 01223
BRAZIL
MAIZE GRINDER
This grinder is fitted with breaker bars which receive most of the impact during grinding. Hammers and screens can be easily changed by raising the hinged top. Weight: 128kg. A 4.56kW (6-8hp) motor/engine is required. The 'Standard' model requires 11kW (15hp), and produces 320kg maize per hour. Larger sizes are available.
PRICE CODE: 4
H.C. BELL & SON (PVT) LTD
Mutare
ZIMBABWE
MANIK GRINDING MILL
This mill is designed for use with maize and is fabricated from heavy welded steel. The hammers can be reversed four times for extended life, and the grinding chamber screen can be changed in one minute. There is also an exchangeable liner housing the fan, and a detachable feed table, thus facilitating transport. A 6-9kW (812hp) motor/engine is required, which runs at 4000 rpm. Dimensions: Height 63.5cm (with cyclone 168cm). Length complete with feed tray: 96.5cm. Width complete with suction bend: 61cm. Overall weight: 63.5kg. Throughput: 91-181kg per hour.
PRICE CODE: 4
MANIK ENGINEERS
P.O. Box 1274
Arusha
TANZANIA
GRAIN HAMMER MILL
This free-standing hammer mill has three operating speeds. The design maximizes impact velocities. In addition, the mill can be dismantled and assembled quickly and easily for cleaning and transportation. Throughput: 80kg per hour.
PRICE CODE: 3
DEPARTMENT OF AGRICULTURAL
ENGINEERING
Faculty of Engineering
University of Nigeria
NSUKKA
NIGERIA
ELECTRIC MILL M4 228
This small machine grinds coarse, medium and fine materials in seconds and can be used for products such as poppy seeds, sunflower seeds, shelled nuts, spices and coffee. A safety lid is included.
PRICE CODE: 1
RR MILL INC.
45 West First North
Smithfield
UTAH 84335
USA
CUTTER/KNIFE MILL SML
Various agricultural products (particularly suitable for oily products) can be pulverized with this mill. It comes complete with ten interchangeable screens with mesh diameters ranging from 0.25mm to 10mm for particle size control. A model with speed control is available. Throughput: 5-12kg per hour. Overall weight: 93kg.
PRICE CODE: 4
GLEN CRESTON LTD
16 Dalston Gardens
STANMORE HA7 IDA
UK
Powered hammer mills currently available
|
Country |
Manufacturer |
Equipment name |
Throughput (kg per hour) |
Price code |
Power (kW) |
|
Belgium |
Ateliers Albert & Co. SA |
MASTERMILL |
320-450 |
3 |
4-5.5 |
|
Cameroon |
Outils pour les communautes |
MAMY RAPID HAMMER MILL |
250 |
3 |
3.7 |
|
Colombia |
Penagos Hermanos & CIA. LTDA |
HAMMER MILL |
90-1500 |
3 |
3.7-5 |
|
Denmark |
President Mollermaskiner A/S |
HAMMER MILL |
250-600 |
4 |
3-7.5 |
|
Maskinfabriken Skiold SAEBY |
UNIVERSAL HAMMER MILL DM2 |
80-100 |
4 |
5.6-7.5 |
|
|
India |
Kaps Engineers |
UM HAMMER MILLS HM 10 |
300 |
3 |
|
|
VM MIKRO PULVERIZERS |
450 |
4 |
|
||
|
UM MASALA MILLS MMO |
30-60 |
3 |
7.5 |
||
|
Rajan Universal Exports (MFRS) P Ltd |
GRINDING MILL |
400-500 |
3 |
3.7 |
|
|
Nigeria |
Department of Agricultural Engineering |
GRAIN HAMMER MILL |
80 |
2 |
|
|
Peru |
Industrias Technicas 'Dolorier' |
HAMMER MILL |
250-300 |
4 |
3.6 |
|
Famia Industrial S.A. |
HAMMER MILL |
180-800 |
4 |
|
|
|
Philippines |
Appropriate Technology Centre |
HAMMER MILL FOR COCONUT |
5 |
2 |
2.2 |
|
Polygon Agro-Industrial Corp. |
HAMMER MILL |
300 |
3 |
2.2 |
|
|
Tanzania |
Manik Engineers |
MANIK GRINDING MILL |
90-180 |
3 |
3.7-22 |
|
UK |
Law-Denis Engineering Ltd |
HAMMER MILLS |
400-450 |
4 |
5.6 |
|
Scotmec (Ayr) Ltd |
POPULAR HAMMERMILL |
100-200 |
4 |
|
|
|
Zimbabwe |
H.C. Bell & Son (Pvt) Ltd |
MAIZE GRINDER |
320 |
3 |
11 |
41.4 Colloid mills

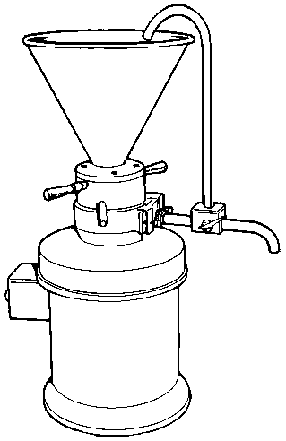

COLLOID MILL, SMC MJ
This will reduce liquid suspensions to a finer particle size, operating on the principle of high speed, fluid sheer. The material flows through a two-stage grooved conical rotor and a grooved conical stator. The high speed (2800rpm) subjects the fluid to a high shear. Motor power: 5hp (0.37kW). Throughput: 150-1500kg per hour.
PRICE CODE: 3
SREENIVASA ENGINEERING WORKS
2-1-460/1
Nallakunta
HYDERABAD 500 044
INDIA
COLLOID MILL, SMC MJ
COLLOID MILL
This stainless steel grinder has two speeds: 985rpm or 1970rpm. The 15 litre hopper can be fitted with a jacket for cooling or heating. Throughput: 45-68kg per hour. Details of other models are available on request.
PRICE CODE: 4
ADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH
RH16 1XQ
UK
LABORATORY KKK BETAGRIND
This small-scale production cone mill is particularly suitable for heat sensitive, fatty or sticky substances. Material can either be hand- or continuously-fed into the machine. Dimensions: length 50 x height 53.4 x width 30cm.
PRICE CODE: 4
KEMUTEC GROUP LTD
Hulley Road
Hurdsfield Industrial Estate
MACCLESFIELD
SK10 2ND
UK
MODEL 197A
This machine is for milling sticky, difficult substances. It has a direct drive unit, and requires 0.75-2.2kW (1-3hp). Throughput: 113-122kg per hour. Dimensions: 33 x 84 x 97cm.
PRICE CODE: 4
YTRON QUADRO (UK) LTD
Times House
179 Marlowes
HEMEL HEMPSTEAD
HP1 1BB
UK
COLLOID MILL PUC 60
This mill will produce thin-liquid and paste-like products such as: creams, mayonnaise and fruit juices. The product is fed into the operating area of the stator, which has a speed of 300rpm, by a feed device. The product is processed by high sheer, pressure and friction between the stator and the rotor. Maximum effect depends on: the milling gap, viscosity, feed size and the hardness of the product which is to be processed. The machine has a drive rating of 2.2kW (3hp). All parts are made from stainless steel. Dimensions: 43 x 26 x 68cm.
PRICE CODE: 4
PROBST & CLASS GMBH & CO. KG
Postfach 2053
Industriestrasse 28
RASTATT
7550
GERMANY
BALL MILL
This carries out dry or wet grinding of material to obtain fine particles. The process is carried out in sealed porcelain or steel containers. The roller runs at a speed of 0-45rpm. Dimensions: length 76 x width 42cm. Size range: 0.5 - 30 litres capacity.
PRICE CODE: 3
ADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH
RH16 1XQ
UK
MEAT MINCERS
This meat mincer is suitable for small scale use. All contact parts are stainless steel, apart from the cutting knives and discs which are made from high carbon steel. There is one cross shaped cutting knife and two cutting discs. The discs have 0.6cm or 0.3cm holes. There are two models available which each require 0.75kW (1hp) 3 phase or 1.1kW (1.5hp). Both machines operate at 1440rpm. Throughputs 60-100kg per hour, or 300-400 kg per hour.
PRICE CODE: 2
MEAT MINCERS
RAYLONS METAL WORKS
Kondivitta Lane
Andheri-Kurla Road
BOMBAY
400 059
INDIA
SEMI-AUTOMATIC MEAT MINCERS
These mincers have most parts made from stainless steel. The power requirements range from 0.25kW (1/3hp) to 1.5kW (2hp). The table below summarizes details of the models available.
|
Model |
Capacity (kg) |
Throughput (kg per hour) |
Price code |
|
S1 |
3 |
25 |
2 |
|
S2 |
12 |
60 |
2 |
|
S3 |
20 |
120 |
3 |
AUTOMATIC MEAT MINCERS
These machines are all floor-standing models. They use a continuous feed system to the cutters by a feed screw. The three sizes available are shown below.
|
Model |
Power kW/hp |
Capacity (kg) |
Throughput (kg per hour) |
|
S4 |
3kW/4hp |
30 |
250 |
|
S5 |
5.6kW/7.5hp |
70 |
500 |
|
S6 |
7.5kW/10hp |
80 |
750 |
PRICE CODE: 4
The above models are manufactured by:
STADLER CORPORATION
P.O. Box 7177
BOMBAY 400 070
INDIA
MEAT MINCER
This stainless steel mincer has a manual piston and uses a three phase electrical motor. Throughput: 720kg per hour.
PRICE CODE: 4
MITCHELL AND JOHNSON PVT LTD
P.O. Box 966
BULAWAYO
ZIMBABWE
MINCER
This minces fresh, tempered or frozen meat. Two models are available which have a continuous forward impulse/reverse switch. Descriptions of the models are as follows:
AE12: powered by a 1.3kW (1.7hp) motor, has four blade knives, two plates and a feed stick.AF22: powered by a 1.5kW (2hp) motor, and comprising four blade knives, two plates and a cast iron worm.
Throughputs: 230/400kg per hour depending on model.
PRICE CODE: 4
CRYPTO PEERLESS LTD
Bordesley Green Road
BIRMINGHAM
B9 4UA
UK
MEAT MINCERS
Meat can be minced using this equipment when attached to a VARIMIXER. Three sizes are available as follows:
(1) No. 5 - Uses a 20 litre mixer, with a single tool set, plastic tray and stomper. PRICE CODE: 2(2) No. 6 - This uses a double cutting tool, for use with all mixers. PRICE CODE: 2
(3) No. 7 - Used with reinforced 40, 60 and 100 litre mixers. This has a double cutting tool. PRICE CODE: 3
Throughput: 150, 200, 300 kg per hour.
SPANGENBERG BV
Grootkeuken Professionals
De Limiet 26
4124 PG VIANEN
NETHERLANDS
43.1 Liquid mixers
LOW TYPE BATCH MIXERS, MODEL 1
This small industrial mixer is available with either a copper or stainless steel inner vessel. An independent motor raises and lowers the agitator. Single, multi or variable speed agitators are available, and insulated jackets can be provided on request. Capacity: 75kg. Dimensions: diameter 60cm, depth 45cm.
LOW TYPE BATCH MIXERS, MODEL 1
PRICE CODE: 4
BCH EQUIPMENT
Mellor Street
ROCHDALE
OL12 6BA
UK
MANTOO PLANETORY MIXER
The machine can operate at three speeds and has three agitators. In addition to mixing creams and liquids, it is suitable for mixing, whipping, beating and kneading. It uses a planetary action for uniform mixing. Requires 0.75kW (1hp). Capacity: 10kg. Dimensions: 90 x 50 x 120cm.
PRICE CODE: 2
MANGAL ENGINEERING WORKS
Factory Area
PATIALA 147 001
INDIA
LOW MIXING MACHINE
This is designed for use throughout the confectionery trade. There is a lift-out agitator assembly for tilting pans of viscous products. The machine is available with single, double or multiple speed units as requested.
PRICE CODE: 4
LOW MIXING MACHINE
BCH EQUIPMENT
Mellor Street
ROCHDALE
OL12 6BA
UK
TYPHOON PORTABLE AGITATORS
These mixers can be adjusted to any working angle with a single locking device. There are three models in the range, ranging from 19kW (0.25hp) to 2.2kW (3hp).
TYPHOON PORTABLE AGITATORS
PRICE CODE: 1
PATTERSON INDUSTRIES (CANADA) LTD
250 Danforth Rd
SCARBOROUGH
Ontario M1 L 3X4
CANADA
BLENDER
This stainless steel blender has a speed of 3800rpm powered by a 0.25kW (0.3hp) motor. It requires either a 115V 50Hz or 230V 60Hz power supply. Capacity: 10 litres or 12 litres.
PRICE CODE: 2
EQUIPOS HERGO INTEGRALES
Av Division del Norte 2984
C.P 04370 MEXICO DF
MEXICO
K1 BATTER MIXER
A smooth batter can be produced in under a minute using this machine, which comprises a steel bucket and mixer powered by a 0.19kW (0.25hp) motor. Capacity: 10 litres.
PRICE CODE: 3
CRYPTO PEERLESS LTD
Bordesley Green Road
BIRMINGHAM
B9 4UA
UK
DYNAMIC BEATER/BLENDER FT79
This hand blender combines powerful mechanical action with the advantages of a hand tool. The speed can be adjusted using an electronic speed control between 350 and 900rpm to suit the user's technique. Power requirements: 220/240V, 0.25kW (0.34hp). Capacity: 30kg.
PRICE CODE: 1
MITCHELL & COOPER LTD
Framfield Road
UCKFIELD
TN22 5AO2
UK
DYNAMIC LIQUIDISING MIXER PMX83
This hand-held liquidizer is designed for use during cooking. It is housed in stainless steel with a hardened stainless replaceable blade. Power requirements: 220/240V, 0.2kW (0.27hp). Capacity: 45 litres. The range comprises three models: MX79, SMX 450 and PMX83.
PRICE CODE: 2
MITCHELL & COOPER LTD
Framfield Road
UCKFIELD
TN22 5AO2
UK
RASE MINI MIXER
This hand-held mixer is suitable for making soups, purees and sauces. The 0.35kW (0.47hp) motor requires a 220V supply. This size of machine is suitable for 3-8 litres of mixture. MINI, STANDARD and SUPER versions are available.
PRICE CODE: 2
SPANGENBERG BV
Grootkeuken Professionals
De Limiet 26
4124 PG VIANEN
NETHERLANDS
Liquid mixers also manufactured by:
PRACTIMIX S.A.
Oriente 83 No 4311
Col Malinche
MEXICO DF
CP 07880
MEXICOCRYPTO PEERLESS LTD
Bordesley Green Road
BIRMINGHAM
B9 4UA
UKADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH
RH16 1XQ
UKFABDECON ENGINEERS
138 Damji Shamji Ind. Complex
Off Mahakali Caves Rd. Andheri
BOMBAY 400 093
INDIA
43.2 Solid mixers
VARIMIXERS
This system is used for mixing, kneading whipping etc. The speed system consists of two expanding/contracting pulleys and a number of self-adjusting V-belts. The mixers also have planetary movement for reaching all parts of the bowl. Various sizes are available (12-150 litres). A drive can be fitted for accessory equipment.
PRICE CODE: 4
WODSCHOW & CO. A/S
Industrivinget 6
Postbox 10
2605 Broenby
DENMARK
KENWOOD CHEF
This planetary mixer is suitable for a wide range of operations. It comes complete with a whisk and a dough hook. A range of attachments are available in the Kenwood series. This model has a power requirement of 240 Volts and has a loading of 375 Watts. The capacity of the mixing bowl is 1.35kg flour for yeast dough.
PRICE CODE: 2
The above and many other versions are available from:
KENWOOD
Thorn EMI
Domestic Electrical Appliances Limited
Newlane
HAVANT
Hants
UK
HOBART N -50 MIXER
This mixer is suitable for small-scale/kitchen requirements. Using a planetary action, the beater or whip reaches every part of the batch, rotating on its axis opposite to the direction in which it moves around the bowl. It has a single phase voltage. It has a three-speed selective transmission. The bowl has a 5-litre capacity and is fabricated from stainless steel. It can be fitted with a range of different attachments.
HOBART A120 MIXER
This is a bench model with a 12-litre capacity. It has a power requirement of 0.25kw and is available for single and three-phase power supplies. The bowl is fabricated from stainless steel and a full range of beater equipment is available.
PRICE CODE: 2
This and many other models are available from:
THE HOBART MANUFACTURING CO. LTD
Hobart House
51 The Bourne
Southgate
LONDON
UK
43.3 Paste mixers
BEAN PASTE MIXER
This is a steel and brass electric mixer designed for making bean paste. Three models are available with capacities of: 5, 10 and 20kg, and bowl sizes of 51, 102 and 76cm.
BEAN PASTE MIXER
PRICE CODE: 2
KLAUY NAM THAI THOW OP
1505 07 Rama 4 Rd, Wangmai
Patumwan
BANGKOK
10330
THAILAND
43.4 Mixers
SHARIF MIXERS:
DRUM MIXER
This is designed for mixing spices and coating foods with salt, flavours, sugar, etc. It uses the same principles as a tumbler mixer but also uses a hoop which holds the drum at an angle for intensive mixing. The 0.75kW (1hp) motor requires a 415V 3-phase AC supply. Capacity: 200 litres. Dimensions: 160 x 102.5 x 120cm.
PRICE CODE: 2
FLOUR MIXER
This mixer is made from stainless steel and is designed for mixing different flours. It has a 3.7kW (5hp) motor and a 3 phase motor. Capacity: 2-200 kg.
PRICE CODE: 3
SHARIF ENGINEERING WORKS
Bazar Kharadar
GUJRANWALA
PAKISTAN
F6 MOISTURE ANALYSER
This measures the moisture content, temperature and weight of products such as coffee beans, cocoa beans, tea, oil seeds, nuts, cereals, rice, pulses, spices and snacks. The unit automatically senses capacitance, weight and temperature of sample The data is then compared with a commodity moisture curve held in the memory, and the appropriate moisture reading is displayed. The machine is very simple to use. A sample is placed into the measuring cell, the programme is selected and the moisture content is displayed on the LCD display. Power supply: 4 'C' size 1.5 V batteries. Range: 0.5-35°/O moisture. Dimensions: 32.5 x 16.4 x 12cm.
F6 MOISTURE ANALYSER
PRICE CODE: 3
SINAR TECHNOLOGY
9 Waterside
Hamm Moor Lane
WEYBRIDGE KT15 2SN
UK
BUTTER MOISTURE BALANCE
This is used for measuring the moisture content of butter.
BUTTER MOISTURE BALANCE
PRICE CODE: 2
DAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIA
INFRA-RED MOISTURE BALANCE
This portable moisture balance is directly calibrated for moisture percentage. Samples of 5259 can be tested. Accuracy from direct reading = 0.2%.
PRICE CODE: 1
J T JAGTIANI
National House
Tulloch Road
Apollo Bunder
BOMBAY 400 039
INDIA
OSAW DIGITAL MOISTURE METER
The percentage moisture of spices, dehydrated fruit etc. can be measured using this moisture meter which will automatically compensate for ambient temperature. It features a three digit LED display, and has an accuracy of +/- 2% with a moisture range of 8-40%. Requires: 230V AC mains supply.
OSAW DIGITAL MOISTURE METER
PRICE CODE: 2
ORIENTAL MACHINERY (1919) PVT LTD
25 R N Mukherjee Road
CALCUTTA 700 001
INDIA
45.1 Confectionery and dairy moulds
VOFACHOC HAND MOULDS
These moulds for chocolate are fabricated from impact-resistant hygienic plastic. Various shapes and sizes are available, and they can also be designed to meet individual specifications.
VOFACHOC HAND MOULDS
PRICE CODE: 1
G.F.E. BARTLETT & SON LTD
Maylands Avenue
HEMEL HEMPSTEAD HP2 7EN
UK
BUTTER MOULDS
This is a small hand operated block mould for forming butter into rectangular blocks.
PRICE CODE: 1
DAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIA
HAND-CARVED WOODEN BUTTER MOULDS
These have a carved interior and a smooth exterior, adding a decorative design to butter. Seven models are available with plain or fancy fluted edges. Alternatively melted butter (or ghee) can be poured into the mould, and when it is hard, it is simply turned out.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
ROSETTE IRONS
Designed for making waffle-like cookies. The irons are dipped into the batter and then cooked in hot oil. As the cookie turns a deep golden brown, the iron is removed from the cookie.
Several models are available.
ROSETTE IRONS
PRICE CODE: 1
PIZZELLE IRONS
Available in a wide range of designs, these irons are designed for use on gas or electric hotplates.
PIZZELLE IRONS
PRICE CODE: 1
Both the above are manufactured by:
VITANTONIO
Dept C 34355 yokes Drive
Eastlake
OHIO 44094
USA
Confectionery and dairy moulds also manufactured by:
GEBR. RADEMAKER
P.O. Box 81
3640 AB MIJDECHT
NETHERLANDS
45.2 Dough and pastry moulds
ROTARY BISCUIT-MOULDING MACHINE
This forms biscuits into the required shape. Trays are fitted onto a continuous chain. Motors of various powers are available: 0.75kW (1hp), 1.1kW (1.5hp) and 1.5kW (2hp).
PRICE CODE: 3
BUOY ENGINEERS
Mini Industrial Estate
P.O. Arimpur, Trichur District
KERALA
680 620
INDIA
BREAD MOULDING MACHINE, MDR 2
This machine moulds french and baguette-type bread (from 10g to 2kg). It is made from steel sheets and requires 0.37kW (0.5hp). Throughput: up to 3000 units per hour.
PRICE CODE: 3
SUPREMA EQUIP PARA IND DE PANIFICA
Estrada Municipal SMR 340
N 532/600 Jardim Boa Vista
SUMARE SP
BRAZIL
DOUGH FORMER
This makes up to 74kg of uniformly-sized dough balls per hour.
PRICE CODE: 2
BEIJING No. 1 MACHINE TOOL PLANT
4 Jain Guo Men Wai St
BEIJING
CHINA
HANDAMATIC
This is a hand-operated pie cutting/moulding machine. Optional extras include moulding dies, lidders and platforms for foils. Throughput: 400 pies per hour. Dimensions: 65 x 38 x 37cm.
HANDAMATIC
PRICE CODE: 4
CRYPTO PEERLESS LTD
Bordesley Green Road
BIRMINGHAM
B9 4UA
UK
BREAD MOULDING MACHINE
Designed for forming and shaping bread, this machine is suitable for producing dough pieces weighing 400g. Throughput: 500-700 loaves per hour.
PRICE CODE: 3
GARDENERS CORPORATION
6 Doctors Lane
PB No. 299
NEW DELHI 110 001
INDIA
DOUGH MOULDER
This moulds dough into a loaf shape prior to baking. Dimensions: 135 x 70 x 106cm.
DOUGH MOULDER
PRICE CODE: 3
KLAUY NAM THAI THOW OP
1505 07 Rama 4 Rd. Wangmai
Patumwan
BANGKOK
10330
THAILAND
RAVIOLI STAMPS
These simple moulds crimp, cut and seal in one motion. They are ideal for pasta and pies.
RAVIOLI STAMPS
PRICE CODE: 1
VITANTONIO
Dept C
34355 yokes Drive
Eastlake
OHIO 44094
USA
45.3 Baking tins
MUFFIN PANS
These are used for making decorative biscuits, cakes etc. The following patterns are available: sweetheart, animals, puzzle, teddy bears, harvest fruits, alphabet shapes and a gingerbread house.
MUFFIN PANS
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
'EDUCATED' CAKE PAN
This creates different cake shapes using one tin only. The equipment comprises a deep rectangular non-stick cake tin with blocks, which can be placed anywhere inside the cake tin to create a different shape. The cake mixture is then poured around the blocks. Dimensions: 38.5 x 21 x 5cm.
PRICE CODE: 1
MINI BREAD TINS
Are also available from:
LAKELAND PLASTICS
38 Alexandra buildings
WINDERMERE LA23 1BQ
UK
All pans and trays detailed below are available from:
MACKIES PTY LTD
P.O. Box 160
Padstow
NSW 2211
AUSTRALIA
CONFECTIONERY TRAYS
Designed for cakes and buns, these trays include: shell cake trays, American muffin trays, Easter egg/football cake tray, seamless bun tray and mini-loaf pans.
CONFECTIONERY TRAYS
PRICE CODE: 1
CONFECTIONERY PANS
These pans are used for individual cakes and pies. The versions available include: bar loaf pans, fruit cake pans, sponge pans and pie pans.
CONFECTIONERY PANS
PRICE CODE: 1
BREAD PANS
The four types of bread pan available are: a three unit bread pan, a single bread pan, corrugated tank loaf pans (three per set), and Vienna pans (three per set).
BREAD PANS
Baking trays available from MACKIES
|
Equipment |
Price code |
Number of versions available |
|
SPECIALITY ROLL TRAYS |
1 |
3 |
|
SPECIALITY BAKING TRAYS |
1 |
5 |
|
SPECIALITY LOAF PANS |
1 |
4 |
|
VERSATILE STICK/PERFORATED TRAYS |
1 |
2 |
Other suppliers for MACKIES:
MACKIES PTY LTD
P.O. Box 3
Oundle
PETERBOROUGH PE8 5DS
UK
MACKIES PTY LTD
Unit A, 5 Lorien Place
P.O. Box 82034 Highland Park
AUCKLAND
NEW ZEALAND
FORCED CONVECTION OVENS
These are designed for bulk cooking, roasting and baking. Two models are available (either gas or electric). The equipment has electronic controls, variable thermostat and a 90-minute timer with manual over ride. Model 320 is heated by burners/elements each side of the compartment, whereas Model 200 is heated on the right hand side of the oven. Capacity: Model 200 = 160 litres, 320 = 275 litres.
PRICE CODE: 4
STOTT BENHAM LTD
P.O. Box 9
High Barn Street
Vernon Works
Royton
OLDHAM OL2 6RP
UK
MODEL FP2E PIZZA OVEN
This compact, electric oven has two cabinets, one on top of the other. Power requirements: 220V, 6kW. Dimensions: 54 x 74 x 68cm. A smaller single-shelved gas pizza oven is also available.
MODEL FP2E PIZZA OVEN
PRICE CODE: 4
CROYDON IND DE MAQS LTDA
Soci Gerente
R 24 de Fevereio 71 F75-77-79
RIO DE JANEIRO, RJ 21040
BRAZIL
BAKERY OVENS
This oven has four chambers and a power consumption of 42kW per hour. Solenoid valves let steam periodically into the oven. Throughput: 200kg per hour. Dimensions: 270 x 320 x 240cm.
PRICE CODE: 4
IND DE FORNOS PERFECTA LTDA
Rua dos Ciclames 460
03164 SAO PAULO SP
BRAZIL
BAKERY/BREAD OVEN
This is designed for the bread baking industry. It has electrical heating and the chambers are well insulated. Throughput: 40kg per hour.
PRICE CODE: 4
SUPREMA EQUIP PARA IND DE PANIFICA
Estrada Municipal SMR 340
N 532/600 Jardim Boa Vista
SUMARE SP
BRAZIL
HAY BOX COOKER
This prototype model comprises a simple box, lined with insulation, into which is placed a pot of previously heated food. The food is cooked in ½-6 hours by the heat retained in the box. There are many advantages for such a simple cooker: for example, the box can save fuel, food can be cooked whilst at work, it is safe near children, it is hygienic, strong, light, portable and the food will never burn.
HAY BOX COOKER
PRICE CODE: 1
RIM OVEN
This is a prototype small capacity batch oven made from discarded truck rims welded together. A door is welded at the bottom of one, and trays or shelves are welded inside to accommodate bread pans. The oven walls are constructed using clay or mud and fire bricks. Wood is used as fuel.
RIM OVEN
PRICE CODE: 1
Both the above ovens are available from:
RURAL INDUSTRIES INNOVATION
CENTRE
Private Bag 11
KANYE
BOTSWANA
ELECTRIC BAKING OVEN
This oven is insulated with glass wool and heated electrically. Air is circulated in the oven by means of a fan, and the temperature is controlled by a thermostat. The oven uses a 400/440V AC three phase power supply. Size range: Mini, Medium, Large.
ELECTRIC BAKING OVEN
PRICE CODE: 4
BUOY ENGINEERS
Mini Industrial Estate
P.O. Arimpur, Trichur District
KERALA
680 620
INDIA
BAKING OVEN
Designed for baking bread and cakes, this electrically-heated oven is double-walled and fully insulated. There is also a thermostatic temperature control. Throughput: 300 loaves per hour.
PRICE CODE: 4
GARDENERS CORPORATION
6 Doctors Lane
PB No. 299
NEW DELHI 110 001
INDIA
DRYING OVENS, ELECTRIC & STEAM
These ovens are available as either electric or steam-heated. They are fabricated from mild steel panels and insulated with glass wool. The oven can be heated up to 300°C, and is controlled by a thermostat.
PRICE CODE: 3-4
MASTER MECHANICAL WORKS PVT LTD
Pushpanjali SV Road
Santa Cruz (W)
BOMBAY 400 054
INDIA
HIGH HUMIDITY COOKERS
This cooker Uses hot air and steam to heat the product. It is made from stainless steel and is fitted with timer controls and regulators. Cooking is done at a precise temperature, and a smoker can be fitted to the oven. Dimensions: 225 x 125 x 100cm
PRICE CODE: 4
STADLER CORPORATION
P.O. BOX 7177
BOMBAY 400070
INDIA
TWO-DECK GAS BAKING OVEN, GBO 2
Designed for general small-scale batch baking, this oven is heated by a gas burner. Throughput: 50 x 0.5kg loaves per hour. Dimensions: 150 x 95 x 165cm.
TWO-DECK GAS BAKING OVEN, GBO 2
PRICE CODE: 4
THAKAR EQUIPMENT CO.
66 Okhla Industrial Estate
NEW DELHI 110 020
INDIA
PIZZA OVEN
This pizza oven has a single tier for direct or pan cooking. It is gas heated and has thermostatic control. Four to six pizzas can be baked per batch.
PRICE CODE: 2
IQBAL ENGINEERING CO.
114 Gulberg Road
LAHORE
PAKISTAN
INDUSTRIAL BAKING OVENS
These small industrial baking ovens will accomodate eight double decker trays of 35 x 46cm per loading. 0.5kg gas per hour is consumed. Dimensions: 87 x 135 x 140 cm.
PRICE CODE: 2
WELL DONE METAL INDUSTRIES INC.
2438 Juan Luna St
Gagalangin
TONDO, Metro Manila
PHILIPPINES
BAKERY OVENS
These stainless steel ovens have one, two or three decks. There is also a spring-loaded hinged door, and heating elements are installed at the top and bottom of the oven. In addition, there is fibreglass insulation at the top and sides of the oven to prevent heat loss, and a fired brick lining at the bottom to aid heat retention. Electric heat control is manual or thermostatic. Requires: 8kW, two-phase, 220V power supply.
PRICE CODE: 4
MITCHELL AND JOHNSON PVT LTD
P.O. Box 966
BULAWAYO
ZIMBABWE
A range of ovens is available from:
OLIVERTONS CATERING EQUIPMENT
LTD
Unit 2 Perivale Industrial Park
Horsenden Lane, South Perivale
GREENFORD
UB6 7RX
UK
Ovens are also manufactured by:
GEBR. RADEMAKER
P.O. Box 81
3640 AB MIJDECHT
NETHERLANDSKLAUY NAM THAI THOW OP
1505 07 Rama 4 Rd. Wangmai
Patumwan
BANGKOK 10330
THAILAND
KGOTETSO OVEN
This is a high-output oven for medium-scale rural production. The oven is constructed from mild steel and it incorporates three compartments: a fire box, baking box and a proving box. It has sliding trays in the baking and proving boxes. A water heater is included in a chimney to utilize the excess heat from smoke emitted from the oven. The baking door is fitted with a temperature gauge. Throughput: 40 loaves per batch.
PRICE CODE: 2
RURAL INDUSTRIES INNOVATION
CENTRE
Private Bag 11
KANYE
BOTSWANA
47.1 Sealing equipment
Manual sealing machines
HAND-OPERATED FOIL LID SEALING MACHINE
This hand-operated machine is designed for simple, home use. The operator places the container underneath the heat sealing head, pulls the handle down and, after approximately 1.5 sees, releases the handle to seal the container.
HAND-OPERATED FOIL LID SEALING MACHINE
PRICE CODE: 2
ADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH
RH16 1XQ
UK
SEALING MACHINE MK1
SEALING MACHINE MK1
This hand-operated heat sealing machine is designed to seal foil lids to containers. It is suitable for small-scale producers, laboratories and R&D establishments. Semiautomatic models are also available. All machines can accommodate a wide selection of containers from yoghurt pots to jerry cans. Throughput: 360-480 containers per hour.
PRICE CODE: 2
CHADWICKS OF BURY LTD
Head Office & Foil Lidding Division
Villiers Street
BURY
BL9 6B2
UK
CAN CLOSING MACHINE
This hand-operated can sealer is flywheel operated, and has an automatic sealing operation, capable of sealing cans up to 10cm in diameter.
PRICE CODE: 2
NARANGS CORPORATION
25/90 Connaught Place
Below Madras Hotel
NEW DELHI 110 001
INDIA
TUBE SEALING CRIMP AND NUMBER MACHINE
This hand-operated machine crimps, seals and numbers batches of plastic tubes. It is suitable for size range 0.95 to 3.2cm. One set of digits is used (0-9) for numbering.
PRICE CODE: 2
J T JAGTIANI
National House, Tulloch Road
Apollo Bunder
BOMBAY 400 039
INDIA
Manual sealing machines also manufactured by:
DAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIA
Powered sealing machines
CUP SEALING UNIT
This machine heat seals lids onto plastic cups. Throughput: 800 units per hour. Dimensions: 55 x 40 x 65cm.
PRICE CODE: 2
BRAS HOLANDA
P.O. BOX 1250
CURITIBA PR-80.001
BRAZIL
Cup sealing units also manufactured by:
HAHN & CO
Santo Domingo 588
SANTIAGO
CHILEFERROSTAL BOLIVIA LTDA
Av Mariscal Santa Cruz
Edif Hansa Piso 12 of 1 Cassila
LA PAZ
BOLIVIACHACHOMER S.A. COML. INDL.
Casila De Correo 707
ASUNCION
PARAGUAYFRAGOL LTDA
Av Libertador Brig Gral
Lavalleja 1641-Esc 203
MONTEVIDEO
URUGUAY
AUTO GRANULAR PACKAGING MACHINE
This machine can pack tea, sugar etc. and can also make bags, seal, cut, count and print. The materials which can be used include: cellophane/polythene, polyester/plated, aluminium/polythene, BOPP film and tealeaf filling paper. 3600 to 4800 bags (of dimensions 7-10 x 5-7.5cm) can be produced per hour. Power requirement: 3kW. Overall dimensions: 60 x 79 x 178cm.
PRICE CODE: 4
CHINA LIGHT CORP FOR FOREIGN
ECONOMIC & TECHNICAL
CO-OPERATION
Tianjin Company
10 Youyi Rd
TIANJIN
CHINA
SEMI-AUTOMATIC FOIL LID SEALING MACHINE
This seals lids onto plastic cups and bottles. It is equipped with pre-set controls which determine temperature, dwell time and pressure. The container and cap are fed into the machine, two buttons are pressed and the pneumatically-driven sealing head descends to seal the container. Up to 600 items can be sealed per hour.
SEMI-AUTOMATIC FOIL LID SEALING MACHINE
PRICE CODE: 4
ADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH
RH16 1XQ
UK
HM 200 POLYTHENE HEAT SEALER
This sealer is used for sealing packaging. The thermostatically-controlled heater bar has a maximum sealing length of 20.3 cm. The machine is pedal operated for bench mounting and power consumption is 0.25kW. A similar version, the HM 201C is suitable for cellulose films.
PRICE CODE: 1
IMPULSE HEAT SEALER
Two models are available: the HM 1300 with a maximum sealing length of 33cm; and the HM 1800 which has a maximum sealing length of 45.7cm. The machines are bench mounted and are available with single or dual electronic time control.
PRICE CODE: 2
Both the above sealers are manufactured by:
HULME MARTIN LTD
6 Brownlow Mews
Guilford Street
LONDON WC1N 2LD
UK
DAPPER PLASTIC BAG AND HEAT SEALER
DAPPER PLASTIC BAG AND HEAT SEALER
This is capable of sealing polythene, polypropylene, coated aluminium foils and cellophane laminates. It can be foot- or hand-operated. Once plugged in, the electrical current (230V) only passes through the element when the jaws of the machine are closed. A roll holder and adjustable bag support are available as optional extras. 25cm and 61cm models are also available.
PRICE CODE: 2
THAMES PACKAGING EQUIPMENT CO.
Senate House
Tyssen House
LONDON
E8 2ND
UK
BAR TYPE IMPULSE HEAT SEALER
This simple machine seals plastic bags by pressing the plastic between heated bars, on which a special tape is placed to prevent the plastic burning. It is designed to use electricity, but alternative sources can be used for heating the bar.
PRICE CODE: 2
THOMAS HUNTER LTD
Omnia Works
Mill Road
RUGBY
CV21 3HT
UK
WRAPID BAR AND L SEALER SYSTEMS
Designed for low volume professional packaging, this machine consists of a film sealer unit to package the product and a hand held heat gun to shrink the film tightly around it. It is suitable for products up to 65cm² with a maximum depth of 10cm. Up to 360 packs can be sealed per hour. Three models are available: Models 14,16, 26.
PRICE CODE: 3
WRAPID L SEALER
This production sealer offers constant heat. No regular maintenance or replacement parts are required, and a wide variety of products (Up to 50 x 60cm, with a maximum depth of 15cm) can be sealed into bags. Up to 1200 packs can be sealed per hour. Models available: Models 15, 25.
PRICE CODE: 3
Both the above sealers are manufactured by:
WRAPS UK
Unit 2, Riverside Park
Station Road
WIMBORNE
BH21 1QU
UK
HAND/PEDAL OPERATED SEALING MACHINE
Designed for small scale production, this has a timer for sealing different thicknesses of film (up to 500 gauge) and different plastic materials. A buzzer indicates when the sealing operation is completed. Throughput: 1000 bags per shift. Size range: 20cm, 30cm and 46cm.
HAND/PEDAL OPERATED SEALING MACHINE
PRICE CODE: 1
Another sealing machine is also available, suitable for most plastics, and capable of producing 3000 bags per shift.
REVO CARRIAGE CONVEYOR MODEL CC-FB
This machine is designed for helping to close jute and paper bags. The operator can start and stop sewing via a foot switch. Weight: 80kg.
PRICE CODE: 1
PORTABLE BAG STITCHER
This portable, electric bag stitcher is finger-operated and produces a single thread stitch. The machine also has a thread cutter. Throughput: 120 bags per hour.
PORTABLE BAG STITCHER
PRICE CODE: 2
A heavy duty bag closer, complete with polypropylene handle, dust proof motor and toothed timing belt, is also available.
The above three items of sealing equipment manufactured by:
SHACO ENTERPRISES
161/163 R R Mohan Roy Road
Pharthana Samaj
BOMBAY 400 004
INDIA
STRIP PACKAGING MACHINE
This machine is ideal for packing chewing gum, tea, coffee etc. and it will use most heat sealable films/foils. First of all, the material is placed into the hopper. Next, a vibratory mechanism draws the material and synchronizes its fall through a chute, channel and release pin into a roller cavity. Heat sealable films from the roll pack seal the material in continuous strips. The machine is powered by a 0.37kW (0.5hp) motor, and seals 24000 to 36000 strips per hour. Size range: S2V, 4V, SP.
STRIP PACKAGING MACHINE
PRICE CODE: 4
SREENIVASA ENGINEERING WORKS
2-1-460/1
Nallakunta
HYDERABAD 500 044
INDIA
TEA PACKER
This tea packing machine can pack 545-655kg per hour.
PRICE CODE: 3
THE COLOMBO COMMERCIAL CO. LTD
121 Sir James Periris Mawatha
P.O. Box 33
COLOMBO 2
SRI LANKA
HAND-OPERATED VAPOUR VACUUM SEALING MACHINE
'Pry off' and 'twist off' caps can be sealed using this machine which comprises a drill stand with lever, frying pan-type sealing head, steam distributor and cock. The container is placed on the base plate, and after steam ejection the cap is placed on the container which retains a vacuum. Pulling down the lever lowers the sealing head to crimp or twist the cap on to the container. Throughput: 360-600 caps per hour.
HAND-OPERATED VAPOUR VACUUM SEALING MACHINE
PRICE CODE: 3
FMC CORPORATION
Machinery International Division
P.O. Box 1178
SAN JOSE
California 95108
USA
Powered sealing machines also manufactured by:
AGRICULTURAL ENGINEERS LIMITED
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANAGARDENERS CORPORATION
6 Doctors Lane
PB No. 299
NEW DELHI 110 001
INDIACHINAR (PVT) LTD
Plot 33, St 10
Sector 1-9
ISLAMABAD
PAKISTANAI PACKING MATERIALS LTD
85-105 Stainsley Road
LONDON E14 6JT
UK
47.2 Capping equipment
OMNIA HAND SEALER
This hand-operated, robust jar sealer has one sealing head which is interchangeable for sizes of between 4.3 and 8.3cm. Jars of up to 12.7cm diameter and 26.7cm height can be sealed (minimum height required is 5.08cm). The unit Uses a spring to apply pressure for the sealing action. This is activated by the handle. Throughput: 1500 jars per hour. Dimensions: height 86 x width 28cm.
PRICE CODE: 2
THOMAS HUNTER LTD
Omnia Works
Mill Road
RUGBY
CV21 3HT
UK
MIRA HEAVY-TYPE CROWN CORKING MACHINE
A hand-operated corking machine.
MIRA HEAVY-TYPE CROWN CORKING MACHINE
PRICE CODE: 1
ESSENCE & BOTTLE SUPPLY (INDIA) LTD
14 Radha Bazar street
CALCUTTA 700 001
INDIA
CAPPING MACHINE - FLOOR MODEL
This is a hand operated ROPP cap sealer for bottles. The operator places the cap and the bottle on an adjustable base and presses a machine pedal. The machine then knurls the threads of the cap and seams the edge. 600 to 800 bottles can be capped per hour.
PRICE CODE: 1
J T JAGTIANI
National House
Tulloch Road
Apollo Bunder
BOMBAY 400 039
INDIA
AUTOMATIC BUNG PRESSING MACHINE
This machine fits bungs or snap-on caps (both placed manually) on to bottles. The machine automatically orientates the bottle and gently presses down to fit the cap snugly on to the neck of the bottle.
AUTOMATIC BUNG PRESSING MACHINE
PRICE CODE: 2
MASTER MECHANICAL WORKS PVT LTD
Pushpanjali SV Road
Santa Cruz (W)
BOMBAY 400 054
INDIA
HAND-OPERATED RO/ROPP CAP SEALER
A wide variety of bottles can be closed using this sealer. The machine is suitable for cap sizes of 1.8-7cm, and it can be adjusted to suit bottles ranging from 5 to 30cm in height and 10cm in diameter. Throughput is 600-1200 containers per hour. Hand-operated and semiautomatic versions are available.
PRICE CODE: 2
MASTER MECHANICAL WORKS PVT LTD
Pushpanjali SV Road
Santa Cruz (W)
BOMBAY 400 054
INDIA
CROWN CORKING MACHINE
This hand-operated corking machine consists of: a handle, head, bottle holder, support rod, collar, and foot rest. It can be adjusted according to bottle size. When the handle is pressed, the bottles are corked.
CROWN CORKING MACHINE
PRICE CODE: 1
RAJAN UNIVERSAL EXPORTS (MFRS) P
LTD
Raj Buildings 162, Linghi
Chetty Street, P. Bag No. 250
MADRAS 600 001
INDIA
Powered capping machines
MAUCERI SEMI-AUTO SCREW CAPPER
This bench-mounted screw capping machine can be adjusted to suit the height of containers and can also handle different cap sizes. It comprises a base plate, two support pillars, adjusting screw, head assembly, gear box and motor drive assembly. Operation is by reciprocation of the head driven on continuous cycle from the main drive 0.37kW (0.5hp) motor. Drive to the head is by V-belt and pulley and the machine requires a three-phase, 400/440V electricity supply.
MAUCERI SEMI-AUTO SCREW CAPPER
PRICE CODE: 4
Another version, the BENCH PVC CAPSULE HEATING MACHINE T30, is also available, designed to srink PVC capsules onto bottle necks.
VISCOSE CLOSURES LTD
Fleming Way
CRAWLEY
RH10 2NX
UK
RO/ROPP BOTTLE CAP SEALER
This is a semi-automatic cap sealer for small-scale production. The unit is fitted with a 0.37kW (0.5hp) three-phase electric motor. Throughput is 2700-3000 bottles per hour. Hand-operated models are available.
PRICE CODE: 3
RAYLONS METAL WORKS
Kondivitta Lane
Andheri-Kurla Road
BOMBAY 400 059
INDIA
Powered capping equipment also manufactured by:
J T JAGTIANI
National House
Tulloch Road
Apollo Bunder
BOMBAY 400 039
INDIAMASTER MECHANICAL WORKS PVT LTD
Pushpanjali SV Road
Santa Cruz (W)
BOMBAY 400 054
INDIADAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIARAYLONS METAL WORKS
Kondivitta Lane
Andheri-Kurla Road
BOMBAY 400 059
INDIALEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USANARANGS CORPORATION
25/90 Connaught Place
Below Madras Hotel
NEW DELHI 110 001
INDIA
47.3 Wrapping equipment
GRANULATED CHOCOLATE PACKER
This machine wraps using 007' or 009' aluminium foil. The machine can pack the following sizes: 2.4cm diameter x 1.9cm height, 2.8cm diameter x 1.1cm height or 1.3cm x 1.8cm x 1.35cm. Motor power: 0.55kW (0.74hp). Throughput: 5400-6600g per hour.
PRICE CODE: 4
SHANGHAI DONGGOU BUSINESS
MACHINE WORKS
No. 1, Pailouqiao
Pudong
SHANGHAI
CHINA
THE TAVAK L-SEALER
Designed for wrapping breads and cakes, this machine has twin-reel holders to carry both perforated and clear films. Two machine sizes are available: 35.6cm x 61cm or 35.6cm x 83.8cm. The roll holder is moveable on a track allowing the roll position to be adjusted and the tray height within the sealer is adjustable to two positions.
PRICE CODE: 4
TAVAK LTD
Guilford Road
Bisely
WOKING
Surrey
UK
SERIES PACKERS
This machinery is designed for shrink-wrapping. It is automatic (using an auto-feed principle), with low energy consumption and a quick-cooling feature.
PRICE CODE: 4
KAPS ENGINEERS
831 GIDC
Makapura
VADODARA 390 010
INDIA
Wrapping equipment also manufactured by:
WONDERPACK INDUSTRIES PVT LTD
72, 1st Floor, Shivlal Mansion
Lamington Road
BOMBAY 400 008
INDIA
47.4 Vacuum packaging equipment
VACUUM PACKING MACHINE ZBJ350-11
This hand-operated machine removes air from bags before sealing, using two chambers, each with an operating cycle of 20-30 seconds, which work alternately. A vacuum of 1.33 kPa (0.19 psi) is produced.
PRICE CODE: 3
AFFILIATED FACTORY JIANGSU
INSTITUTE OF TECHNOLOGY
East Suburb
ZHENJIANG
CHINA
COMPACK VACUUM PACKAGING MACHINES
Products such as cheeses, poultry, smoked meats and ready-to-eat dishes up to 43 x 41cm can be vacuum packed using these machines. The product is placed in the machine and both the evacuation time and sealing time are set on the control panel. A vacuum pump removes the air, and a seal is formed across the bag. An automatic and an electronic version are available.
COMPACK VACUUM PACKAGING MACHINES
PRICE CODE: 4
KRAEMER UND GREBE GMBH & CO.
Postfach 2149 & 2160
D-3560 Biedenkopf
WALLALL
GERMANY
Vacuum packaging equipment also manufactured by:
NATONG COUNTRY PACKING MACHINE
FACTORY
33 Tongyang Naulu
Pingchao Town
NATONG COUNTY
Jiangsu
CHINA
48.1 Small cooking pans
BOILING PAN
This cooks food under pressure of 103 kPa (15psi). It has a vapour valve, steam trap, a filter and a security valve. Capacity: 91 litres.
PRICE CODE: 3
MITCHELL AND JOHNSON PVT LTD
P.O. Box 966
BULAWAYO
ZIMBABWE
STERILIZATION KETTLE MODEL KIT
Oil-yielding fruit (e.g. palm fruit) is placed on top of a perforated base to separate it from the cooking water. A funnel allows control of the water level.
PRICE CODE: 1
UNION FOR APPROPRIATE TECHNICAL ASSISTANCE
G. Van den Heuvelstraat 131
3140 RAMSEL
BELGIUM
WATER BATH
This is used for keeping food at a constant temperature.
PRICE CODE: 1
DAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIA
CREAM SETTING PAN
This is a stainless steel pan for small-scale cream production.
PRICE CODE: 1
R J FULLWOOD & BLAND LTD
ELLESMERE
Shropshire
SY12 9DF
UK
NON-STICK PRESERVING PAN
This pan is ideal for making jams. It has two small handles at the sides and one large swinging handle over the top, for easy handling purposes. Capacity: 9 litres. Diameter: 25cm.
PRICE CODE: 1
UNI POT STEAMER
This uses two pans for cooking on one heat source. Stainless steel pans can be placed on top of each other for economical cooking. Capacity: base 2.5 litres, top 1.75 litres, diameter (base) 19.5cm.
PRICE CODE: 1
LAKELAND PLASTICS
38 Alexandra buildings
WINDERMERE
LA23 1BQ
UK
ENERGY-SAVING COOKWARE
This four-in-one-type cooking device consists of four utility pans or skillets, each with a detachable handle, arranged in layers. Once the food is cooked it can stay hot for up to two hours. Dimensions: height 30.5 cm, diameter 25.4 cm.
PRICE CODE: 1
GINHAWA MARKETING INC.
Suite 210 - Regina Building
Escolta
MANILA
PHILIPPINES
48.2 Commercial pans
COATING PAN, 12'
This small pan is used for coating chocolate and confectionery. It has a 0.25kW (0.33hp) motor and a working speed of 30 rpm. Other sizes available: 30, 40.6, 61, 96.5,106.7,122, 152.4cm.
COATING PAN, 12'
PRICE CODE: 2
OHARA MANUFACTURING LTD
65 Skagway Avenue
TORONTO MIM 3TD
CANADA
TILTING PAN
This bench-mounted tilting pan is electrically heated on single-phase supply. Capacity: 20-50 litres.
PRICE CODE: 4
ADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH RH16 1XQ
UK
RECIPE PAN
This small industrial pan is made from stainless steel and has an outlet tap at the bottom. The lid is attached by a hinge and bracket.
PRICE CODE: 1
BCH EQUIPMENT
Mellor Street
ROCHDALE OL12 6BA
UK
Commercial pans and heaters also manufactured by:
STOTT BENHAM LTD
P.O. Box 9, High Barn Street
Vernon Works
Royton
OLDHAM OL2 6RP
UK
48.3 Commercial steam jacketed pans and kettles
MODELS DJBC 80, 120
These tilting pans are directly steam-heated and jacketed. Capacity: 80, 120 litres.
PRICE CODE: 2
THAKAR EQUIPMENT CO.
66 Okhla Industrial Estate
NEW DELHI 110 020
INDIA
STEAM JACKETED-TYPE TILTING PAN
This tilting pan has an inner pan and outer jacket made from stainless steel and mounted on a mild steel stand. There is also a pressure gauge, safety valve and pressure release valve. Size range: 10, 15, 15, 50kg.
PRICE CODE: 1
NARANGS CORPORATION
25/90 Connaught Place
Below Madras Hotel
NEW DELHI 110 001
INDIA
TILTING PAN
This steam jacketed pan has a manually-operated tilting mechanism and is designed for easy pouring. The pan is fabricated from stainless steel and all pans can be supplied with hinged or lift-off lids if required. A wide range of models are available with capacities ranging from 23-150 litres.
PRICE CODE: 4
BRIERLEY COLLIER & HARTLEY
EQUIPMENT LTD
Bridgefield Street
Rochdale
LANCASHIRE
UK
REVOLVING PANS
Jacketed or single-walled coating pans are available. The feed is placed in the stainless steel revolving pan to obtain an even coating of the required substance. Pans in a wide range of capacities are available.
PRICE CODE: 3
In addition, a steam jacketed pan is available, with a tilting mechanism.
BCH EQUIPMENT
Mellor Street
ROCHDALE
OL12 6BA
UK
STEAM JACKETED KETTLE
This kettle is designed for fruit processing. Two models are available: the tilting and the fixed type. In the fixed type the stirring mechanism is motorized and teflon scrapers prevent the food charring. Unloading is by an outlet at the bottom of the kettle. The inside is made of stainless steel whilst the outer casing is mild steel. Capacity: 250 litres to 500 litres.
PRICE CODE: 4
JYOTHI INDUSTRIES
31 Pampamahakavi Road
BANGALORE 560 004
INDIA
STATIONARY STEAM JACKETED KETTLES
Purees, jams, confectionery etc. can be processed in this range of kettles. The contents of the pans can be drained by stainless steel valves in the kettle base. They are supplied with a pressure gauge safety and wheel valve. Capacity: 23-460 litres.
STATIONARY STEAM JACKETED KETTLES
PRICE CODE: 2
RAYLONS METAL WORKS
Kondivitta Lane
Andheri-Kurla Road
BOMBAY 400 059
INDIA
STEAM JACKETED COOKING POT
This pan is designed for making jams, purees, confectionery etc. The pans vary from 6kW (8hp) for the 45 litre model, to 12kW (16.1hp) for the 230 litre model.
PRICE CODE: 3
STAINLESS STEEL INDUSTRIES PVT LTD
P.O. Box ST234
Southerton
HARARE
ZIMBABWE
Steam jacketed pans/kettles also manufactured by:
ADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH
RH16 1XQ
UKRAYLONS METAL WORKS
Kondivitta Lane
Andheri-Kurla Road
BOMBAY 400 059
INDIAFMC CORPORATION
Machinery International Division
P.O. Box 1178
SAN JOSE
California 95108
USA
Manual pasta machines
RAVIOLI MAKING MACHINE
Ravioli can be made easily using this machine in the following way. Two rolled out sheets of dough, each 8.5cm wide, leave the pasta machine to feed the ravioli maker. A container for holding the stuffing is provided. The stuffing is placed manually onto the dough and covered. The process is continuous until the kneaded mixture in the hopper is exhausted. Throughput: 20kg per hour.
PRICE CODE: 1
LA PARMIGIANA
GB Della Chiesa 10
FIDENZA (Pr)
43036
ITALY
PASTA DRYER
This has over 1.5m² of drying space for freshly-made noodles.
PASTA DRYER
PRICE CODE: 1
LEHMAN also manufacture hand-operated noodle and ravioli makers.
Noodle and ravioli makers
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
ATLAS PASTA MACHINE
This is a hand-operated pasta machine for the household/small scale. The machine has a spaghetti head and stainless steel cutting blades, and can produce noodles up to 0.64cm wide. Recipes are included.
PRICE CODE: 1
RR MILL INC.
45 West First North
Smithfield
UTAH
84335
USA
Pasta machines are also manufactured by:
VITANTONIO
Dept C
34355 yokes Dr
Eastlake
OHIO 44094
USA
Powered pasta machines
MACARONI MACHINE
Designed for small-scale macaroni production, this machine comprises a mixer, extruder, electrical controls and chilled water cabinet. Throughput: 10-12kg per hour. A larger model is available, throughout 30-50 kg per hour.
PRICE CODE: 3
JINAN AGRICULTURAL MACHINERY
9 Tuwu Road
Shangong
CHINA
PASTA MACHINE TYPE D45 TN
This machine makes spaghetti, short pasta, lasagne etc. It comprises a stainless steel barrel and safety cover and requires 0.75kW (1hp). The diameter of the pasta extruder is 8.9cm. Throughput: 12/16kg per hour.
PASTA MACHINE TYPE D45 TN
PRICE CODE: 2
LA PARMIGIANA
GB Della Chiesa 10
FIDENZA (Pr)
43036
ITALY
AUTOMATIC RAVIOLI MAKING MACHINE
Different-sized ravioli can be made using this machine by adjusting the amount of stuffing. Power requirement: 0.37kW (0.5hp). Throughput: 20/35kg per hour.
PRICE CODE: 2
LA PARMIGIANA
GB Della Chiesa 10
FIDENZA (Pr)
43036
ITALY
TUBULAR PASTEURIZER
This pasteurizes acid fruit juices. The unit is not manufactured but the university is willing to advise on the setting up of such a pasteurizer. The complete unit comprises: juice tank, pasteurizer with fire box, reservoir, chimney and outlet. Other equipment needed includes: juice extractor, thermometer, bottle capper, bottles and caps. The pasteurizer is topped up by continuously checking and pouring water into the reservoir. When it reaches the correct temperature, juice flows from the tank to the pasteurizer, is heated and then pumped through the outlet valve to the filling area.
PRICE CODE: 4
APPROPRIATE TECHNOLOGY
DEVELOPMENT INSTITUTE
Private Mail Bag
University of Technology
LAE
PAPUA NEW GUINEA
TUBULAR PASTEURIZER
This prototype equipment has been tested successfully for pasteurizing fruit juice. It consists of a juice tank which feeds juice via a plastic pipe to a stainless steel coil. The coil is immersed in hot oil inside an insulated heater tank. The flow rate of juice is controlled by a valve to achieve the correct pasteurization conditions. It operates continuously at 30-120 litres per hour. Coil size: 15cm diameter made from 2.54cm diameter 18-gauge tube in five sections (bolted together and easily dismantled for cleaning).
PRICE CODE: 1
For drawings and further details contact:
INTERMEDIATE TECHNOLOGY
DEVELOPMENT GROUP
Myson House
Railway Terrace
Rugby
Warwickshire CV21 3HT
UK
