The selected tool always depends on the nature of the processing operation. Single- and double-edged tools are used for milling operations with a routing machine.
Single-edged tools permit a variety of setting values and can be simply resharpened. Such tools must be clamped into an eccentric chuck, otherwise chip removal is not possible.
Double-edged tools can be clamped into an eccentric chuck. Only one tool cutter operates and, as in the case of single-edged tools, the knife cutting circle can be variously set. When using a centrical chuck both tool cutters operate and the knife cutting circle remains constant.
Figure 7
(1) Single-edged tool
(2) Double-edged tool
Tools with a taper shank or tap shaft can only be centrically chucked.

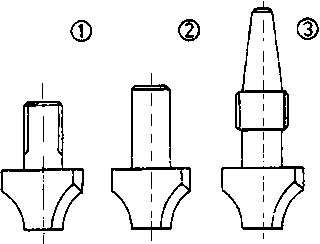

Figure 8
(1) Tool with tap shank
(2) Tool with cylinder shank
(3) Tool with taper shank
Why does only one cutter operate during chip removal given the
eccentric cucking of a double-edged
tool?
_________________________________________________________________________
_________________________________________________________________________
_________________________________________________________________________
Table 2: Types of routing tools
|
Designation Presentation |
Special features |
|
cylindrical routing machine
|
single-edged tool for eccentric chucking for milling grooves, curves, recesses and bores |
|
fold cutter with tap shank
|
double-edged tool with screw thread for centrical chucking only for fold milling - not for bore operations! |
|
Dovetailing machine
|
single-edged tool for eccentric chucking for yielding dovetailed comer joints |
|
bun cutter
|
single-edged tool for eccentric chucking for yielding burr joints, milling burr grooves and the burr spring |
|
half round cutter
|
single - and double - edged tool executions possible double-edged only for centrical chucking for milling half round profiles and narrow faces |
|
quarter round cutter
|
single-edged for eccentric chucking at a radius of up to 8 mm from 10 mm double-edged for centrical chucking |
|
chamfer cutter
|
double-edged for centrical chucking to yield chamfer grooves, half and quarter chamfers |
|
grain cutter
|
single-edged tool for eccentric chucking |
|
fold cutter with taper shank
|
with taper shank for centrical chucking tool is clamped into the spindle without chuck and tightened by means of the differential nut |
 |
 |
