Main hammering tool is the hammer of various types.
Engineers’ hammer
The hammer head is made of tough tool steel with hardened and ground face (2) and pane (4).

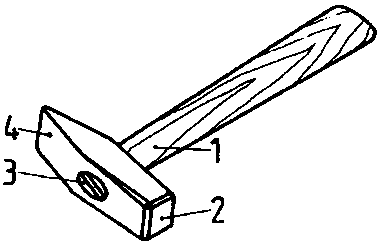

Figure 3 Engineers’ hammer
The hammer handle (1) is made of strong and elastic wood and fixed to the hammer head by means of a cotter (3) in oblique position.
Different hammers are used, depending on the size of the workpiece and the purpose of use:
- Riveting hammer (50 g - 200 g),
used for smaller workpieces.- Hand hammer (200 g - 400 g),
widely used for various fitting purposes.- Bench hammer (400 g - 2000 g),
used for massive workpieces.
Special hammers for sheet metal working:
- Chasing hammer (250 g - 500 g),
ball face hammer for chasing of thin sheet metal.

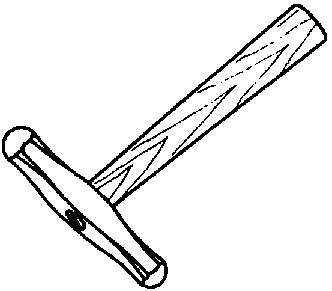

Figure 4 Chasing hammer

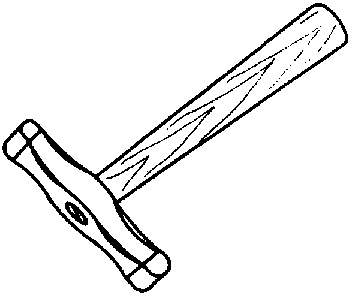

Figure 5 Curving hammer
- Curving hammer (250 g - 750 g),
barrel face hammer for notchless curving of sheet metal strips.- Finishing hammer (250 g - 500 g) and smoothing hammer (350 g - 1000 g),
flat or oval face hammers for planishing of faces.- Wooden hammer (170 g - 500 g),
rubber and aluminium hammers:
Hammers not damaging the surface of the sheet metal during forming and straightening operations.
For special purposes, wooden hammers may be bevelled or radiused.
Figure 6 Finishing hammer

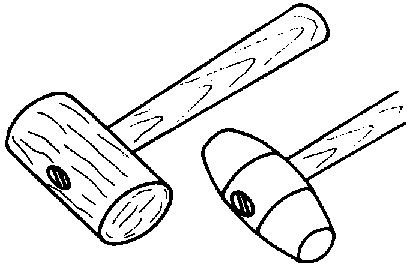

Figure 7 Wooden hammer and aluminium
hammer
Hammering supports:
- Surface platesStrong and flat cast-steel plates which are held by a stand or put on a work bench and are used for most hammering work.
Surface plates must not be damaged by chisel cuts!

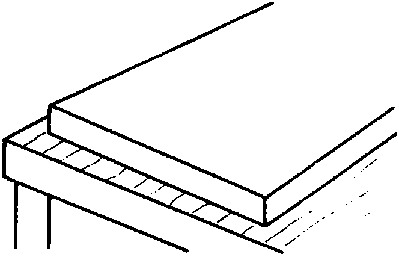

Figure 8 Surface plate
- Blacksmiths’ anvilHardened support with face (2), round horn (1) and flat horn (3) for various forming and straightening operations.

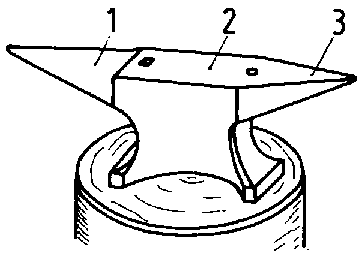

Figure 9 Blacksmiths’ anvil
Special supports for sheet metal working
- Anvil tool
Flat surface of small size.- Blacksmiths’ double face sledge
Differently convex surfaces of small size.- Blacksmiths’ hardy and bordering tool
Differently shaped faces and edges, specifically for flanging work.

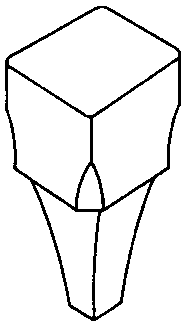

Figure 10 Anvil tool
Figure 11 Blacksmiths’ double
face sledge

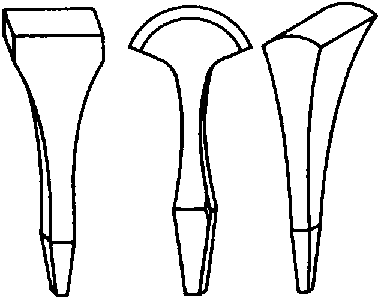

Figure 12 Blacksmiths’ hardy and
bordering tool
Main marking tool is the marking punch.
- Letter set
Set of marking punches of all alphabetic letters.- Figure set
Set of marking punches of the figures 0 - 9.

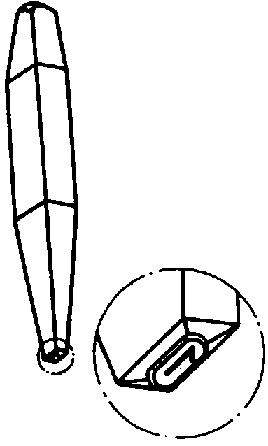

Figure 13 Marking punch (figure 1)
- Special number and word punches
Marking punches of groups of figures or complete words for special requirements.
What makes the difference between engineers’ hammers and hammers for sheet metal working?
_______________________________________________
Which properties are typical of hammering supports?
_______________________________________________
Which supports are meeting the general requirements of hammering?
_______________________________________________
What types of marking punches are in use?
_______________________________________________
 |
 |
