                          TECHNICAL PAPER #29

                         UNDERSTANDING POTABLE
                             WATER STORAGE

                                  By
                           Charles M. Ritter

                          Technical Reviewers
                             Philip Jones
                            Irving Starobin

                                 VITA
                   1600 Wilson Boulevard, Suite 500
                     Arlington, Virginia 22209 USA
                Tel:  703/276-1800 . Fax: 703/243-1865
                      Internet:  pr-info@vita.org


                  Understanding Potable Water Storage
                          ISBN: 0-86619-238-7
              [C]1985, Volunteers in Technical Assitance


                                PREFACE

This paper is one of a series published by Volunteers in Technical
Assistance to provide an introduction to specific state-of-the-art
technologies of interest to people in developing countries.
The papers are intended to be used as guidelines to help
people choose technologies that are suitable to their situations.
They are not intended to provide construction or implementation
details.  People are urged to contact VITA or a similar organization
for further information and technical assistance if they
find that a particular technology seems to meet their needs.

The papers in the series were written, reviewed, and illustrated
almost entirely by VITA Volunteer technical experts on a purely
voluntary basis.  Some 500 volunteers were involved in the production
of the first 100 titles issued, contributing approximately
5,000 hours of their time.  VITA staff included Maria Giannuzzi
as editor, Suzanne Brooks handling typesetting and layout, and
Margaret Crouch as project manager.

The author of this paper, VITA Volunteer Charles M. Ritter, is a
project engineer with an engineering consulting firm in Wheat
Ridge, Colorado.  Mr. Ritter specializes in potable water treatment
and distribution and wastewater disposal.   The reviewers are
also VITA Volunteers.  Philip Jones has 15 years experience as a
civil engineer working on water and sanitation projects.  He has
spent seven years working in East Africa and is presently a
consultant based in Washington, D.C., specializing in environmental
engineering for developing countries.   Irving Starobin is a
chemical engineer, specializing in plastics, who has worked as a
consultant for UNIDO and has experience in Asia, Europe, and
South America.

VITA is a private, nonprofit organization that supports people
working on technical problems in developing countries.   VITA offers
information and assistance aimed at helping individuals and
groups to select and implement technologies appropriate to their
situations.  VITA maintains an international Inquiry Service, a
specialized documentation center, and a computerized roster of
volunteer technical consultants; manages long-term field projects;
and publishes a variety of technical manuals and papers.

                         POTABLE WATER STORAGE

                  by VITA Volunteer Charles M. Ritter

I.  INTRODUCTION

BASIC THEORY AND APPLICATIONS

Put simply, potable water is drinking water.   Conversely, water
that is not drinkable is termed non-potable.   Water engineers use
the terms in various ways.  The term "potable water supply" can
refer to water in a reservoir or river, for instance, that may be
too contaminated to drink as is, but which will be treated to
make it drinkable.  It can also refer to the same water after it
has been treated, or to other water such as from some bore-holes
and springs, which is naturally pure and does not require
treatment.

Treated or naturally pure water is a scarce and valuable
commodity.  Because of this, it is usually only produced in
amounts necessary to satisfy short-term (i.e., over the next few
hours or a day) demand, and so particular care is taken to ensure
that it does not become contaminated.   The term "potable water
storage" refers particularly to storage of this water.  The word
`potable' in this report therefore refers only to water that is
considered fit to drink.  It may have a wider meaning in other
contexts.

In contrast, the storage of untreated (raw), possibly contaminated
water is not usually subject to the same standards of
protection, although reasonable precautions should always be
taken to prevent access, for instance, by animals for drinking or
by humans for washing, to a raw water storage dam that might hold
several months supply.

The amount of potable water available from a supply source may
not always be adequate to satisfy demand at a particular point in
time.  Therefore, it is frequently necessary to hold a sufficient
quantity of water in storage, to be withdrawn during periods when
consumption exceeds incoming supply.

In addition to supplying water during periods of shortage, water
storage reservoirs perform other beneficial functions: (1) maintaining
relatively constant water pressures in the distribution
system; or allowing pumps and treatment processes to run at
constant flow while demand varies; (2) alleviating the need for
pumps to run continuously; and (3) improving system reliability.

It should be noted that potable water storage facilities are not
always needed--or desirable.   If the raw water source is itself
drinkable, plentiful, and readily accessible, there is no
advantage to be gained in extracting more than is required, and
storing it.  For example, an abundant spring to which people come
to collect water, or a well fitted with a hand pump, does not
require storage.  In fact, the slight-delay of waiting in line
may be highly preferable to risk of contamination that would
accompany the installation of a small well-head storage tank.

Potable water storage is needed, however, if the rate at which
water can be extracted from the source varies greatly from the
rate at which it is consumed.   Pumps, treatment processes, and
the carrying capacity of pipework are most efficient and simple
to operate when working with a constant flow of water.   Thus, it
is good practice for raw water handling to be based on a constant
average flow, and for excess potable water to be stored during
periods of low demand, such as at night, to augment flows during
periods of high demand, such as in the morning and evening.  In
this way, demand is evened out: storage used for this purpose is
also referred to as balancing or equalizing storage.   If pumps
and treatment plants can only be operated for part of a day, say
during daylight, or for one operator shift, then storage is
required to maintain a supply at other times.   Some extra storage
may be provided to maintain a contingency supply in case of a
breakdown.  However, this should be considered as a short-term
emergency supply only; in dealing with breakdowns, the main
objective should be to repair the system quickly.

One special case, requiring the longer-term storage of potable
water, is that of rain water, dealt with later.

Typically, potable water is stored after all treatment and
pumping processes have been completed, usually at a point close
to or within the distribution system, and at an elevation above
the highest point of discharge.   Thus, the stored water can
continue to flow to consumers by gravity even if there is a
breakdown in the treatment or pumping plant.   The actual location
of the storage will often be obvious, that is, on the nearest
piece of high ground within or next to the consuming area.  Where
alternatives exist, the location may be governed by the location
of the pump or intake (so as to avoid a long pumping main), by
the location of the high use area within the community and by the

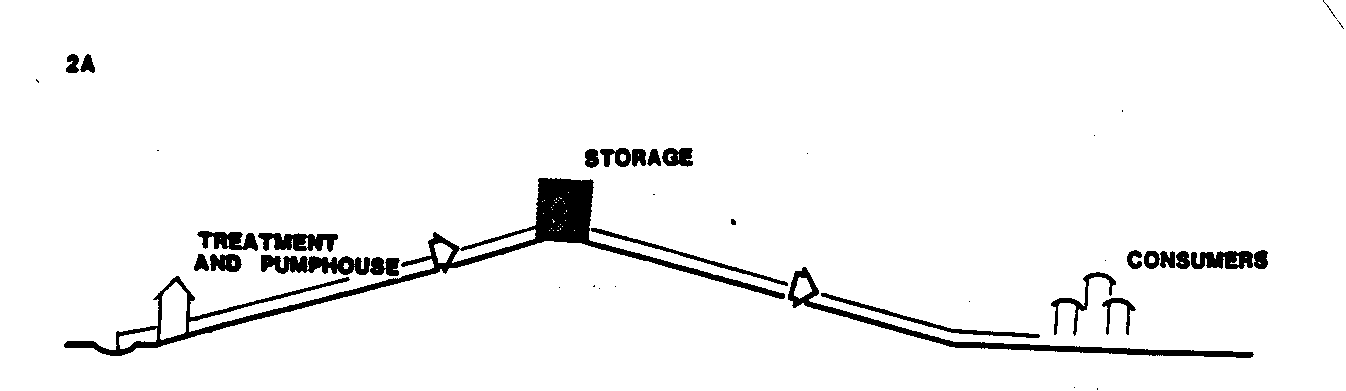

the layout and type of distribution system being built.   Figure 2A



shows the scheme when pumping directly into a storage tank.  Figure 2B



demonstrates when the tank is filled from a more elevated
source, the water then flowing by gravity through a separate outlet

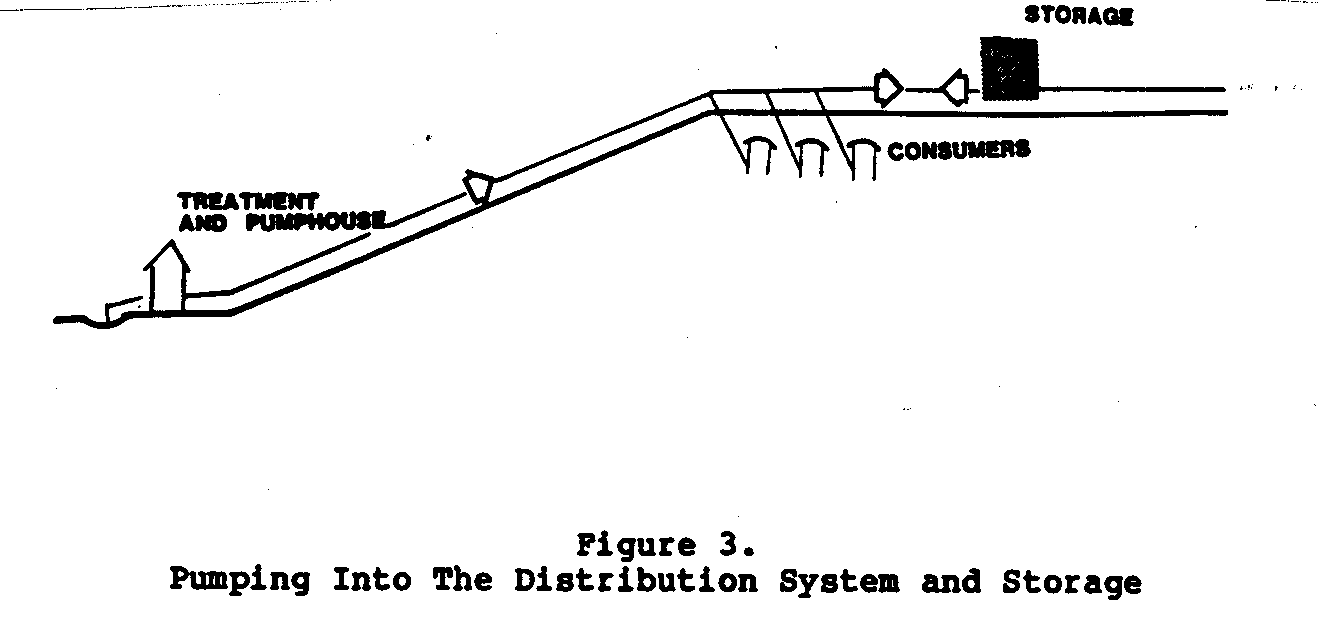

to the distribution system.  Figure 3 illustrates the situation



when water is to be pumped into the distribution system and
allowed to overflow into storage.   In the latter case, some
advantage may be gained by locating storage near the high usage
area on the opposite side from which the supply enters the community.
There is no rule as to which system is best; each has
advantages and disadvantages and is more a matter of distribution
design, local engineering practice, and possibly legal requirements.
Obviously, the second system cannot be used if only
intermittent pumping is done.

A shallow tank with a relatively large areal expanse is preferred
to a deeper, narrower one.  In piped distribution systems, locating
distribution storage near the high usage area on the opposite
side from which the supply line enters the community, has the
advantage of satisfying peak demands through smaller-sized mains,
and with the lowest pressure loss.   The tank site should be high
enough that maximum head losses can be overcome as water flows
toward the point of demand, hopefully arriving there with an
adequate positive pressure.  However, a higher tank means a
greater energy requirement for pumping.   In addition, a higher
tank will require higher pressure rated and more expensive pipe.
It will also result in an increased water loss from leakage.
Therefore, it is important to place the tank at the right height.

Depending upon the pressure rating of pipes within the distribution
network, the vertical distance between storage and the low
point in the community should usually not result in a sustained
pressure greater than 100 pounds per square inch (psi) when the
system is at rest, i.e., static head and pumping head at no-flow.
The practice in the United States has been to ensure a
residual pressure of at least 20 psi when the maximum demand,
i.e., for fighting fires, is applied at critical spots in the
service area.  For all purposes except firefighting, a small
system such as a school, mission, or hospital complex can easily
make do with no more than three meters residual head.

If insufficient elevation difference exists in the terrain surrounding
a community, construction of an elevated tank or standpipe
that is taller than it is wide may be necessary.   Globes,
cylinders, and rectangles are some of the variations of this type
of storage structure.  The outsides of above-ground tanks and
pipes are subject to weathering.

If suitably situated high ground is not available, the tank may
be elevated on a tower.  Specialist advice should be sought if
the area is subject to earthquakes or strong winds.   Below-ground
tanks should be constructed above the water table as well as any
sewage disposal systems in the area.   The minimum lateral separation
between water storage reservoirs and sewage disposal facilities
should be about 30 meters.  To provide good drainage, sur-

VOLUME REQUIREMENTS

One of the primary functions of a water storage structure is to
provide a reserve capacity that can be utilized to meet demand
when the normal supply rate is inadequate.   It is, therefore,
necessary to set forth some guidelines for determining how large
the storage capacity should be.

Per unit water demand is generally used as the basis for sizing a
tank.  For instance, the average per person consumption multiplied
by total number of people in a community yields one estimate of
storage volume requirement when halved.   Another recommended method
is to multiply the average daily use by an appropriate peaking
factor to yield the maximum demand over a one-day period, and
subtract daily water production (i.e., treatment) capacity.  In
smaller communities, elevated storage should be at least equal to
one (and preferably two or three) days' requirement during hot,
dry periods.

A more precise method of calculating volume requirements is to
construct a mass diagram of water usage on the peak day, and draw
parallel pump supply lines tangent to the demand curve at its
most divergent points(*) (see Figure 1).   For this example, the



reservoir is assumed to be filling when demand is low, and emptying
when demand exceeds the production capacity.   It may be necessary
to make some assumptions about the demand curve configuration.
The practice in the United States is generally to provide a
fire fighting reserve over and above the peak demand equalization
storage volume.

II.  VARIATIONS IN TECHNOLOGY

CONSTRUCTION MATERIALS

Through the centuries, a variety of construction materials have
been utilized as the basic element(s) in water storage
structures.  Small reservoirs formed by earthen embankments have
supplied poor quality water to villages in India during the long
dry season.  In western Sudan, the hollowed-out trunk of the
baobab tree is employed to retain water collected during the
short rainy season.  Brick, masonry, and concrete may be the most
popular materials currently utilized.   These and other modern-day
tank construction materials are discussed below.

---------------------
(*) This method is discussed in greater detail in Environmental Engineering
and Sanitation by J.A. Salvato, Jr. (see Bibliography).

Foundation pressure under a tank up to about 3 meters deep is not
very great, and provided that about a foot of topsoil is removed
(0.3 meters) or maybe .6 meters in soft ground, then no problems
would be found.  Solid rock is obviously a good foundation.   A
mixture of rock and soil is not good, as the soil will settle
slightly, but the rock will not, resulting in a cracked floor and
worse.

Elevated tanks have their weight concentrated over a small area,
and extra care is then needed to choose a good firm site.  As a
rough guide, if you can park a truck overnight at a site, and see
only a slight or no dent where the back wheel lay, then the
ground bearing pressure is sufficient.

Typical size ranges suitable for various types of materials
include:

     o   ferrocement, less than 1 cubic meter

     o   masonry up to about 20 cubic meters

     o   reinforced concrete, almost any size, but hardly worth
        the effort for less than about 5 cubic meters

     o   round corrugated galvanized steel, up to 2 cubic meters

     o   bolted sectional steel, fiberglass panels, I cubic
        meter up to almost any size

     o  welded steel, 20 cubic meters and up

Brick or Stone Masonry

Hard, dense material such as brick or stone masonry should be
laid with full cement mortar joints.   Pressed and dried bricks
formed from laterite soils have a soundness comparable to limesandstone
bricks.  A 2-centimeter layer of rich cement mortar
applied to the inside face will render the structure watertight.

A tank more than about a meter deep may need circumferential
steel reinforcement, which can be laid in the horizontal mortar
joints, or buttresses spaced around the outside.   The mortar
lining must be carefully cured, like the concrete, by being kept
damp for several days to a week, otherwise it will crack.  As a
tank fills and empties, and as temperature differences occur from
night to day, masonry and concrete will expand and contract.
Sliding joints between floor, walls, and roof may be necessary.

Concrete

Water storage structures made of concrete require internal steel
reinforcing to provide tensile strength.   The two primary design
methods revolve around (1) working stress, based on the British
experience, and (2) ultimate strength design (limiting crack
width). (*)

A dense, durable, and impermeable material that will not erode,
crack, or otherwise permit water leakage that could cause contamination
of the stored water, or corrosion of the interior
steel is necessary.  Watertightness of the finished structure is
enhanced by a low water-cement ratio (0.45 maximum) within the
limits of reasonable workability.   A continuous waterstop made of
polyvinyl chloride (PVC) or rubber is cast in the concrete at all
breaks or joints to prevent the passage of water through them.
The new concrete should be kept wet and allowed adequate time for
curing before being placed in service.   Post-tensioned, pre-stressed
concrete is generally not cost-effective unless the tank
is very large.

Building a watertight structure out of concrete is not easy, and
a mortar-lined masonry tank is usually more successful.   Concrete
work requires a supply of formwork (molds to form the concrete
shape), which is usually made of wood sheet or planks.   This can
be expensive and requires good carpenters to make waterproof
joints, otherwise the concrete will not be watertight.   Steel
must be accurately fixed inside the formwork.   Altogether, it
requires a more skilled work force than masonry.

A concrete floor slab is relatively easy to build.   The walls,
especially if curved--as they must be for adequate strength--are
the most difficult part.  A flat slab roof requires support-formwork
that must be strong enough not to move at all during construction
and subsequent curing, but otherwise is fairly easy to
build.  Most masonry-walled tanks have concrete floors and roofs.


----------------------
(*)Appropriate design procedures are detailed in the Handbook of
Concrete Engineering and Concrete Sanitary Engineering Structures
published by the American Concrete Institute and Design of
Liquid-Retaining Concrete Structures by R.D. Anchor; also, the
April 1981 issue of Concrete International published by the American
Concrete Institute was devoted entirely to this subject (see
Bibliography).

Ferro-cement

These containers are being built more and more in developing
countries, especially in India.   The technique involves applying a
sand and cement mortar mixture over a framework of steel rods,
mesh, pipe, chicken wire, etc., to form a lightweight, watertight
structure.  There is no need for complicated and expensive form-work,
and thin-walled flexible ferro-cement is advantageous in
curved structures such as circular or conical tanks.

Earthen Basins with Impermeable Liners

Plastic film or thin concrete liners can be used to make earthen
reservoirs watertight.  However, plastic film is very easily torn
or punctured.  The embankments are subject to some natural hazards
such as erosion.

All systems using a flexible membrane should be designed so as
not to fail structurally if the liner is punctured, and drains
must be installed if ground water under the liner is a problem.
For cases where a separate liner is not installed, various
methods of compacting suitable soils or seeding with bentonite or
chemicals can be employed to improve the soil's water retaining
characteristics. (*)  Care should be taken to prevent scouring by
water of soil liners around the inlet pipe.   A clay liner can be
protected from drying out with 2.5 meter layer of sand or gravel.

The disadvantages of an uncovered reservoir described in the
section on `Water Quality Considerations' can be overcome by
spanning the basin with a reinforced concrete slab or corrugated
metal roof.  Other types of covers or methods of evaporation
control include:  (1) reinforced synthetic rubber supported on
foam floats, (2) polyethylene sheets, and (3) ultra-thin layers
of long-chain alcohols.  The alcohols are, however, subject to
dispersion by wind and waves.

One variation of the earthen basin is that, instead of being
uncovered, the basin is filled with uniformly sized sand and acts
as an artificial aquifer (water-bearing formation).   Water still
occupies between 30 and 40 percent of the volume of the basin,
and purification takes place as the liquid filters through the
sand.  A gravel mulch layer on top of the sand enhances the
operation of the artificial aquifer by improving percolation of
rainwater (recharge characteristics) and suppressing evaporation.

---------------------
(*) See Methods of Creating Low-Cost Waterproof Membranes for Use in
the Construction of Rainwater Catchment and Storage Systems by D.
Maddocks.

Smaller artificial aquifers storing less than 25,000 gallons are
probably easier to design and construct.   To prevent
contamination, such a system must be managed carefully, or it is
likely to be used for irrigation or stock watering.

Steel Tanks

Several types of steel tanks are available.   For small volumes, 1
cubic meter or so, round corrugated steel or square sheet steel
(often used as internal roof tanks) tanks, galvanized and with a
cover may be used.  These are often available from stock at
builders suppliers.

For larger volumes up to several hundred cubic meters, steel
tanks are usually prefabricated in a factory, transported in
sections and erected on site.   The segments are welded or bolted
together; this works best if it is done by the supplier as part
of his duties in case it subsequently leaks.   Welded tanks are
often circular or have more complicated shapes.   They require an
experienced construction crew and skilled welders for a successful
job.  Bolted segment tanks can be erected by an experienced
crew under the direction of an experienced foreman who can usually
be provided by the manufacturer.   Although the cost of steel
tanks may appear high, they can often be transported in one
truckload and become competitive when transport costs are considered.
They come in standard size increments, and can be
arranged to fit almost any requirement.   They are relatively easy
to construct as elevated tanks, either on a steel tower supplied
as part of the arrangement, or on masonry pillars or walls.

Steel tanks tend to corrode, especially if storing rainwater or
slightly saline water, or if subject to a salty atmosphere or
sand-laden winds that wear away paintwork.   A chemist or
competent water engineer can advise on how corrosive your water
is likely to be.  Simple precautions, such as raising the tank a
few centimeters off damp ground, careful choice of metal fittings
and careful installation, and painting the inside and outside can
significantly lengthen tank life. (*)

Silica glass-coated metal panels that are bolted together circumvent
the periodic maintenance requirements.   These structures are
not suitable for placement below the ground, however.

----------------------
(*)The publication "AWWA Standard D-100-79 for Welded Steel Water
Storage Tanks," issued by the American Water Works Association in
1979, sets forth the requirements for welded steel tanks (see
Steel grain storage bins have been converted to water tanks using
PVC or other artificial liners.

Wood

A variety of woods, including cypress, fir, pine, and redwood,
have been used for water storage structures.   One such commercially
available tank is made of staves with tongue-and-groove
joints that are held together by galvanized or asphalt-protected
steel tension hoops around the circumference.   Like concrete, the
wooden tanks do not require special maintenance, although their
average life span is shorter.   If wood preservations are used,
they must not contain any toxic chemicals.

Fiberglass and Plastic

Man-made materials such as fiberglass or plastic can also be used
in the construction of water storage tanks.   However, these tanks
are usually installed only on a very small scale.

Plastic, fiberglass, and various combinations are used to make
bolted sectional tanks similar to steel tanks.   Damaged sections
can be repaired if suitable resins and fiberglass can be
obtained, or, as with steel segment-bolted tanks, a complete
segment can be replaced.

Small plastic tanks up to about 2 cubic meters made of polyethylene
or poly vinyl chloride are available.   They are light and
easily handled, but are also easily damaged and difficult to
repair properly.  They may become brittle if exposed to light/sun
and therefore should only be installed indoors.

Miscellaneous

When substandard construction or lack of the proper materials
results in a tank that is not watertight, liners made from epoxy,
vinyl, asphalt, or other materials that will resist leakage can
be applied to the inside.  Care must be taken that any such
materials are safe for drinking water applications.   A reputable
local supplier of construction materials or the ministry dealing
with water supply or public health should be asked for guidance.

INDIVIDUAL CISTERNS

Cisterns are used to catch and store rainwater.   Especially in
duction of an individualized water storage technology may be
feasible.  Cisterns should be covered to reduce evaporation and
prevent entry of animals and debris.   And since water quality is
also an important consideration, it may be practical to filter
the water leaving the storage reservoir after a lengthy detention
period.  The impermeable surface collecting precipitation (often
the roof of a house) must be kept clean, or provision made to
bypass initial flows around the storage cistern.   Where possible,
water should be extracted from the cistern using a pump or gravity
pipe, and not by dipping a potentially dirty container into
it.

Rainwater contains appreciable amounts of dissolved oxygen and
carbon dioxide, which can significantly affect both taste and
acidity (pH).  It is also comparatively corrosive to iron or
metal.

TANK ACCESSORIES

The addition of a few accessories to the basic storage structure
will serve to make it more functional and fail-safe.   Piped air
vents are necessary to prevent pressure or vacuum buildup within
the tank as it is filling or emptying.   These openings should be
covered with a screen material to keep insects, birds, and other
small animals from entering the reservoir, and should always
point downwards.  The same is true for the outlet ends of drain
or overflow pipes.  These pipes should conduct water far enough
from the tank so that the tank foundation is not adversely affected.
Installing a valve in the drain line outside the tank
will permit the discharging of the stored contents when desired.
The drain pipe should never be connected to a sewer line.

A lockable access hatch and ladder permit entry into the structure.
Like the vent pipe, the hatch should be raised at least one
half meter above the top of a buried tank, and 5 or 6 centimeters
above the top of a surface tank, so contaminated surface water
flows around or underneath the opening, instead of entering
through it.  A lockable access hatch cover, and fencing around the
tank site will discourage tampering, swimming, or vandalism.

----------------------
(*)A summary of the different types of cisterns that have been used
over the years is contained in "Cistern Based Water Supply in
Rural Areas in Low Developed Countries" by G. Schulze (see Bibliography).

Overflow pipes should be one size larger than the inlet, and
never fitted with a valve.  Outlet pipes raised several
centimeters off the tank floor allow the accumulation of silt
which can be flushed out during periodic maintenance cleanings.

WATER QUALITY CONSIDERATIONS

Water quality may be either beneficially or adversely affected by
detention in a storage reservoir.   Turbidity is often reduced as
water passes through a basin.   This process, known as sedimentation,
could be responsible for removing significant numbers of
bacteria and other particulates.   Transmission of some parasites,
which must contact the host organism within 24 to 48 hours to
remain viable, is effectively prevented during storage and detention.

On the other hand, large uncovered reservoirs are susceptible to
contamination because algae build up in the surface layer.  If the
incoming water contains a proper supply of nutrients, algae
production will be enhanced by sunlight, and solids will accumulate
at a faster rate than sedimentation can remove them.   The
bacteriological quality is then affected because algae and other
solids protect various pathogens from the disinfecting chemical.
Excessive algae growth can be controlled, to some extent, through
regular applications of copper sulfate.   However, this chemical is
not always available, and building a roof over the tank is preferable
to avoid the problem completely.

Other potential sources of pollution that pose a greater threat
if the reservoir is uncovered are birds, animals, insects,
humans, and windblown and atmospheric contaminants.   Moreover,
chlorine tends to dissipate faster in an uncovered reservoir,
making maintenance of a sufficient residual impossible.

Proper construction of accessories and even the tank itself will
reduce the potential for the introduction of contaminants into
drinking water.  For instance, vent pipes must extend above the
flow level of any surface drainage, because it may be contaminated
and drain lines should not be directly connected to
sewers.  The completed structure should be as watertight as
possible, and situated above any underground seepage.   Interior
liners must be non-toxic and impart no taste to the water; this
includes all interior paints, resins, compounds used for filling
cracks, formwork releasing agents, and any additives mixed with
the concrete.

Tanks should be drained as often as necessary (at least once per
year) for maintenance.  The operations technician should inspect
the interior of the tank, repair any leaks, and remove any silt
or plant life that has collected there.

Two different procedures for disinfecting a storage tank before
placing it in service are described in the American Water Works
Association's Standard D-105-80 (see Bibliography).   One method
involves filling the tank with a concentrated chlorine solution
(10 milligrams per liter) and letting it stand full for 24 hours,
after which time the disinfection water is drained as waste.

The second method is useful where water is scarce, and using
rather than discarding the chlorine solution is desired.  The
steps in this procedure are as follows:

1.  Thoroughly coat (with sprayer) interior of surfaces with a
    strong solution containing 200 milligrams per liter of
    chlorine.

2.  Fill drain piping with 10 milligrams per liter chlorine solution.

3.  Allow 30 minutes of contact between all surfaces and the
    chlorine solution.

4.  Permit fresh water to enter the tank, and purge drain piping
    of the disinfection water.

5.  Close drain valve and fill tank to maximum level.

With either method, the tank's inside surfaces should be thoroughly
cleaned and swabbed before disinfecting.   After disinfection,
the water should be tested for proper bacteriological and
aesthetic qualities to assess its suitability for public consumption.
Because of the hazards involved in spraying the strong
chlorine solution, the workmen must be adequately protected with
the proper clothing and breathing apparatus.   One person should
remain outside, connected by a rope to a co-worker inside the
tank.  All workers should be free of intestional diseases.  They
should wash their boots--or feet--before entering the tank (and
not (wash them in the tank water through the access hatch).
Different chlorine compounds and the amounts needed for preparing
a 50 milligram per liter solution are given in Table 1.

III.  CHOOSING THE TECHNOLOGY RIGHT FOR YOU

A number of factors should be considered in selecting the most
appropriate storage structure for a particular location.  Cost is

              Table 1.  Quantity of Disinfectant Required to Give
                          a Dose of 50 mg/1 Chlorine

                                             Ounces of Disinfectant/
Diameter      U.S. Gallons                   10-Foot Depth of Water
of Well,        of Water      70 Percent     25 Percent     5-1/4 Percent
Spring,         per foot       Calcium         Calcium        Sodium
or Pipe         of Water       Hypo-            Hypo-          Hypo-
(inches)         Depth       chlorite[a]     chlorite[b]    chlorite[c]

  2                0.163            0.02           0.04          0.20
  4                0.65             0.06           0.17          0.80
  6                1.47             0.14           0.39          1.87
  8                2.61             0.25           0.70          3.33
 10                4.08             0.39           1.09          5.20
 12                5.88             0.56           1.57          7.46

 24               23.50             2.24           6.27         30.00
 36               52.88             5.02          14.10         66.80
 48               94.00             9.00          25.20        120.00
 60              149.00            14.00          39.20        187.00
 72              211.00            20.20          56.50        269.00
 96              376.00           35.70         100.00         476.00

[a]  Ca(OC1), also known as high-test calcium hypochlorite.  A
     heaping teaspoonful of calcium hypochlorite holds approximately
     1/2 oz.

[b]  CaC1(OC1).

[c]  NA(OC1), also known as bleach, (brand names include Chlorox,
     Dazzle, etc.), can be purchased at most supermarkets, drug,
     and grocery stores.


Source:  J.A. Salvato, Jr., Environmental Engineering and Sanitation
         (New York:  Wiley-Interscience, 1972).

probably the most important consideration, because sufficient
funds, either from a local source or foreign development aid, are
necessary before anything of a permanent nature can be built.
Since the unemployment rate in most developing countries is high,
labor-intensive technologies offer certain advantages over more
costly mechanization-based schemes.

In addition, materials used in construction should be available
locally, whether imported from outside the country or produced
indigenously.  The purchase of locally-derived materials may boost
a region's economy, and ensure that proper means for repair or
replacement are available.  If foreign goods are utilized, they
should be simple, rugged, and reliable so that they will not
require much maintenance attention or repair work.   Because of the
need to inspect and paint them regularly, metal tanks are probably
not the best solution.


Local customs and cultural effects are other important factors to
consider.  If water has traditionally been collected by the women
at a local gathering spot, it is probably advantageous to integrate
them into the planning, and perhaps build a large communal
system rather than individual storage cisterns.   Conversely, if
different segments of the community will not associate or work
with one another, building a large public water storage facility
may be difficult, not to mention pointless.   This is unfortunate
in light of its advantages--the inherent economies of scale, and
the fact that it is easier to monitor and maintain water quality
in a reservoir serving the whole community.

The choice of storage systems depends on community resources and
needs.  A well-built concrete or masonry tank should last for at
least 20 years.  A well-maintained steel tank may last for 10
years.  Some low-cost simple but dependable technologies include:

1.  Earthen basins with impermeable liners and whatever covers
    can be fashioned over the tops of them;

2.  Ferro-cement containers constructed with a variety of possible
    materials available that will lend tensile strength to
    the cement;

3.  Artificial aquifers may be the least resource-intensive,
    utilizing instead large amounts of cheap labor.

To choose the technology right for you, consider the following
questions.

1.  How much storage do you need?

2.  Where do you need it?

3.  What types of tank would satisfy (1) and (2)?

4.  Which of the options from (3) do you have the resources to
    build and maintain?

5.  From what is left, choose the cheapest.

Having made your choice, try to find someone else who has already
tried it, and see what advice they have to offer.   Their advice
will probably be among the best you can obtain, but if they have
any unsolved problems, VITA may be able to offer a solution.
Attention to the points raised in this report, together with a
more detailed investigation of your chosen technology will help
ensure a long lasting and reliable storage system.

The lack of good, dependable, environmentally protected stores of
water is a serious problem in many underdeveloped regions of the
world.  Improving this situation will require a substantial infusion
of effort and money.  It is hoped that the suggestions made
herein will be valuable in stimulating new ideas, selecting the
most suitable technology from among the various alternatives
available, and applying the correct criteria to locate and size
storage facilities.

                  BIBLIOGRAPHY/Suggested Reading List

American Concrete Institute.   Concrete International. Vol. 3, No.
     4.   Detroit, Michigan:   American Concrete Institute, April
     1981.

American Concrete Institute.   "Concrete Sanitary Engineering
     Structures." Report No. ACI 350R-83. Detroit, Michigan:
     American Concrete Institute, 1983.

American Concrete Institute.   Handbook of Concrete Engineering.
     ACI-82 Manual of Practice.  Detroit, Michigan:   American Concrete
     Institute, 1982.

 American Water Works Association.  "AWWA Standard D-100-79 for
     Welded Steel Water Storage Tanks." Denver, Colorado:  American
     Water Works Association, 1979.

 American Water Works Association.  "AWWA Standard D-105-80 for
     Disinfection of Water Storage Facilities." Denver, Colorado:
     American Water Works Association, 1980.

 American Water Works Association.  Water Distribution Operator
     Training Handbook. Denver, Colorado:  American Water Works
     Association, 1976.

American Water Works Association.   Water Quality and Treatment.
     Third Edition.  New York, New York:   McGraw-Hill, 1971.

Anchor, R.D.  Design of Liguid-Retaining Concrete Structures.  New
     York, New York:  Wiley and Sons, 1982.

Brown, J.H.  "Flexible Membrane:  An Economical Reservoir Liner and
     Cover."  Journal of the American Water Works Association.
     Vol. 71, No. 6, June 1979.

Feachem, R.G.; McGarry, M.G., and Mara, D.D. Water, Wastes and
     Health in Hot Climates.  New York, New York:   Wiley and Sons,
     1977.

Great Lakes-Upper Mississippi River Board of State Sanitary Engineers.
     "Recommended Standards for Water Works." Albany, New
     York:   Great Lakes-Upper Mississippi River Board of State
     Sanitary Engineers, 1976.

Hartog, J.P.  "Ferro-Cement Construction." Unpublished paper prepared
     for VITA, 1984.  Arlington, Virginia:   VITA, 1984.

Helweg, O.J. and Smith, G.  "Appropriate Technology for Artificial
     Aquifers." Ground Water. Vol. 18, No. 3, May-June 1978.

Huisman, L.  "Low Cost Technology for Public Water Supplies in
     Developing Countries." Opening Remarks.  Low Cost Technology--Specialized
     Conference of International Water Supply
     Associations, Berlin, West Germany, March 31-April 1, 1981.

Ryden, D.E.  "Evaluating the Safety and Seismic Stability of
     Embankment Reservoirs."  Journal of the American Water Works
      Association.   Vol. 76, No. 1.  Denver, Colorado:  American
     Water Works Association, January 1984.

Maddocks, D.  Methods of Creating Low Cost Waterproof Membranes
     for Use in the Construction of Rainwater Catchment and Storage
     Systems.   London, England:   Intermediate Technology Publications,
     Ltd., February 1975.

Salvato, J.A., Jr. Environmental Engineering and Sanitation.  New
     York, New York:  Wiley-Interscience, 1972.

 Schulze, G.   "Cistern Based Water Supply in Rural Areas in Low
     Developed Countries." Low Cost Technology--Specialized Conference
     International Water Supply Association.  Berlin,
     West Germany, March 31-April 1, 1981.

Sharma, P.N. and Helweg, O.J. "Optimum Design of Small Reservoir
     Systems."   Journal of irrigation and Drainage Division--American
     Society of Civil Engineers. Vol. 108, IR4, December
     1982.

Sherer, K.  "Technical Training of Peace Corps Volunteers in Rural
     Water Supply Systems in Morocco." Water and Sanitation for
     Health Project (WASH) Field Report No. 43. Washington, D.C.:
     U.S. Agency for International Development, May 1982.

Silverman, G.S.; Nagy, L.A.; and Olson, B.H.   "Variations in
     Particulate Matter, Algae, and Bacteria in an Uncovered,
     Finished Drinking-Water Reservoir."   Journal of the American
     Water Works Association.  Vol. 75, No. 4. Denver, Colorado:
     American Water Works Association, April 1983.

Upmeyer, D.W.  "Estimating Water Storage Requirements." Public
     Works. Vol. 109, No. 7, July 1978.

========================================
========================================


CD3WD Project Donate
