                      Volunteers in Technical Assistance
                            1815 North Lynn Street
                         Arlington, Virginia 22209 USA
Village Technology Handbook
Copyright [C] 1988 Volunteers in Technical Assistance
All rights reserved. No part of this publication may be reproduced or transmitted
in any form or by any means, electronic or mechanical, including photocopy,
recording, or any information storage and retrieval system, without the written
permission of the publisher.
(This is the third edition of a manual first published in 1963, with the support of
the U. S. Agency for International Development, and revised in 1970, which has
gone through eight major printings.)
Manufactured in the United States of America.
Set in Times Roman type on an IBM personal computer, a gift to VITA from
International Business Machines Corporation, using WordPerfect software donated
by WordPerfect Corporation.
Published by:  Volunteers in Technical Assistance
               1815 North Lynn Street, Suite 200
               Arlington, Virginia 22209 USA
10 9 8 7 6 5 4 3 2 1
Library of Congress Cataloging-in-Publication Data
Village technology handbook.
     Bibliography: p. 413
     1. Building--Amateurs' manuals. 2. Do-it-yourself work. 3. Home economics,
Rural--Handbooks, manuals, etc. I. Volunteers in Technical Assistance.
TH148.V64 1988          620'.41734              88-5700
ISBN 0-86619-275-1
                          Village Technology Handbook
                              Table of Contents


Developing Water Sources
Getting Ground Water from Wells and Springs
    Ground Water

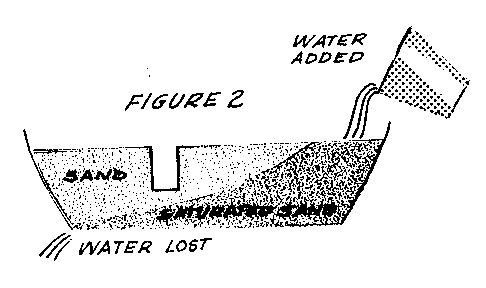

    Flow of Water to Wells
    Where To Dig a Well
    Well Casing and Seal
    Well Development
    Well Casing and Platforms

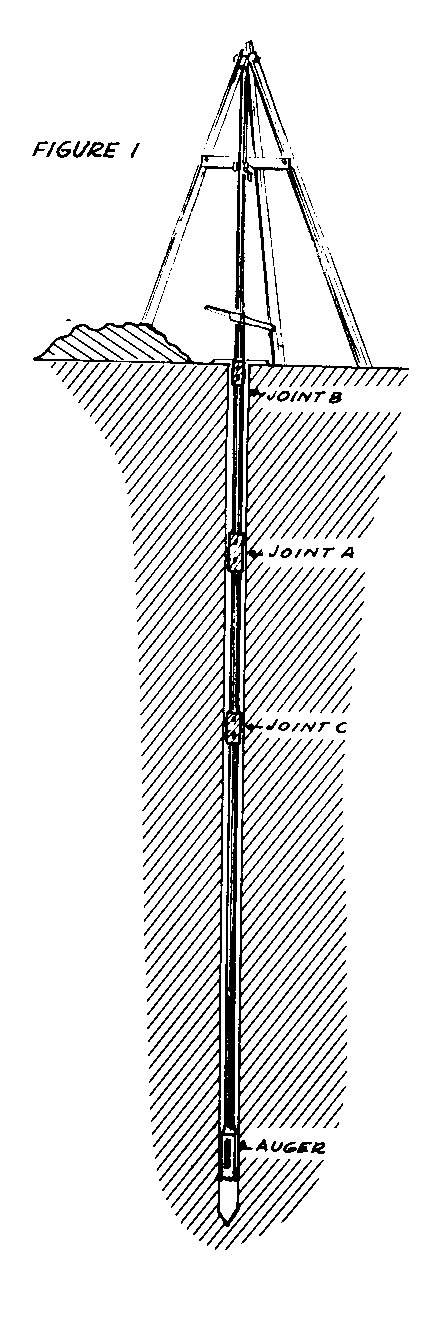

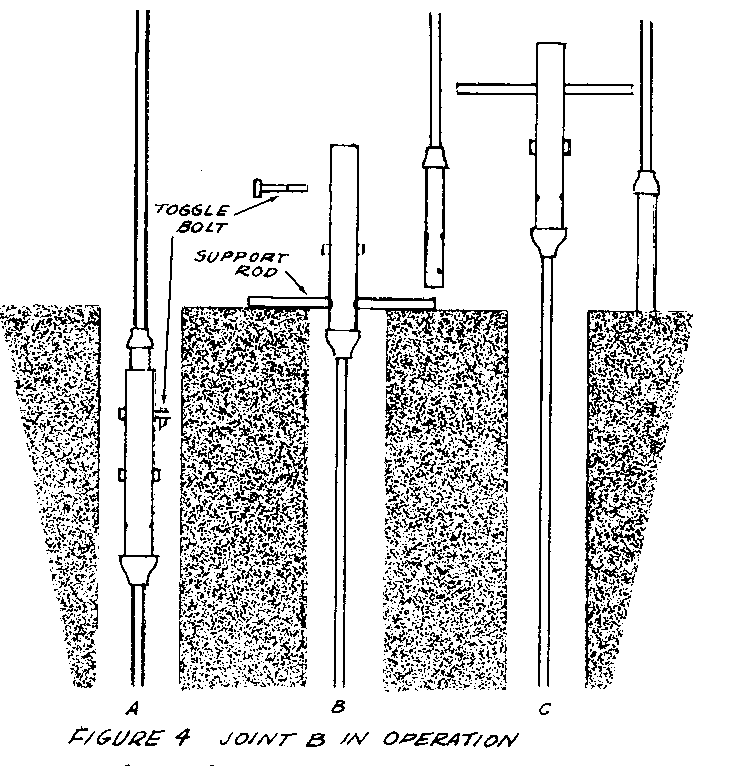

    Hand-Operated Drilling Equipment
    Dry Bucket Well Drilling
    Driven Wells
Dug Wells
    Sealed Dug Well
    Deep Dug Well
    Reconstructing Dug Wells
Spring Development
Water Lifting and Transport
    Moving Water
    Lifting Water
Water Transport
    Estimating Small Stream Water Flow
    Measuring Water Flow in Partially Filled Pipes
    Determining Probable Flow with Known Reservior Height and
      Size and Length of Pipe

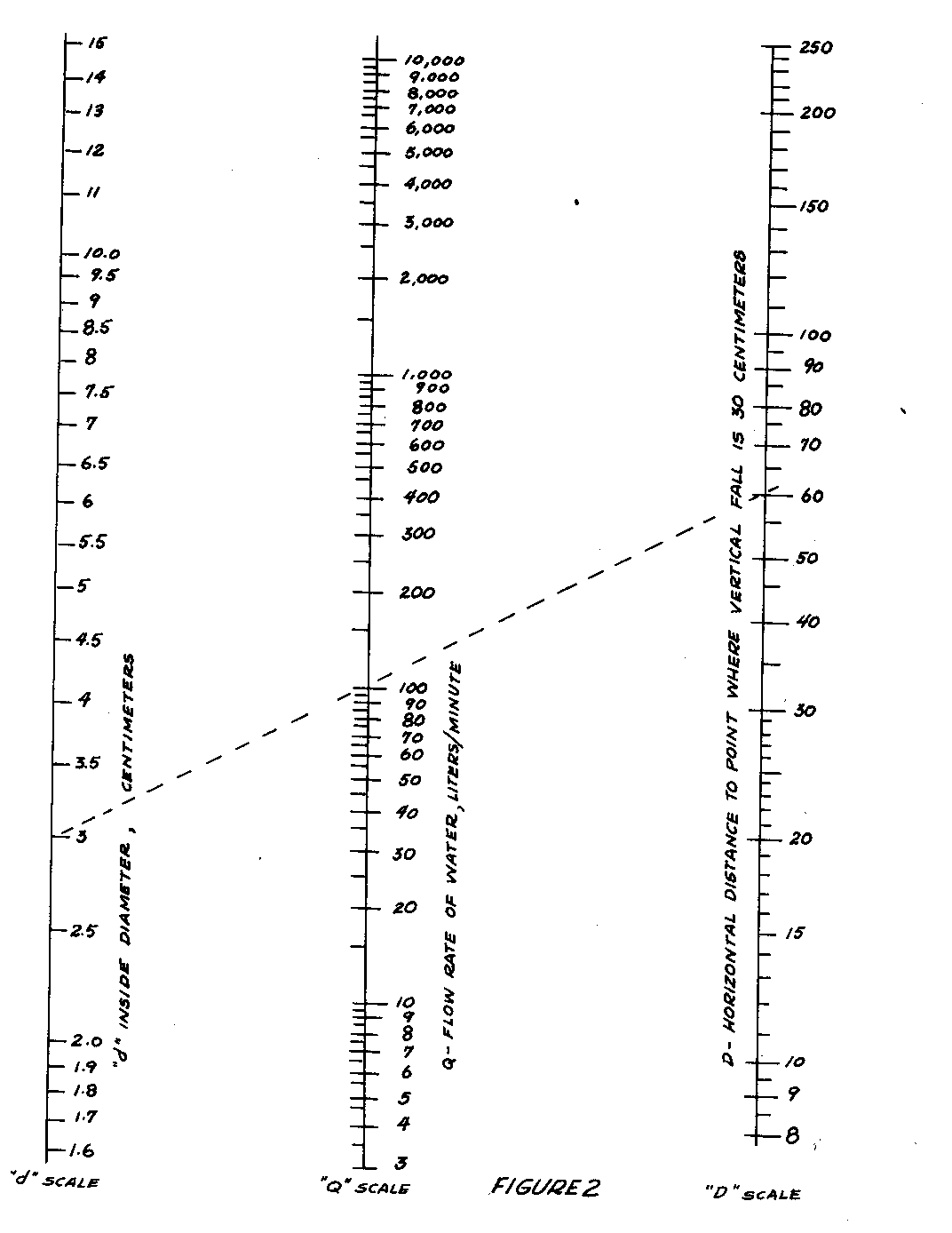

    Estimating Water Flow from Horizontal Pipes

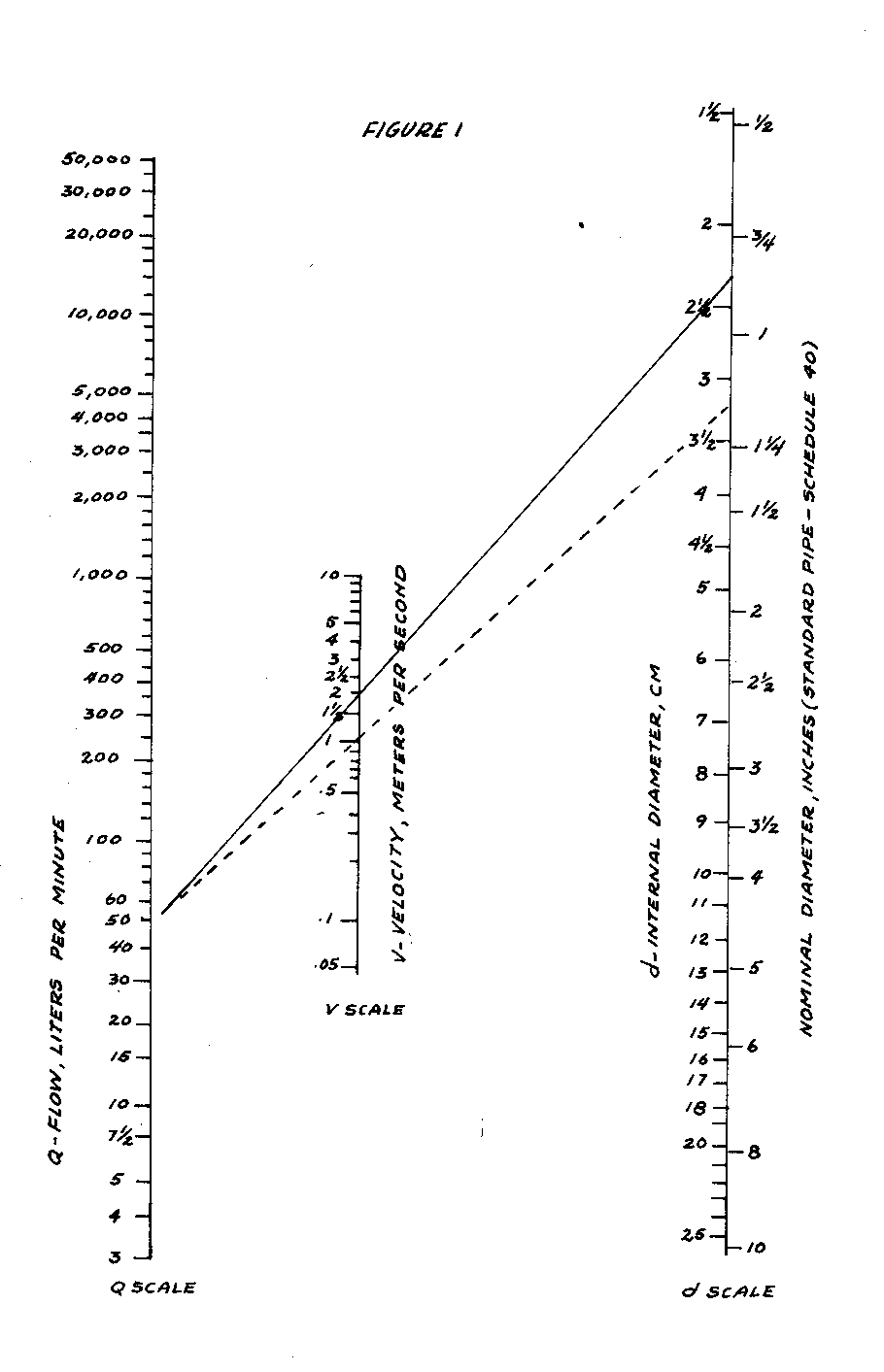

    Determining Pipe Size or Velocity of Water in Pipes
    Estimating Flow Resistance of Pipe Fittings

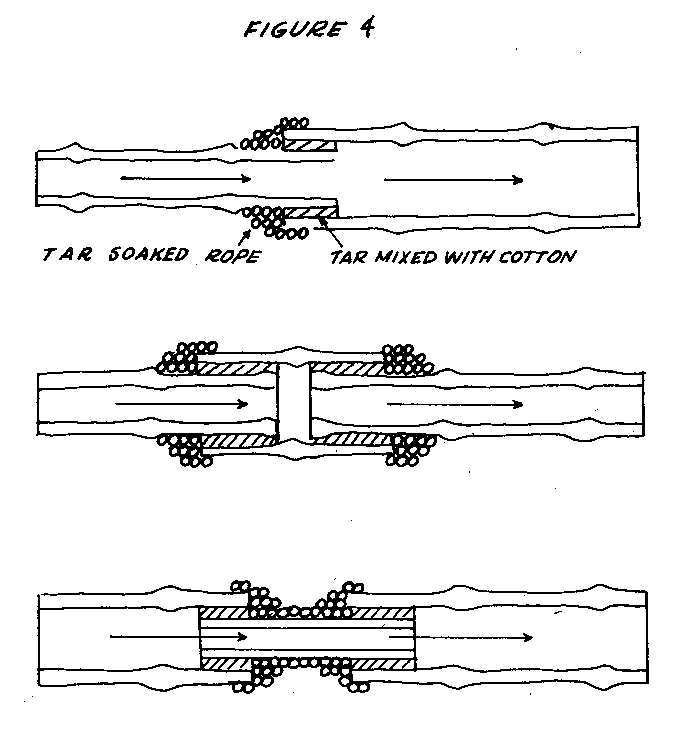

    Bamboo Piping
Water Lifting
    Pump Specifications: Choosing or Evaluating a Pump
    Determining Pump Capacity and Horsepower Requirements

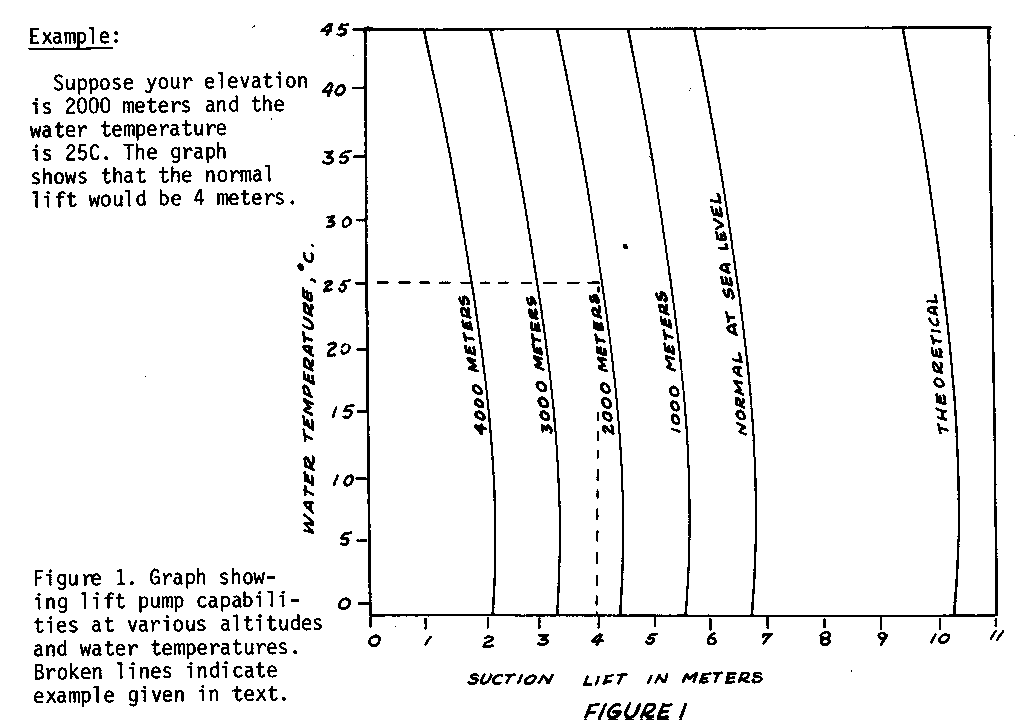

    Determining Lift Pump Capability
Simple Pumps
    Chain Pump for Irrigation
    Inertia Hand Pump
    Handle Mechanism for Hand Pumps
    Hydraulic Ram

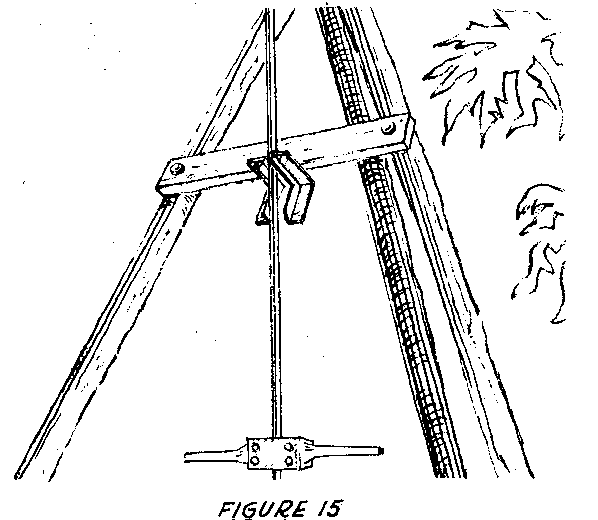

Reciprocating Wire Power Transmission for Water Pumps
Wind Energy for Water Pumping
    Decision Making Process
Water Storage and Treatment
    Cistern Tank
    Catchment Area
    Cistern Filter
Selecting a Dam Site
    Catchment Area
Water Purification
    Boiler for Drinking Water
    Chlorinating Wells, Springs, and Cisterns
     Water Purification Plant
    Sand Filter
Sanitary Latrines
    Privy Location
    Privy Shelters
Privy Types
    Pit Privy
    Water Privy
    Philippine Water-Seal Latrine
    Thailand Water-Seal Privy Slab
The Parasites
Symptoms and Diagnosis
Ridding an Area of Bilharziasis
Malaria Control
Community Preventive Measures
Personal Preventive Measures
Oral Rehydration Therapy
Dehydration--A Life-Threatening Condition
Treating or Preventing Dehydration
Earth Moving Devices for Irrigation and Road Building
Drag Grader
Fresno Scraper
Barrel Fresno Scraper
    Repairing the Barrel Fresno Scraper
    Adapting for Heavy Duty
Float with Adjustable Blade
Buck Scraper
Multiple Hitches
Siphon Tubes
Using Tile for Irrigation and Drainage
    Making a Concrete Tile Machine
    Making the Tile
Seeds, Weeds, and Pests
Seed Cleaner
Seed Cleaning Sieves
Drying Grain with Wooden Blocks
    Preparing the Blocks
    Using the Blocks
Bucket Sprayer
Backpack Crop Duster
    How the Duster Operates
    Adjusting the Duster
    Filling the Duster
    Making Springs for the Duster
Poultry Raising
Brooder with Corral for 200 Chicks
Kerosene Lamp Brooder for 75 to 100 Chicks
Brooder for 300 Chicks
Bamboo Poultry House
Poultry Feed Formulas
Intensive Gardening
The Soil
The Growing Beds
Fertilizing the Soil
Selection of Crops
Silage for Dairy Cows
Storing Food at Home
How to Care for Various Kinds of Food
    Dairy Foods
    Fresh Meat, Fish, Poultry
    Fresh Fruits and Vegetables
    Fats and Oils
    Baked Goods
    Dried Foods
    Canned Goods
    Leftover Cooked Foods
Food Spoilage
    When is Food Spoiled?
    Why Food Spoils
Containers for Food
    Types of Containers
    Care of Food Containers
The Storage Area
    Good Ventilation
    Keep the Storage Area Cool and Dry
    Keep the Storage Area Clean
Keeping Foods Cool
Evaporative Food Cooler
Iceless Cooler
Window Box
Other Ways To Keep Foods Cool
Storing Vegetables and Fruits for Winter Use
Post Plank Cellar
Cabbage Pits
Storage Cones
Fish Preservation
Salting Fish
    Preparing the Fish
    Washing and Drying To Remove Excess Salt
    Air Drying
    Using Salted Fish
Smoking Fish
Concrete Construction
    Importance of a Good Mixture
    Aggregates: Gravel and Sand
Calculating Amounts of Materials for Concrete
    Using the "Concrete Calculator"
    Using the Water Displacement Method
    Using "Rule of Thumb" Proportions
Mixing Concrete
    Making a Mixing Boat or Floor
    Slump Tests
Making Forms for Concrete
Placing Concrete in Forms
Curing Concrete
Quick-Setting Concrete
Bamboo Construction
Preparing Bamboo
    Splitting Bamboo
    Bamboo Preservation
Bamboo Joints
Bamboo Boards
Bamboo Walls, Partitions, and Ceilings
Stabilized Earth Construction
Soil Characteristics
Testing the Soil
    Composition Test
    Compaction Test
    Shrinkage Test
Making Adobe Blocks
Making Compressed Earth Blocks and Tiles
Building with Stabilized Earth Blocks
Construction Glues
Casein Glue
    Making Casein Powder
    Mixing Casein Glue
    Using Casein Glue
Liquid Fish Glue
Simple Washing Machines
Plunger Type Clothes Washer
    Making the Washer
    Using the Washer
Hand-Operated Washing Machine
    Making the Washing Machine
    Using the Washing Machine
Cookers and Stoves
Fireless Cooker
    Making the Fireless Cooker
    Using the Fireless Cooker
Charcoal Oven
    How To Build the Oven
    How To Use the Oven
Portable Metal Cookstoves
    Principles of Energy-Efficient Stoves
    Cookstove Design
    Producing the Cookstoves
Outdoor Oven
Home Soap Making
Two Basic Methods
Ingredients for Soap
    Fats and Oils
Soap Making with Commercial Lye
    How To Make the Soap
    How To Know Good Soap
    Reclaiming Unsatisfactory Soap
Soft Soap with Lye Leached from Ashes
    Leaching the Lye
    Making the Soap
Larger-Scale Soap Making
A Nest of Low-Cost Beds
How To Make a Mattress
    Making the Mattress
    Making a Rolled Edge
Waste-Oil Fired Kiln
    Cost Advantages of Waste Oil
    Design of Kiln and Fire Box
    Operating the Kiln
Small Rectangular Kiln
Salt Glaze for Pottery
    How To Fire the Pottery
Hand Papermaking
Papermaking Processes
    Lifting, Couching, Stacking
    Pressing and Drying
    Sorting and Cutting
Making Paper in the Small Workshop
    Making the Sheets
    Pressing and Drying
    Sizing and Coating
Making Paper in the Micro-Factory
Candle Making
Making the Jigs
Preparing the Wax
Dipping the Candles
Bamboo or Reed Writing Pens
Silk Screen Printing
Building the Silk Screen Printer
Preparing A Paper Stencil
Making Silk Screen Paint
Inexpensive Rubber Cement
The Village Technology Handbook has been an important tool for development
workers and do-it-yourselfers for 25 years. First published in 1963 under the
auspices of the U.S. Agency for International Development, the Handbook has
gone through eight major printings. Versions in French and Spanish, as well as
English, are on shelves in bookstores, on desks in government offices and local
organizations, in school libraries and technical centers, and in the field kits of
village workers around the world. The technologies it contains, like the chain and
washer pump, the evaporative food cooler, and the hay box cooker, have been
built for technology fairs and demonstration centers throughout the developing
world-and more importantly, have been adopted and adapted by people everywhere.
Because the Handbook has been a faithful friend for so long, this revision was
approached with care. As even the best of friendships needs an occasional
reassessment, our question was how to update the book without damaging its
fundamental utility-to avoid throwing the baby out with the bath water.
We began by circulating sections of the book to VITA Volunteers with expertise
in the various technical areas. We asked them to take a good hard look at what
was presented and let us know what should be revised, updated, discarded,
replaced. The volunteers' replies affirmed what tens of thousands of users around
the world have recognized over the years, that the basic material was sound.
Where they suggested changes, additions, and deletions, we have done our best to
Concurrently, we reviewed the comments that many of those users have sent to
us over the years. Comments on what worked, what caused trouble, and what
would be nice to have included. With so much going on in the development of
small-scale, village technologies, the latter category was extensive. But because so
much of the original book is still very applicable today, we opted to make the
additions and changes selectively. We made the decision to add to this volume
where it seemed most feasible, and to begin to compile a companion volume that
will cover a selection of those other technologies.
Since the Handbook is primarily intended for "do-it-yourselfers" in villages and
rural regions, most space still is allocated to the development of water resources
and to agriculture. And rather than simply replacing everything and starting over,
this new edition reorganizes some sections, updates several of the original
articles, and includes a number of new ones on frequently requested topics. The
new articles cover energy efficient stoves, the use of wind power to pump water,
stabilized earth construction, a novel ceramics kiln, small-scale candle and paper
production, high yield gardening, oral rehydration therapy, and malaria control. An
all-new reference section is also provided.
VITA is committed to assisting sustainable growth: that is, to progress, based on
expressed needs, that increases self reliance. Access to clearly presented technical
information is a key to such growth. VITA searches out, develops, and disseminates
techniques and devices that contribute to self suffiency. The Village
Technology Handbook is one such VITA effort to support sustainable growth with
easy to read technical information for the communities of the world.
VITA Volunteers are similarly committed to helping VITA help others, and many
of them were involved in this project, reviewing material in their technical fields.
VITA wishes to thank Robert M. Ross and David C. Neubert for reviewing the
sections on agriculture; Phil D. Weinert, Charles G. Burney, Walter Lawrence, and
Steven Schaefer, water resources and purification; Malcolm C. Bourne and Norman
M. Spain, food processing and preservation; Dwight R. Brown and William Perenchio,
construction; Charles D. Spangler, sanitation; Jeff Wartluft, Mark Hadley,
Marietta Ellis, Gerald Kinsman, and Peter Zweig, home improvement; Dwight
Brown and Victor Palmeri, crafts and village industries; and Grant Rykken,
Most especially, we would like to thank VITA Volunteer engineer and literacy
specialist Len Doak, who was coaxed out of retirement and away from the fishing
docks to coordinate the revision, sort out the comments, and pull the new pieces
VITA staff who were involved included Suzanne Brooks, administrative support and
graphics; Julie Berman, administrative support; Margaret Crouch, editorial; and
Maria Garth, typesetting.
And finally, this effort has given all of us a new respect for Dan Johnson, one of
VITA's "founding fathers" and currently a member of the Board of Directors, who
devoted a year of his life to putting the original Handbook together a quarter of
a century ago. That so much of that work has stood the test of time is due in no
small measure to the care with which he and the other VITA Volunteers who
worked with him approached their task.
                                                            --VITA Publications
                                                                   January 1988
                        Notes on Using the Handbook
The Village Technology Handbook contains eight major subject sections, each containing
several articles. The articles cover both the broad topic areas such as
agriculture, as well as specific agricultural projects such as building a scraper.
If you are planning an entirely new project you would benefit by reading the entire
section through. If you are planning a specific project (such as building a
wind-driven water pump) only that article need be read.
The skills needed for each of the projects described vary considerably, but none
of the projects requires more than the usual construction and trade skills such as
carpentry, welding, or farming that are generally found in most modest sized villages.
When the materials suggested in the Handbook are not available, it may be possible
to substitute other materials. Be careful to make any changes in dimensions
made necessary by such substitutions.
If you need translations of articles from the Handbook, we ask that you let us
know. The book itself has been translated into English, French, and Spanish, and
some individual articles may be available in other languages.
The articles in the Handbook came from many sources. Your comments and suggestions
for changes, difficulties with any of the projects described, or ideas for
new articles are welcome. Those kinds of comments were a very important element
in preparing this revised edition, and we expect to rely on them in the
future as well. Please send your comments so that we may continue to share.
Section 1. Water
Water resources are so vital that extensive coverage is provided. Much of this
material is from the original, but it has been reorganized and updated. The
sequence of articles begins with principles of hydrology that explain where
underground water is likely to be found. This is followed by articles on types of
wells and how to make well drilling tools and how to drill or dig the wells.
Next come articles on practical methods to lift water from wells and to transport
it. Articles on several pumps and water piping occur here. A new article on wind-driven
pumps is in this section. A number of charts and tables help in the
calculation of pipe size and water flow.
Water storage and purification are the topics of the next series of articles. This
section is unchanged from the earlier edition, but several new references are
Section 2. Health and Sanitation
Next to pure water, sanitation is one of the most critical health needs of any
society. This section begins with two brief articles on the principles for disposal
of human waste. These are followed by details of how to build various types of
latrines. Also included is an article on bilharziasis (schistosomiasis) and a new
articles on malaria control and oral rehydration therapy.
Section 3. Agriculture
Seven topics are covered, beginning with earth moving devices to level fields and
build irrigation ditches. This is followed by directions for an irrigation system
based on concrete tile, including how to make the tile in the field. A variety of
material on raising poultry is included, and a new article on small, high yield
gardens has been added.
Section 4. Food Processing and Preservation
The articles in this section describe storage and handling of different types of
food, evaporative coolers and other cold storage technologies, and a variety of
other storage and processing systems and devices. The section has been revised
and updated and new references have been added.
Section 5. Construction
Much of this section deals with construction of buildings and walls using concrete
or bamboo. A new article on stabilized earth construction has been added, and
instructions for making glues to use in construction are also included.
Section 6. Home Improvements
Washing clothes, cooking, making soap, and making bedding are covered here. An
important new addition is an article on the construction of an energy efficient
cookstove developed in West Africa. The stove has shown more than double the
fuel efficiency of the traditional open fire.
Section 7. Crafts and Village Industry
Traditional crafts that lend themselves to development as small businesses are
discussed in this section--pottery, hand papermaking, and candle making. Ceramic
kilns described include an alternative kiln design fueled by waste motor oil.
Section 8. Communications
This section remains unchanged from the original on the premise that while
changes, in communications could actually fill volumes on their own, there are
many places in developing areas where the simple technologies presented here are
still quite useful. Simple writing instruments and silk screen printing are discussed.
The skills and materials described should be available in most rural
Each article in the Handbook concludes with one or more source references. These
and other sources of information have been compiled into the new expanded
Reference section at the back of the book. VITA publications that are listed may
be ordered directly from VITA Publications, Post Office Box 12028, Arlington,
Virginia 22204 USA.
You may also request technical assistance from VITA Volunteer experts by writing
to VITA, 1815 North Lynn Street, Suite 200, Arlington, Virginia 22209 USA.
                                  About VITA
Volunteers in Technical Assistance (VITA) is a private, nonprofit, international
development organization. It makes available to individuals and groups in developing
countries a variety of information and technical resources aimed at fostering
self sufficiency--needs assessment and program development support; by-mail and
on-site consulting services; information systems training; and management of long-term
field projects.
Throughout its history, VITA has concentrated on practical and workable technologies
for development. It has collected, organized, tested, synthesized, and
disseminated information on these technologies to more than 70,000 requesters and
hundreds of organizations in the developing countries. As the information revolution
dawned, VITA found itself in a leadership position in the effort to bring the
benefits of that revolution to those in the Third World who are traditionally
passed over in the development process.
Perhaps of greatest significance is VITA's emphasis on technologies that are
commercially viable. These have the potential of creating new wealth through
adding value to local materials, thereby creating jobs and increasing income as
well as strengthening the private sector. We have increasingly translated our
experiences in information management to the implementation of projects in the
field. This evolution from information to implementation to create jobs, businesses,
and new wealth is what VITA is really about. It provides missing links
without creating dependency.
VITA places special emphasis on the areas of agriculture and food processing,
renewable energy applications, water supply and sanitation, housing and construction,
and small business development. VITA's activities are facilitated by the
active involvement of thousands of VITA Volunteer technical experts from around
the world, and by its documentation center containing specialized technical
material of interest to people in developing countries.
VITA currently publishes over 150 technical manuals, papers, and bulletins, many
available in French and Spanish as well as English. Manuals deal with construction
or implementation details for such specific topics as windmills, reforestation,
water wheels, and rabbit raising. In addition, VITA Technical Bulletins present
plans and case studies of specific technologies to encourage further experimentation
and testing. The technical papers-"Understanding Technology"-offer general
introductions to the applications and necessary resources for technologies or
technical systems. Included in the series are topics that range from composting to
Stirling engines, from sanitation at the community level to tropical root crops.
Publications catalogues are available upon request.
VITA News is a quarterly magazine that provides an important communications
link among far-flung organizations involved in technology transfer and adaptation.
The News contains articles about projects, issues, and organizations around the
world, reviews of new books, technical abstracts, and a resources bulletin board.
VITA derives its income from government, foundation, and corporate grants; fees
for services; contracts; and individual contributions.
For further information write to VITA, 1815 North Lynn Street, Suite 200,
Arlington, Virginia 22209 USA.
                          Symbols and Abbreviations
                              Used in this Book
@  . . . . at
"  . . . . inch
'  . . . . foot
C  . . . . degrees Celsius (Centigrade)
cc . . . . cubic centimeter
cm . . . . centimeter
cm/sec . . centimeters per second
d or dia . diameter
F  . . . . degrees Fahrenheit
gm . . . . gram
gpm. . . . gallons per minute
HP . . . . horsepower
kg . . . . kilogram
km . . . . kilometer
l  . . . . liter
l/pm . . . liters per minute
l/sec. . . liters per second
m  . . . . meter
ml . . . . milliliters
mm . . . . millimeters
m/m. . . . meters per minute
m/sec. . . meters per second
ppm. . . . parts per million
R  . . . . radius
                               Water Resources
                                 <see image>
                           Developing Water Sources
There are three main sources of water for small water-supply systems: ground
water, surface water, and rainwater. The choice of the source of water depends
on local circumstances and the availability of resources to develop the water
A study of the local area should be made to determine which source is best for
providing water that is (1) safe and wholesome, (2) easily available, and (3)
sufficient in quantity. The entries that follow describe the methods for tapping
ground water:
     o    Tubewells
         - Well Casings and Platforms
         - Hand-Operated Drilling Equipment
         - Driven Wells
     o    Dug Wells
     o    Spring Development
Once the water is made available, it must be brought from where it is to where it
is needed and steps must be taken to be sure that it is pure. These subjects are
covered in the major sections that follow:
     o    Water Lifting and Transport
     o   Water Storage and Treatment
This section defines ground water, discusses its occurrence, and explains its
movement. It describes how to decide on the best site for a well, taking into
consideration the nearness to surface water, topography, sediment type, and
nearness to pollutants. It also discusses briefly the process of capping and sealing
the well and developing the well to assure maximum flow of water.
Ground Water
Ground water is subsurface water, which fills small openings (pores) of loose

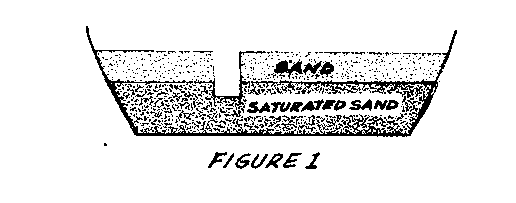

sediments (such as sand and gravel) or rocks. For example, if we took a clear
glass bowl, filled it with sand, and then poured in some water, we would notice
the water "disappear" into the sand (see Figure 1). However, if we looked through


the side of the bowl, we would see water in the sand, but below the top of the
sand. The sand containing the
water is said to be saturated. The
top of the saturated sand is called
the water table; it is the level of
the water in the sand.
The water beneath the water table
is true ground water available (by
pumping) for human use. There is
water in the soil above the water table, but it does not flow into a well and is
not available for use by pumping.
If we inserted a straw into the saturated sand in the bowl in Figure 1 and sucked
on the straw, we would obtain some water (initially, we would get some sand too).
If we sucked long enough, the water table or water level would drop toward the
bottom of the bowl. This is exactly what happens when water is pumped from a
well drilled below the water table.
The two basic factors in the occurrence of ground water are: (1) the presence of
water, and (2) a medium to "house" the water. In nature, water is provided by
precipitation (rain and snow) and surface water features (rivers and lakes). The
medium is porous rock or loose sediments.
The most abundant ground water reservoir occurs in the loose sands and gravels
in river valleys. Here the water table roughly parallels the land surface, that is,
the depth to the water table is generally constant. Disregarding any drastic
changes in climate, natural ground water conditions are fairly uniform or balanced.
In Figure 2, the water poured into the bowl (analogous to precipitation) is


balanced by the water discharging out of the bowl at the lower elevation (analogous
to discharge into a stream).
This movement of ground water is
slow, generally just centimeters or
inches per day.

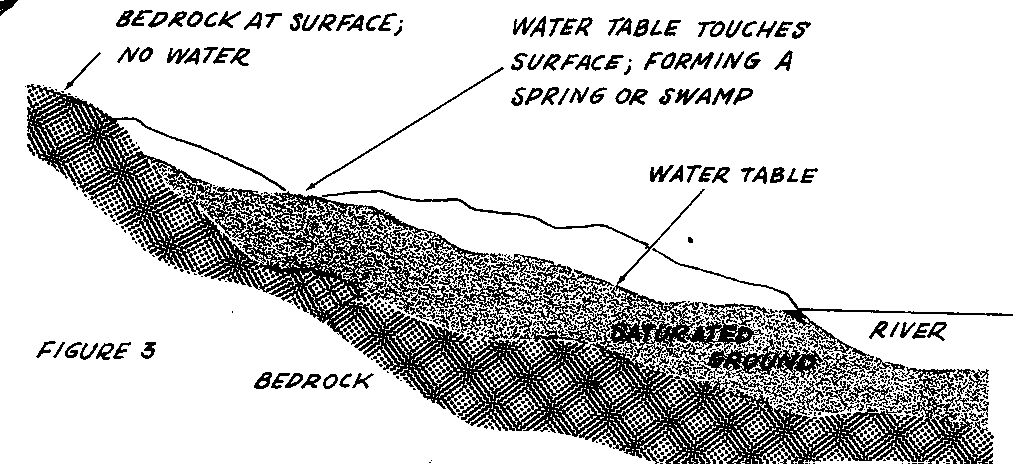

When the water table intersects the
land surface, springs or swamps are
formed (see Figure 3). During a


particularly wet season, the water
table will come much closer to the
land surface than it normally does
and many new springs or swampy
areas will appear. On the other hand, during a particularly dry season, the water
table will be lower than normal and many springs will "dry up." Many shallow
wells may also "go dry."
Flow of Water to Wells
A newly dug well fills with water a meter or so (a few feet) deep, but after some
hard pumping it becomes dry. Has the well failed? Was it dug in the wrong place?
More likely you are witnessing the phenomenon of drawdown, an effect every
pumped well has on the water table (see Figure 4).


Because water flows through sediments slowly, almost any well can be pumped dry
temporarily if it is pumped hard enough. Any pumping will lower the water level
to some degree, in the manner shown in Figure 4. A serious problem arises only
when the drawdown due to normal use lowers the water table below the level of
the well.
After the well has been dug about a meter (several feet) below the water table, it
should be pumped at about the rate it will be used to see if the flow into the
well is adequate. If it is not sufficient, there may be ways to improve it. Digging
the well deeper or wider will not only cut across more of the water-bearing layer
to allow more flow into the well, but it will also enable the well to store a
greater quantity of the water that may seep in overnight. If the well is still not
adequate and can be dug no deeper, it can be widened further, perhaps lengthened
in one direction, or more wells can be dug. The goal of all these methods is to
intersect more of the water-bearing layers, so that the well will produce more
water without lowering the water table to the bottom of the well.
Where to Dig a Well
Four important factors to consider in choosing a well site are:
     o    Nearness to Surface Water
     o    Topography
     o    Sediment Type
     o    Nearness to Pollutants
Nearness to Surface Water
If there is surface water nearby, such as a lake or a river, locate the well as
near to it as possible. It is likely to act as a source of water and keep the water
table from being lowered as much as without it. This does not always work well,
however, as lakes and slow-moving bodies of water generally have silt and slime
on the bottom, which prevent water from entering the ground quickly.
There may not seem to be much point to digging a well near a river, but the
filtering action of the soil will result in water that is cleaner and more free of
bacteria. It may also be cooler than surface water. If the river level fluctuates
during the year, a well will give cleaner water (than stream water) during the
flood season, although ground water often gets dirty during and after a flood. A
well will also give more reliable water during the dry season, when the water
level may drop below the bed of the river. This method of water supply is used
by some cities: a large well is sunk next to a lake or river and horizontal tunnels
are dug to increase the flow.
Wells near the ocean, and especially those on islands, may have not only the
problem of drawdown, but that of salt water encroachment (see Figure 5). The


underground boundary between fresh and salt water generally slopes inland:
Because salt water is heavier than fresh water, it flows in under it. If a well
near the shore is used heavily, salt water may come into the well as shown. This
should not occur in wells from which only a moderate amount of water is drawn.
Ground water, being liquid, gathers in low areas. Therefore, the lowest ground is
generally the best place to drill or dig. If your area is flat or steadily sloping,
and there is no surface water, one place is as good as another to start drilling or
digging. If the land is hilly, valley bottoms are the best places to look for water.
You may know of a hilly area with a spring on the side of a hill. Such a spring
could be the result of water moving through a layer of porous rock or a fracture
zone in otherwise impervious rock. Good water sources can result from such
Sediment Type
Ground water occurs in porous or fractured rocks or sediments. Gravel, sand and
sandstone are more porous than clay, unfractured shale and granite or "hard
Figure 6 shows in a general way the relationship between the availability of


ground water (expressed by typical well discharges) and geologic material (sediments
and various rock types). For planning the well discharge necessary for
irrigating crops, a good rule of thumb for semi-arid climates-37.5cm (15") of
precipitation a year-is a 1500- to 1900-liters (400 to 500 U.S. gallons)-per-minute
well that will irrigate about 65 hectares (160 acres) for about six months. From
Figure 6, we see that wells in sediments are generally more than adequate.
However, enough ground water can be obtained from rock, if necessary, by
drilling a number of wells. Deeper water is generally of better quality.
Sand and gravel are normally porous and clay is not, but sand and gravel can
contain different amounts of silt and clay, which will reduce their ability to carry
water. The only way to find the yield of a sediment is to dig a well and pump it.
In digging a well, be guided by the results of nearby wells and the effects of
seasonal fluctuations on nearby wells. And keep an eye on the sediments in your
well as it is dug. In many cases you will find that the sediments are in layers,
some porous and some not. You may be able to predict where you will hit water
by comparing the layering in your well with that of nearby wells.
Figures 7, 8, and 9 illustrate several sediment situations and give guidelines on


how deep to dig wells.
Aquifers (water bearing sediments) of Sand and Gravel. Generally yield 11,400
      LPM (300 gpm) (but they may yield less depending on pump, well construction,
      and well development.
Aquifers of Sand, Gravel, and Clay (Intermixed or Interbedded). Generally yield between
      1900 LPM (500 gpm) and 3800 LPM (1000 gpm), but can yield more
      --between 3800 LPM (1000 gpm) and 11,400 LPM (3000 gpm)-- depending
      on the percentage of the constituents.
Aquifers of Sand and Clay. Generally yield about 1900 LPM (500 gpm) but may
      yield as much as 3800 LPM (1000 gpm).
Aquifers of Fractured Sandstone. Generally yield about 1900 LPM (500 gpm) but
      may yield more than 3800 LPM (1000 gpm) depending on the thickness of the
      sandstone and the degree and extent of fracturing (may also yield less than
      1900 LPM (500 and gpm) if thin and poorly fractured or interbedded with clay or
Aquifers of Limestone. Generally yield between 38 LPM (10gpm) but have been
      known to yield more than 3800 LPM (1000 gpm) due to caverns or nearness
      of stream, etc.
Aquifers of Granite and/or "Hard Rock." Generally yield 38 gpm (10gpm) and may
      yield less (enough for a small household).
Aquifers of Shale. Yield less than 38 LPM (10gpm), not much good for anything
      except as a last resort.
Nearness to Pollutants
If pollution is in the ground water, it moves with it. Therefore, a well should
always be uphill and 15 to 30 meters (50 to 100 feet) away from a latrine,
barnyard, or other source of pollution. If the area is flat, remember that the flow
of ground water will be downward, like a river, toward any nearby body of
surface water. Locate a well in the upstream direction from pollution sources.
The deeper the water table, the less chance of pollution because the pollutants
must travel some distance downward before entering ground water. The water is
purified as it flows through the soil.
Extra water added to the pollutants will increase their flow into and through the
soil, although it will also help dilute them. Pollution of ground water is more
likely during the rainy than the dry season, especially if a source of pollution
such as a latrine pit is allowed to fill with water. See also the Overview to the
Sanitary Latrines section, p. 149. Similarly, a well that is heavily used will
increase the flow of ground water toward it, perhaps even reversing the normal
direction of ground-water movement. The amount of drawdown is a guide to how
heavily the well is being used.
Polluted surface water must be kept out of the well pit. This is done by casing
and sealing the well and providing good drainage around the well cover.
Well Casing and Seal
The purpose of casing and seating wells is to prevent contaminated surface water
from entering the well or nearby ground water. As water will undoubtedly be
spilled from any pump, the top of the well must be sealed with a concrete slab to
let the water flow away rather than re-enter the well directly. It is also helpful
to build up the pump area with soil to form a slight hill that will help drain away
spilled water and rain water.
Casing is the term for the pipe, concrete or grout ring, or other material that
supports the well wall. It is usually impermeable in the upper part of the well to
keep out polluted water (see Figure 7) and may be perforated or absent in the


lower part of the well to let water enter. See also "Well Casing and Platforms," p.
12, and "Reconstructing Dug Wells," p. 57.
In loose sediment, the base of the well should consist of a perforated casing
surrounded by coarse sand and small pebbles; otherwise, rapid pumping may bring
into the well enough material to form a cavity and collapse the well itself.
Packing the area around the well hole in the water-bearing layer with fine gravel
will prevent sand from washing in and increase the effective size of the well. The
ideal gradation is from sand to 6mm (1/4") gravel next to the well screen. In a
drilled well it may be added around the screen after the pump pipe is installed.
Well Development
Well development refers to the steps taken after a well is drilled to ensure
maximum flow and well life by preparing the sediments around the well. The layer
of sediments from which the water is drawn often consists of sand and silt. When
the well is first pumped, the fine material will be drawn into the well and make
the water muddy. You will want to pump out this fine material to keep it from
muddying the water later and to make the sediments near the well more porous.
However, if the water is pumped too rapidly at first, the fine particles may
collect against the perforated casing or the sand grains at the bottom of the well
and block the flow of water into it.
A method for removing the fine material successfully is to pump slowly until the
water clears, then at successively higher rates until the maximum of the pump or
well is reached. Then the water level should be permitted to return to normal and
the process repeated until consistently clear water is obtained.
Another method is surging, which is moving a plunger (an attachment on a drill
rod) up and down in the well. This causes the water to surge in and out of the
sedimentary layer and wash loose the fine particles, as well as any drilling mud
stuck on the wall of the well. Coarse sediment washed into the well can be
removed by a bailing bucket, or it may be left in the bottom of the well to serve
as a filter.
Anderson, K.E. Water Well Handbook. Rolla, Missouri: Missouri Water Wells
Drillers Association, 1965.
Baldwin, H.L. and McGuinness, C.L. A Primer on Ground Water. Washington, D.C.:
U.S. Government Printing Office, 1964.
Davis, S.N. and DeWiest, R.J.M. Hydrogeology. New York: Wiley & Sons, 1966.
Todd, D.K. Ground Water Hydrology. New York: Wiley & Sons, 1959.
Wagner, E.G. and Lanoix, J.N. Water Supply for Rural Areas and Small Communities.
Geneva: World Health Organization, 1959.
Ground Water and Wells. Saint Paul, Minnesota: Edward E. Johnson, Inc., 1966.
Small Water Supplies, Bulletin No. 10. London: The Ross Institute, 1967.
U.S. Army. Wells. Technical Manual 5-297. Washington, D.C.: U.S. Government
Printing Office, 1957.
Where soil conditions permit, the tubewells described here will, if they have the
necessary casing, provide pure water. They are much easier to install and cost
much less than large diameter wells.
Tubewells will probably work well where simple earth borers or earth augers work
(i.e., alluvial plains with few rocks in the soil), and where there is a permeable
water-bearing layer 15 to 25 meters (50 to 80 feet) below the surface. They are
sealed wells, and consequently sanitary, which offer no hazard to small children.
The small amounts of materials needed keep the cost down. These wells may not
yield enough water for a lane group, but they would be big enough for a family
of a small group of families.
The storage capacity in small diameter wells is small. Their yield depends largely
on the rate at which water flows from the surrounding soil into the well. From a
saturated sand layer, the flow is rapid. Water flowing in quickly replaces water
drawn from the well. A well that taps such a layer seldom goes dry. But even
when water-bearing sand is not reached, a well with even a limited storage
capacity may yield enough water for a household.
Well Casing and Platforms
In home or village wells, casing and platforms serve two purposes: (1) to keep
well sides from caving in, and (2) to seal the well and keep any polluted surface
water from entering it.
Two low-cost casing techniques are described here:
1. Method A (see Figure 1), from an American Friends Service Committee (AFSC)


team in Rasulia, Madhya Pradesh, India.
2. Method B, from an International Voluntary Services (IVS) team in Vietnam.
Method A
                             Tools and Materials
Casing pipe (from pump to water-bearing layer to below minimum water table)-Asbestos
cement, tile, concrete, or even galvanized iron pipe will do
Device for lowering and placing casing (see Figure 2)


Drilling rig - see "Tubewell Boring"

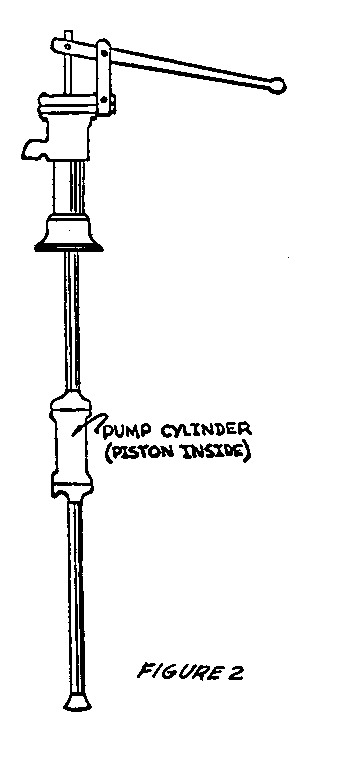

Foot valve, cylinder, pipe, hand pump
The well hole is dug as deep as
possible into the water-bearing
strata. The diggings are placed near
the hole to make a mound, which
later will serve to drain spilled
water away from the well. This is
important because backwash is one
of the few sources of contamination
for this type of well. The
entire casing pipe below water level
should be perforated with many
small holes no larger than 5mm
(3/16") in diameter. Holes larger
than this will allow coarse sand to
be washed inside and plug up the
well. Fine particles of sand,
however, are expected to enter.
These should be small enough to be
pumped immediately out through
the pump. This keeps the well
clear. The first water from the new
well may bring with it large
quantities of fine sand. When this
happens, the first strokes should be
strong and steady and continued
until the water comes clear.

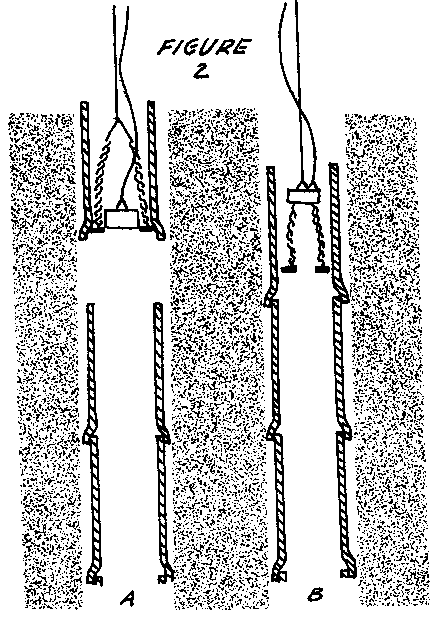

Perforated casing is lowered, bell
end downward, into the hole using
the device shown in Figure 2. When
the casing is properly positioned,
the trip cord is pulled and the next
section prepared and lowered. Since
holes are easily drilled in asbestos
cement pipe, they can be wired
together at the joint and lowered
into the well. Be sure the bells
point downward, since this will
prevent surface water or backwash
from entering the well without the
purifying filtration effect of the
soil; it will also keep sand and dirt
from filling the well. Install the
casing vertically and fill the
remaining space with pebbles. This
will hold the casing plumb. The
casing should rise 30 to 60cm (1' to
2') above ground level and be
surrounded with a concrete pedestal
to hold the pump and to drain
spilled water away from the hole.
Casing joints within 3 meters (10
feet) of the surface should be
sealed with concrete or bituminous
Method B
Plastic seems to be an ideal casing material, but because it was not readily
available, the galvanized iron and concrete casings described here were developed
in the Ban Me Thuot area of Vietnam.
                             Tools and Materials
Wooden V-block, 230cm (7 1/2') long (see Figure 3)


Angle iron, 2 sections, 230cm (7 1/2') long
Pipe, 10cm (4") in diameter, 230cm (7 1/2') long
Wooden mallet
Soldering equipment
Galvanized sheet metal: 0.4mm x 1m x 2m (0.01.6" x 39 1/2" x 79")
Plastic Casing
Black plastic pipe for sewers and drains was almost ideal. Its friction joints could
be quickly slipped together and sealed with a chemical solvent. It seemed durable
but was light enough to be lowered into the well by hand. It could be easily
sawed or drilled to make a screen. Care must be taken to be sure that any plastic
used is non-toxic.
Galvanized Sheet Metal Casing
Galvanized sheet metal was used to make casing similar to downspouting. A
thicker gauge than the 0.4mm (0.016") available would have been preferable.
Because the sheet metal would not last indefinitely if used by itself, the well hole
was made oversize and the ring-shaped space around the casing was filled with a
thin concrete mixture which formed a cast concrete casing and seal outside the
sheet metal when it hardened.
The 1-meter x 2-meter (39 1/2" x 79") sheets were cut lengthwise into three
equal pieces, which yielded three 2-meter (79") lengths of 10cm (4") diameter pipe.
The edges were prepared for making seams by clamping them between the two
angle irons, then pounding with a wooden mallet to the shape shown in Figure 3.
The seam is made slightly wider at one
end than at the other to give the pipe a
slight taper, which allows successive
lengths to be slipped a short distance
inside one another.
The strips are rolled by bridging them over a 2-meter (79") V-shaped wooden
block and applying pressure from above with a length of 5cm (2") pipe (see Figure 4).


The sheet metal strips are shifted from side to side over the V-block as they
are being bent to produce as uniform a surface as possible. When the strip is bent
enough, the two edges are hooked
together and the 5cm (2") pipe is slipped
inside. The ends of the pipe are set up
on wooden blocks to form an anvil, and
the seam is firmly crimped as shown in
Figure 5.


After the seam is finished, any irregularities
in the pipe are removed by
applying pressure by hand or with the
wooden mallet and pipe anvil. A local
tinsmith and his helper were able to
make six to eight lengths (12 to 16
meters) of the pipe per day. Three
lengths of pipe were slipped together and soldered as they were made, and the
remaining joints had to be soldered as the casing was lowered into the well.
The lower end of the pipe was perforated with a hand drill to form a screen.
After the casing was lowered to the bottom of the well, fine gravel was packed
around the perforated portion of the casing to above the water level.
The cement grouting mortar used around the casings varied from pure cement to a
1:1 1/2 cement : sand ratio mixed with water to a very plastic consistency. The
grout was put around the casing by gravity and a strip of bamboo about 10
meters (33 feet) long was used to "rod" the grout into place. A comparison of
volume around the casing and volume of grouting used indicated that there may
have been some voids left probably below the reach of the bamboo rod. These are
not serious however, as long as a good seal is obtained for the first 8 to 10
meters (26 to 33 feet) down from the surface. In general, the greater proportion
of cement used and the greater the space around the casing, the better seemed to
be the results obtained. However, insufficient experience has been obtained to
reach any final conclusions. In addition, economic considerations limit both of
these factors.
Care must be taken in pouring the grout. If the sections of casing are not
assembled perfectly straight, the casing, as a result, is not centered in the well
and the pressure of the grouting is not equal all the way around. The casing may
collapse. With reasonable care, pouring the grout in several stages and allowing it
to set in-between should eliminate this. The grouting, however, cannot be poured
in too many stages because a considerable amount sticks to the sides of the well
each time, reducing the space for successive pourings to pass through.
This method can be modified for use in areas where the structure of the material
through which the well is drilled is such that there is little or no danger of
cave-in. In this situation, the casing serves only one purpose, as a sanitary seal.
The well will be cased only about 8 meters (26 feet) down from the ground
surface. To do this, the well is drilled to the desired depth with a diameter
roughly the same as that of the casing. The well is then reamed out to a
diameter 5 to 6cm (2" to 2 1/4") larger than the casing down to the depth the
casing will go. A flange fitted at the bottom of the casing with an outside
diameter about equal to that of the reamed hole will center the casing in the
hole and support the casing on the shoulder where the reaming stopped. Grouting
is then poured as in the original method. This modification (1) saves considerable
costly material, (2) allows the well to be made a smaller diameter except near the
top, (3) lessens grouting difficulties, and (4) still provides adequate protection
against pollution.
Concrete Tile Casing
If the well is enlarged to an adequate diameter, precast concrete tile with
suitable joints could be used as casing. This would require a device for lowering
the tiles into the well one by one and releasing them at the bottom. Mortar
would have to be used to seal the joints above the water level, the mortar being
spread on each successive joint before it is lowered. Asbestos cement casing
would also be a possibility where it was available with suitable joints.
No Casing
The last possibility would be to use no casing at all. It is felt that when finances
or skills do not permit the well to be cased, there are certain circumstances
under which an uncased well would be better than no well at all. This is particularly
true in localities where the custom is to boil or make tea out of all
water before drinking it, where sanitation is greatly hampered by insufficient
water supply, and where small-scale hand irrigation from wells can greatly
improve the diet by making gardens possible in the dry season.
The danger of pollution in an uncased well can be minimized by: (1) choosing a
favorable site for the well and (2) making a platform with a drain that leads
away from the well, eliminating all spilled water.
Such a well should be tested frequently for pollution. If it is found unsafe, a
notice to this effect should be posted conspicuously near the well.
Well Platform
In the work in the Ban Me Thuot area, a flat 1.75-meter (5.7') square slab of
concrete was used around each well. However, under village conditions, this did
not work well. Large quantities of water were spilled, in part due to the enthusiasm
of the villagers for having a plentiful water supply, and the areas around
wells became quite muddy.
The conclusion was reached that the only really satisfactory platform would be a
round, slightly convex one with a small gutter around the outer edge. The gutter
should lead to a concreted drain that would take the water a considerable
distance from the well. It is worth noting that in Sudan and other very arid areas
such spillage from community wells is used to water vegetable gardens or
community nurseries.
If the well platform is too big and smooth, there is a great temptation on the
part of the villagers to do their laundry and other washing around the well. This
should be discouraged. In villages where animals run loose it is necessary to build
a small fence around the well to keep out animals, especially poultry and pigs,
which are very eager to get water, but tend to mess up the surroundings.
Koegel, Richard G. Report. Ban Me Thuot, Vietnam: International Voluntary
Services, 1959. (Mimeographed.)
Mott, Wendell. Explanatory Notes on Tubewells. Philadelphia: American Friends
Service Committee, 1956. (Mimeographed.)
Hand-Operated Drilling Equipment
Two methods of drilling a shallow tubewell with hand-operated equipment are
described here: Method A, which was used by an American Friends Service
Committee (AFSC) team in India, operates by turning an earth-boring auger.
Method B, developed by an International Voluntary Services (IVS) team in
Vietnam, uses a ramming action.
Earth Boring Auger
This simple hand-drilling rig can be used to dig wells 15 to 20cm (6" to 8") in
diameter up to 15 meters (50') deep.
                             Tools and Materials
Earth auger, with coupling to attach to 2.5cm (1") drill line (see entry on
tubewell earth augers)
Standard weight galvanized steel pipe:
    For Drill Line:
    4 pieces: 2.5cm (1") in diameter and 3 meters (10') long (2 pieces have
              threads on one end only; others need no threads.)
    2 pieces: 2.5cm (1") in diameter and 107cm (3 1/2") long
    For Turning Handle:
    2 pieces: 2.5cm (1") in diameter and 61cm (2') long
    2.5cm (1") T coupling
    For Joint A:
    4 pieces: 32mm (1 1/4") in diameter and 30cm (1') long
    Sections and Couplings for Joint B:
    23cm (9") Section of 32mm (1 1/4") diameter (threaded at one end only)
    35.5cm (14") Section of 38mm (1 1/2") diameter (threaded at one end
    Reducer coupling: 32mm to 25mm (1 1/4" to 1")
    Reducer coupling: 38mm to 25mm (1 1/2" to 1")
    8 10mm (3/8") diameter hexagonal head machine steel bolts 45mm (1
    3/4") long, with nuts
    2 10mm (3/8") diameter hexagonal head machine steel bolts 5cm (2")
    long, with nuts
    9 10mm (3/8") steel hexagonal nuts
    For Toggle Bolt:
    1 3mm (1/8") diameter countersink head iron rivet, 12.5mm (1/2") long
    1 1.5mm (1/16") sheet steel, 10mm (3/8") x 25mm (1")
Drills: 3mm (1/8"), 17.5mm (13/16"), 8.75mm (13/32")
Thread cutting dies, unless pipe is already threaded
Small Tools: wrenches, hammer, hacksaw, files
For platform: wood, nails, rope, ladder
Basically the method consists of rotating an ordinary earth auger. As the auger
penetrates the earth, it fills with soil. When full it is pulled out of the hole and
emptied. As the hole gets deeper, more sections of drilling line are added to
extend the shaft. Joint A (Figures 1 and 2) is a simple method for attaching new


By building an elevated platform 3 to 3.7 meters (10 to 12 feet) from the ground,
a 7.6-meter (25 foot) long section of drill line can be balanced upright. Longer
lengths are too difficult to handle. Therefore, when the hole gets deeper than 7.6
meters (25 feet), the drill line must be taken apart each time the auger is
removed for emptying. Joint B makes this operation easier. See Figures 1 and 3.


Joint C (see construction details for Tubewell Earth Auger) is proposed to allow
rapid emptying of the auger. Some soils respond well to drilling with an auger
that has two sides open. These are very easy to empty, and would not require
Joint C. Find out what kinds of augers are successfully used in your area, and do
a bit of experimenting to find the one best suited to your soil. See the entries on
Joint A has been found to be faster to use and more durable than pipe threaded
connectors. The pipe threads become damaged and dirty and are difficult to start.
Heavy, expensive pipe wrenches get accidentally dropped into the well and are
hard to get out. These troubles can be avoided by using a sleeve pipe fastened
with two 10mm (3/8") bolts. Neither a small bicycle wrench nor the inexpensive
bolts will obstruct drilling if dropped in. Be sure the 32mm (1 1/4") pipe will fit
over your 25mm (1") pipe drill line before purchase. See Figure 2.


Four 3-meter (10') sections and two 107cm (3 1/2') sections of pipe are the most
convenient lengths for drilling a 15-meter (50') well. Drill an 8.75mm (13/32")
diameter hole through each end of all sections of drill line except those attaching
to Joint B and the turning handle, which must be threaded joints. The holes
should be 5cm (2") from the end.

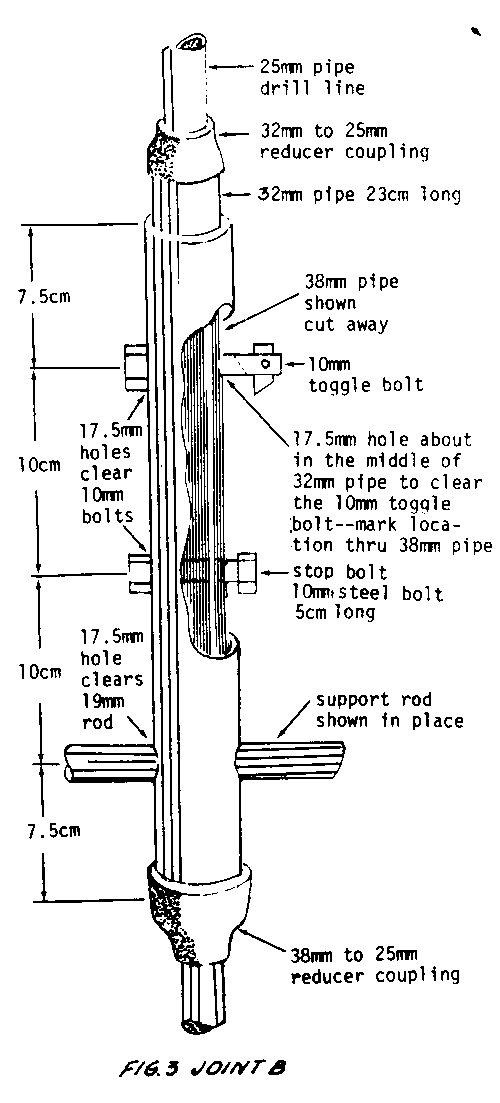

When the well is deeper than 7.6 meters (25'), several features facilitate the
emptying of the auger, as shown in Figures 3 and 4. First, pull up the full auger


until Joint B appears at the surface. See Figure 4A. Then put a 19mm (3/4")


diameter rod through the hole. This allows the whole drill line to rest on it
making it impossible for the part still in the well to fall in. Next remove the
toggle bolt, lift out the top section of line and balance it beside the hole. See
Figure 4B. Pull up the auger, empty it, and replace the section in the hole where
it will be held by the 19mm (3/4") rod. See Figure 4C. Next replace the upper
section of drill line. The 10mm (3/8") bolt acts as a stop that allows the holes to
be easily lined up for reinsertion of the toggle bolt. Finally withdraw the rod and
lower the auger for the next drilling. Mark the location for drilling the 8.75mm
(13/32") diameter hole in the 32mm (1 1/4") pipe through the toggle bolt hole in
the 38mm (1 1/2") pipe. If the hole is located with the 32mm (1 1/4") pipe resting
on the stop bolt, the holes are bound to line up.
Sometimes a special tool is needed to penetrate a water-bearing sand layer,
because the wet sand caves in as soon as the auger is removed. If this happens a
perforated casing is lowered into the well, and drilling is accomplished with an
auger that fits inside the casing. A percussion type with a flap, or a rotary type
with solid walls and a flap are good possibilities. See the entries describing these
devices. The casing will settle deeper into the sand as sand is dug from beneath
it. Other sections of casing must be added as drilling proceeds. Try to penetrate
the water bearing sand layer as far as possible (at least three feet-one meter).
Ten feet (three meters) of perforated casing embedded in such a sandy layer will
provide a very good flow of water.
Tubewell Earth Auger
This earth auger (Figure 5), which is similar to designs used with power drilling


equipment, is made from a 15cm (6") steel tube.
The auger can be made without
welding equipment, but some of the
bends in the pipe and the bar can
be made much more easily when
the metal is hot (see Figure 6).


An open earth auger, which is
easier to empty than this one, is
better suited for some soils. This
auger cuts faster than the Tubewell
Sand Auger.
                             Tools and Materials
Galvanized pipe: 32mm (1 1/4") in diameter and 21.5cm (8 1/2") long
Hexagonal head steel bolt: 10mm (3/8") in diameter and 5cm (2") long, with nut
2 hexagonal head steel bolts: 10mm (3/8") in diameter and 9.5cm (3 3/4") long
2 Steel bars: 1.25cm x 32mm x 236.5mm (1/2" x 1 1/4" x 9 5/16")
4 Round head machine screws: 10mm (3/8") in diameter and 32mm (1 1/4") long
2 Flat head iron rivets: 3mm (1/8") in diameter and 12.5mm (1/2") long
Steel strip: 10mm x 1.5mm x 2.5cm (3/8" x 1/16" x 1")
Steel tube: 15cm (6") outside diameter, 62.5cm (24 5/8") long
Hand tools
U.S. Army and Air Force. Wells. Technical Manual 5-297, AFM 85-23. Washington,
D.C.: U.S. Government Printing Office, 1957.
Tubewell Sand Auger
This sand auger can be used to drill in loose soil or wet sand, where an earth
auger is not effective. The simple cutting head requires less force to turn than
the Tubewell Earth Auger, but it is more difficult to empty.
A smaller version of the sand auger made to
fit inside the casing pipe can be used to
remove loose, wet sand.

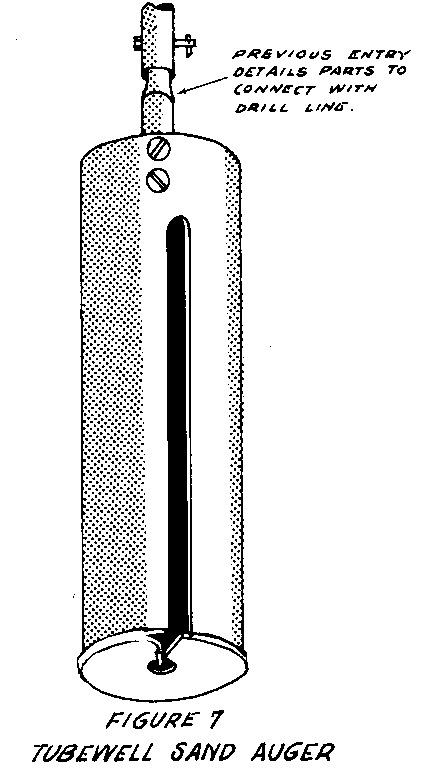

The tubewell sand auger is illustrated in
Figure 7. Construction diagrams are given in


Figure 8.


Tools and Materials
Steel tube: 15cm (6") outside diameter and
46cm (18") long
Steel plate: 5mm x 16.5cm x 16.5cm (3/16" x 6
1/2" x 6 1/2")
Acetylene welding and cutting equipment
Wells, Technical Manual 5-297, AFM 85-23, U.S. Army and Air Force, 1957.
Tubewell Sand Bailer
The sand bailer <see figure 9> can be used to drill from inside a perforated well casing when a


bore goes into loose wet sand and the walls start to cave in. It has been used to
make many tubewells in India.
                             Tools and Materials
Steel tube: 12.5cm (5") in diameter and 91.5cm (3') long
Truck innertube or leather: 12.5cm (5") square
Pipe coupling: 15cm to 2.5cm (5" to 1")
Small tools
Repeatedly jamming this "bucket" into the well will remove sand from below the
perforated casing, allowing the bucket to settle deeper into the sand layer. The
casing prevents the walls from caving in. The bell is removed from the first
section of casing; at least one other section rests on top of it to help force it
down as digging proceeds. Try to penetrate the water bearing sand layer as far as
possible: 3 meters (10') of perforated casing embedded in such a sandy layer will
usually provide a very good flow of water.
Be sure to try your sand "bucket" in wet sand before attempting to use it at the
bottom of your well.
Explanatory Notes on Tubewells, Wendell Mott, American Friends Service Committee,
Philadelphia, Pennsylvania, 1956 (Mimeographed).
Ram Auger
The equipment described here has been used successfully in the Ban Me Thuot
area of Vietnam. One of the best performances was turned in by a crew of three
inexperienced mountain tribesmen who drilled 20 meters (65') in a day and a half.
The deepest well drilled was a little more than 25 meters (80'); it was completed,
including the installation of the pump, in six days. One well was drilled through
about 11 meters (35') of sedimentary stone.
                             Tools and Materials
For tool tray:
Wood: 3cm x 3cm x 150cm (1 1/4" x 1 1/4" x 59")
Wood: 3cm x 30cm x 45cm (1 1/4" x 12"x 17 3/4")
For safety rod:
Steel rod: 1cm (3/8") in diameter, 30cm (12") long
Cotter pin
For auger support:
Wood: 4cm x 45cm x 30cm (1 1/3" x 17 3/4" x 12")
Steel: 10cm x 10cm x 4mm (4" x 4" x 5/32")
Location of the Well
Two considerations are especially important for the location of village wells: (1)
the average walking distance for the village population should be as short as
possible; (2) it should be easy to drain spilled water away from the site to avoid
creating a mudhole.
In the Ban Me Thuot area, the final choice of location was in all cases left up to
the villagers. Water was found in varying quantities at all the sites chosen. (See
"Getting Ground Water from Wells and Springs.")
Starting to Drill
A tripod is set up over the approximate location for the well (see Figure 1). Its


legs are set into shallow holes with dirt packed around them to keep them from
moving. To make sure the well is started exactly vertically, a plumb bob (a string
with a stone tied to it is good enough) is hung from the auger guide on the
tripod's crossbar to locate the
exact starting point. It is helpful
to dig a small starting hole before
setting up the auger.
Drilling is accomplished by ramming
the auger down to penetrate the
earth and then rotating it by its
wooden handle to free it in the
hole before lifting it to repeat the
process. This is a little awkward
until the auger is down 30cm to
60cm (1' to 2') and should be done
carefully until the auger starts to
be guided by the hole itself.
Usually two or three people work
together with the auger. One
system that worked out quite well
was to use three people, two
working while the third rested, and
then alternate.
As the auger goes deeper it will be
necessary from time to time to
adjust the handle to the most
convenient height. Any wrenches or
other small tools used should be
tied by means of a long piece of
cord to the tripod so that if they
are accidentally dropped in the
well, they can easily be removed.
Since the soil of the Ban Me Thuot
area would stick to the auger, it
was necessary to keep a small
amount of water in the hole at all
times for lubrication.
Emptying the Auger
Each time the auger is rammed
down and rotated, it should be
noted how much penetration has
been obtained. Starting with an
empty auger the penetration is
greatest on the first stroke and becomes successively less on each following one
as the earth packs more and more tightly inside the auger. When progress
becomes too slow it is time to raise the auger to the surface and empty it.
Depending on the material being penetrated, the auger may be completely full or
have 30cm (1') or less of material in it when it is emptied. A little experience
will give one a "feel" for the most efficient time to bring up the auger for
emptying. Since the material in the auger is hardest packed at the bottom, it is
usually easiest to empty the auger by inserting the auger cleaner through the slot
in the side of the auger part way down and pushing the material out through the
top of the auger in several passes. When the auger is brought out of the hole for
emptying, it is usually leaned up against the tripod, since this is faster and easier
than trying to lay it down.
Coupling and Uncoupling Extensions
The extensions are coupled by merely slipping the small end of one into the large
end of the other and pinning them together with a 10mm (3/8") bolt. It has been
found sufficient and time-saving to just tighten the nut finger-tight instead of
using a wrench.
Each time the auger is brought up for emptying, the extensions must be taken
apart. For this reason the extensions have been made as long as possible to
minimize the number of joints. Thus at a depth of 18.3 meters (60'), there are
only two joints to be uncoupled in bringing up the auger.
For the sake of both safety and speed, use the following procedure in coupling
and uncoupling. When bringing up the auger, raise it until a joint is just above
the ground and slip the auger support (see Figures 2 and 3) into place, straddling


the extension so that the bottom of
the coupling can rest on the small
metal plate. The next step is to put
the safety rod (see Figure 4)


through the lower side in the
coupling and secure it with either a
cotter pin or a piece of wire. The
purpose of the safety rod is to
keep the auger from falling into
the well if it should be knocked
off the auger support or dropped
while being raised.
Once the safety rod is in place,
remove the coupling bolt and slip
the upper extension out of the
lower. Lean the upper end of the
extension against the tripod between
the two wooden pegs in the front legs, and rest the lower end on the tool
tray (see Figures 5 and 6). The reason for putting the extensions on the tool tray


is to keep dirt from sticking to the lower ends and making it difficult to put the
extensions together and take them apart.
To couple the extensions after emptying the auger, the procedure is the exact
reverse of uncoupling.
Drilling Rock
When stone or other substances the auger cannot penetrate are met, a heavy
drilling bit must be used.
Depth of Well
The rate at which water can be taken from a well is roughly proportional to the
depth of the well below the water table as long as the well keeps going into
water-bearing ground. However, in
village wells where water can only
be raised slowly by handpump or
bucket, this is not usually of major
importance. The important point is
that in areas where the water table
varies from one time of year to
another the well must be deep
enough to give sufficient water at
all times.
Information on the water table
variation may be obtained from
already existing wells, or it may be
necessary to drill a well before any
information can be obtained. In the
latter case the well must be deep
enough to allow for a drop in the
water table.
Report by Richard G. Koegel, International Voluntary Services, Ban Me Thuot,
Vietnam, 1959 (Mimeographed).
Equipment <see figure 7>


The following section gives construction details for the well-drilling equipment
used with the ram auger:
     o      Auger, Extensions, and Handle
     o      Auger Cleaner
     o      Demountable Reamer
     o      Tripod and Pulley
     o      Bailing Bucket
     o      Bit for Drilling rock
Auger, Extensions, and Handle
The auger is hacksawed out of standard-weight steel pipe about 10cm (4") in
diameter (see Figure 8). Lightweight tubing is not strong enough. The extensions


(see Figure 9) and handle (see Figure 10) make it possible to bore deep holes.



                             Tools and Materials
Pipe: 10cm (4") in diameter, 120cm (47 1/4") long, for auger
Pipe: 34mm outside diameter (1" inside diameter); 3 or 4 pieces 30cm (12") long,
for auger and extension socket
Pipe: 26mm outside diameter (3/4" inside diameter); 3 or 4 pieces 6.1 or 6.4 meters
(20' or 21') long, for drill extensions
Pipe: 10mm outside diameter (1/2" inside diameter); 3 or 4 pieces 6cm (2 3/8")
Hardwood: 4cm x 8cm x 50cm (1 1/2" x 3 1/8" x 19 3/4"), for handle
Mild steel: 3mm x 8cm x 15cm (1/8" x 3 1/8" x 6")
4 Bolts: 1cm (3/8") in diameter and 10cm (4") long
4 Nuts
Hand tools and welding equipment
In making the auger, a flared-tooth cutting edge is cut in one end of the 10cm
pipe. The other end is cut, bent, and welded to a section of 34mm outside-diameter
(1" inside-diameter) pipe, which forms a socket for the drill line
extensions. A slot that runs nearly the length of the auger is used for removing
soil from the auger. Bends are made stronger and more easily and accurately when
the steel is hot. At first, an auger with two cutting lips similar to a post-hole
auger was used; but it became plugged up and did not cut cleanly. In some soils,
however, this type of auger may be more effective.
Auger Cleaner
Soil can be removed rapidly from the auger with this auger cleaner (see Figure 11).


Figure 12 gives construction details.


                             Tools and Materials
Mild steel: 10cm (4") square and 3mm (1/8") thick
Steel rod: 1cm (3/8") in diameter and 52cm (20 1/2") long
Welding equipment
Demountable Reamer
If the diameter of a drilled hole has to be made bigger, the demountable reamer
described here can be attached to the auger.
                             Tools and Materials
Mild steel: 20cm x 5cm x 6mm (6" x 2" x 1/4"), to ream a well diameter of 19cm
(7 1/2")
2 Bolts: 8mm (5/16") in diameter and 10cm (4") long

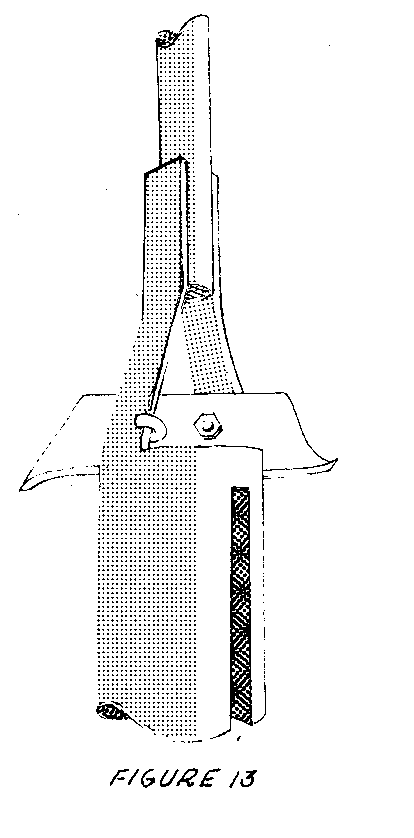

The reamer is mounted to the top of the auger with two hook bolts (see Figure 13).


It is made from a piece of steel 1cm (1/2") larger than the desired well
diameter (see Figure 14).


After the reamer is attached to the
top of the auger, the bottom of the
auger is plugged with some mud or
a piece of wood to hold the
cuttings inside the auger.
In reaming, the auger is rotated
with only slight downward pressure.
It should be emptied before it is
too full so that not too many
cuttings will fall to the bottom of
the well when the auger is pulled
Because the depth of a well is
more important than the diameter
in determining the flow and
because doubling the diameter
means removing four times the
amount of earth, larger diameters
should be considered only under
special circumstances. (See "Well
Casing and Platforms," page 12.)
 Tripod and Pulley
The tripod (see Figures 15 and 16), which is made of poles and assembled with


when it extends far above ground; (2) to provide a mounting for the pulley (see Figures 17 and 19)


place for leaning long pieces of casing, pipe for pumps, or auger extensions while
they are being put into or taken out of the well.
When a pin or bolt is put through the holes in the two ends of the "L"-shaped
pulley bracket (see Figures 15 and 18) that extend horizontally beyond the front


To keep the extensions from falling when they are leaned against the tripod, two
30cm (12") long wooden pegs are driven into drilled holes near the top of the
tripod's two front legs (see Figure 19).


                             Tools and Materials
3 Poles: 15cm (3") in diameter and 4.25 meters (14') long
Wood for cross bar: 1.1 meter (43 1/2") x 12cm (4 3/4") square
For pulley wheel:
Wood: 25cm (10") in diameter and 5cm (2") thick
Pipe: 1.25cm (1/2") inside diameter, 5cm (2") long
Axle bolt: to fit close inside 1.25cm (1/2") pipe
Angle iron: 80cm (31 1/2") long, 50cm (19 3/4") webs, 5mm (3/16") thick
4 Bolts: 12mm (1/2") in diameter, 14cm (5 1/2") long; nuts and washers
Bolt: 16mm (5/8") in diameter and 40cm (15 3/4") long; nuts and washer
2 Bolts: 16mm (5/8") in diameter and 25cm (9 7/8") long; nuts and washers
Bore 5 places through center of poles for assembly with 16mm bolts
 Bailing Bucket
The bailing bucket can be used to remove soil from the well shaft when cuttings
are too loose to be removed with the auger.
                             Tools and Materials
Pipe: about 8.5cm (3 3/8") in diameter, 1 to 2cm (1/2" to 3/4") smaller in
diameter than the auger, 180cm (71") long
Steel rod: 10mm (3/8") in diameter and 25cm (10") long; for bail (handle)
Steel plate: 10cm (4") square, 4mm (5/32") thick
Steel bar: 10cm x 1cm x 5mm (4" x 3/8" x 3/16")
Machine screw: 3mm (1/8") diameter by 16mm (5/8") long; nut and washer
Truck innertube: 4mm (5/32") thick, 10mm (3/8") square
Welding equipment
Both standard weight pipe and thin-walled tubing were tried for the bailing
bucket. The former, being heavier, was harder to use, but did a better job and
stood up better under use. Both the
steel bottom of the bucket and the
rubber valve should be heavy
because they receive hard usage.
The metal bottom is reinforced
with a crosspiece welded in place
(see Figures 20 and 21).


When water is reached and the
cuttings are no longer firm enough
to be brought up in the auger, the
bailing bucket must be used to
clean out the well as work
For using the bailing bucket the pulley is mounted in the pulley bracket with a
16mm (5/8") bolt as axle. A rope attached to the bailing bucket is then run over
the pulley and the bucket is lowered into the well. The pulley bracket is so
designed that the rope coming off the pulley lines up vertically with the well, so
that there is no need to shift the tripod.
The bucket is lowered into the well, preferably by two people and allowed to drop
the last meter or meter and one-half (3 to 5 feet) so that it will hit the bottom
with some speed. The impact will force some of the loose soil at the bottom of
the well up into the bucket. The bucket is then repeatedly raised and dropped 1
to 2 meters (3 to 6 feet) to pick up more soil. Experience will show how long
this should be continued to pick up as much soil as possible before raising and
emptying the bucket. Two or more people can raise the bucket, which should be
dumped far enough from the well to avoid messing up the working area.
If the cuttings are too thin to be brought up with the auger but too thick to
enter the bucket, pour a little water down the well to dilute them.
Bit for Drilling Rock
The bit described here has been used to drill through layers of sedimentary stone
up to 11 meters (36') thick.
                             Tools and Materials
Mild steel bar: about 7cm (2 3/4") in diameter and about 1.5 meters (5') long,
weighing about 80kg (175 pounds)
Stellite (a very hard type of tool steel) insert for cutting edge
Anvil and hammers, for shaping
Steel rod: 2.5cm x 2cm x 50cm (1" x 3/4" x 19 3/4") for bail
Welding equipment
The drill bit for cutting through stone and hard formations is made from the 80kg
(175-pound) steel bar (see Figures 22 and 23). The 90-degree cutting edge is hard-surfaced


handle) for attaching a rope or
cable is welded to the top. The bail
should be large enough to make
"fishing" easy if the rope breaks. A
2.5cm (1") rope was used at first,
but this was subject to much wear
when working in mud and water. A
1cm (3/8") steel cable was substituted
for the rope, but it was not
used enough to be able to show
whether the cable or the rope is better. One advantage of rope is that it gives a
snap at the end of the fall which rotates the bit and keeps it from sticking. A
swivel can be mounted between the bit and the rope or cable to let the bit
If a bar this size is difficult to find or too expensive, it may be possible,
depending on the circumstances, to make one by welding a short steel cutting end
onto a piece of pipe, which is made heavy enough by being filled with concrete.
In using the drilling bit, put the pulley in place as with the bailing bucket, attach
the bit to its rope or cable, and lower it into the well. Since the bit is heavy,
wrap the rope once or twice around the back leg of the tripod so that the bit
cannot "get away" from the workers with the chance of someone being hurt or
the equipment getting damaged. The easiest way to raise and drop the bit is to
run the rope through the pulley and then straight back to a tree or post where it
can be attached at shoulder height or slightly lower. Workers line up along the
rope and raise the bit by pressing down on the rope; they drop it by allowing the
rope to return quickly to its original position (see Figure 24). This requires five


to seven workers, occasionally more. Frequent rests are necessary, usually after
every 50 to 100 strokes. Because
the work is harder near the ends
of the rope than in the middle, the
positions of the workers should be
rotated to distribute the work
A small amount of water should be
kept in the hole for lubrication and
to mix with the pulverized stone to
form a paste that can be removed
with a bailing bucket. Too much
water will slow down the drilling.
The speed of drilling, of course,
depends on the type of stone
encountered. In the soft water-bearing
stone of the Ban Me Thuot
area it was possible to drill several meters (about 10 feet) per day. However,
when hard stone such as basalt is encountered, progress is measured in centimeters
(inches). The decision must then be made whether to continue trying to
penetrate the rock or to start over in a new location. Experience in the past has
indicated that one should not be too hasty in abandoning a location, since on
several occasions what were apparently thin layers of hard rock were penetrated
and drilling then continued at a good rate.

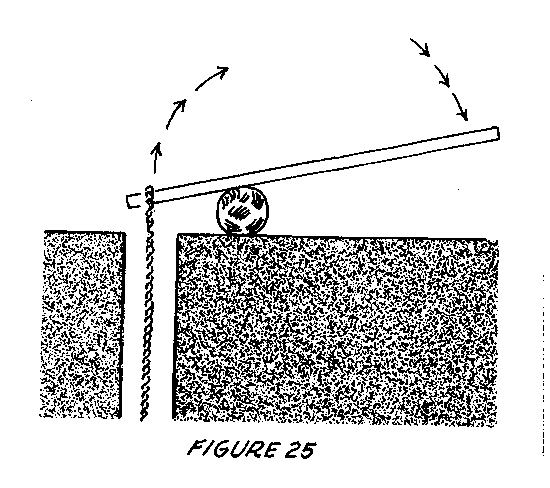

Occasionally the bit may become stuck in the well and it will be necessary to use
a lever arrangement consisting of a long pole attached to the rope to free it (see Figure 25).


Alternatively, a windlass may be used, consisting of a horizontal pole
used to wrap the rope around a vertical pole pivoted on the ground and held in
place by several workers (see Figure 26). If these fail, it may be necessary to


rent or borrow a chain hoist. A worn rope or cable may break when trying to
retrieve a stuck bit. If this happens, fit a hook to one of the auger extensions,
attach enough extensions together to reach the desired depth, and after hooking
the bit, pull with the chain hoist. A rope or cable may also be used for this
purpose, but are considerably more difficult to hook onto the bit.
                            Drilling Mechanically
The following method can be used for raising and dropping the bit
o      Jack up the rear wheel of a car and replace the wheel with a small
       drum (or use the rim as a pulley).
o      Take the rope that is attached to the bit, come from the tripod on
       the pulley, and wrap the rope loosely around the drum.
o      Pull the unattached end of the rope taut and set the drum in
       motion. The rope will move with the drum and raise the bit.
o      Let the end of the rope go slack quickly to drop the bit.
     It will probably be necessary to polish and/or grease the drum.
Dry Bucket Well Drilling
The dry bucket method is a simple and quick method of drilling wells in dry soil
that is free of rocks. It can be used for 5cm to 7.5cm (2" to 3") diameter wells in
which steel pipe is to be installed. For wells that are wider in diameter, it is a
quick method of removing dry soil before completing the bore with a wet bucket,
tubewell sand bailer, or tubewell sand auger.
A 19.5-meter (64') hole can be dug in less than three hours with this method,
which works best in sandy soil, according to the author of this entry, who has
drilled 30 wells with it.
                             Tools and Materials
Dry bucket
Rope: 16mm (5/8") or 19mm (3/4") in diameter and 6 to 9 meters (20' to 30')
longer than the deepest well to be drilled
3 Poles: 20cm (4") in diameter at large end and 3.6 to 4.5 meters (12' to 15') long
Chain, short piece
Bolt: 12.5mm (1/2") in diameter and 30 to 35cm (12" to 14") long (long enough to
reach through the upper ends of the three poles)
A dry bucket is simply a length of pipe with a bail or handle welded to one end
and a slit cut in the other.
The dry bucket is held about 10cm (several inches) above the ground, centered
above the hole location and then dropped (see Figure 1). This drives a small


amount of soil up into the bucket. After this is repeated two or three times, the
bucket is removed, held to one side and tapped with a hammer or a piece of iron
to dislodge the soil. The process is repeated until damp soil is reached and the
bucket will no longer remove soil.
To make the dry bucket, you will need the following tools and materials:
Iron rod: 10mm (3/8") or 12.5mm (1/2") in diameter and 30cm (1') long
Iron pipe: slightly larger in diameter than the largest part of casing to be put in
the well (usually the coupling) and 152cm (5') long
Bend the iron rod into a U-shape small enough to slide inside the pipe. Weld it in
place as in Figure 2.


File a gentle taper on the inside of the opposite end to make a cutting edge (see Figure 3).


Cut a slit in one side of the sharpened end of the pipe (see Figure 2).
John Brelsford, VITA Volunteer, New Holland, Pennsylvania
Driven Wells
A pointed strainer called a well point, properly used, can quickly and cheaply
drive a sanitary well, usually less than 7.6 meters (25') deep. In soils where the
driven well is suitable, it is often the cheapest and fastest way to drill a sanitary
well. In heavy soils, particularly clay, drilling with an earth auger is faster than
driving with a well point.
Tools and Materials
Well point and driving cap (see Figure 1):


usually obtainable through mail order houses
from the United States and elsewhere
Pipe: 3cm (1") in diameter
Heavy hammer and wrenches
Pipe compound
Special pipe couplings and driving arrangements
are desirable but not necessary
Driven wells are highly successful in coarse sand where there are not too many
rocks and the water table is within 7 meters (23') of the surface. They are usually
used as shallow wells where the pump cylinder is at ground level. If conditions
for driving are very good, 10cm (4") diameter points and casings that can
accept the cylinder of a deep well can be driven to depths of 10 - 15 meters (33'
to 49'). (Note that suction pumps generally cannot raise water beyond 10 meters.)
The most common types of well points are:
o    a pipe with holes covered by a screen and a brass jacket with holes. For
     general use, a #10 slot or 60 mesh is recommended. Fine sand requires a
     finer screen, perhaps a #6 slot or 90 mesh;
o    a slotted steel pipe with no covering screen, which allows more water to
     enter but is less rugged.
Before starting to drive the point, make a hole at the site with hand tools. The
hole should be plumb and slightly larger in diameter than the well point.
The joints of the drive pipe must be carefully made to prevent thread breakage
and assure airtight operation. Clean and oil the threads carefully and use joint
compound and special drive couplings when available. To ensure that joints stay
tight, give the pipe a fraction of a turn after each blow, until the top joint is
permanently set. Do not twist the whole string and do not twist and pound at the
same time. The latter may help get past stones, but soon will break the threads
and make leaky joints.
Be sure the drive cap is tight and butted against the end of the pipe (see Figure 2).


check with a plumb bob to see that the pipe is vertical. Test it occasionally
and keep it straight by pushing on the pipe while driving. Hit the drive cap
squarely each time or you may damage the equipment.
Several techniques can help avoid damage to the pipe. The best way is to drive
with a steel bar that is dropped inside the pipe and strikes against the inside of
the steel well point. It is retrieved with a cable of rope. Once water enters the
well, this method does not work.
Another way is to use a driver pipe, which makes sure that the drive cap is hit
squarely. A guide rod can be mounted on top of the pipe and weight dropped over
it, or the pipe itself can be used to guide a falling weight that strikes a special
drive clamp.
The table in Figure 3 will help identify the formations being penetrated. Experience


is needed, but this may help you to understand what is happening. When
you think that the water-bearing layer has been reached, stop driving and attach
a handpump to try the well.
Usually, easier driving shows that the water-bearing level has been reached,
especially in coarse sand. If the amount of water pumped is not enough, try
driving a meter or so (a few feet) more. If the flow decreases, pull the point
back until the point of greatest flow is found. The point can be raised by using a
lever arrangement like a fence-post jack, or, if a drive-monkey is used, by
pounding the pipe back up.
Sometimes sand and silt plug up the point and the well must be "developed" to
clear this out and improve the flow. First try hard, continuous pumping at a rate
faster than normal. Mud and fine sand will come up with the water, but this
should clear in about an hour. It may help to allow the water in the pipe to drop
back down, reversing the flow periodically. With most pitcher pumps this is easily
accomplished by lifting the handle very high; this opens the check valve, allowing
air to enter, and the water rushes back down the well.
If this does not clear up the flow, there may be silt inside the point. This can be
removed by putting a 19mm (3/4") pipe into the well and pumping on it. Either
use the pitcher pump or quickly and repeatedly raise and lower the 19mm (3/4")
pipe. By holding your thumb over the top of the pipe on the upstroke, a jet of
muddy water will result on each downstroke. After getting most of the material
out, return to direct pumping. Clean the sand from the valve and cylinder of the
pump after developing the well. If you have chosen too fine a screen, it may not
be possible to develop the well successfully. A properly chosen screen allows the
fine material to be pumped out, leaving a bed of coarse gravel and sand that
provides a highly porous and permeable water-gathering area.
The final step is to fill in the starting borehole with puddle clay or, if clay is
not available, with well-tamped earth. Make a solid, water-proof pump platform
(concrete is best) and provide a place for spilled water to drain away.
Wagner, E.G. and Lanoix, J.N. Water Supply for Rural Areas and Small Communities.
Geneva: World Health Organization, 1959.
DUG WELLS <see figure 1>


A village well must often act as a reservoir, because at certain hours of the day
the demand for water is heavy, whereas during the night and the heat of the day
there is no call on the supply. What is suggested here is to make the well large
enough to allow the water slowly percolating in to accumulate when the well is
not in use in order to have an adequate supply when demand is heavy. For this
reason wells are usually made 183 to 213cm (6' to 7') in diameter.
Wells cannot store rainy season water for the dry season, and there is seldom any
reason for making a well larger in
diameter than 213cm (7').
The depth of a well is much more
important than the diameter in
determining the amount of water
that can be drawn when the water
level is low. A deep, narrow well
will often provide more water than
a wide shallow one.
Remember that tubewells are much
easier to construct than dug wells,
and should be used if your region
allows their construction and an
adequate amount of water can be
drawn from them during the busy
hours (see section on Tubewells).
Deep dug wells have several
disadvantages. The masonry lining
needed is very expensive. Construction
is potentially very dangerous;
workers should not dig deeper than
one and a half meters without
shoring up the hole. An open well
is very easily contaminated by
organic matter that falls in from
the surface and by the buckets
used to lift the water. There is an
added problem of disposing of the
great quantity of soil removed from
a deep dug well.
Sealed Dug Well
The well described here has an
underground concrete tank that is
connected to the surface with a
casing pipe, rather than a large-diameter
lining as described in the
preceding entry. The advantages are
that it is relatively easy to build,
easy to seal, takes up only a small
surface area, and is low in cost.
Many of these wells were installed in India by an American Friends Service
Committee team there; they perform well unless they are not deep enough or
sealed and capped properly.
                             Tools and Materials
4 reinforced concrete rings with iron hooks for lowering, 91.5cm (3') in diameter
1 reinforced concrete cover with a seating hole for casing pipe
Washed gravel to surround tank: 1.98 cubic meters (70 cubic feet)
Sand for top of well: 0.68 cubic meters (24 cubic feet)
Concrete pipe: 15cm (6") in diameter, to run from the top of the tank cover to at
least 30.5cm (1') above ground
Concrete collars: for joints in the concrete pipe
Cement: 4.5kg (10 pounds) for mortar for pipe joints
Deep-well pump and pipe
Concrete base for pump
Tripod, pulleys, rope for lowering rings
Special tool for positioning casing when refilling, see "Positioning Casing Pipe,"
Digging tools, ladders, rope
A villager in Barpali, India, working with an American Friends Service Committee
unit there, suggested that they make a masonry tank at the bottom of the well,
roof it over, and draw the water from it with a pump. The resulting sealed well
has many advantages:
o   It provides pure water, safe for drinking.
o   It presents no hazard of children falling in.
o   Drawing water is easy, even for small children.
o   The well occupies little space, a small courtyard can accommodate it.
o   The cost of installation is greatly reduced.
o   The labor involved is much reduced.
o   There is no problem of getting rid of excavated soil, since most of it is
o   The casing enables the pump and pipe to be easily removed for servicing.
o   The gravel and sand surrounding the tank provide an efficient filter to
    prevent silting, allow a large surface area for percolating water to fill the
    tank, and increase the effective stored volume in the tank.
On the other hand, compared to a well where people draw their own buckets or
other containers of water, there are three minor disadvantages: only one person
can pump at a time, the pump requires regular maintenance, and a certain amount
of technical skill is required to make the parts used in the well and to install
them properly.
A well is dug 122cm (4') in diameter and about 9 meters (30') deep. The digging
should be done in the dry season, after the water table has dropped to its lowest
level. There should be a full 3 meter (10') reaccumulation of water within 24
hours after the well has been bailed or pumped dry. Greater depth is, of course,
Spread 15cm (6") of clean, washed gravel or small rock over the bottom of the
well. Lower the four concrete rings and cover into the well and position them
there to form the tank. A tripod of strong poles with block and tackle is needed
to lower the rings, because they weigh about 180kg (400 pounds) each. The tank
formed by the rings and cover is 183cm (6') high and 91.5cm (3') in diameter. The
cover has a round opening which forms a seat for the casing pipe and allows the
suction pipe to penetrate to about 15cm (6") from the gravel bottom.
The first section of concrete pipe is positioned in the seat and grouted (mortared)
in place. It is braced vertically by a wooden plug with four hinged arms to brace
against the sides of the wall. Gravel is packed around the concrete rings and over
the top of the cover till the gravel layer above the tank is at least 15cm (6")
deep. This is then covered with 61cm (2') of sand. Soil removed from the well is
then shoveled back until the shaft is filled within 15cm (6") of the top of the
first section of casing. The next section of casing is then grouted in place, using
a concrete collar made for this purpose. The well is filled and more sections of
casing added until the casing extends at least 30cm (1') above the surrounding
soil level.
The soil that will not pack back into the well can be used to make a shallow hill
around the casing to encourage spilled water to drain away from the pump. A
concrete cover is placed on the casing and a pump installed.
If concrete or other casing pipe cannot be obtained, a chimney made of burned
bricks and sand-cement mortar will suffice. The pipe is somewhat more expensive,
but much easier to install.
A Safe Economical Well. Philadelphia: American Friends Service Committee, 1956
 Deep Dug Well
Untrained workers can safely dig a deep sanitary well with simple, light equipment,
if they are well supervised. The basic method is outlined here.
                             Tools and Materials
Shovels, mattocks
Rope--deep wells require wire rope
Forms--steel, welded and bolted together
Tower with winch and pulley
Reinforcing rod
The hand dug well is the most widespread of any kind of well. Unfortunately, in
many places these wells are dug by people unfamiliar with good sanitation
methods and become infected by parasitic and bacterial disease. By using modern
methods and materials, dug wells can safely be made 60 meters (196.8') deep and
will give a permanent source of pure water.
Experience has shown that for one person, the average width of a round well for
best digging speed is 1 meter (3 1/4'). However, 1.3 meters (4 1/4') is best for
two workers digging together and they dig more than twice as fast as one person.
Thus, two workers in the larger hole is usually best.
Dug wells always need a permanent lining (except in solid rock, where the best
method is usually to drill a tubewell).
The lining prevents collapse of the hole, supports the pump platform, stops
entrance of contaminated surface water, and supports the well intake, which is
the part of the well through which water enters. It is usually best to build the
lining while digging, since this avoids temporary supports and reduces danger of
Dug wells are lined in two ways: (1) where the hole is dug and the lining is built
in its permanent place and (2) where sections of lining are added to the top and
the whole lining moves down as earth is removed from beneath it. The second
method is called caissoning; often a combination of both is best (Figure 2.)


If possible, use concrete for the lining because it is strong, permanent, and made
mostly of local materials. It can also be handled by unskilled workers with good
speed and results. (See section on Concrete Construction).
Masonry and brickwork are widely used in many countries and can be very
satisfactory if conditions are right. In bad ground, however, unequal pressures can
make them bulge or collapse. Building with these materials is slow and a thicker
wall is required than with concrete. There is also always the danger of movement
during construction in loose sands or swelling shale before the mortar has set
firmly between the bricks or stones.
Wood and steel are not good for lining wells. Wood requires bracing, tends to rot
and hold insects, and sometimes makes the water taste bad. Worst of all, it will
not make the well watertight against contamination. Steel is seldom used because
it is expensive, rusts quickly, and if it is not heavy enough is subject to bulging
and bending.
The general steps in finishing the first 4.6 meters (15') are:
o  set up a tripod winch over cleared, level ground and mark reference points
   for plumbing and measuring the depth of the well.
o  have two workers dig the well while another raises and unloads the dirt
   until the well is exactly 4.6 meters (15') deep.
o  trim the hole to size using a special jig mounted on the reference points.
o  place the forms carefully and fill one by one with tamped concrete.
After this is done, dig to 9.1 meters (30'), trim and line this part also with
concrete. A 12.5cm (5") gap between the first and second of these sections is
filled with pre-cut concrete that is grouted (mortared) in place. Each lining is
self-supporting as it has a curb. The top of the first section of lining is thicker
than the second section and extends above the ground to make a good foundation
for the pump housing and to make a safe seal against ground water.
This method is used until the water-bearing layer is reached; there an extra-deep
curb is constructed. From this point on, caissoning is used.
Caissons are concrete cylinders fitted with bolts to attach them together. They
are cast and cured on the surface in special molds, prior to use. Several caissons
are lowered into the well and assembled together. As workers dig, the caissons
drop lower as earth is removed from beneath them. The concrete lining guides the
If the water table is high when the well is dug, extra caissons are bolted in place
so that the well can be finished by a small amount of digging, and without
concrete work, during the dry season.
Details on plans and equipment for this process are found in Water Supply for
Rural Areas and Small Communities, by E. G. Wagner and J. N. Lanoix, World
Health Organization, 1959.
Reconstructing Dug Wells
Open dug wells are not very sanitary, but they can often be rebuilt by relining
the top 3 meters (10') with a watertight lining, digging and cleaning the well and
covering it. This method involves installation of a buried concrete slab; see Figure 3


for construction details.
                             Tools and Materials
Tools and materials for reinforced concrete
A method for entering the well
Pump and drop pipe
Before starting, check the following:
o  Is the well dangerously close to a privy or other source of contamination? Is
   it close to a water source? Is it desirable to dig a new well elsewhere
   instead of cleaning this one? Could a privy be moved, instead?
o  Has the well ever gone dry? Should you deepen it as well as clean it?
o  Surface drainage should generally slope away from the well and there should
   be effective disposal of spilled water.
o  What method will you use to remove the water and what will it cost?
o  Before entering the well to inspect the old lining, check for a lack of
   oxygen by lowering a lantern or candle. If the flame remains lit, it is
   reasonably safe to enter the well. If the flame goes out, the well is dangerous
   to enter. Tie a rope around the person entering the well and have two
   strong workers on hand to pull him out in case of accident.
Relining the Wall
The first job is to prepare the upper 3 meters (10') of the lining for concrete by
removing loose rock and chipping away old mortar with a chisel, as deep as
possible (see Figure 4). The next task is to clean out and deepen the well, if that


is necessary. All organic matter and silt should be bailed out. The well may be
dug deeper, particularly during the dry season, with the methods outlined in "Deep
Dug Wells." One way to increase the water yield is to drive a well point deeper
into the water-bearing soil. This normally will not raise the level of water in the
well, but may make the water flow into the well faster. The well point can be
piped directly to the pump, but this will not make use of the reservoir capacity
of the dug well.
The material removed from the well can be used to help form a mound around the
well so water will drain away from the opening. Additional soil will usually be
needed for this mound. A drain lined with rock should be provided to take spilled
water away from the concrete apron that covers the well.
Reline the well with concrete troweled in place over wire mesh reinforcement.
The largest aggregate should be pea-sized gravel and the mix should be fairly rich
with concrete, using no more than 20-23 liters (5 1/2 to 6 gallons) of water to a
43kg (94 pound) sack of cement. Extend the lining 70cm (27 1/2") above the
original ground surface.
Installing the Cover and Pump
Cast the well cover so that it makes a watertight seal with the lining to keep
surface impurities out. The cover will also support the pump. Extend the slab out
over the mound about a meter (a few feet) to help drain water away from the
site. Make a manhole and space for the drop pipe of the pump. Mount the pump
off center so there is room for the manhole. The pump is mounted on bolts cast
into the cover. The manhole must be 10cm (4") higher than the surface of the
slab. The manhole cover must overlap by 5cm (2") and should be fitted with a
lock to prevent accidents and contamination. Be sure that the pump is sealed to
the slab.
Disinfecting the Well
Disinfect the well by using a stiff brush to wash the walls with a very strong
solution of chlorine. Then add enough chlorine in the well to make it about half
the strength of the solution used on the walls. Sprinkle this last solution all over
the surface of the well to distribute it evenly. Cover the well and pump up the
water until the water smells strongly of chlorine. Let the chlorine remain in the
pump and well for one day and then pump it until the chlorine is gone.
Have the well water tested several days after disinfection to be sure that it is
pure. If it is not, repeat the disinfection and testing. If it is still not pure, get
expert advice.
Wagner, E.G. and Lanoix, J.N. Water Supply for Rural Areas and Small Communities.
Geneva: World Health Organization, 1959.
Manual of Individual Water Supply Systems, Public Health Service Publication No.
24. Washington, D.C.: Department of Health and Human Services.

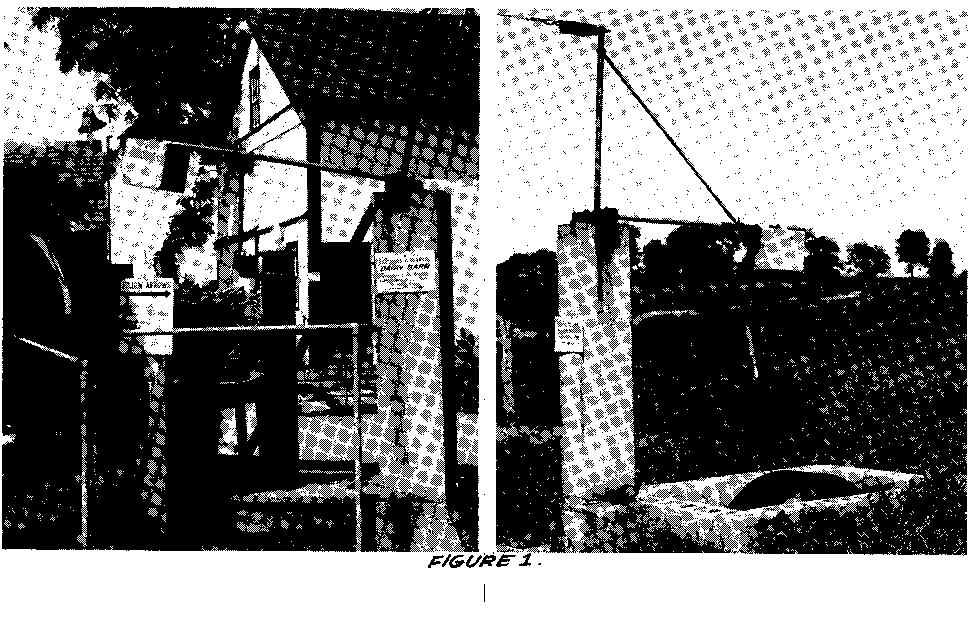

Springs, particularly in sandy soil, often make excellent water sources, but they
should be dug deeper, sealed, protected by a fence, and piped to the home. Proper
development of a spring will increase the flow of ground water and lower the
chances of contamination from surface water. If fissured rock or limestone are
present, get expert advice before attempting to develop the spring.
Springs occur where water, moving through porous and saturated underground
layers of soil (aquifer), emerges at the ground surface. They can be either:
o  Gravity seepage, where the water bearing soil reaches the surface over an
   impermeable layer, or
o  Pressure or artesian, where the water, under pressure and trapped by a hard
   layer of soil, finds an opening and rises to the surface. (In some parts of
   the world, all springs are called artesian.)
The following steps should be considered in developing springs:
  1)   Observe the seasonal flow variations over a period of a year if possible.
  2)   Determine the type of spring-seepage or artesian-by digging a small
      hole. An earth auger with extensions is the most suitable tool for that
      job. It may not be possible to reach the underlying impermeable layer.
  3)   Have chemical and biological tests made on samples of the water.
Dig a small hole near the spring to learn the depth of the hard layer of soil and
to find out whether the spring is gravity seepage or pressure. Check uphill and
nearby for sources of contamination. Test the water to see if it must be purified
before being used for drinking. A final point: Find out if the spring runs during
long dry spells.
For gravity-fed springs, the soil is usually dug to the hard, underlying layers and
a tank is made with watertight concrete walls on all but the uphill side (see Figures 1 and 2).


The opening on the uphill side should be lined with porous
concrete or stone without mortar, so that it will admit the gravity seepage water.
It can be backfilled with gravel and sand, which helps to keep fine materials in
the water-bearing soil from entering the spring. If the hard soil cannot be
reached easily, a concrete cistern is built that can be fed by a perforated pipe
placed in the water-bearing layer of earth. With a pressure spring, all sides of
the tank are made of watertight reinforced concrete, but the bottom is left open.
The water enters through the bottom.
Read the section in this handbook on cisterns before developing your spring. No
matter how the water enters your tank, you must make sure the water is pure by:
o  building a complete cover to stop surface pollution and keep out sunlight,
   which causes algae to grow.
o  installing a locked manhole with at least a 5cm (2") overlap to prevent
   entrance of polluted ground water.
o  installing a screened overflow that discharges at least 15cm (6") above the
   ground. The water must land on a cement pad or rock surface to keep the
   water from making a hole in the ground and to ensure proper drainage away
   from the spring.
o  arranging the spring so that surface water must filter through at least 3
   meters (10') of soil before reaching the ground water. Do this by making a
   diversion ditch for surface water about 15 meters (50') or more from the
   spring. Also, if necessary, cover the surface of the ground near the spring
   with a heavy layer of soil or clay to increase the distances that rainwater
   must travel, thus ensuring that it has to filter through 3 meters (10') of
o  making a fence to keep people and animals away from the spring's immediate
   surroundings. The suggested radius is 7.6 meters (25').
o  installing a pipeline from the overflow to the place where the water is to be
Before using the spring, disinfect it thoroughly by adding chlorine or chlorine
compounds. Shut off the overflow to hold the chlorine solution in the well for 24
hours. If the spring overflows even though the water is shut off, arrange to add
chlorine so that it remains strong for at least 30 minutes, although 12 hours
would be much safer. After the chlorine is flushed from the system have the
water tested. (See section on "Superchlorination.")
Wagner, E.G. and Lanoix, J.N. Water Supply for Rural Areas and Small Communities.
Geneva: World Health Organization, 1959.
Manual of Individual Water Supply Systems, Public Health Service Publication No.
24. Washington, D.C.: U.S. Department of Health and Human Services.
John M. Jenkins III, VITA Volunteer, Marrero, Louisiana
Ramesh Patel, VITA Volunteer, Albany, New York
William P. White, VITA Volunteer, Brooklyn, Connecticut
                      Water Lifting and Transport
Once a source of water has been found and developed, four basic questions must
be answered:
     1.    What is the rate of flow of the water in your situation?

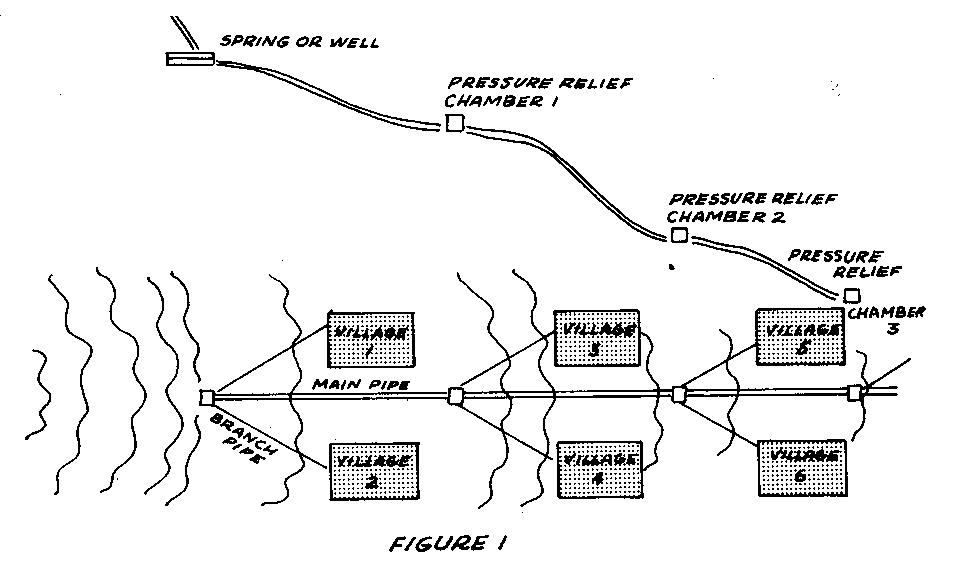

     2.    Between what points must the water be transported?
     3.    What kind and size of piping is needed to transport the required flow?
     4.    What kind of pump, if any, is necessary to produce the required flow?
The information in this section will help you to answer the third and fourth
questions, once you have determined the answers to the first two.
Moving Water
The first three entries in this section discuss the flow of water in small streams,
partially filled pipes, and when the height of the reservoir and size of pipe are

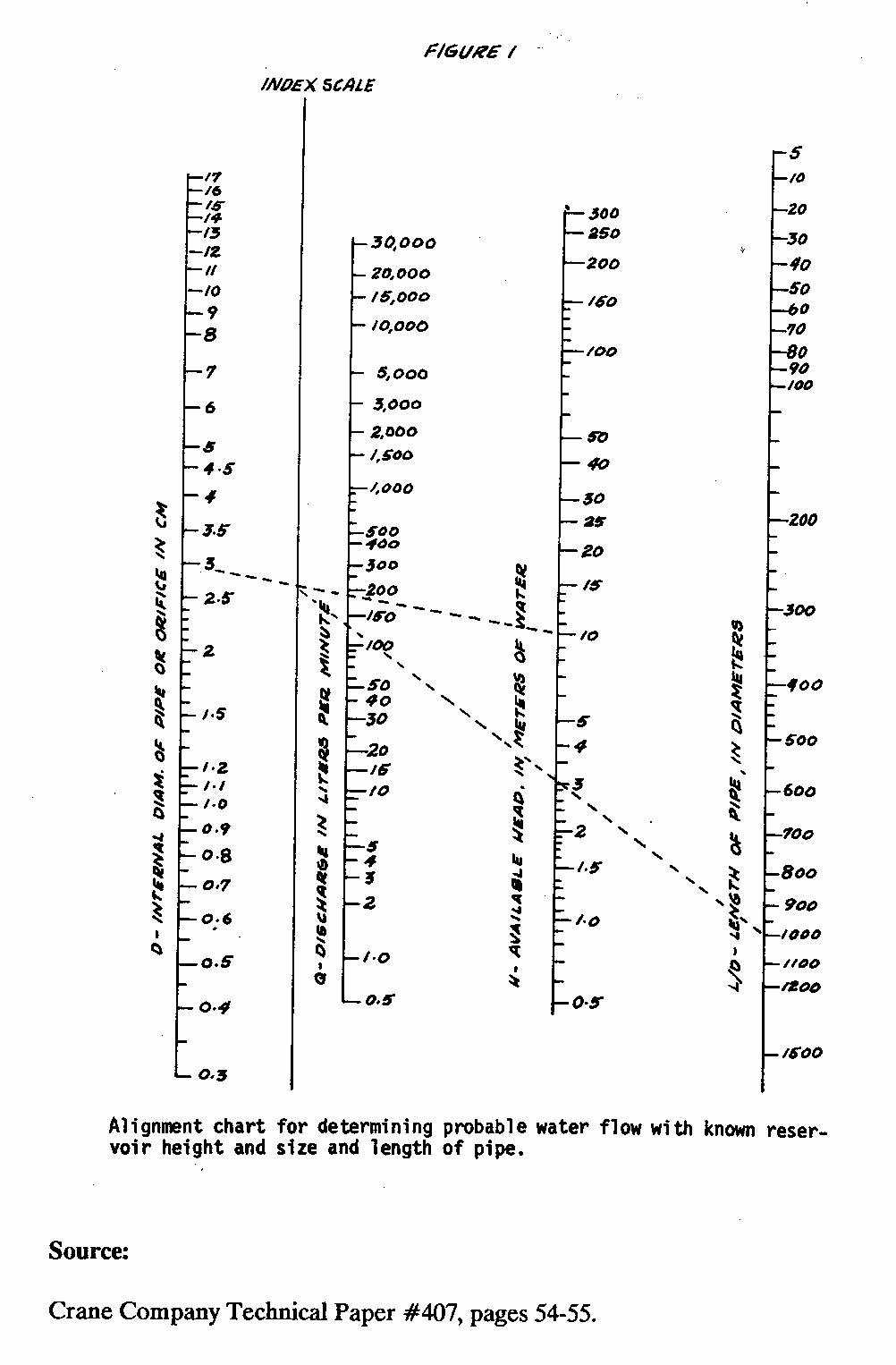

known. They include equations and alignment charts (also called nomographs) that
give simple methods of estimating the flow of water under the force of gravity,

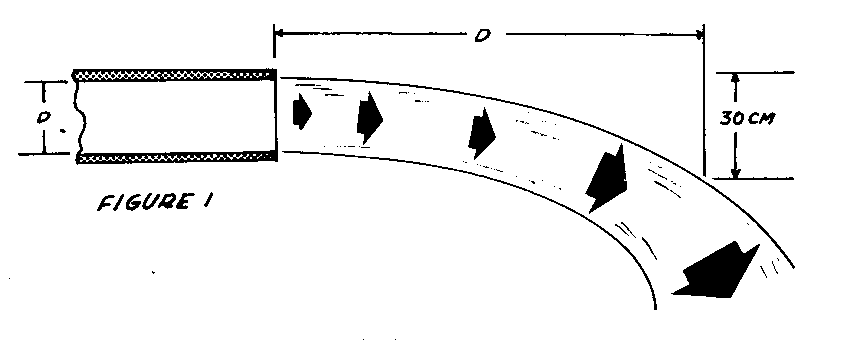

that is, without pumping. The fourth tells how to measure flow by observing the
spout from a horizontal pipe.
Four entries follow on piping, including a discussion of pipes made of bamboo.
You will note that in the alignment charts here and elsewhere, the term "nominal
diameter, inches, U.S. Schedule 40" is used along with the alternate term, "inside
diameter in centimeters," in referring to pipe size.
Pipes and fittings are usually manufactured to a standard schedule of sizes. U.S.
Schedule 40, the most common in the United States, is also widely used in other
countries. When one specifies "2-inch Schedule 40," one automatically specifies the
pressure rating of the pipe and its inside and outside diameters (neither of which,
incidentally, is actually 2"). If the schedule is not known, measure the inside
diameter and use this for flow calculations.
Lifting Water

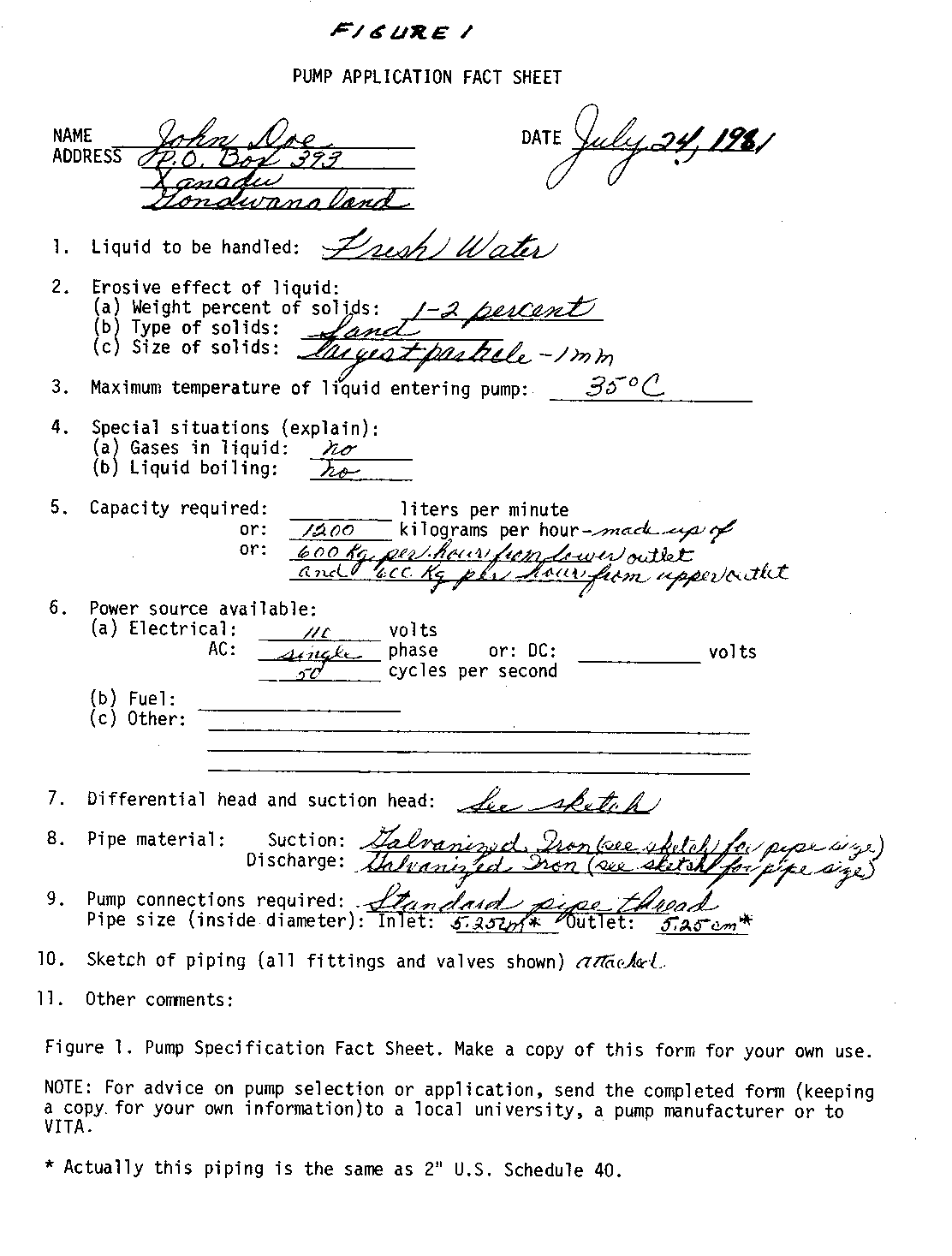

Next, several entries follow the steps required to design a water-pumping system
with piping. The first entry in this group, "Pump Specifications: Choosing or
Evaluating a Pump," presents all the factors that must be considered in selecting
a pump. Fill out the form included there and make a piping sketch, whether you
plan to send it to a consultant for help or do the design and selection yourself.
The first pieces of information needed for selecting pump type and size are: (1)
the flow rate of water needed and (2) the head or pressure to be overcome by
the pump. The head is composed of two parts: the height to which the liquid must
be raised, and the resistance to flow created by the pipe walls (friction-loss).
The friction-loss head is the most difficult factor to measure. The entry "Determining
Pump Capacity and Horsepower Requirements" describes how to select the
economic pipe size(s) for the flow desired. With the pipe(s) selected one must
then calculate the friction-loss head. The entry "Estimating Flow Resistance of
Pipe Fittings" makes it possible to estimate extra friction caused by constrictions
of pipe fittings. With this information and the length of pipe, it is possible to
estimate the pump power requirement using the entry, "Determining Pump Capacity
and Horsepower Requirements."
These entries have another very important use. You may already have a pump and
wonder "Will it do this job?" or "What size motor should I buy to do this job
with the pump I have?" The entry "Pump Specifications: Choosing or Evaluating a
Pump" can be used to collect all the information on the pump and on the job you
want it to do. With this information, you can ask a consultant or VITA if the
pump can be used or not.
There are many varieties of pumps for lifting water from where it is to where it
is to be delivered. But for any particular job, there are probably one or two kinds
of pumps that will serve better than others. We will discuss here only two broad
classes of pumps: lift pumps and force pumps.
A lift or suction pump is located at the top of a well and raises water by
suction. Even the most efficient suction pump can create a negative pressure of
only 1 atmosphere: theoretically, it could raise a column of water 10.3m (34') at
sea level. But because of friction losses and the effects of temperature, a suction
pump at sea level can actually lift water only 6.7m to 7.6m (22' to 25'). The entry
"Determining Lift Pump Capability" explains how to find out the height a lift
pump will raise water at different altitudes with different water temperatures.

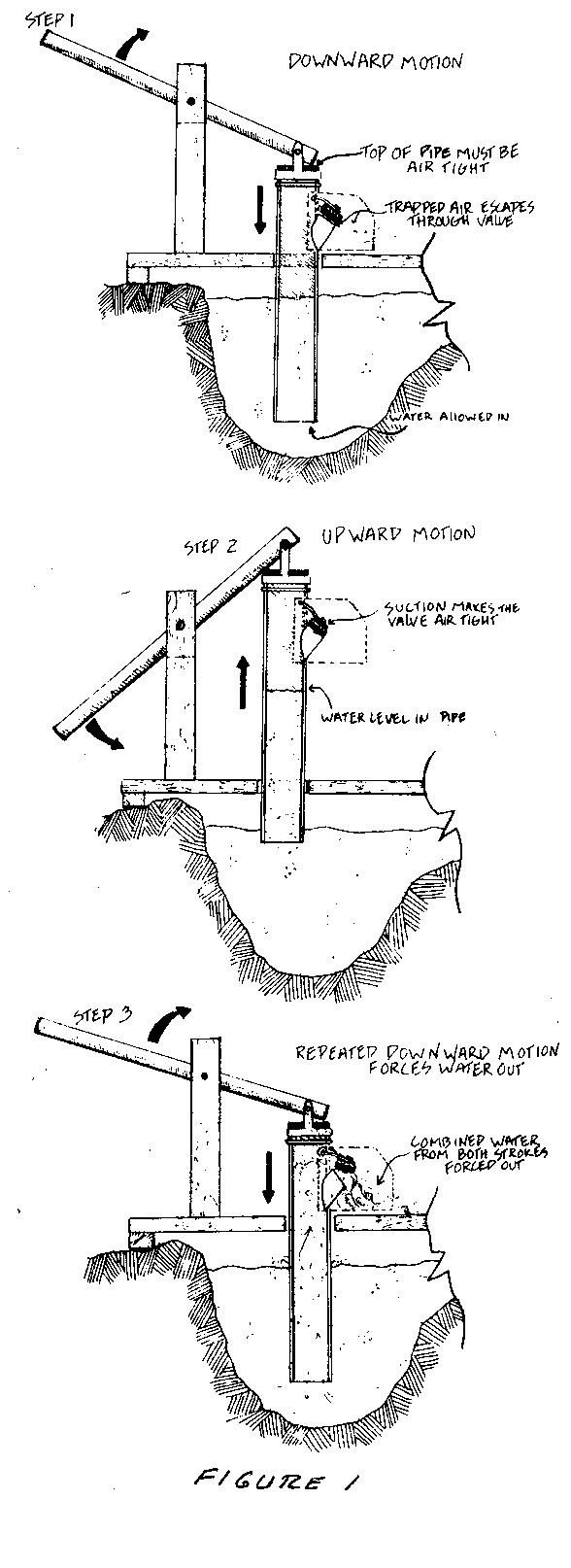

When a lift pump is not adequate, a force pump must be used. With a force pump,
the pumping mechanism is placed at or near the water level and pushes the water
up. Because it does not depend on atmospheric pressure, it is not limited to a
7.6m (25') head.

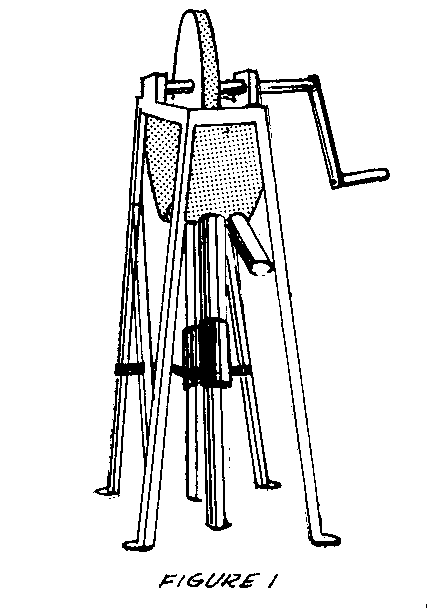

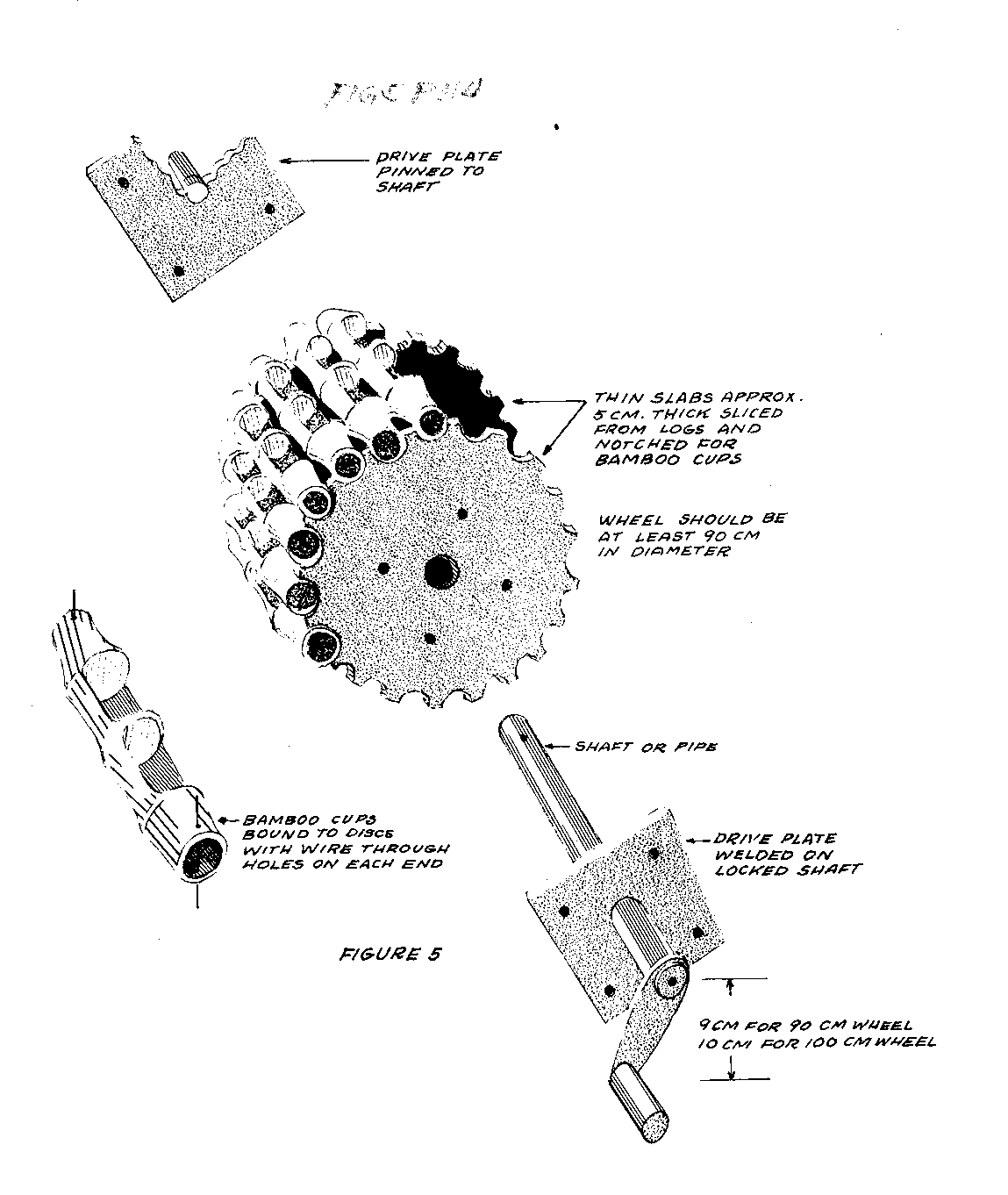

Construction details are given for two irrigation pumps that can be made at the

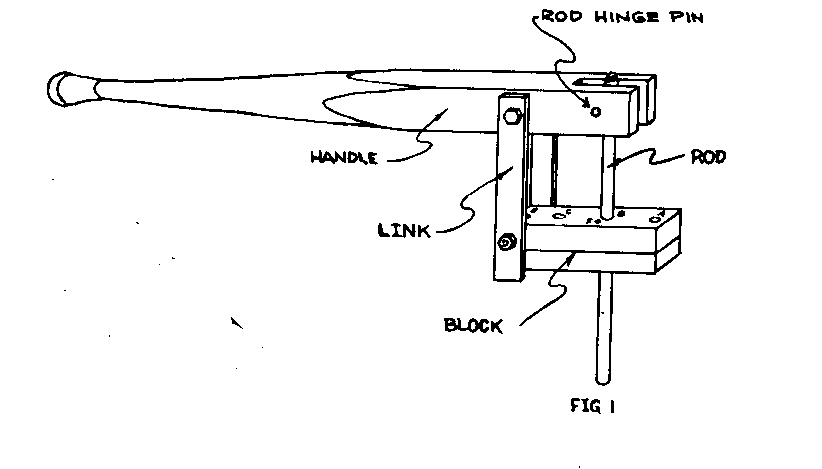

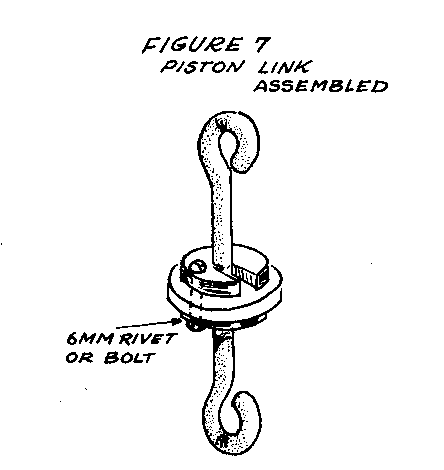

village level. An easy-to-maintain pump handle mechanism is described. Use of the
hydraulic ram, a self-powered pump, is described.
Finally, there are entries on Reciprocating Wire Power Transmission for Water
Pumps, and on Wind Energy for Water Pumping. Further details on pumps can be
found in the publications listed below and in the Reference section at the back of
the book.
Margaret Crouch, ed. Six Simple Pumps. Arlington, Virginia: Volunteers in
Technical Assistance, 1982.
Molenaar, Aldert. Water Lifting Devices for Irrigation. Rome: Food and Agriculture
Organization, 1956.
Small Water Supplies. London: The Ross Institute, The London School of Hygiene
and Tropical Medicine, 1967.

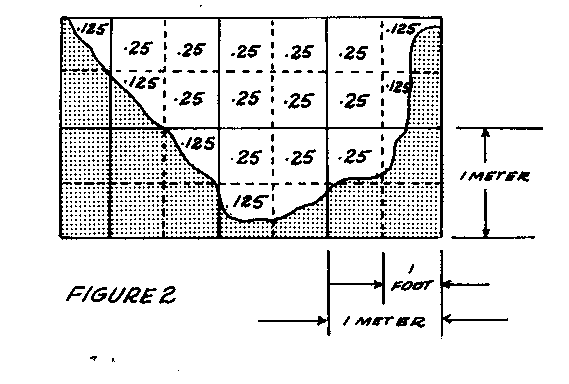

Estimating Small Stream Water Flow
A rough but very rapid method of estimating water flow in small streams is given
here. In looking for water sources for drinking, irrigation, or power generation,
one should survey all the streams available. If sources are needed for use over a
long period, it is necessary to collect information throughout the year to determine
flow changes-especially high and low flows. The number of streams that
must be used and the flow variations are important factors in determining the
necessary facilities for utilizing the water.
                          Tools and Materials
Timing device, preferably watch with second hand
Measuring tape
Float (see below) <see figure 1>


Stick for measuring depth
The following equation will help you to measure flow quickly:
                              Q = KxAxV,
Q   (Quantity) = flow in liters per minute
A   (Area) = cross-section of stream, perpendicular to flow, in square meters
V   (Velocity) = stream velocity, meters per minute
K   (Constant) = a corrected conversion factor. This is used because surface flow
    is normally faster than average flow. For normal stages use K = 850; for
    flood states use ]K = 900 to 950.
To Find Area of a Cross-Section
The stream will probably have different depths along its length so select a place
where the depth of the stream is average.
o   Take a measuring stick and place it upright in the water about one-half
    meter (1 1/2') from the bank.
o   Note the depth of water.
o   Move the stick 1 meter (3') from the bank in a line directly across the
    stream. Note the depth.
o   Move the stick 1.5 meters (4 1/2') from the bank, note the depth, and
    continue moving it at half-meter (1 1/2') intervals until you cross the
Note the depth each time you place the stick upright in the stream. Draw a grid,
like the one in Figure 2, and mark the varying depths on it so that a cross-section


of the stream is shown. A
scale of 1cm to 10cm is often used
for such grids. By counting the
grid squares and fractions of
squares, the area of the water can
be estimated. For example, the grid
shown here has a little less than 4
square meters of water.
To Find Velocity
Put a float in the stream and measure the distance of travel in one minute (or
fraction of a minute, if necessary.) The width of the stream where the velocity is
being measured should be as constant as possible and free of rapids.
A light surface float, such as a chip, will often change course because of wind or
surface currents. A weighted float, which sits upright in the water, will not
change course so easily. A lightweight tube or tin can, partly filled with water or
gravel so that it floats upright with only a small part showing above water,
makes a good float for measuring.
Measuring Wide Streams
For a wide, irregular stream, it is better to divide the stream into 2- or 3-meter
sections and measure the area and velocity of each. Q is then calculated for each
section and the Qs added together to give a total flow.
Example (see Figure 2):
    Cross section is 4 square meters
    Velocity of float = 6 meters traveled in 1/2 minute
    Stream flow is normal
    Q = 850 x 4 x 6 meters
                   .5 minute
    Q = 40,800 liters per minute or 680 liters per second
                          Using English Units
If English units of measurement are used, the equation for measuring stream flow
is: Q = K x A x V, where:
Q     = flow in U.S. gallons per minute
A     = cross-section of stream, perpendicular to flow, in square feet
V     = stream velocity in feet per minute
K     = a corrected conversion factor: 6.4 for normal stages; 6.7 to 7.1 for flood
The grid used would be like the one in Figure 3; a common scale is 1" to 12".


Cross-section is 15 square feet
Float velocity = 20' in 1/2 minute
Stream flow is normal
Q    = 6.4 x 15 x 20 feet
                      .5 minute
Q    = 3,800 gallons per minute
Clay, C.H. Design of Fishways and Other Fish Facilities. Ottawa: P.E. Department
of Fisheries of Canada, 1961.
Measuring Water Flow in Partially-Filled Pipes
The flow of water in partially-filled horizontal pipes (Figure 1) or circular


channels can be determined-if you know the inside diameter of the pipe and the
depth of the water flowing-by using the alignment chart (nomograph) in Figure 2.


This method can be checked
for low flow rates and small
pipes by measuring the time
required to fill a bucket or
drum with a weighed quantity
of water. A liter of water
weighs 1kg (1 U.S. gallon of
water weighs 8.33 pounds).
                          Tools and Materials
Ruler to measure water depth (if ruler units are inches, multiply by 2.54 to
convert to centimeters)
Straight edge, to use with alignment chart
The alignment chart applies to pipes with 2.5cm to 15cm inside diameters, 20 to
60% full of water, and having a reasonably smooth surface (iron, steel, or
concrete sewer pipe). The pipe or channel must be reasonably horizontal if the
result is to be accurate. The eye, aided by a plumb line to give a vertical
reference, is a sufficiently good judge. If the pipe is not horizontal another
method will have to be used. To use the alignment chart, simply connect the
proper point on the "K" scale with the proper point on the "d" scale with the
straight edge. The flow rate can then be read from the "q" scale.
q     =     rate of flow of water, liters per minute 8.33 pounds = 1 gallon.
d     =     internal diameter of pipe in centimeters.
K     =     decimal fraction of vertical diameter under water. Calculate K by
measuring the depth of water (h) in the pipe and dividing it by the
pipe diameter (d), or K = h (see Figure 1).


What is the rate of flow of water in a pipe with an internal diameter of 5cm,
running 0.3 full? A straight line connecting 5 on the d-scale with 0.3 on the K-scale
intersects the q-scale at flow of 18 liters per minute.
Greve Bulletin 32, Volume 12, No. 5, Purdue University, 1928.
Determining Probable Water Flow with Known
Reservoir Height and Size and Length of Pipe
The alignment chart in Figure 1 gives a reasonably accurate determination of
water flow when pipe size, pipe length, and height of the supply reservoir are
known. The example given here is for the analysis of an existing system. To
design a new system, assume a pipe diameter and solve for flow rate, repeating
the procedure with new assumed diameters until one of them provides a suitable
flow rate.
                          Tools and Materials
Straightedge, for use with alignment chart
Surveying instruments, if available
The alignment chart was prepared for clean, new steel pipe. Pipes with rougher
surfaces or steel or cast iron pipe that has been in service for a long time may
give flows as low as 50 percent of those predicted by this chart.
The available head (h) is in meters and is taken as the difference in elevation
between the supply reservoir and the point of demand. This may be crudely
estimated by eye, but for accurate results some sort of surveying instruments are
For best results, the length of pipe (L) used should include the equivalent lengths
of fittings as described in the section, "Estimating Flow Resistance of Pipe
Fittings," p. 76. This length (L) divided by the pipe internal diameter (D) gives
the necessary "L/D" ratio. In calculating L/D, note that the units of measuring
both "L" and "D" must be the same, e.g., feet divided by feet; meters divided by
meters; centimeters by centimeters.
Given available head (h) of 10 meters, pipe internal diameter (D) of 3cm, and
equivalent pipe length (L) of 30 meters (3,000cm).
Calculate L/D = 3,000cm = 1,000
The alignment chart solution is in two steps:
1.  Connect internal diameter 3cm to available head (10 meters), and make a
    mark on the Index Scale. (In this step, disregard "Q" scale)
2.  Connect mark on Index Scale with L/D (1,000), and read flow rate (Q) of
    approximately 140 liters per minute.
 Estimating Water Flow from Horizontal Pipes
If a horizontal pipe is discharging a full stream of water, you can estimate the
rate of flow from the alignment chart in Figure 2. This is a standard engineering


technique for estimating flows; its results are usually accurate to within 10
percent of the actual flow rate.
                          Tools and Materials
Straightedge and pencil, to use alignment chart
Tape measure
Plumb bob
The water flowing from the pipe must completely fill the pipe opening (see Figure 1).


The results from the chart will be most accurate when there is no constricting
or enlarging fitting at the end of the pipe.
    Water is flowing out of a pipe with an inside diameter (d) of 3cm (see Figure 1).
    The stream drops 30cm at a point 60cm from the end of the
    Connect the 3cm inside diameter point on the "d" scale in Figure 2
    with the 60cm point on the "D" scale. This line intersects the "q" scale
    at about 100 liters per minute, the rate at which water is flowing out
    of the pipe.
Duckworth, Clifford C. "Flow of Water from Horizontal Open-end Pipes." Chemical
Processing, June 1959, p. 73.
 Determining Pipe Size or Velocity of Water in Pipes
The choice of pipe size is one of the first steps in designing a simple water
The alignment chart in Figure 1 can be used to compute the pipe size needed for


a water system when the water velocity is known. The chart can also be used to
find out what water velocity is needed with a given pipe size to yield the
required rate of flow.
                             Tools and Materials
Practical water systems use water velocities from 1.2 to 1.8 meters (3.9 to 5.9
feet) per second. Very fast velocity requires high pressure pumps, which in turn
require large motors and use excessive power. Velocities that are too low are
expensive because larger pipe diameters must be used.
It may be advisable to calculate the cost of two or more systems based on
different pipe sizes. Remember, it is usually wise to choose a little larger pipe if
higher flows are expected in the next 5 to 10 years. In addition, water pipes
often build up rust and scale, reducing the diameter and thereby increasing the
velocity and pump pressure required to maintain flow at the original rate. If extra
capacity is designed into the piping system, more water can be delivered by
adding to the pump capacity without changing all the piping.
To use the chart, locate the flow (liters per minute) you need on the Q-scale.
Draw a line from that point, through 1.8m/sec velocity on the V-scale, to the d-scale.
Choose the nearest standard size pipe.
For example, suppose you need a flow of 50 liters per minute at the time of peak
demand. Draw a line from 50 liters per minute on the Q-scale through 1.8m/sec
on the V-scale. Notice that this intersects the d-scale at about 2.25. The correct
pipe size to choose would be the next largest standard pipe size, e.g., 1" nominal
diameter, U.S. Schedule 40. If pumping costs (electricity or fuel) are high, it
would be well to limit velocity to 1.2m/sec and install a slightly larger pipe size.
Crane Company Technical Paper #409, pages 46-47.
 Estimating Flow Resistance of Pipe Fittings
One of the forces a pump must overcome to deliver water is the friction/resistance
of pipe fittings and valves to the flow of water. Any bends, valves,
constrictions, or enlargements (such as passing through a tank) add to friction.
The alignment chart in Figure 1 gives a simple but reliable way to estimate this
resistance: it gives the equivalent length of straight pipe that would have the
same resistance. The sum of these equivalent lengths is then added to the actual
length of pipe. This gives the total equivalent pipe length, which is used in the
entry, "Determining Pump Capacity and Horsepower Requirements," to determine
total friction loss.
Rather than calculate the pressure drop for each valve or fitting separately,
Figure 1 gives the equivalent length of straight pipe.
Note the difference in equivalent length depending on how far the valve is open.
1.  Gate Valve: full opening valve; can see through it when open; used for
    complete shut off of flow.
2.  Globe Valve: cannot see through it when open; used for regulating flow.
3.  Angle Valve: like the globe, used for regulating flow.
4.  Swing Check Valve: a flapper opens to allow flow in one direction but
    closes when water tries to flow in the opposite direction.
Example 1:
Pipe with 5cm inside diameter
                                        Equivalent Length in Meters
a. Gate Valve (fully open)                                .4
b. Flow into line - ordinary entrance                    1.0
c. Sudden enlargement into 10cm pipe                     1.0
     (d/D = 1/2)
d. Pipe length                                      10.0
Total Equivalent Pipe Length                            12.4
 Example 2:
 Pipe with 10cm inside diameter
                                   Equivalent Length in Meters
a. Elbow (standard)                                   4.0
b. Pipe length                                   10.0
Total Equivalent Pipe Length                         14.0
Study the variety of tees and elbows: note carefully the direction of flow through
the tee. To determine the equivalent length of a fitting, (a) pick proper dot on
"fitting" line, (b) connect with inside diameter of pipe, then using a straight edge
read equivalent length of straight pipe in meters, and (c) add the fitting
equivalent length to the actual length of pipe being used.
Crane Company Technical Paper #409, pages 20-21.
Bamboo Piping
Where bamboo is readily available, it seems to be a good substitute for metal
pipe. Bamboo pipe is easy to make with unskilled labor and local materials. The
important features of the design and construction of a bamboo piping system are
given here.
Bamboo pipe is extensively used in Indonesia to transport water to villages. In
many rural areas of Taiwan, bamboo is commonly used in place of galvanized iron
for deep wells up to a maximum depth of 150 meters (492'). Bamboos of 50mm (2")
diameter are straightened by means of heat, and the inside nodes knocked out.
The screen is made by punching holes in the bamboo and wrapping that section
with a fibrous mat-like material from a palm tree, Chamaerops humilis. In fact,
such fibrous screens are also used in many galvanized iron tube wells.
Bamboo piping can hold pressure up to two atmospheres (about 2.1kg per square
centimeter or 30 pounds per square inch). It cannot, therefore, be used as
pressure piping. It is most suitable in areas where the source of supply is higher
than the area to be served and the flow is under gravity.
Figure 1 is a sketch of a bamboo pipe water supply system for a number of


villages. Figure 2 shows a public water fountain.


Health Aspects
If bamboo piping is to carry water for drinking purposes, the only preservative
treatment recommended is boric acid: borax in a 1:1 ratio by weight. The recommended
treatment is to immerse green bamboo completely in a solution of 95
percent water and 5 percent boric acid.
After a bamboo pipe is put into operation it gives an undesirable odor to the
water. This, however, disappears after about three weeks. If chlorination is done
before discharge to the pipe, a reservoir giving sufficient contact time for
effective disinfection is required since bamboo pipe removes chlorine compounds
and no residual chlorine will be maintained in the pipe. To avoid possible contamination
by ground water, an ever present danger, it is desirable to maintain
the pressure within the pipe at a higher level than any water pressure outside the
pipe. Any leakage will then be from the pipe, and contaminated water will not
enter the pipe.
Design and Construction
                             Tools and Materials
Chisels (see text and Figure 3)


Nail, cotter pin, or linchpin
Caulking materials
Bamboo pipe is made of lengths of bamboo of the desired diameter by boring out
the dividing membrane at the joints. A circular chisel for this purpose is shown
in Figure 3. One end of a short length of steel pipe is belled out to increase the
diameter and the edge sharpened. A length of bamboo pipe of sufficiently small
diameter to slide into the pipe is used as a boring bar and secured to the pipe by
drilling a small hole through the assembly and driving a nail through the hole. (A
cotter pin or linchpin could be used instead of the nail.) Three or more chisels
ranging from smallest to the maximum desired diameter are required. At each
joint the membrane is removed by first boring a hole with the smallest diameter
chisel, then progressively enlarging the hole with the larger diameter chisels.
Bamboo pipe lengths are joined in a number of ways, as shown in Figure 4. Joints


are made watertight by caulking with cotton wool mixed with tar, then tightly
binding with rope soaked in hot tar.
Bamboo pipe is preserved by laying the pipe below ground level and ensuring a
continuous flow in the pipe. Where the pipe is laid above ground level, it is
protected by wrapping it with layers of palm fiber with soil between the layers.
This treatment will give a life expectancy of about 3 to 4 years to the pipe; some
bamboo will last up to 5-6 years. Deterioration and failure usually occur at the
natural joints, which are the weakest parts.

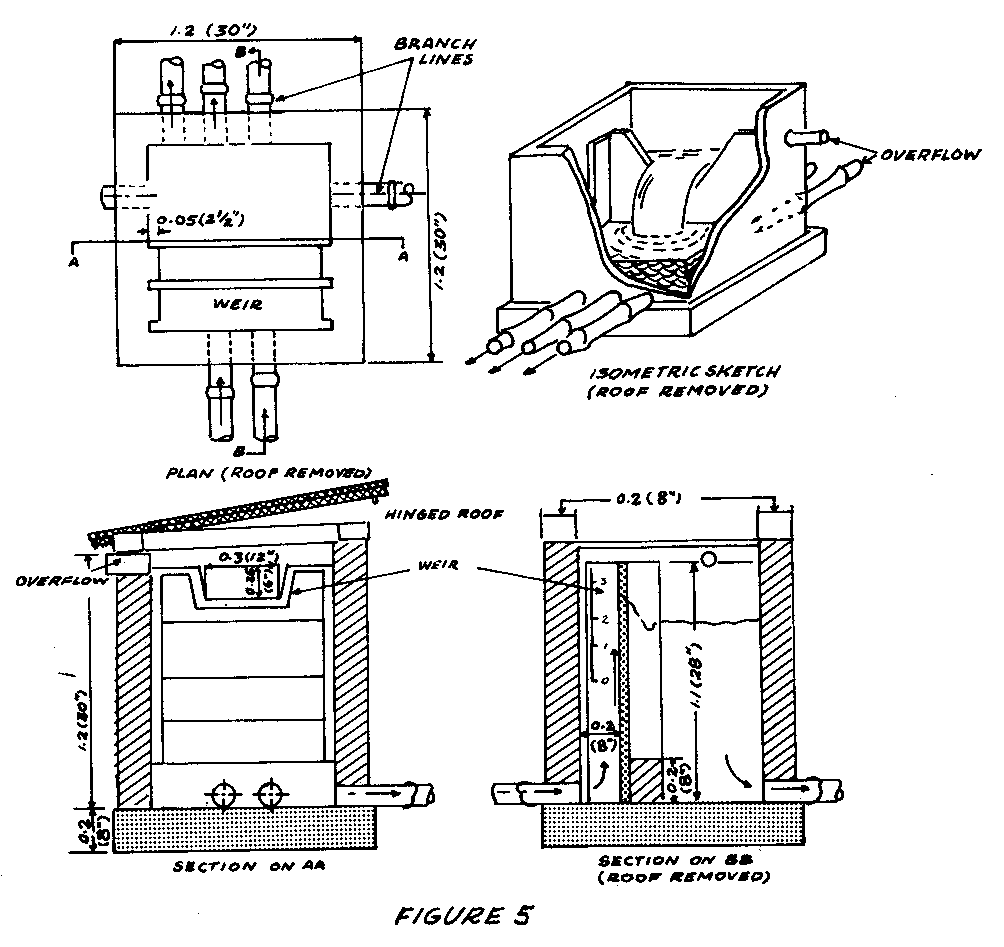

Where the depth of the pipe below the water source is such that the maximum
pressure will be exceeded, pressure relief chambers must be installed. A typical
chamber is shown in Figure 5. These chambers are also installed as reservoirs for


branch supply lines to villages en route.
Size requirements for bamboo pipe may be determined by using the pipe capacity
alignment chart in Figure 6.


Water Supply Using Bamboo Pipe. AID-UNC/IPSED Series Item No. 3, International
Program in Sanitary Engineering Design, University of North Carolina, 1966.
Pump Specifications: Choosing or Evaluating a Pump
The form given in Figure 1, the "Pump Application Fact Sheet," is a check list


for collecting the information needed to get help in choosing a pump for a
particular situation. If you have a pump on hand, you can also use the form to
estimate its capabilities. The form is an adaptation of a standard pump specification
sheet used by engineers.
Fill out the form and send it off to a manufacturer or a technical assistance
organization like VITA to get help in choosing a pump. If you are doubtful about
how much information to give, it is better to give too much information than to
risk not giving enough. When seeking advice on how to solve a pumping problem
or when asking pump manufacturers to specify the best pump for your service,
give complete information on what its use will be and how it will be installed. If
the experts are not given all the details, the pump chosen may give you trouble.
The "Pump Application Fact Sheet" is shown filled in for a typical situation. For
your own use, make a copy of the form. The following comments on each numbered
item on the fact sheet will help you to complete the form adequately.
1.  Give the exact composition of the liquid to be pumped: Fresh or salt water,
    oil, gasoline, acid, alkali, etc.
2.  Weight percent of solids can be found by getting a representative sample in
    a pail. Let the solids settle to the bottom and decant the liquid (or filter
    the liquid through a cloth so that the liquid coming through is clear). Weigh
    the solids and the liquid, and give the weight percent of solids.
    If this is not possible, measure the volume of the sample (in liters, U.S.
    gallons, etc.) and the volume of solids (in cubic centimeters, teaspoons, etc.)
    and send these figures. Describe the solid material completely and send a
    small sample if possible. This is important; if the correct pump is not
    selected, the solids will erode and/or break moving parts.
    Weight percent of solids =
             100 x weight of solids in liquid sample
                   weight of liquid sample
3.  If you do not have a thermometer to measure temperature, guess at it,
    making sure you guess on the high side. Pumping troubles are often caused
    when liquid temperatures at the intake are too high.
4.  Gas bubbles or boiling cause special problems, and must always be mentioned.
5.  Give the capacity (the rate at which you want to move the liquid) in any
    convenient units (liters per minute, U.S. gallons per minute) by giving the
    total of the maximum capacity needed for each outlet.
6.  Give complete details on the power source.
    A.   If you are buying an electric motor for the pump, be sure to give your
        voltage. If the power is A.C. (Alternating Current) give the frequency
        (in cycles per second) and the number of phases. Usually this will be
        single phase for most small motors. Do you want a pressure switch or
        other special means to start the motor automatically?
    B.   If you want to buy an engine driven pump, describe the type and cost
        of fuel, the altitude, maximum air temperature, and say whether the air
        is unusually wet or dusty.
    C.   If you already have an electric motor or engine, give as much information
        about it as you can. Give the speed and sketch the machine, being
        especially careful to show the power shaft diameter and where it is
        with respect to the mounting. Describe the size and type of pulley if
        you intend to use a belt drive. Finally, you must estimate the power.
        The best thing is to copy the name plate data completely. If possible
        give the number of cylinders in your engine, their size, and the stroke.
7.  The "head" or pressure to be overcome by the pump and the capacity (or
    required flow of water) determine the pump size and power. The entry
    "Determining Pump Capacity and Horsepower Requirements," explains the
    calculation of simple head situations. The best approach is to explain the
    heads by drawing an accurate piping sketch (see Item 10 in the "Pump
    Application Fact Sheet"). Be sure to give the suction lift and piping separately
    from the discharge lift and piping. An accurate description of the
    piping is essential for calculating the friction head. See Figure 2.


8.  The piping material, inside diameter, and thickness are necessary for making
    the head calculations and to check whether pipes are strong enough to
    withstand the pressure. See "Water Lifting and Transport-Overview" for
    comments on specifying pipe diameter.
9.  Connections to commercial pumps are normally flanged or threaded with
    standard pipe thread.
10. In the sketch be sure to show the following:
    (a) Pipe sizes; show where sizes are changed by indicating reducing
    (b) All pipe fittings-elbows, tees, valves (show valve type), etc.
    (c) Length of each pipe run in a given direction. Length of each size pipe
        and vertical lift are the most important dimensions.
11. Give information on how the pipe will be used. Comment on such points as:
    o   Indoor or outdoor installation?
    o   Continuous or intermittent service?
    o   Space or weight limitations?
Benjamin P. Coe, VITA Volunteer, Schenectady, New York.
Determining Pump Capacity and Horsepower Requirements
With the alignment chart in Figure 1, you can determine the necessary pump size


(diameter or discharge outlet) and the amount of horsepower needed to power the
pump. The power can be supplied by people or by motors.
An average healthy person can generate about 0.1 horsepower (HP) for a reasonably
long period and 0.4HP for short bursts. Motors are designed for varying
amounts of horsepower.
To get the approximate pump size needed for lifting liquid to a known height
through simple piping, follow these steps:
1.  Determine the quantity of flow desired in liters per minute.
2.  Measure the height of the lift required (from the point where the water
    enters the pump suction piping to where it discharges).
3.  Using the entry "Determining Pipe Size or Velocity of Water in Pipes," page
    74, choose a pipe size that will give a water velocity of about 1.8 meters
    per second (6' per second). This velocity is chosen because it will generally
    give the most economical combination of pump and piping; Step 5 explains
    how to convert for higher or lower water velocities.
4.  Estimate the pipe friction-loss head (a 3-meter head represents the pressure
    at the bottom of a 2-meter-high column of water) for the total equivalent
    pipe length, including suction and discharge piping and equivalent pipe
    lengths for valves and fittings, using the following equation:
    Friction-loss head =  F x total equivalent pipe length
    where F equals approximate friction head (in meters) per 100 meters of pipe.
    To get the value of F, see the table below. For an explanation of total
    equivalent pipe length, see preceding sections.
5.  To find F (approximate friction head in meters per 100m of pipe) when
    water velocity is higher or lower than 1.8 meters per second, use the
    following equation:
       F                   [V.sup.2]
         at 1.8/[sec.sup.x]
    F= ----------------------------
    where V = higher or lower velocity
    If the water velocity is 3.6m per second and F at 1.8m/sec is 16, then:
   F = 16 x [3.6.sup.2]    16 x 13
       ----------------  = ------- = 64
         [1.8.sup.2]         3.24
6.  Obtain "Total Head" as follows:
    Total Head = Height of Lift + Friction-loss Head
    Average friction loss in meters for fresh water flowing through steel pipe
    velocity is 1.8 meters (6 feet) per second
    Pipe inside diameter: cm   2.5    5.1   7.6   10.2    15.2   20.4   30.6    61.2
                    inches(*)   1"     2"    3"     4"      6"      8"    12"    24"
    F (approximate friction     16     7     5      3       2     1.5    1        0.5
    loss in meters per 100
    meters of pipe)
    (*) For the degree of accuracy of this method, either actual inside diameter in
    inches, or nominal pipe size, U.S. Schedule 40, can be used.
7.  Using a straightedge, connect the proper point on the T-scale with the
    proper point on the Q-scale; read motor horsepower and pump size on the
    other two scales.
    Desired flow: 400 liters per minute
    Height of lift: 16 meters, No fittings
    Pipe size: 5cm
    Friction-loss head: about 1 meter
    Total head: 17 meters
        Pump size: 5cm
        Motor horsepower: 3HP
Note that water horsepower is less than motor horsepower (see HP-scale, Figure 1).
This is because of friction losses in the pump and motor. The alignment chart
should be used for rough estimate only. For an exact determination, give all
information on flow and piping to a pump manufacturer or an independent expert.
He has the exact data on pumps for various applications. Pump specifications can
be tricky especially if suction piping is long and the suction lift is great.
For conversion to metric horsepower given the limits of accuracy of this method,
metric horsepower can be considered roughly equal to the horsepower indicated by
the alignment chart (Figure 1). Actual metric horsepower can be obtained by
multiplying horsepower by 1.014.
Kulman, CA. Nomographic Charts. New York: McGraw-Hill Book Co., 1951.
Determining Lift Pump Capability
The height that a lift pump can raise water depends on altitude and, to a lesser
extent, on water temperature. The graph in Figure 1 will help you to find out


what a lift pump can do at various altitudes and water temperatures. To use it,
you will need a measuring tape and a thermometer.
If you know your altitude and the temperature of your water, Figure 1 will tell
you the maximum allowable distance between the pump cylinder and the lowest
water level expected. If the graph shows that lift pumps are marginal or will not
work, then a force pump should be used. This involves putting the cylinder down
in the well, close enough to the lowest expected water level to be certain of
proper functioning.
The graph shows normal lifts. Maximum possible lifts under favorable conditions
would be about 1.2 meters higher, but this would require slower pumping and
would probably give much difficulty in "losing the prime."
Check predictions from the graph by measuring lifts in nearby wells or by
    Suppose your elevation is 2,000 meters and the water temperature is
    25[degrees]C. The graph shows that the normal lift would be four meters.
Baumeister, Theodore. Mechanical Engineer's Handbook, 6th edition. New York:
McGraw-Hill Book Co., 1958.
Chain Pump for Irrigation
The chain pump, which can be powered by hand or animal, is primarily a shallow-well
pump to lift water for irrigation (see Figure 1). It works best when the lift


is less than 6 meters (20'). The
water source must have a depth of
about 5 chain links.
Both the pump capacity and the
power requirement for any lift are
proportional to the square of the
diameter of the tube. Figure 2


shows what can be expected from a
10cm (4") diameter tube operated
by four people working in two
The pump is intended for use as an
irrigation pump because it is
difficult to seal for use as a
sanitary pump.
                             Tools and Materials
Welding or brazing equipment
Metal-cutting equipment
Woodworking tools
Pipe:    10cm (4") outside diameter, length as needed
         5cm (2") outside diameter, length as needed
Chain with links about 8mm (5/16") in diameter, length as needed
Sheet steel, 3mm (1/8") thick
Sheet steel, 6mm (1/4") thick
Steel rod, 8mm (5/16") in diameter
Steel rod, 12.7mm (1/2") in diameter
Leather or rubber for washers
The entire chain pump is shown in Figure 3. Details of this pump can be changed


to fit materials available and structure of the well.
The piston links (see Figures 4, 5, 6 and 7) are made from three parts:


1.  a leather or rubber washer (see Figure 4) with an outside diameter about


    two thicknesses of a washer larger than the inside diameter of the pipe.
2.  a piston disk (see Figure 5).


3.  a retaining plate (see Figure 6).


The piston link is made as shown in Figure 7. Center all three parts and clamp


them together temporarily. Drill a hole about 6mm (1/4") in diameter through all
three parts and fasten them together with a bolt or rivet.
The winch is built as shown in Figure 3. Two steel disks 6mm (1/4") thick are


welded to the pipe shaft.
Twelve steel rods, 12.7mm (1/2") thick, are spaced at equal distances, at or near
the outside diameter, and are welded in place. The rods may be laid on the
outside of the disks, if desired.
A crank and handle of wood or metal is then welded or bolted to the winch
The supports for the winch shaft (see Figure 3) can be V-notched to hold the
shaft, which will gradually wear its own groove. A strap or block can be added
across the top, if necessary, to hold the shaft in place.
The pipe can be supported by threading or welding a flange to its upper end (see Figure 8).


The flange should be 8mm to 10mm (5/16" to 3/8") thick. The pipe
passes through a hole in the bottom of the trough and hangs from the trough
into the well.
Robert G. Young, VITA Volunteer, New Holland, Pennsylvania
Molenaar, Aldert. Water Lifting Devices for Irrigation. Rome: Food and Agriculture
Organization, 1956.
Inertia Hand Pump
The inertia hand pump described
here (Figure 1) is a


very efficient pump for lifting
water short distances. It lifts
water 4 meters (13') at the
rate of 75 to 114 liters (20 to
30 U.S. gallons) per minute. It
lifts water 1 meter (3.3') at
the rate of 227 to 284 liters
(60 to 75 gallons) per minute.
Delivery depends on the number
of persons pumping and
their strength.
The pump is easily built by a
tinsmith. Its three moving
parts require almost no maintenance.
The pump has been
built in three different sizes
for different water levels.
The pump is made from galvanized
sheet metal of the
heaviest weight obtainable
that can be easily worked by
a tinsmith (24- to 28-gauge
sheets have been used successfully).
The pipe is formed
and made air tight by soldering
all joints and seams.
The valve is made from the
metal of discarded barrels and
a piece of truck inner tube
rubber. The bracket for
attaching the handle is also
made from barrel metal.
Figure 1 shows the pump in
operation. Figure 2 gives the


dimensions of parts for pumps
in three sizes and Figure 3


shows the capacity of each
size. Figures 4, 5, and 6 are


                             Tools and Materials
                          (for 1-meter (3.3') pump)
Soldering equipment
Drill and bits or punch
Hammer, saws, tinsnips
Anvil (railroad rail or iron pipe)
Galvanized iron (24 to 28 gauge):
Shield: 61cm x 32cm, 1 piece (24" x 12 5/8")
Shield cover: 21cm x 22cm, 1 piece (8 1/4" x 8 5/8")
Pipe: 140cm x 49cm, 1 piece (55 1/8" x 19 1/4")
Top of pipe: 15cm x 15cm, 1 piece (6" x 6")
"Y" pipe: 49cm x 30cm, 1 piece (19 1/4" x 12")
Barrel metal:
  Bracket: 15cm x 45cm, 1 piece (6" x 21 1/4")
  Valve-bottom: 12cm (4 3/4") in diameter, 1 piece
  Valve-top: 18cm (7 1/8") in diameter, 1 piece
  Hinge: 4mm (5/32") in diameter, 32cm (12 5/8") long
This pump can also be made from plastic pipe or bamboo.
There are two points to be remembered concerning this pump. One is that the
distance from the top of the pipe to the top of the hole where the short section
of pipe is connected must be 20cm (8"). See Figure 4. The air that stays in the


pipe above this junction serves as a cushion (to prevent "hammering") and
regulates the number of strokes pumped per minute. The second point is to
remember to operate the pump with short strokes, 15 to 20cm (6" to 8"), and at a
rate of about 80 strokes per minute. There is a definite speed at which the pump
works best and the operators will soon get the "feel" of their own pumps.
In building the two larger size pumps it is sometimes necessary to strengthen the
pipe to keep it from collapsing if it hits the side of the well. It can be strengthened
by forming "ribs" about every 30cm (12") below the valve or banding with
bands made from barrel metal and attached with 6mm (1/4") bolts.
The handle is attached to the pump and post with a bolt 10mm (3/8") in diameter,
or a large nail or rod of similar size.
Dale Fritz, VITA Volunteer, Schenectady, New York.
Handle Mechanism for Hand Pumps
The wearing parts of this durable handpump handle mechanism are wooden (see Figure 1).


They can be easily replaced by a village carpenter. This handle has
been designed to replace pump handle mechanisms which are difficult to maintain.
Some have been in use for several years in India with only simple, infrequent
The mechanism shown in Figure 1 is bolted to the top flange of your pump. The
mounting holes A and C in the block should be spaced to fit your pump (see Figure 6).


Figure 2 shows a pump with this handle mechanism that is manufactured


by F. Humane and Bros., 28 Strand Road, Calcutta, India.
                             Tools and Materials
Tap: 12.5mm (1/2")
Tap: 10mm (3/8")
Drawknife, spokeshave or lathe
Hardwoods 86.4cm x 6.4cm x 6.4cm
          (34" x 2 1/2" x 2 1/2")
Mild steel rod: 10mm (3/4") in diameter
                  and 46.5cm (16") long
Strap iron, 2 pieces: 26.7cm x 38mm x 6mm
                          (10 1/2" x 1 1/2" x 1/4")
                                 BOLT HARDWARE
Number                     Number    Number      Number
of bolts   Dia.    Length   of nuts   of lock-    of plain      Purpose-
needed     mm       mm     needed     washers    washers      fastens:
   1        10        38        0         0            0       76mm bolt to rod
   1        10        76        0         0            2       Rod to handle
   2        12.5      89        2         4           4        Link to handle
                                                           Link to block
   2        12.5       ?        2         2            2       Block to pump
   1        12.5       ?        1         1            0       Rod to piston
Make the handle of tough hardwood,
shaped on a lathe or by hand
shaving. The slot should be cut
wide enough to accommodate the
rod with two plain washers on
either side. See Figure 3.


The rod is made of mild steel as
shown in Figure 4. A 10mm (3/8")


diameter machine bolt 38mm (1
1/2") long screws into the end of
the rod to lock the rod hinge pin
in place. The rod hinge pin is a
10mm (3/8") diameter machine bolt
that connects the rod to the handle
(see Figure 1). The end of the rod


can be bolted directly to the pump
piston with a 12.5mm bolt. If the
pump cylinder is too far down for
this, a threaded 12.5mm (1/2") rod
should be used instead.
The links are two pieces of flat steel strap iron. Clamp them together for drilling
to make the hole spacing equal. See Figure 5.


The block forms the base of the lever mechanism, serves as a lubricated guide
hole for the rod, and provides a means for fastening the mechanism to the pump
barrel. If the block is accurately made of seasoned tough hardwood without knots,
the mechanism will function well for many years. Carefully square the block to
22.9cm x 6.4cm x 6.4cm (9" x 1 1/2" x 1 1/2"). Next holes, A, B, C, and D are
drilled perpendicular to the block as shown in Figure 6. The spacing of the


mounting holes A and C from hole B is determined by the spacing of the bolt
holes in the barrel flange of your pump. Next saw the block in half in a plane
3.5cm (13/8") down from the top side. Enlarge hole B at the top of the lower
section with a chisel to form an oil well around the rod. This well is filled with
cotton. A 6mm (1/4") hole, F, is drilled at an angle from the oil well to the
surface of the block. A second oil duct hole E is drilled in the upper section of
the block to meet hole D. Use lockwashers under the head and nut of the link
bolts to lock the bolts and links together. Use plain washers between the links
and the wooden parts.
Abbott, Dr. Edwin. A Pump Designed for Village Use. Philadelphia: American
Friends Service Committee, 1955.
Hydraulic Ram
A hydraulic ram is a self-powered pump that uses the energy of falling water to
lift some of the water to a level above the original source. This entry explains
the use of commercial hydraulic rams, which are available in some countries. Plans
for building your own hydraulic ram are also available from VITA and elsewhere.
Use of the Hydraulic Ram
A hydraulic ram can be used wherever a spring or stream of water flows with at
least a 91.5cm (3') fall in altitude. The source must be a flow of at least 11.4
liters (3 gallons) a minute. Water can be lifted about 7.6 meters (25') for each
30.5cm (12") of fall in altitude. It can be lifted as high as 152 meters (500'), but
a more common lift is 45 meters (150').
The pumping cycle (see Figure 1) is:


o   Water flows through the drive pipe (D) and out the outside valve (F).
o   The drag of the moving water closes the valve (F).
o   The momentum of water in the drive pipe (D) drives some water into the air
    chamber (A) and out the delivery pipe (I).
o   The flow stops.
o   The check valve (B) closes
o   The outside valve (F) opens to start the next cycle.
This cycle is repeated 25 to 100 times a minute; the frequency is regulated by
moving the adjustment weight (C).
The length of the drive pipe must be between five and ten times the length of
the fall (see Figure 2). If the distance from the source to the ram is greater than


ten times the length of the fall, the length of the drive pipe can be adjusted by
installing a stand pipe between the source and the ram (see B in Figure 2).
Once the ram is installed there is little need for maintenance and no need for
skilled labor. The cost of a hydraulic ram system must include the cost of the
pipe and installation as well as the ram. Although the cost may seem high, it
must be remembered that there is no further power cost and a ram will last for
30 years or more. A ram used in freezing climates must be insulated.
A double-acting ram will use an impure water supply to pump two-thirds of the
pure water from a spring or similar source. A third of the pure water mixes with
the impure water. A supplier should be consulted for this special application.
To calculate the approximate pumping rate, use the following equation:
Capacity (gallons per hour) = V x F x 40
V    = gallons per minute from source
F    = fall in feet
E    = height the water is to be raised in feet
Data Needed for Ordering a Hydraulic Ram
1.   Quantity of water available at the source of supply in liters (or gallons) per
2.   Vertical fall in meters (or feet) from supply to ram
3.   Height to which the water must be raised above the ram
4.   Quantity of water required per day
5.   Distance from the source of supply to the ram
6.  Distance from the ram to the storage tank
Loren G. Sadler, New Holland, Pennsylvania
Rife Hydraulic Engine Manufacturing Company, Millburn, New Jersey
Sheldon, W.H. The Hydraulic Ram. Extension Bulletin 171, July 1943, Michigan
State College of Agriculture and Applied Science.
"Country Workshop." Australian Country. September 1961, pages 32-33.
"Hydraulic Ram Forces Water to Pump Itself." Popular Science, October 1948,
pages 231-233.
"Hydraulic Ram." The Home Craftsman, March-April 1963, pages 20-22.
A reciprocating wire can transmit power from a water wheel to a point up to
0.8km (1/2 mile) away where it is usually used to pump well water. These devices
have been used for many years by the Amish people of Pennsylvania. If they are
properly installed, they give long, trouble-free service.
The Amish people use this method to transmit <see figure 1> mechanical power from small water


wheels to the barnyard, where the reciprocating motion is used to pump well
water for home and farm use. The water wheel is typically a small undershot
wheel (with the water flowing under the wheel) one or two feet in diameter. The
wheel shaft is fitted with a crank, which is attached to a triangular frame that
pivots on a pole (see Figure 2). A wire is used to connect this frame to another


identical unit located over the well. Counterweights keep the wire tight.
                              Tools and Materials
Wire: galvanized smooth fence wire
Water wheel with eccentric crank to give a motion slightly less than largest
stroke of farmyard pump
Galvanized pipe for triangle frames: 2cm (3/4") by 10 meters long (32.8')
Welding or brazing equipment to make frames
Concrete for counterweight
2 Poles: 12 to 25cm (6" to 10") in diameter.
As the water wheel turns, the
crank tips the triangular frame
back and forth. This action pulls
the wire back and forth. One
typical complete back and forth
cycle takes 3 to 4 seconds.
Sometimes power for several
transmission wires comes from one
larger water wheel.
The wire is mounted up on poles to
keep it overhead and out of the
way. If the distance from stream to
courtyard is far, extra poles will be
needed to help support the wire.
Amish folks use a loop of wire
covered with a small piece of
garden hose attached to the top of
the pole. The reciprocating wire
slides back and forth through this
loop. If this is not possible, try
making the pole 1-2 meters higher
than the power wire. Drive a heavy
nail near the pole top and attach a
chain or wire from it to the power
wire as shown in Figure 3.


Turns can be made in order to
follow hedgerows by mounting a
small triangular frame horizontally
at the top of a pole as shown in
Figure 4.


Figures 5, 6, and 7 show how to


wheel made from wood and bamboo.
New Holland, Pennsylvania VITA Chapter.
American Water Works Association. "AWWA Standard D-100-79 for Welded Steel Water Storage Tanks."
Denver, Colorado: American Water Works Association, 1979.
American Water Works Association. "AWWA Standard D-105-80 for Disinfection of Water Storage Facilities."
Denver, Colorado: American Water Works Association, 1980.
American Water Works Association. Water Distribution Operator Training Handbook. Denver, Colorado:
American Water Works Association, 1976.
Anchor, R.D. Design of Liquid-Retaining Concrete Structures. New York: Wiley and Sons, 1982.
Blackwell, F.O., Farding, P.S., and Hilbert, M.S. Understanding Water Supply and Treatment for Individual
and Small Community Systems. Arlington, Virginia: Volunteers in Technical Assistance, 1985.
Brown, J.H. "Flexible Membrane: An Economical Reservoir Liner and Cover." Journal of the American
Water Works Association. Vol. 71, No. 6, June 1979.
Cairncross, S., and Feachem, R. Small Water Supplies. London: Ross Institute, 1978.
Crouch, Margaret (ed.). Six Simple Pumps. Arlington, Virginia: Volunteers in Technical Assistance, 1983.
Helweg, O.J., and Smith, G. "Appropriate Technology for Artificial Aquifers,"
Ground Water. Vol. 18, No. 3, May-June 1978.
Maddocks, D. Methods of Creating Low Cost Waterproof Membranes for Use in the Construction of
Rainwater Catchment and Storage Systems. London: Intermediate Technology Publications, Ltd., 1975
Mazariegos, J. F., and de Zeissig, Julia A. A. Water Purification Using Small Artisan Filters. Guatemala:
Central American Research Institute for Industry, 1981.
McJunkin, F. and Pineo, C. U.S. Agency for International Development. Water Supply and Sanitation in
Developing Countries. Washington, D.C.: USAID, 1976.
Pacey, Arnold, and Cullis, Adrian. Rainwater Harvesting: The Collection of Rainfall and Runoff in Rural
Areas. London: Intermediate Technology Publications, Ltd., 1996.
Remmers, J. Understanding Water Supply. General Considerations. Arlington, Virginia: Volunteers in
Technical Assistance. 1985.
Ritter, C.M. Understanding Potable Water Storage. Arlington, Virginia: Volunteers in Technical Assistance
(VITA), 1985.
Ryden, D.E. "Evaluating the Safety and Seismic Stability of Embankment Reservoirs." Journal of the
American Water Works Association. Vol. 76, No. 1. Denver, Colorado: American Water Works Association,
January 1984.
Salvato, JA., Jr. Environmental Engineering and Sanitation. New York: Wiley-Interscience, 1972.
Schiller, E.J., and Droste, R.L., eds. Water Supply and Sanitation in Developing Countries. Ann Arbor,
Michigan: Ann Arbor Science Publishers, 1982
Sharma, P.N., and Helweg, OJ. "Optimum Design of Small Reservoir Systems." Journal of Irrigation and
Drainage Division--American Society of Civil Engineers. Vol. 108, IR4, December 1982.
Sherer, K, "Technical Training of Peace Corps Volunteers in Rural Water Supply systems in Morocco."
Water and Sanitation for Health Project (WASH) Field Report No. 43. Washington, D.C.: U.S. Agency
for International Development, May 1982.
Silverman, G.S.; Nagy, LA.; and Olson, B.H. "Variations in Particulate Matter, Algae, and Bacteria in
An Uncovered, Finished Drinking-Water Reservoir." Journal of the American Water Works Association.
Vol. 75, No. 4. Denver, Colorado: American Water Works Association, April 1983.
Spangler, C.D. United Nations and World Bank. Low-Cost Water Distribution: A Field Manual. Washington,
D.C.: World Bank, December 1980.
Swiss Association for Technical Assistance, ed. Manual for Rural Water Supply. Zurich, Switzerland:
Swiss Center for Appropriate Technology, 1980.
Sylvestre, Emilio. "Water, Water Everywhere: Island Communities Install Water Systems." VITA News,
October 1986, pp. 8-10.
United Nations. World Health Organization. "WHO Guidelines for Drinking Water Quality," by H.G.
Gorchev and G. Ozolins. Geneva, Switzerland: World Health Organization, 1982.
United Nations. World Health Organization. "The Purification of Water on a Small Scale. WHO Technical
paper No. 3. The Hague, The Netherlands: WHO International Reference Centre for Community
Water Supply, March 1973.
United Nations. World Health Organization. "Preliminary List of References on Slow Sand Filtration and
Related Simple pretreatment Methods." The Hague, The Netherlands: WHO International Reference Centre
for Community Water Supply, July 1976.
Upmeyer, D.W. "Estimating Water Storage Requirements." Public Works. Vol. 109, No. 7, July 1978.
U.S. Environmental Protection Agency. Manual of Individual Water Supply Systems. Washington, D.C.:
EPA, 1975.
"Wind Power for Roatan Island: Pumping Water in Honduras." VITA News, October 1982, pp. 3-7.
American Concrete Institute. "Concrete Sanitary Engineering Structures." Report No. ACI 350R-83.
Detriot, Michigan: American Concrete Institute, 1983.
Baumann, Werner, and Karpe, Hans Jurgen. Wastewater Treatment and Excreta Disposal in Developing
Countries. West Germany: German Appropriate Technology Report, 1980.
Bull, David. A Growing Problem: Pesticides and the Third World Poor. Oxford: OXFAM, 1982.
Canter, L.W. and Malina, J.F. Sewege Treatment in Developing Countries. Norman, Oklahoma: The University
of Oklahoma (under contract to USAID), December 1976.
Cointreau, Sandra J. Environmental Management or Urban Solid Wastes in Developing Countries (A
Project Guide). Washington, D.C.: World Bank, June 1982.
Davis, B.P. Understanding Sanitation at the Community Level. Arlington, Virginia: Volunteers in Technical
Assistance, 1985.
Feachem, Richard G.; Bradley, David; Garelick, Hemda; and Mara, D. Duncan. "Health Aspects of Excreta
and Sullage Management: A State-of-the-Art Review." (Appropriate Technology for Water Supply
and Sanitation, vol. 3). Washington, D.C.: World Bank, 1980.
Feachem, Richard, et al. Water, Health and Development: An Inter-disciplinary Evaluation. London: Tri-Med
Books, Ltd., 1977.
Feachem, Richard, McGarry, Michael, and Mara, D. Duncan (eds). Water, Wastes and Health in Hot
Climates. New York: John Wiley and Sons, 1980.
Goldstein, Steven N., and Moberg, Walter J., Jr. Wastewater Treatment Systems for Rural Communities.
Washington, D.C.: Commission on Rural Water, 1973.
Golveke, C.G. Biological Reclamation of Solid Wastes. Emmaus, Pennsylvania: Rodale Press, 1977.
Grover, Brian. Water Supply and Sanitation Project Preparation Handbook (vol. 1, Guidelines). Washington,
D.C.: World Bank, 1982.
Herrington, J.E. Understanding Primary Health Care for a Rural Population. Arlington, Virginia: Volunteers
in Technical Assistance, 1985.
Kalbermatten, John M., et al. "A Planner's Guide." (Appropriate Technology for Water Supply and Sanitation,
vol. 2). Washington, D.C.: World Bank. 1981.
Kalbermatten, John M.; Julius, De Anne S.; and Gunnerson, Charles G. Appropriate Sanitation Alternatives.
A technical and Economic Appraisal. Baltimore, Maryland: Johns Hopkins University Press (for
the World Bank), 1982.
Mann, H.T., and Williamson, D. Water Treatment and Sanitation: Simple Methods for Rural Areas.
London. Intermediate Technology Publications, 1982.
Patel, Ishwarbhai. Safai-Marg Darshika (A Guide Book on Sanitation). New Delhi: Udyogshala Press,
Reid, George and Coffey, Kay. (eds.). Appropriate Methods of Treating Water and Wastewater in
Developing Countries. Norman, Oklahoma: Bureau of Water and Environmental Resources Research
(University of Oklahoma), 1978.
Rybczynski, Witold, Polprasert, Changrak, and McGarry, Michael. Low-Cost Technology Options for
Sanitation (A State-of-the-Art Review and Annotated Bibliography). Ottawa: International Development
Research Centre, 1978.
Salvato, J.A., Jr. Environmental Engineering and Sanitation. New York: Wiley-Interscience, 1972.
Sanitation in Developing Countries (Proceedings of a workshop on training held in Lobatse, Botswana,
14-20 August 1980). Ottawa: International Development Research Centre, 1981.
Stonerook, H. Understanding Sewage Treatment and Disposal. Arlington, Virginia: Volunteers in Technical
Assistance, 1994.
Strauss, Martin. Sanitation Handbook (Community Water Supply and Sanitation, Nepal). Pokhara, Nepal:
Pokhara Centre Press, June 1982.
van Wijk-Sijbesma, Christine. Participation and Education in Community Water Supply and Sanitation
Programmes - A Literature Review. The Hague: WHO International Reference Centre for Community
Water Supply, 1979.
Vogler, Jon. Work from Waste. Recycling Wastes to Create Employment. Oxford: Intermediate Technology
Publications Ltd. and OXFAM, 1981.
Werner, D. Where There Is No Doctor. A Village Health Care Handbook. Palo Alto, California:
Hesperian Foundation, 1980.
Abrahams, P.J. Understanding Soil Preparation. Arlington, Virginia: Volunteers in Technical Assistance,
Archer, Sellers G. Soil Conservation. Norman, Oklahoma: University of Oklahoma Press, 1969.
Attfield, Harlan. Gardening With the Seasons. Arlington, Virginia: Volunteers in Technical Assistance,
Bartholomew, W.V. Soil Nitrogen--Supply Processes and Crop Requirements. Technical Bullentin 6.
Raleigh, North Carolina: North Carolina State University, 1972.
Bird, H.R. Understanding Poultry Meat and Egg Production. Arlington, Virginia: Volunteers in Technical
Assistance, 1984.
Bradenburg, N.R. Bibliography of Harvesting and Processing Forage Seed, 1949-1964. U.S. Department of
Agriculture, Agricultural Research Service, ARS 42-135, Washington: USDA, 1968.
Branch, Diana S. (ed.). Tools for Homesteaders, Gardeners, and Small-Scale Farmers, Emmaus, Pennsylvania,
Corven, James. Basic Soil Improvement for Everyone. Arlington, Virginia: Volunteers in Technical
Assistance, 1983.
Ensminger, M.E., and Olentine, C.G., Jr. Feeds and Nutrition. Clovis, California: Ensminger Publishing
Co., 1978.
Fitts, J.W., and Fitts, J.B. Understanding Composting. Arlington, Virginia: Volunteers in Technical
Assistance, 1984
Freeman, John A. Survival Gardening: Enough Nutrition from 1,000 Square Feet To Live On...Just in
Case! Rock Hill, South Carolina: John's Press, 1983.
Hughes, H.D. Forages. Ames, Iowa: Iowa State University Press, 1966.
Hunt, Marjorie, and Bartz, Brenda. High Yield Gardening. Emmaus, Pennsylvania: Rodale Press, Inc.,
National Academy of Sciences. Nutrient Requirements of Poultry. Washington, D.C.: National Academy
Press, 1977.
North, M.O. Commercial Chicken Production Manual. Second Edition. Westport, Connecticut: AVI Publishing
Co., Inc., 1978.
Orr, H.L. Duck and Goose Raising. Publication 532. Ontario, Canada: Ministry of Agriculture and Food.
Piliang, W.G.; Bird, H.R.; Sunde, M.L.; and Pringle, D.J. "Rice Bran as the Major Energy Source for
Laying Hens." Poultry Science. 61 (1982): 357.
Reddy, K.R.; Khaleel, R.; and Overcash, M.R. "Behavior and Transport of Microbial Pathogens and Indicator
Organisms in Soils Treated with Organic Wastes." Journal of Environmental Quality. Madison,
Wisconsin: American Society of Agronomy, 1981.
Rodale, J., ed. The Complete Book of Composting. Emmaus, Pennsylvania: Rodale Press, Inc., 1969.
Russel, F. W. Soil Conditions and Plant Growth. London, England: Logmans Green and Co., Ltd., 1961.
Stern, Peter. Small Scale Irrigation. London: Intermediate Technology Publications, 1979.
Young, J.A., Evans, R.A. & Budy, J.D. Understanding Seed Collection and Handling. Arlington, Virginia:
Volunteers in Technical Assistance, 1986.
Anderson, Jean. The Green Thumb Preserving Guide. New York: William Marrow & Company, Inc., 1976.
Barbour, Beverly. The Complete Food Preservation Book: New York: David McKay Company, Inc., 1978.
Burch, Joan, and Burch, Monte. Home Canning and Preserving. Reston, Virginia: Reston Publishing
Company, Inc., 1977.
Carruthers, R.T. Understanding Fish Preservation and Processing. Arlington, Virginia: Volunteers in
Technical Assistance, 1995.
Central Food Technological Research Institute. "Home-Scale Processing and Preservation of Fruits and
Vegetables." Mysore, India: The Wesley Press, 1981.
Etchells, John L., and Jones, Ivan D. "Preservation of Vegetables by Salting or Brining," Farmers'
Bulletin No. 1932. Washington, D.C.: U.S. Department of Agriculture, 1944.
Groppe, Christine C., and York, George K. "Pickles, Relishes, and Chutneys: Quick, Easy, and Safe
Recipes." Leaflet No. 2275. Berkeley, California: University of California, Division of Agricultural
Sciences, 1975.
Hertzberg, Ruth; Vaughan, Beatrice; and Greene, Janet. Putting Food By. Brattleboro, Vermont: The
Stephen Greene Press.
Islam, Meherunnesa. Food Preservation in Bangladesh. Dacca, Bangladesh: Women's Development Programme,
Kluger, Marilyn. Preserving Summer's Bounty. New York: M. Evans and Company, Inc., 1978.
Levinson, Leonard Louis. The Complete Book of Pickles and Relishes. New York: Hawthorn Books, Inc.,
Lindblad, Carl, and Druben, Laurel. Small Farm Grain Storage. Arlington, Virginia: Volunteers in Technical
Assistance, 1976.
Murry, Sue T. Home Curing Fish. Washington, D.C.: Agriculture and Rural Development Service, Agency
for International Development, 1967.
Schuler, Stanley, and Schuler, Elizabeth Meriwether, Preserving the Fruits of the Earth. New York:
The Dial Press, 1973.
Stiebeling, Jazel K. "Solar Food Preservation." Chicago, Illinois: Illinois Institute of Technology, 1981.
Stoner, Carol Hupping, Editor. Stocking Up: How To Preserve the Foods You Grow, Naturally. Emmaus,
Pennsylvania: Rodale Press, 1977.
U.S. Department of Agriculture. Human Nutrition Research Division. "Home Canning of Fruits and
Vegetables." Washington, D.C.: U.S. Department of Agriculture, 1965.
Weber, Fred, with Stoney, Carol. Reforestation in Arid Lands. Arlington, Virginia: Volunteers in Technical
Assistance, 1986.
Worgan, J.T. "Canning and Bottling as Methods of Food Preservation in Developing Countries." Appropriate
Technology. 4 (November 1977): 15-16.
Action Peace Corps. Handbook for Building Homes of Earth. Washington, D.C.: Department of Housing
and urban Develop ment, (undated).
Ahrens, C. Manual for Supervising Self-Help Home Construction with Stabilized Earth Blocks Made in
the CINVA-Ram Machine. Kanawha County, West Virginia, 1965.
American Concrete Institute. Handbook of Concrete Engineering. ACI-82 Manual of Practice. Detroit,
Michigan: American Concrete Institute, 1982.
Buchanan, W. Hand Moulded Burnt Clay Bricks: Labour Intensive Production. Malawi Ministry of Trade,
Industry, and Tourism (United Nations Industrial Development Organization, Project DP/MLW/78/003),
Building with Adobe and Stabilized Earth Blocks. Washington, D.C.: United States Department of Agriculture,
Bush, Alfred. Understanding Stabilized Earth Construction. Arlington, Virginia: Volunteers in Technical
Assistance, 1994.
Groben, E. W. Adobe Architecture: Its Design and Construction. Seattle, Washington: The Shorey Book
Store, 1975.
International Institute of Housing Technology. The Manufacturing of Asphalt Emulsion Stabilized Soil
Bricks and Brick Maker's Manual. Fresno, California: California State University, 1972.
Lunt, M.G. Stabilized Soil Blocks for Building. Garston, Watford, England: Building Research Establishment,
_________. "Stabilized Soil Blocks for Building." Overseas Building Notes No. 184. Garston, England:
Building Research Establishment, February 1980.
Making Building Blocks with the CINVA-Ram Block Press. Arlington, Virginia: Volunteers in Technical
Assistance, 1975.
Metalibec Ltd. CINVA-Ram Block Cement Soil in Large Scale Housing Construction in East Punjab.
Bombay, India: Government of India Press, 1948.
Methods for Characterizing Adobe Building Materials. Washington, D.C.: National Bureau of Standards,
Parry, J.P. Brickmaking in Developing Countries. Prepared for Overseas Division, Building Research
Establishment, UK Garston, Watford, United Kingdom: Building Research Establishment, 1979.
Salvadorean Foundation for Development and Low Cost Housing Research Unit. Stabilized Adobe. Washington,
D.C.: Organization of American States, (undated)
Sidibe, B. Understanding Adobe. Arlington, Virginia: Volunteers in Technical Assistance (VITA), 1985.
U.S. Agency for International Development. Handbook for Building Homes of Earth. Action Pamphlet
No. 4200.36. By Lyle A. Wolfskill, Wayne A. Dunlop, and Bob M. Callaway. Washington, D.C.: Peace
Corps, December 1979.
U.S. Dept of the Army. Concrete, Masonry and Brickwork: A Practical Handbook for the Home Owner
and Small Builder. New York: Dover Publications, Inc., 1975.
Baldwin, S. Biomass Stoves: Engineering Design, Development, and Dissemination. Arlington, Virginia:
Volunteers in Technical Assistance, 1986.
Bruyere, John. Country Comforts: The New Homesteaders Handbook. New York: Sterling Publishing Co.,
Inc., 1979.
Bramson, Ann. Soap. New York: Workman Publishing Co., 1975.
Clarke, R. (ed.). Wood-Stove Dissemination: Proceedings of the Conference Held at Wolfheze, The
Netherlands. London: Intermediate Technology Publications, Ltd., 1985.
de Silva, D. "A Charcoal Stove From Sri Lanka," Appropriate Technology, Vol. 7, No. 4,1981, pp. 22-24.
Donkor, Peter. Small-Scale Soapmaking: A Handbook. London: Intermediate Technology Publications,
Foley, G. and Moss, P. "Improved Cooking Stoves In Developing Countries." Earthscan Technical Report
No. 2, 1983, 175 pp. Illus.
Hassrick, P. "Umeme: A Charcoal Stove from Kenya." Appropriate Technology Vol. 9, No. 1, 1982, pp.
Making Soap and Candles. Pownal, Vermont: P. H. Storey Communications, Inc., 1973.
Tata Energy Research Institute. Solid Fuel Cooking Stoves. Bombay, India, 1980.
Testing the Efficiency of Wood-Burning Cookstoves: International Standards. Arlington, Virginia: Volunteers
in Technical Assistance, 1985.
Berold, Robert, and Caine, Collette (eds.). People's Workbook. Johannesburg, South Africa: Enrironmental
and Development Agency, 1981.
Cardew, M. Pioneer Pottery. New York, New York: St. Martin's press, 1976.
Conrad, J.W. Ceramic Formulas: The Complete Compendium (A Guide to Clay, Glazes, Enamel, Glass,
and Their Colors). New York, New York: MacMillan Publishing Co., 1975.
Cooper, E. The Potter's Book of Glaze Recipes. New York, New York: Charles Scribner's Sons, 1980.
Green, D. Pottery Glazes. New York: Watson Guptill Publishing, 1973.
Lawrence and West. Ceramic Science for the Potter. Radnor, Pennsylvania: Chilton Book Co.
Nelson, G. Ceramics: A Potter's Handbook. New York: Holt, Reinhart & Winston, 1984.
Norton, F.H. Elements of Ceramics. Redding, Massachusetts: Addison-Wesley Publishing Co., 1974.
____________. Kilns. Design, Construction and Operation. Philadelphia, Pennsylvania: Chilton Book Co.,
Peter Starkey. Salt Glaze, London: Pitman Publishing Co., 1977.
Petersham, M. Understanding the Small-Scale Clay Products Enterprise. Arlington, Virginia: Volunteers
in Technical Assistance, 1984.
Schurecht, H.G. "Salt Glazing and Ceramic Ware." Bulletin of the American Ceramic Society, Vol. 23,
No. 2.
"Simple Methods of of Candle Manufacture," London: Intermediate Technology Publications, Ltd., 1985.
Small-Scale Papermaking. Technical Memorandum No. 8. Geneva: International Labor Office, 1985.
Troy, J. Salt Glazed Ceramics. New York: Watson Guptill Publications Co., 1977.
Troy, J. Glazes for Special Effects. New York: Watson Guptill Publications Co.
Vogler, Jon, and Sarjeant, Peter. Understanding Small-Scale Papermaking. Arlington, Virginia: Volunteers
in Technical Assistance, 1986.
Weygers, A.G. The Making of Tools. New York: Van Nostrand Reinhold Company, 1973.
Young, Jean (ed.). Woodstock Craftsman's Manual. New York: Praeger Publishers, 1972.
Berold, Robert, and Caine, Collette (eds.). People's Workbook. Johannesburg, South Africa: Enrironmental
and Development Agency, 1981.
Darrow, Ken, and Saxenian, Mike. Appropriate Technology Sourcebook. Stanford, California: Volunteers
in Asia, 1986.
McLaren, 1. The Sten-Screen: Making and Using a Low-Cost Printing Process. London: Intermediate
Technology Publications, Inc., 1983.
Seymour, John. The Complete Book of Self Sufficiency. London: Corgi Books div. Transworld Publishers,
Ltd., 1981
                              Conversion Tables
                              CONVERSION TABLES
MULTIPLY                    BY                    TO OBTAIN
acres                       43,560                square feet
acres                       4,047                 square meters
acres                       1.562 X [10.sup.-3]   square miles
acres                       0.004047              square kilometers
acres                       4840                  square yards
atmospheres                 76.0                  cms of mercury
atmospheres                 29.92                 inches of mercury
atmospheres                 10,333                kgs/square meter
atmospheres                 14.70                 pounds/square inch
British thermal units       0.2530                kilogram-calories
B.t.u.                      777.5                 foot-pounds
B.t.u.                      3.927 X [10.sup.-4]   horsepower-hours
B.t.u.                      1,054                 joules
B.t.u.                      107.5                 kilogram-meters
B.t.u.                      2.928 X [10.sup.-4]   kilowatt-hours
B.t.u./min.                 0.02356               horsepower
B.t.u./min.                 0.01757               kilowatts
B.t.u./min.                 17.57                 watts
calories                    0.003968              B.t.u.
calories                    3.08596               foot-pounds
calories                    1.1622 X [10.sup.-6]  kilowatt-hours
centimeters                 0.3937                inches
centimeters                 0.01                  meters
centimeters of mercury      0.1934                pounds/square inch
centimeters/second          1.969                 feet/minute
centimeters/second          0.036                 kilometer/hour
centimeters/second          0.6                   meters/minute
centimeters/second          0.02237               miles/hour
cubic centimeters           [10.sup.-6]           cubic meters
cubic centimeters           6.102 X [10.sup.-2]   cubic inches
cubic centimeters           3.531 x [10.sup.-5]   cubic feet
cubic centimeters           1.308 X [10.sup.-6]   cubic yards
cubic feet                  1,728                 cubic inches
cubic feet                  0.02832                cubic meters
cubic feet                  2.832 X [10.sup.4]    cubic centimeters
cubic feet                  7.481                 gallons
cubic feet                  28.32                 liters
cubic feet/minute           472.0                  cubic cms/second
cubic feet/minute           0.1247                gallons/second
cubic feet/minute           0.4720                liters/second
cubic feet/minute           62.4                  pounds water/min
cubic inches                5.787 X [10.sup.-4]    cubic feet
cubic inches                1.639 X [10.sup.-5]   cubic meters
cubic inches                2.143 X [10.sup.-5]   cubic yards
cubic meters                35.31                 cubic feet
cubic meters                264.2                  gallons
cubic meters                [10.sup.3]            liters
cubic yards                 7.646 X [10.sup.5]    cubic centimeters
cubic yards                 27.0                  cubic feet
cubic yards                 46,656                cubic inches
cubic yards                 0.7646                cubic meters
cubic yards                 202.0                 gallons
cubic yards                 764.6                 liters
cubic yards/min.            0.45                  cubic feet/second
MULTIPLY                    BY                    TO OBTAIN
cubic yards/min.            3.367                 gallons/second
cubic yards/min.            12.74                 liters/second
degrees (angle)             60                    minutes
degrees (angle)             0.01745               radians
degrees (angle)             3,600                 seconds
dynes                       1.020 X [10.sup.-3]   grams
dynes                       2.248 X [10.sup.-6]   pounds
ergs                        9.486 X [10.sup.-11]   B.t.u.
ergs                        1                     dyne-centimeters
ergs                        7.376 X [10.sup.-8]   foot-pounds
ergs                        [10.sup.-7]           joules
ergs                        2.390 X [10.sup.-11]  kilogram-calories
ergs                        1.020 X [10.sup.-8]   kilogram-meters
ergs/second                 1.341 X [10.sup.-10]  horsepower
ergs/second                 [10.sup.-10]          kilowatts
feet                        30.48                 centimeters
feet                        0.3048                meters
feet/second                 18.29                 meters/minute
foot-pounds                 1.286 X [10.sup.-3]   B.t.u.
foot-pounds                 1.356 X [10.sup.7]    ergs
foot-pounds                 5.050 X [10.sup.-7]   horsepower-hours
foot-pounds                 3.241 X [10.sup.-4]   kilogram-calories
foot-pounds                 0.1383                kilogram-meters
foot-pounds                 3.766 X [10.sup.-7]   kilowatt-hours
foot-pounds/minute          1.286 X [10.sup.-3]   B.t.u./minute
foot-pounds/minute          0.01667               foot-pounds/second
Foot-pounds/minute          3.241 X [10.sup.-4]   kg-calories/min
foot-pounds/minute          2.260 X [10.sup.-5]   kilowatts
foot-pounds/second          7.172 X [10.sup.-2]   B.t.u./minute
foot-pounds/second          1.818 X [10.sup.-3]   horsepower
foot-pounds/second          1.945 X [10.sup.-2]   kg-calories/min
foot-pounds/second          1.356 X [10.sup.-3]   kilowatts
gallons                     0.1337                cubic feet
gallons                     231                   cubic inches
gallons                     3.785 X [10.sup.-3]   cubic meters
gallons                     3.785                 liters
gallons/minute              2.228 X [10.sup.-3]   cubic feet/second
gallons/minute              0.06308               liters/second
grams                       [10.sup.-3]           kilograms
grams                       [10.sup.3]            miligrams
grams                       0.03527               ounces
grams                       0.03215               troy ounces
grams/cubic centimeter      62.43                 pounds/cubic feet
grams centimeters           9.297 X [10.sup.-8]   B.t.u.
horsepower                  42.44                  B.t.u./minute
horsepower                  33,000                foot-pounds/minute
horsepower                  550                   foot-pounds/second
horsepower                  10.70                 kg-calories/min
horsepower                  0.7457                kilowatts
horsepower                  745.7                 watts
horsepower                  1.014                 horsepower(metric)
horsepower-hours            2547                  B.t.u.
horsepower-hours            1.98 X [10.sup.6]     foot-pounds
horsepower-hours            641.7                 kilogram-calories
horsepower-hours            2.737 X [10.sup.5]    kilogram-meters
horsepower-hours            0.7457                kilowatt-hours
horsepower-hours            2.684 X [10.sup.6]    joules
inches                      2.540                 centimeters
inches                      254.0                 millimeters
MULTIPLY                    BY                    TO OBTAIN
inches of mercury           0.03342                atmospheres
inches of mercury           1.133                 feet of water
inches of mercury           345.3                 kgs/sq meter
inches of mercury           70.73                 pounds/sq foot
inches of mercury           0.4912                 pounds/sq inch
inches of water             0.002458              atmospheres
inches of water             0.07355               inches of mercury
inches of water             25.40                 kgs/square meter
inches of water             0.5781                 ounces/square inch
inches of water             5.204                 pounds/square foot
inches of water             0.03613               pounds/square inch
joules                      0.0009458             B.t.u.
joules                      0.73756                foot-pounds
joules                      0.0002778             watt-hours
joules                      1.0                   watt-seconds
kilograms                   980,665               dynes
kilograms                   [10.sup.3]             grams
kilograms                   2.2046                pounds
kilograms                   1.102 X [10.sup.-3]   short tons
kilogram-calories           3.968                 B.t.u.
kilogram-calories           3,086                 foot-pounds
kilogram-calories           1.558 X [10.sup.-3]   horsepower-hours
kilogram-calories           4,183                 joules
kilogram-calories           426.6                 kilogram-meters
kilogram-calories/min.      51.43                 foot-pounds/second
kilogram-calories/min.      0.09351               horsepower
kilogram-calories/min.      0.06972               kilowatts
kilograms/hectare           .893                  pounds/acre
kilometers                  [10.sup.5]            centimeters
kilometers                  0.6214                miles
kilometers                  3,281                 feet
kilometers                  1,000                 meters
kilometers                  1093.6                yards
kilometers/hour             27.78                  centimeters/sec
kilometers/hour             54.68                 feet/minute
kilometers/hour             0.9113                feet/second
kilometers/hour             0.5396                knots/hour
kilometers/hour             16.67                 meters/hour
kilometers/hour             0.6214                miles/hour
kilowatts                   56.92                 B.t.u./minute
kilowatts                   4.425 X [10.sup.4]    foot-pounds/minute
kilowatts                   737.6                 foot-pounds/second
kilowatts                   1.341                 horsepower
kilowatts                   14.34                 kg-calories/min
kilowatts                   [10.sup.3]            watts
kilowatts-hours             3,412                 B.t.u.
kilowatts-hours             2.655 X [10.sup.6]    foot-pounds
kilowatts-hours             1.341                 horsepower-hours
kilowatts-hours             3.6 X [10.sup.6]      joules
kilowatts-hours             860.5                 kilogram-calories
kilowatts-hours             3.671 X [10.sup.5]    kilogram-meters
meters                      100                   centimeters
meters                      3.2808                feet
meters                      39.37                 inches
meters                      [10.sup.-3]           kilometers
meters                      [10.sup.3]            millimeters
meters                      1.0936                yards
meter-kilograms             9.807 X [10.sup.7]    centimeter-dynes
MULTIPLY                    BY                    TO OBTAIN
meter-kilograms             [10.sup.5]            centimeter-grams
meter-kilograms             7.233                 pound-feet
meters/minute               1.667                 centimeters/second
meters/minute               3.281                 feet/minute
meters/minute               0.05468               feet/second
meters/minute               0.06                  kilometers/hour
meters/minute               0.03728               miles/hour
meters/second               196.8                 feet/minute
meters/second               3.281                 feet/second
meters/second               3.6                   kilometers/hour
meters/second               0.06                  kilometers/minute
meters/second               2.237                 miles/hour
meters/second               0.03728               miles/minute
miles                       1.609 X [10.sup.5]    centimeters
miles                       5,280                 feet
miles                       1.6093                 kilometers
miles                       1,760                 yards
miles/min                   88.0                  feet/second
miles/min                   1.6093                kilometers/minute
miles/min                   0.8684                knots/minute
ounces                      8.0                   drams
ounces                      437.5                 grains
ounces                      28.35                 grams
ounces                      0.625                 pounds
ounces/square inch          0.0625                pounds/square inch
pints (dry)                 33.60                 cubic inches
pints (liquid)              28.87                 cubic inches
pounds                      444,823               dynes
pounds                      7,000                 grains
pounds                      453.6                 grams
pounds                      0.45                  kilograms
pounds of water             0.01602               cubic feet
pounds of water             27.68                  cubic inches
pounds of water             0.1198                gallons
pounds of water/min.        2.669 X [10.sup.-4]   cubic feet/second
pounds/cubic foot           0.01602               grams/cubic cms.
pounds/cubic foot           16.02                  kgs/cubic meter
pounds/cubic foot           5.787 X [10.sup.-4]   pounds/cubic inch
pounds/square foot          4.882                 kgs/sq meter
pounds/square foot          6.944 X [10.sup.-3]   pounds/square inch
pounds/square inch          0.06304               atmospheres
pounds/square inch          703.1                 kgs/square meter
pounds/square inch          144.0                 pounds/square foot
quarts (dry)                67.20                 cubic inches
quarts (liquid)             57.75                 cubic inches
quadrants (angle)           90                    degrees
quadrants (angle)           5,400                 minutes
quadrants (angle)           1.571                 radians
radians                     57.30                 degrees
radians                     3,438                 minutes
radians/second              57.30                 degrees/second
raidans/second              0.1592                revolutions/second
revolutions                 360.0                 degrees
revolutions                 4.0                   quadrants
revolutions                 6.283                 radians
revolutions/minute          6.0                   degrees/second
square centimeters          1.076 X [10.sup.-3]   square feet
square centimeters          0.1550                square inches
square centimeters          [10.sup.-6]           square meters
MULTIPLY                    BY                    TO OBTAIN
square centimeters         100                    square millimeters
square feet                2.296 X [10.sup.-5]    acres
square feet                929.0                  square centimeters
square feet                144.0                  square inches
square feet                0.09290                square meters
square feet                3.587 X [10.sup.-8]    square miles
square feet                0.1111                 square yards
square inches              6.452                  square centimeters
square inches              645.2                  square millimeters
square meters              2.471 X [10.sup.-4]    acres
square meters              10.764                 square feet
square meters              3.861 X [10.sup.-7]    square miles
square meters              1.196                  square yards
square miles               640.0                  acres
square miles               2.7878 X [10.sup.7]    square feet
square miles               2.590                  square kilometers
square miles               3.098 X [10.sup.6]     square yards
square yards               2.066 X [10.sup.-4]    acres
square yards               9.0                    square feet
square yards               0.8361                 square meters
square yards               3.228 X [10.sup.-7]    square miles
temp (degs C) + 237        1.0                    abs temp (degs K)
temp (degs C) + 17.8       1.8                    temp (degs F)
temp (degs F) - 32         5/9                    temp (degs C)
tons (long)                1,016                  kilograms
tons (long)                2,240                  pounds
tons (metric)              [10.sup.3]             kilograms
tons (metric)              2,205                  pounds
tons (short)               907.2                  kilograms
tons (short)               2,000                  pounds
tons (short)/sq. foot      9,765                  kgs/square meter
tons (short)/sq. foot      13.89                  pounds/square inch
tons (short)/sq. inch      1.406 X [10.sup.6]     kgs/square meter
tons (short)/sq. inch      2,000                  pounds/square inch
yards                      0.9144                 meters
     The chart in Figure 1 is useful for
quick conversion from degrees Celsius
(Centigrade) to degrees Fahrenheit and
vice versa.  Although the chart is fast
and handy, you must use the equations
below if your answer must be accurate
to within one degree.
Degrees Celsius = 5/9 x (Degrees
   Fahrenheit -32)
Degrees Fahrenheit = 1.8 (Degrees
   Celsius) +32
  This example may help to clarify the
use of the equations; 72F equals how
may degrees Celsius?
   72F = 5/9 (Degrees F -32)
   72F = 5/9 (72 -32)
   72F = 5/9 (40)
   72F = 22.2C
   Notice that the chart reads 22C, an
error of about 0.2C.
