DEVELOPING DECISION-SUPPORT TOOLS FOR POST-HARVEST PEST MANAGEMENT IN GRAIN STORES IN WEST AFRICA

W.G. Meikle1, N. Holst2, C. Nansen1, J.N. Ayertey3, B. Boateng3 and R.H. Markham1

1

International Institute of Tropical Agriculture (IITA), Benin

2

Danish Institute of Agricultural Sciences, Department of Plant Protection, Denmark

3

Department of Crop Science, University of Ghana, Legon, Ghana


Introduction

Simulation models, of insect densities, fungal growth, economic value, etc., are useful tools in the search for enhanced pest management strategies. Such models provide a useful framework within which to i) integrate our understanding of various aspects of pest biology, ii) understand the effect of various store management options and iii) anticipate situations in which pest pressures and other variables may differ from those encountered directly in field studies and experimental work. We intend to show how such models can be linked to other kinds of tools, such as sampling techniques and GIS (Geographical Information Systems) methods, in order to produce a decision-support tool for managing maize storage.

Background: pest population models

One of the original purposes of applying a simulation modeling approach to rural maize stores was to provide a way of breaking down into separate but complementary processes the dynamics of grain loss during the course of a storage season, and thereby link driving variables, such as weather, via pest dynamics, to the progression of losses. In this approach, the processes are represented by population models for different insect species, which may themselves be linked by functions representing biological interactions, such as competition, facilitation (degradation of the food resource, for example, by one species which might make it more suitable for another), predation or other relationships. Thus far we have been able to model Prostephanus truncatus population dynamics successfully and models of Sitophilus zeamais and Teretriosoma nigrescens are nearing completion.

Several important questions remain to be resolved before these models can be linked in a biologically satisfactory way. While the relationship between P. truncatus and S. zeamais, for example, is assumed to be competitive (Vowotor, unpublished data), it is not clear how this competition manifests itself, whether by greater emigration, lower fecundity, spatial exclusion, or other mechanisms. Parameters for the behavioral and numerical functional response of T. nigrescens, needed to link the predator model with the P. truncatus model, are difficult to measure directly in a complex environment like a grain store and are being obtained by modifying values obtained in the laboratory with those from field data sets. As the project extends its work into different areas of Africa, we plan to apply the modeling approach to the population dynamics of Sitotroga cerealella, using the several data sets collected during project work in Mexico and Central America and from previously published data of other researchers.

Even a single-species population model (Meikle et al., 1998) linked to daily per capita weight losses can be helpful in evaluating assumptions about the effects of climatic factors and different pest management strategies. Figure 1, which is based on the work of Markham et al. (1996), examines the effect of different grain drying rates on the grain weight loss. The driving variables used for these runs of the model were 1) drying curves (grain moisture content) from two locations: Calavi, in southern Benin, and Banikoara in northern Benin, and 2) daily temperatures logged at Calavi in 1994-95. Other parameters, initial beetle numbers (50) and grain store mass (500 kg) were set equal. The drying of the grain below 10% grain moisture content in the Banikoara-based dataset resulted in considerably lower weight loss. Clearly, the outcome expected will depend on the precise climatic regime, including temperature, the density of the infesting pest population, and the presence of natural enemies such as T. nigrescens (Borgemeister et al., 1997) but these various scenarios can be investigated using the model.

The link between insect population models and the model of grain loss were made by examining many field datasets from a range of agro-ecological zones. Rates of damage per beetle change over time, depending on the species, and the species cause damage in different ways. Some pests may prefer to attack previously-damaged grain so the contribution to grain losses of an individual later in the season can be much less than that of a similar individual at the beginning of the season. Comparing among species, P. truncatus causes the greater part of its damage through the tunneling behavior of the adults
(Li, 1988; Demianyk & Sinha, 1988); S. zeamais, on the other hand, causes more damage during larval development and S. cerealella entirely so, since the adults do not feed. Existing datasets from field studies of insect population dynamics and grain losses in rural maize stores carried out by our project in Mexico and Central America, as well as in West Africa, can provide estimates of per insect damage rates for several pest species in situations that differ greatly in terms of weather, altitude and ecology. The relative contributions of the different species to the total grain loss are estimated from these datasets using numerical optimization techniques.

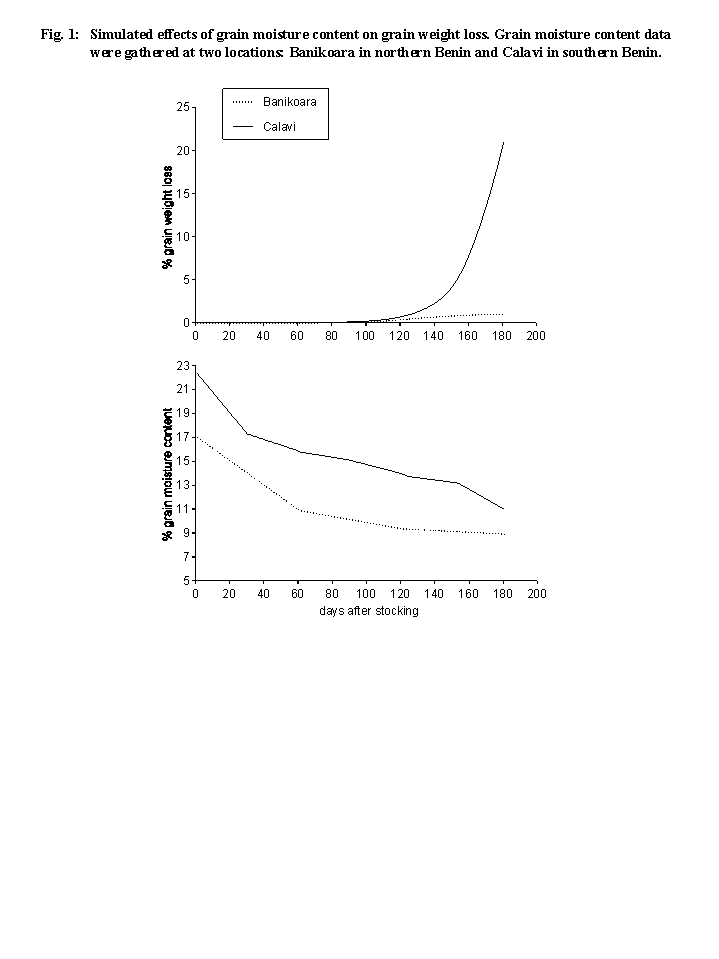

Fig.1.



Simulated effects of grain moisture content on grain weight loss. Grain moisture content data were gathered at two locations: Banikoara in northern Benin and Calavi in southern Benin.


To increase our understanding of the range of conditions under which maize is stored, and the sorts of options available to farmers in important maize-growing areas, we hope to enhance our links with participatory research and extension projects, such as GTZ's project on 'Integrated control of the Larger Grain Borer in Small-scale Farming systems.' Another focus of our work, in which we hope to collaborate with other projects such as the Agricultural Development Support Program in Benin (PADSA), is in understanding the relationship between ambient weather conditions and conditions occurring inside stores, by placing temperature and humidity probes both inside and outside stores of different designs, in different locations and therefore subject to different agro-climatic regimes. Another new aspect of the work will be to see how the modeling approach developed for insect pests can be applied to pathogens. In some areas, fungal damage in the store, and aflatoxin contamination, are very important. Most of the ideas on economics and sampling discussed below also apply to the economics and sampling of stores with respect to management of pathogens. In due course, a similar modeling approach might be used in guiding the development and deployment of pest control options based on the use of entomopathogens.

Economic modeling

Insect population densities and grain loss rates are not the only dynamic processes in the maize storage system. The value of the maize in a grain store is also dynamic and complex, and the following is a very brief description of our current and planned activities with respect to linking ecological models with economic models. The economic model we plan to develop would function mainly to interpret the output of the maize damage model that is linked to the weather-driven insect population models. Model development is in a very early stage, and in the analysis which follows, we ignore potentially important issues such as opportunity cost.

Naturally maize prices change in a relative and, to some extent, predictable fashion during the course of a year in response to demand. Prices tend to be lowest just after harvest, in August and September throughout much of Benin, and highest at the end of the dry season when grain is needed for planting, individual stocks of staple food grains are low and few alternative fresh food sources are available. Maize prices also change from year to year, often with respect to quantity and timing of rainfall - and in response to government policy on grain importation. Poor weather in a neighboring province or country may cause milder price rises in the surrounding regions. The value of maize also depends on its quality. Some varieties have higher economic value than others, and damaged maize, which is often sold alongside ‘clean’ maize, can change in its value relative to the clean maize. The definition of 'clean' maize also changes during the course of the season, as does the moisture content, which can significantly affect the weight of the maize being traded. In order to quantify these changes, we collect data on maize, including price, variety, grain moisture content and insect density and damage, every three months in at least ten markets across Benin. Quantifying factors such as the preference by farmers for certain varieties (e.g. Defoer et al., 1997) will be done with the farmers themselves.

The value of a grain store can be modeled to examine the economic impact of a given event, such as an early infestation, or pest management strategy and to assess the state of our knowledge of the farmer's decision-making process. To illustrate this approach we used grain damage data sets from field trials
(of untreated maize, varieties Gbogbe and Dzolokpuita, from Benin and Ghana, respectively, stored with husks in a traditional store) and maize prices collected from markets in Benin. Laboratory analysis, by a count-and-weigh method (Boxall, 1986), of the market samples (in this case from Tokpa market in Cotonou), indicated that 'clean' maize had less than 4% dry weight loss and that 'damaged' maize had an average weight loss of slightly over 6-7%; grain more damaged than this was apparently regarded as unsaleable and was presumably used for home consumption. Using data from experimental stores in which weight loss had been assessed on a cob-by-cob basis, we then categorized the cobs, according to grain loss, as 'clean' (<4% weight loss), 'damaged' (4-10% weight loss) and 'home consumption' (>10% weight loss). For ease of analysis, only maize with less than 10% weight loss was defined a marketable (While we regard the highly-damaged 'home consumption' maize as unmarketable and therefore without cash value, this is overly simplistic. Maize that is too damaged for market or even human consumption still has 'opportunity' value as animal feed). For each sampling occasion, we multiplied the amount of grain in the stores estimated to fall within each category by the respective market price and thereby estimated the market value of the stores at successive points during the season. In Figure 2, such values of a store severely damaged by P. truncatus (IITA Calavi, Benin, 1994-95 field season) are compared with values from a much more lightly attacked store (Kpeve, Ghana, 1994-95) and a hypothetical curve for a store of undamaged maize (which simply reflects the change in market price through the season). It is evident that the severely attacked store loses value from the third or fourth month onwards. Probably the farmers' best strategy in this case (from the point of view of cash return) is to sell any surplus grain in October (and/or take urgent action to control pests). The less severely attacked store, on the other hand, goes through a minimum value after 5-6 months of storage and, even without treatment, achieves a higher value later in the season (albeit with much fluctuation, at least partly due to sampling). In this case it may be worthwhile for the farmer to hold on to the surplus, at least until he needed the cash. Clearly, in this instance, several simplifying assumptions have been made (For example, here we do not link the store value and market price, whereas in reality these are strongly linked on the level of the local market) and this is done intentionally for illustrative purposes. Complexity can be added as necessary, to reflect different aspects of the real situation and depending on the variables to be investigated.

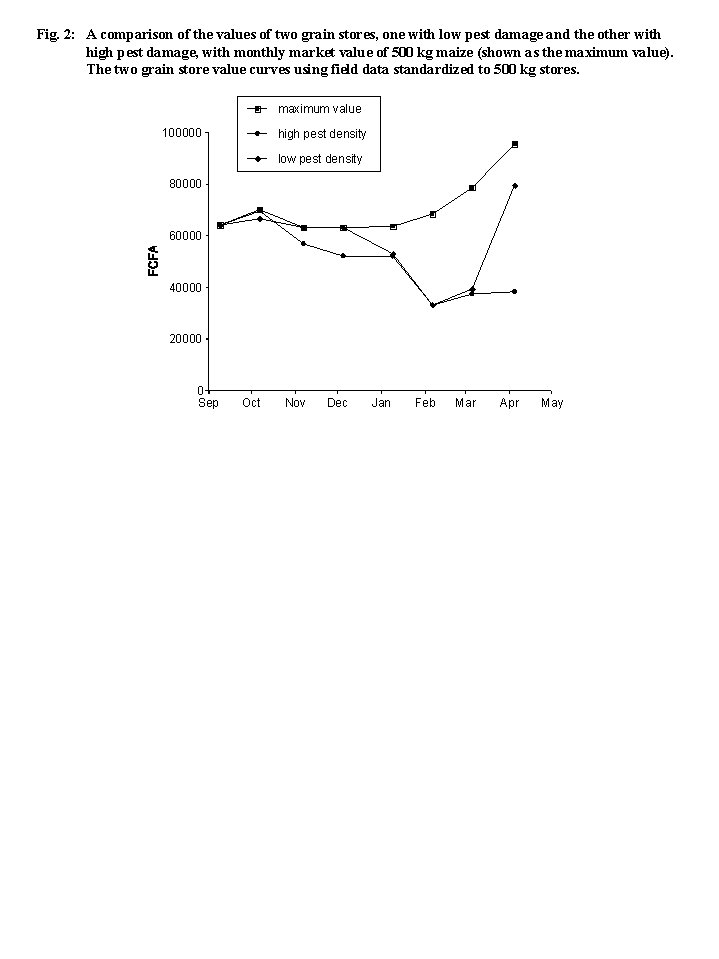

Fig.2.



A comparison of the values of two grain stores, one with low pest damage and the other with high pest damage, with monthly market value of 500 kg maize (shown as the maximum value). The two grain store value curves using field data standardized to 500 kg stores.

Sampling

The development of a useful sampling plan for insect pests is often a key to the successful implementation of an IPM program (Wearing, 1988). Sampling plans for researchers are usually quite different from sampling plans that a farmer might use. Most researchers are principally interested in obtaining a good estimate of pest density and will usually have the resources necessary, in terms of equipment and time, to achieve their own particular objectives. Sampling plans for farmers, however, would be based on the need for a good decision about whether or not to implement a potentially expensive pest management plan. A good cob-by-cob sampling plan for a farmer would have the following characteristics: a need for relatively few maize cobs to be removed from the store (maize is usually stored on the cob in West Africa and individual cobs have a rather high value), few strict cob selection rules, and no special equipment requirements. Furthermore, a good plan will need to be implemented only once or twice before a decision can be made.

Before any particular sampling plan can be responsibly proposed to either extension agents or farmers, two kinds of parameters need to be determined (for a review of the concepts discussed here, please see Pedigo & Buntin [1994]). One of them is the error rate of the sampling plan, that is, the probability of making a decision that the insect densities are high enough to justify an intervention when they are not, or that the densities are at a safely low level when in fact they are too high and action should be taken. Rather high error rates, such as 0.1, are often accepted for field sampling plans (Binns, 1994). However, any assumptions would need to be carefully assessed in relation to the economic circumstances of small-scale farmers storing maize and their perception of risk. Many farmers depend on their grain store for the subsistence of their household and have few alternatives or financial reserves on which to fall back, in the event of making a bad decision regarding store management.

The second kind of parameter is the economic injury level (EIL), that is, the insect density at which the cost of the pest damage exceeds the cost of the intervention strategy and a decision should be made (technically, the actual point at which a decision should be made about management, called the ‘action threshold,’ allows for the time delay between implementation and effect). The management decision itself usually involves some risk - of the unnecessary purchase and application of pesticide, for example, or of losing maize later on because of a decision to do nothing, so proper estimation of the EIL is important. The EIL and the action threshold are complex parameters, and components include the price of the maize at the time it would be sold, the cost of treatment relative to the value loss caused by the insect, the recruitment rate of the pest population in the store and other factors. The EIL is rarely known or agreed upon for pests in West African agriculture, and would be expected to vary greatly with respect to geographic location. One output of an economic analysis would be a map of EIL indices across different regions for different times of the year.

Two basic kinds of sampling plans for whole-cob grain stores are destructive and nondestructive plans (shelled maize is another matter). Nondestructive plans, such as examining the external state of the grain store, or removing some cobs for visual examination and replacing them in the store, have the advantage of being inexpensive in terms of maize cobs. Examining the appearance of the grain store is relatively easy if the cobs are exposed, as in an "awa" store, but may be difficult in enclosed structures, depending on the particular design. Another advantage of nondestructive sampling is cost in materials; since sampled maize cobs are not permanently removed, a particular store can be evaluated several times for the expense of only the

labor involved. However, there are some drawbacks. In order to make a decision based on the appearance of the grain store, the appearance must be quantified and associated with either beetle density or grain loss inside the store. The error associated with any particular appearance parameter, such as percentage of cobs showing signs of beetle attack, is difficult to estimate and the observed damage is often difficult to associate reliably with a particular insect species. Since the maize is only examined externally, where pests are only seldom found, estimates for population density and grain loss must be made indirectly, and that can be a source of a great deal of error. Emerging S. zeamais or S. cerealella, for example, might damage maize in an outwardly similar way to tunneling P. truncatus, but the threat posed by each species is quite different. In the case of a cob-by-cob inspection, the overall error can be reduced by taking more samples, but the additional number of cobs needed may be vast.

Destructive sampling plans can provide direct measures of insect density and grain loss, but only at the expense of grain being removed from the store. Destructive plans have the advantage of being much easier to evaluate and of requiring fewer cobs before a decision can be made about an economic activity. Techniques for constructing sampling plans using direct observations are well established; we have developed sequential sampling plans using destructive sampling techniques in rural grain stores (Meikle, unpublished data). Sequential sampling plans, which involve sampling cobs individually in a sequential manner, involve keeping a running total of insects along with the total number of cobs sampled. If the running insect total crosses the upper boundary (or ‘stop line’), which is itself determined using error rates and the EIL, the density is judged high enough for a management strategy to be implemented. Similarly, if, in the course of the sampling, the total falls below the lower stop line, the pest density is judged insufficient to pose a threat. Usually, sampling continues until one stop line or the other is crossed. While it is not necessary for a farmer or an extension agent to understand the various assumptions used to generate the stop lines, proper identification and counting of the insects is essential.

In practice it is very unlikely that farmers or even extension agents would adopt sequential sampling procedures using destructive techniques, at least in this form. However, perhaps the main value in developing formal sampling plans in this conventional, rigorous way, lies in the way the exercise forces us to analyze the storage system, define the management options available to the farmer and the factors that might weigh in the timing and quality of a decision. For instance, studies of P. truncatus in grain stores have usually shown that population densities even in severe infestations were seldom detectable before

2 or 3 months after stocking, while losses at this stage were still negligible. Under our local conditions, a sampling plan might therefore suggest one intensive sampling effort at 3 months and the form of the value graph presented earlier also indicates that this would be a good moment for a farmer to reach a decision on whether to sell his surplus stock and/or take measures to control insect pests. With the benefit of specific local experience it should be possible to develop a simplified sampling procedure which would serve as a reliable basis for deciding among options in the particular circumstances. However, options and sampling strategies will have to be developed in this way for specific regions, with due regard for the biological, climatic and economic circumstances prevailing.

A GIS Framework

A powerful new tool for examining different pest management scenarios, within specified agro-ecological and socio-economic contexts, is provided by a GIS approach. An economic model of a rural maize store can be linked, via pest damage dynamics, to models of expected insect densities and developed within a GIS framework, reflecting both the agro-climatic and economic environment. An economic GIS environment for maize will consist of a series of region-specific datasets, with one dataset including weather variables, another the different maize varieties available in a particular region along with a measure of the value of each variety relative to the others and, ideally, some measure of their susceptibility to attack by stored-grain pests. In our example (above) we included just clean and damaged maize prices, but more elaborate data sets might be required to reflect the complexity of markets (Magrath et al., 1996; Lutz, 1994). A price dataset would include maize prices from different markets over time, interpolated spatially using kriging or least sums of squares. A similar approach is being used to generate a map of population growth indices for stored product pests to be used as a way of measuring potential damage given that an infestation has been detected. Another GIS dataset might include the density of rural maize stores for each region, estimated from, say, aerial photographs or ground surveys. The density of the stores is an important factor in assessing the regional value of pest damage or of management interventions. Insect trapping may show, for example, that a particular forest zone has a large population of pests, but also a low human population density.

Conclusion

The synthesis of modeling and GIS approaches provides us with a common framework within which to integrate our understanding of both biological processes within a grain store under a specified agroclimatological regime and of the economic factors at work within a particular policy environment. This holistic analytical approach will help us to develop sound decision-support tools for policy-makers, researchers and extensionists working to enhance sustainable pest control options available for management of rural grain stores. Within the next year we hope to i) complete the linking of the population models to build an integrated model of insect density and grain loss in the grain store ecosystem; ii) develop maps, using the model, of potential pest damage in storage systems in West Africa, and iii) extend analyses to include fungal pathogens and grain store economics. We are actively soliciting the cooperation of partners in different parts of Africa to collaborate in this continuing effort.

It should be emphasized, in concluding, that the modeling approach presented here is in no way intended to substitute for on-farm farmer-participatory work. On the contrary, the two approaches are complementary and indeed synergistic. Modelling can help us (especially as research and policy-makers) to understand the biological and socio-economic processes which underlie phenomena observed in specific studies. Analyzing these processes can help us to understand which factors are location-specific and which are likely to play a wider role. Detailed on-farm work, whether in research or extension, is relatively expensive in time and resources. Modelling- and GIS-based approaches can help us to target such efforts to where they are most needed and are most likely to achieve an impact.



References Cited

Binns, M.R. 1994.

Sequential sampling for classifying pest status,
pp. 137--174. In Pedigo, L.P., and Buntin, G.D. [eds.], Handbook of sampling methods for arthropods in agriculture. CRC Press, Boca Raton, USA.

Borgemeister, C., Meikle, W.G., Adda, C., Degbey, P., and Markham, R.H., 1997.

Seasonal and meteorological factors influencing the annual flight cycle of Prostephanus truncatus (Coleoptera: Bostrichidae) and its predator Teretriosoma nigrescens (Coleoptera: Histeridae) in Benin. Bulletin of Entomological Research 87: 239-246.

Boxall, R.A., 1986.

A critical review of the methodology for assessing farm-level grain losses after harvest. Report of the Tropical Development and Research Institute G191, Natural Resources Institute, Chatham, Kent, U.K.

Defoer, T., Abdoulaye, K., and De Groote, H., 1997.

Gender and variety selection: farmers' assessment of local maize varieties in Southern Mali. African Crop Science Journal 5: 65-76.

Demianyk, C.J., and Sinha, R.N., 1988.

Bioenergetics of the larger grain borer, Prostephanus truncatus (Horn) (Coleoptera: Bostrichidae), feeding on corn. Annals of the Entomological Society of America 81: 449-459.

Li, L., 1988.

Behavioural ecology and life history evolution in the Larger Grain Borer, Prostephanus truncatus (Horn). Ph.D. dissertation, University of Reading, Reading, U.K.

Lutz, C., 1994.

The functioning of the maize market in Benin: Spatial and temporal arbitrage on the market of a staple crop. Ph.D. dissertation, University of Amsterdam, Amsterdam, The Netherlands.

Magrath, P., Compton, J., Motte, F., and Awuku, M., 1996.

Coping with a new storage pest: The impact of the Larger Grain Borer in eastern Ghana. Published jointly with ODA and the Republic of Ghana.

Markham, R.H., Meikle, W.G., Adda, C., Djomamou, B., and Borgemeister, C., 1996.

Progress towards integration of control strategies in West Africa, pp. 81--100. In Farrell, G., Greathead, A.H., Hill, M.G. & Kibata, G.N. [eds.]: Management of farm storage pests in East and Central Africa. Proceedings of the East and Central Africa Storage Pest Management Workshop, Naivasha, Kenya 14-19 April 1996. International Institute of Biological Control, Silwood Park, UK.

Meikle, W.G., Holst, N., Scholz, D., and Markham, R.H., 1998.

Simulation model of Prostephanus truncatus (Horn) (Coleoptera: Bostrichidae) in rural grain stores in the Republic of Benin. Environmental Entomology 27: 59-69.

Pedigo, L.P., and Buntin, G.D., 1994.

Handbook of sampling methods for arthropods in agriculture. CRC Press, Boca Raton, USA.

Wearing, C.H., 1988.

Evaluating the IPM implementation process. Annual Review of Entomology 33: 17-38.
