Different sawing tools are applied for the different requirements in manual woodworking and are divided into the groups of frame saws and frameless saws.
Frame saws

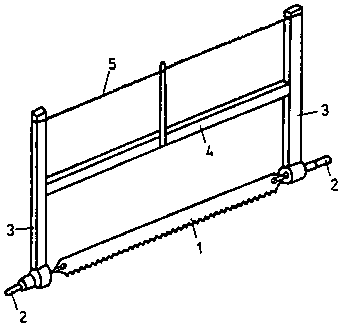

Figure 8 Frame saw
1 saw blade, 2 saw knobs, 3 saw arms, 4 stretcher, 5 tensioning device
The parts of a frame saw are called:
1. _________________________
2. _________________________
3. _________________________
4. _________________________
5. _________________________
- Frame saws are applicable for nearly all processes in manual woodworking.- The necessary tension of the saw blade in the frame is reached with the help of the saw arms, the saw knobs, the stretcher and the tensioning device.
- The saw blade can be fixed in any position to the arms.

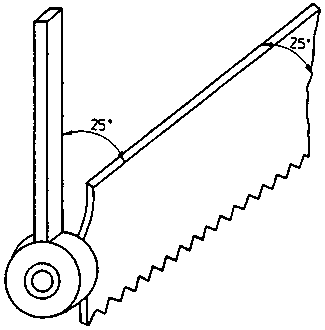

Figure 9 Adjustable saw blade
- In frame saws there can be clamped saw blades with push-type or push-and-pull type cutting teeth.
List 1 shows frame saws with their features and application.
Table 1: Frame saws with their features and application
|
Designation |
Features |
Application |
|
Ripping saw |
- cutting angle - 90° |
- cuts with the grain |
| |
- tooth depth = 5 mm |
- edging and dividing of boards |
| |
- coarse cuts |
|
|
|
- works fast |
|
|
Cross-cut saw |
- cutting angle = 120° |
- cuts across the grain |
| |
- tooth depth = 5 mm |
- cutting to length |
| |
- coarse cuts |
|
|
|
- works fast |
|
|
Slitting saw |
- cutting angle = 100° |
- short and precise cuts with the grain |
| |
- tooth depth = 3 mm |
|
|
|
- precise cuts with the grain |
- slitting |
|
Fine tooth wood saw |
- cutting angle = 110° |
- fine cross cuts |
| |
- tooth depth - 2 mm |
- cutting of steps |
| |
- precise cuts |
|
|
Fret saw |
- cutting angle = 110° |
- cuts in all directions |
| |
- tooth depth = 2 mm |
- cutting of bends |
| |
- blade width = 10 mm |
- cutting of curves |
| |
- the saw blade can be unhinged | |
What kind of cuts in wood are saws with push-and-pull
type teeth especially suitable
for?
__________________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
Frameless saws
Frameless saws consist of a saw blade and a handy grip. The saw blade has a sufficient stability or it is provided with a back support. Form and size of the saw blade as well as the tooth form are determined by its application. Table 2 shows frameless saws with their features and application.
Figure 10 Cross-cut saw
Figure 11 Compass saw
Figure 12 Fine saw
Figure 13 Arris saw
Figure 14 Veneer saw
Table 2 Frameles saws with their features and application
|
Designation |
Features |
Application |
|
Cross-cut saw |
- trapezoidal saw blade |
- for smaller sawing cuts |
| |
- tooth depth = 3...5 mm |
- for cutting of panels |
|
Compass saw |
- narrow, pointed saw blade |
- cutting out openings |
|
Fine saw |
- right-angled saw blade |
- cutting of strips (fillets) |
| |
- tooth depth = 1.5 mm |
- bevel cuts (mitre cuts) |
|
Arris saw |
- the blade’s back is tightly screwed in the wooden grip |
- cutting in grooves |
| |
- pull-type cutting |
|
|
Veneer saw |
- saw blade with double tooth shape |
- sawing of veneer |
 |
 |
