6. Clamping of the tools

According to the size of the drills (type of the shank), the drills are clamped in a three-jaw chuck or in taper sleeve collets. In mass production, quick-change chucks are often used for the drilling machines, which enables the drill to be changed with the machine running.

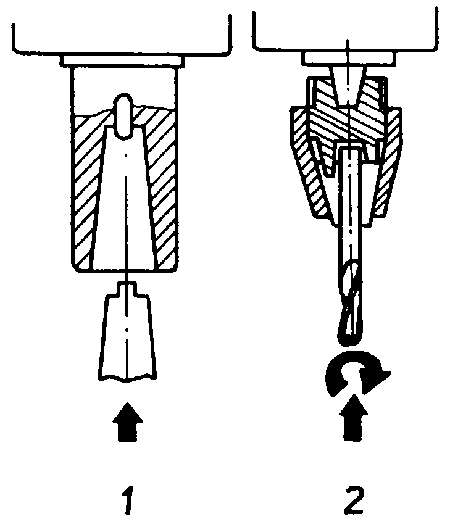

Figure 12 - Tool holding fixtures

1 - taper sleeve
2 - Three-jaw drill chuck

What clamping possibilities are there for:

1. Tools with cylindrical shank
2. Tools with taper shank?
1. _______________________________
2. _______________________________
