6. Handling of the saw

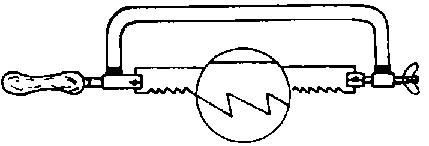

The saw blade is to be clamped so that the teeth are showing into the pushing direction.


Figure 13 Correctly clamped saw blade

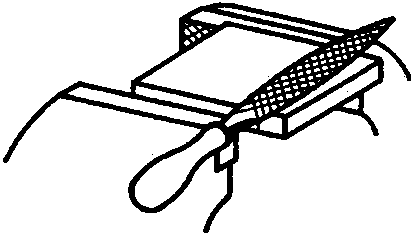

Before starting to saw it is useful to file a guiding groove beside the scribed line so that the saw will not slip off when starting.


Figure 14 Filing of the guiding groove

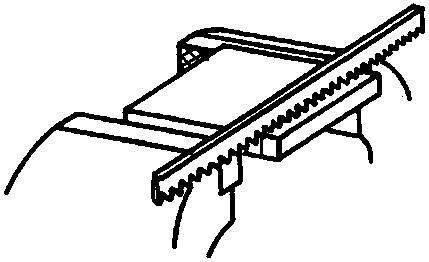

Flat workpieces are to be sawn on their wide face. This will achieve better guidance for the saw blade and a more accurate cut since many teeth are cutting at the same time.


Figure 15 Sawing of flat parts on their wide side

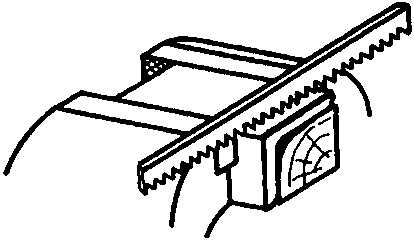

When sawing metal sheets the saw is to be positioned so that the cut in pushing direction will be slightly upwards so that many teeth are cutting at the same time.


Figure 16 Sawing of sheets in upward pushing direction

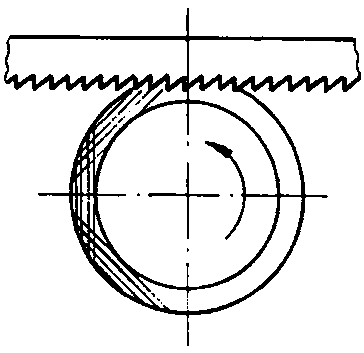

Tubes are not be sawn off in one pass because the teeth might hook at the inner tube wall and break away.

Therefore, proceed with sawing until the inner tube wall is reached and then constantly turn the tube in pushing direction while sawing until the tube is sawn off.


Figure 17 Sawing of tubes with multiple re-clamping

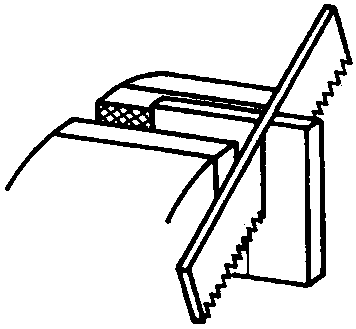

Angle sections are always to be sawn on the wide face which necessitates re-clamping after the first sawing cut.


Figure 18 Sawing of angle sections on their wide side

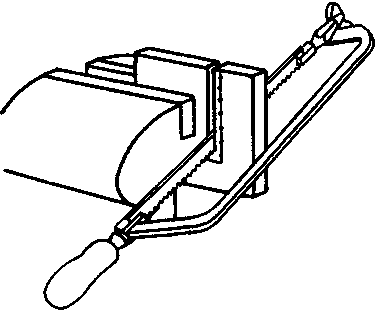

Deep cuts are to be sawn with laterally swivelled frame. Therefore, the saw blade is to be clamped at an angle of 90 degrees compared to the normal position.


Figure 19 Sawing of deep cuts with laterally swivelled frame

How is the saw to be handled when sawing thin metal sheets?

_______________________________________________________

How is the saw to be handled when sawing tubes and sections?

_______________________________________________________
