Parry/ITW multivibe blockmaking plant

Manufacturer
JPM Parry & Associates Ltd
Overend Road, Cradley Heath,
West Midlands B64 7DD
United Kingdom
Tel, [ . . 44] 384 - 69171 (3 lines)
Tlx. 334132 it parr g
Fax. [ . . 44] 384 - 637753

Description

The Multivibe is a multi-purpose, detachable vibrating machine for the small-scale production of concrete blocks and a large variety of other concrete building components. It is a portable machine which can be operated from any angle and can be clamped to a wide variety of forming tools, such as concrete block moulds, rooftile screeding machines, table surfaces or to the shuttering for'in situ' concrete work.

The Multivibe can be powered from any 12 volt DC source, car battery, or from the mains through a transformer rectifier, and is available in two capacities: 4 amp and 6 amp.

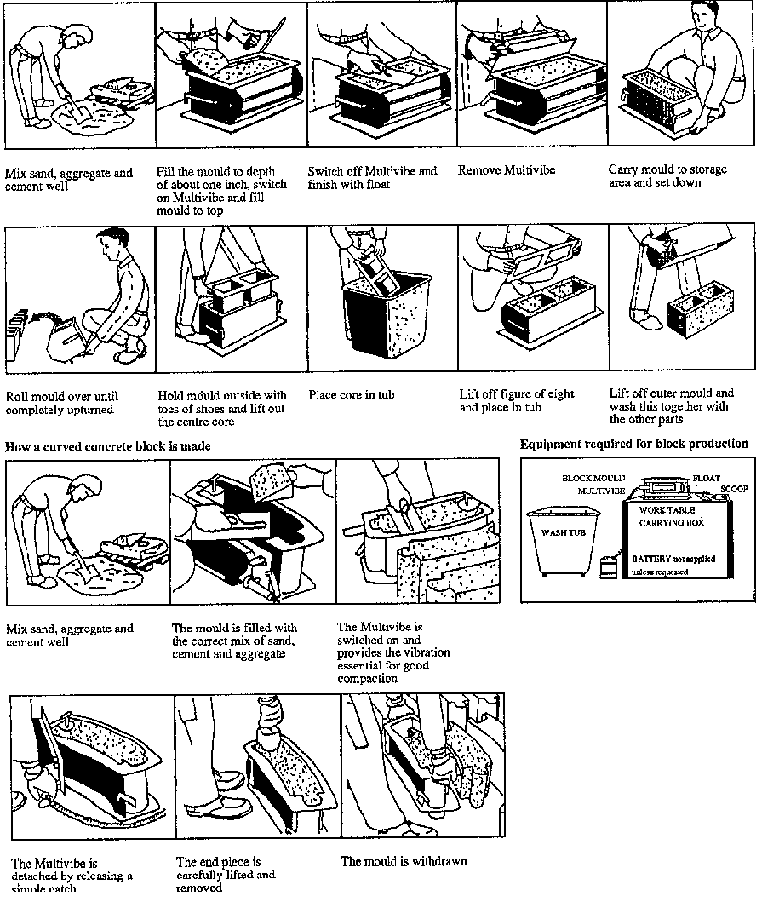

For concrete hollow block production, three standard sizes of mould are available to make blocks of different widths (10,15 and 20 cm, or 4, 6 and 8 inches), the length and height being constant (39 x 19 cm, or 15 x 7.5 inches). In addition, three standard moulds are available for making curved blocks to produce water tanks of 2 m, 3 m and 4 m diameters.

All components of the blockmaking plants are fully portable and can thus be used on any appropriate site with a flat surface large enough to place the required number of blocks for curing. With appropriate accessory packs, it is also possible to switch between products (such as floor, wall or roof tiles, posts, lintels, pipes, window frames, latrine slabs and many others) at very short notice.

Other building components produced with the Multivibe concrete technology.

FIGURE

Technical Details	Multivibe Blockmaking Plant
Size of Multivibe (length x width x height)	59 x 21 x 13.5 cm
Weight of Multivibe	8 kg
Size of crate for shipment (whole plant BLP 80)	77 x 56 x 72 cm (30 x 22 x 28 in)
Weight of packed plant (BLP 80)	60 kg
Standard length x height of hollow blocks	39 x 19 cm (15 x 7.5 in)
Available widths of hollow blocks	10, 15 and 20 cm (4, 6 and 8 in)
Curved blocks available for 3 water tank diameters	2,3 and 4 m (80, 120 and 160 in)
Energy input/transmission	electric / mechanical
No. of blocks per cycle/output rate (BLP 80)	1/ 10 - 25 blocks per hour
Labour force required, depending on desired output	1 - 3 men

Price (FOB)	Optional plant sizes ace. to daily outputs: 80,120, 160 blocks
valid dune 1991	BLP80	720 £ Sterling (» 1260 US$)
	BLP 120	940 £ Sterling (» 1650 US$)
	BLP 200	2655 £ Sterling (» 4650 US$)
	Included in each plant are: Multivibe, moulds, wash tub, scoop, float- and for BLP 200 a 1/4 tonne ground lift truck.
	Additional mould	180 £ Sterling (» 315 US$)
	Additional vibrator	345 £ Sterling (» 610 US$)
