Dyeing of Sisal and other Plant Fibres: A Handbook for Craft Instructors (NRI) Appendices 1. Conversion tables 2. Near equivalents of withdrawn dyes 3. Addresses of dyestuff and chemical manufacturers or their agents

Dyeing of Sisal and other Plant Fibres: A Handbook for Craft Instructors (NRI)

Appendices

1. Conversion tables

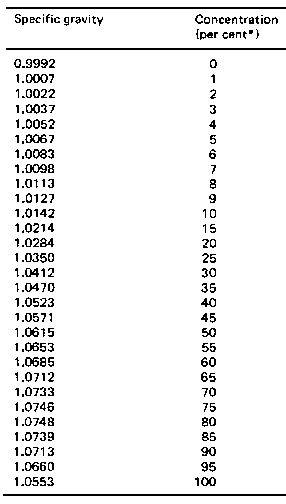

Figure Table A - Acetic acid: relationship between specific gravity and concentration at 15°C

Figure Table B - Formic acid: relationship between specific gravity and concentration 20°C

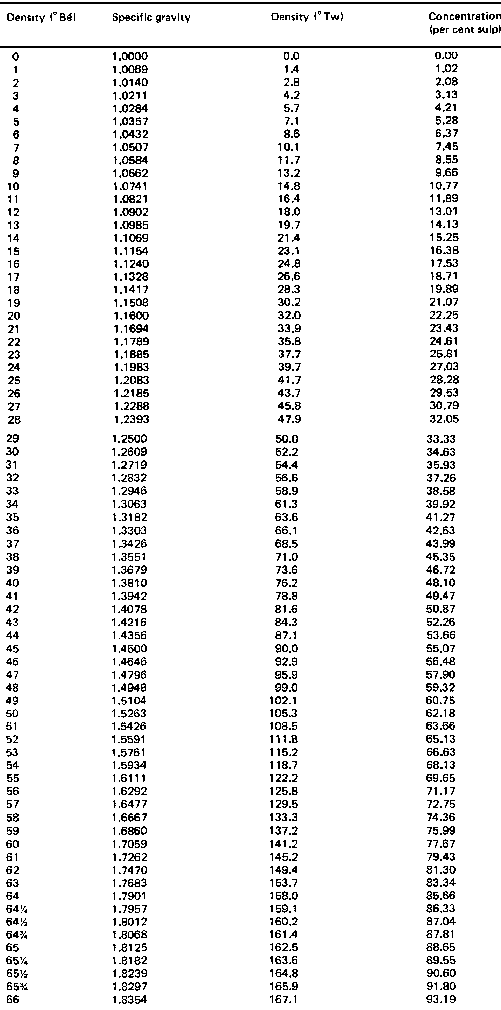

Figure Table C - Sulphuric acid: relationship between specific gravity, density and concentration

Figure Table D: Volume of liquor required with weights of fibre between 1 kilogram and 5 kilograms to obtain liquor ratios in the range of 10:1 to 50:1

Figure Table E: Weight of additive required with volumes of liquor between 20 litres and 100 litres to obtain concentrations in the range of 1 - 50 9/1

Figure Table F: Weight of dyestuff or additive required with vveights of fibre between 1 kilogram and S kilograms to obtain percentages on weight of fibre in the range of 0.1 - 9.0 per cent

2. Near equivalents of withdrawn dyes

New dyestuffs are continually being introduced to the market whilst others are withdrawn. Consequently some of the materials described are no longer available. However, close equivalents of many withdrawn dyes are available from other manufacturers. These near equivalent dyes have different trade names but share the same Colour Index Generic Name (e.g. Cl Reactive Yellow 22).

In this Appendix sources of dyes with the same Generic Name as the withdrawn dyes mentioned in the handbook are listed: full addresses for the manufacturers are given in Appendix 3.

It is emphasised that none of these near equivalents have been investigated by the Tropical Development and Research Institute and it is not certain that their properties and behaviour are identical to those dyes investigated.

Safety note: Two dyes in Table G are based on the chemical benzidine. This chemical is a suspected carcinogen and its use is now restricted. The actual dyestuffs, although allegedly safe, should be treated with care to ensure that they do not contaminate the person, the atmosphere, or the work area. If they are used, the working area should be washed down frequently and the dyers should wear protective clothing, inclusive of face masks, and wash themselves thoroughly after handling the dyes (see Safety precautions and first aid treatment).

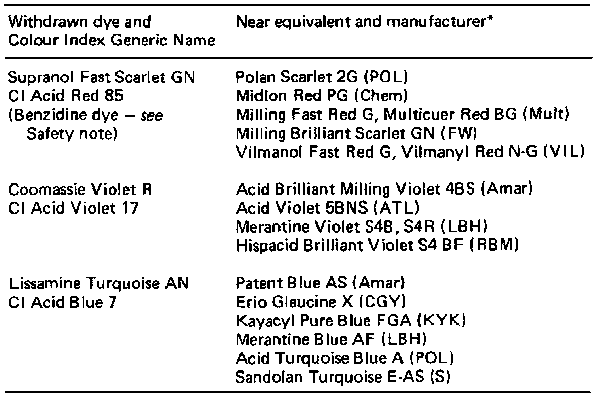

Figure Table G

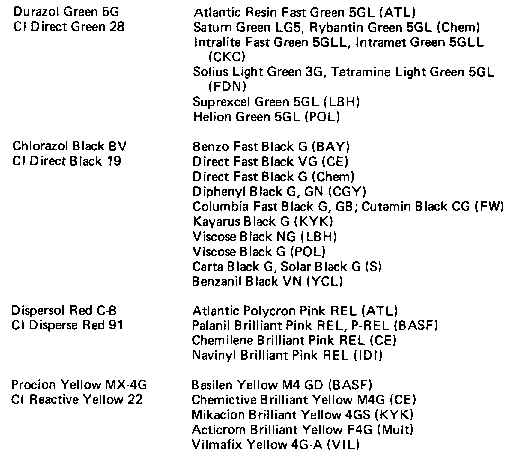

Figure Table G (continued 1)

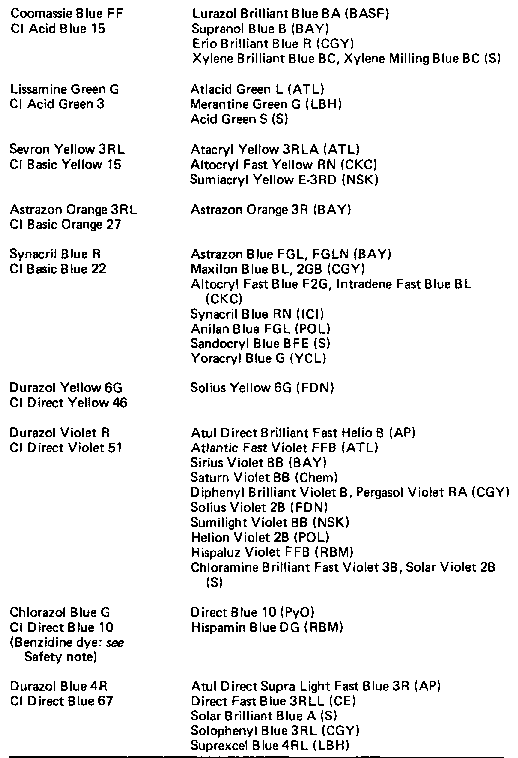

Figure Table G (continued 2)

Near equivalents of withdrawn dyes (available April 1982)

3. Addresses of dyestuff and chemical manufacturers or their agents

Manufacturers of dyestuffs and chemicals are too numerous to be listed here. However, an extensive list of dyestuff manufacturers can be found in Volume 5 of the Colour Index together with trade names of dyes listed by their Colour Index Generic Name (Colour Index Number). Dyestuff manufacturers frequently also offer a range of dyebath assistants and after-treating agents. There are also companies which specialise in making textile processing chemicals. Only companies able to supply those dyes (or their near equivalents) and proprietary chemicals mentioned in this handbook are given. Sources of common chemicals such as salt and soda are not included. Abbreviations used in the text for the names of manufacturers are given before the full name and address.

Mention of a particular company or product does not imply recommendation by the Tropical Development and Research Institute to the exclusion of others.

Dyestuff manufacturers or their agents

Amar	Amritlal Chemaux Ltd
	Rang Vdyan
	Sitladevi Temple Road
	Mahim
	Bombay 400 016
	INDIA
AP
	Atul Products Ltd
	PO Atul
	Valsad 396 020
	Gujarat
	INDIA
ATL	Atlantic Chemical Export
	Corp.
	10 Kingsland Road
	Nutley
	NJ 07110
	USA
BASF	BASF AG
	Carl Boschstrasse 38
	D-6700 Ludwigshafen
	FEDERAL REPUBLIC OF GERMANY
BAY	Bayer AG
	D-5090 Leverkusen-Bayerwerk
	FEDERAL REPUBLIC OF GERMANY
CAS	Cassella AG
	Hanauer Landstrasse 526
	PO Box 6000
	Frankfurt/M 61
	FEDERAL REPUBLIC OF GERMANY
CE	Chemiequip Ltd
	501 Embassy Centre
	Nariman Point
	Bombay 400 021
	INDIA
CGY	Ciba-Geigy AG
	CH-4002 Basel
	SWITZERLAND
Chem	Chemapol AG
	Kodariska 46, C S 100 10
	Prague 10
	CZECHOSLOVAKIA
CKC	Crompton and Knowles
	Dyes and Chemicals
	International Division
	PO Box 33188
	Charlotte
	NC 28233
	USA
	Durham Chemicals
	Distributors Ltd
	55 - 57 Glengall Road
	London SE 15 6NQ
	ENGLAND
Dylon	Dylon International Ltd
	Worsley Bridge Road
	Lower Sydenham
	London SE26 5HD
	ENGLAND
FDN	N.V. Frado
	Tilburg
	THE NETHERLANDS
FW	Chemie-Export-lmport
	Storkowerstrasse 133
	DDR-1055 Berlin
	GERMAN DEMOCRATIC REPUBLIC
HOE	Hoechst AG
	ATA Geschaftsbereich
	D/Farben
	Postfach 80 03 20
	6230 Frankfurt/M 80
	FEDERAL REPUBLIC OF GERMANY
ICI	Imperial Chemical Industries
	plc PO Box 42
	Hexagon House
	Blackley Manchester M9 3DA
	ENGLAND
IDI	Indian Dyestuff Industries Ltd
	Mafatlal Centre Nariman
	Point Bombay 400 021
	INDIA
KYK	Nippon Kagaku Co. Ltd
	Tokyo
	JAPAN
LBH	Holliday Dyes and Chemicals
	Ltd
	PO Box B22
	Leeds Road
	Deighton
	Huddersfield HD2 1UH
	ENGLAND
Mult	Multichrom SAIC
	Almirante Brown 778
	Ramos Mejia-Pcia
	Buenos Aires
	ARGENTINA
NSK	Sumitomo Chemical Co. Ltd
	Osaka
	JAPAN
POL	CIECH
	Jasna 12
	Postfach 271
	PL-00-950 Warsaw
	PO LAND
PyO	Pigmentos y Oxidos SA
	Ave. Industrias Pte. 930
	Apartado Postal No. 844
	Monterrey
	N.L.
	MEXICO
RBM	S.A. Rovira, Bachs y Macia
	Avda. Jose Antonio 744
	Barcelona 13
	SPAIN
Roum	Chimimportexport BD
	Republicii 10
	Postfach 1-74
	R-70033 Bucharest
	ROUMANIA
Sandoz AG Lichstrasse 35
	CH-4002 Basel
	SWITZERLAND
VIL	Vilmax SA
	Parera 114
	Buenos Aires
	ARGENTINA
YCL	Yorkshire Chemicals plc
	Kirkstall Road
	Leeds LS3 ILL
	ENGLAND

CHEMICAL MANUFACTURERS OR THEIR AGENTS
Cargo Fleet Chemical Co. Ltd
Eaglescliffe Industrial Estate
Eaglescliffe
Stockton-on-Tees
Cleveland TS16 OPN
ENGLAND
(Agents for products of ICI Petrochemicals Division, e.g. Synperonic BD)

Durham Chemicals Distributors Ltd
55 - 57 Glengall Road
London SE 15 6NQ
ENGLAND

Rudolf and Co. KG
Spreestrasse 3 - 7
Postfach 749
D-8192 Geretaried 2
FEDERAL REPUBLIC OF GERMANY

Sandoz AG
Lichstrasse 35
CH-4002 Basel
SWITZERLAND

Textile Dyestuffs and Chemicals Ltd
Cliffe Road
Brighouse
West Yorkshire HD6 1HD
ENGLAND
