Biogas Basics

What is biogas?

Biogas originates from bacteria in the process of bio-degradation of organic material under anaerobic (without air) conditions. The natural generation of biogas is an important part of the biogeochemical carbon cycle. Methanogens (methane producing bacteria) are the last link in a chain of micro-organisms which degrade organic material and return the decomposition products to the environment. In this process biogas is generated, a source of renewable energy.

Biogas and the global carbon cycle

Each year some 590-880 million tons of methane are released worldwide into the atmosphere through microbial activity. About 90% of the emitted methane derives from biogenic sources, i.e. from the decomposition of biomass. The remainder is of fossil origin (e.g. petrochemical processes). In the northern hemisphere, the present tropospheric methane concentration amounts to about 1.65 ppm.

Biology of methanogenesis

Knowledge of the fundamental processes involved in methane fermentation is necessary for planning, building and operating biogas plants. Anaerobic fermentation involves the activities of three different bacterial communities. The process of biogas-production depends on various parameters. For example, changes in ambient temperature can have a negative effect on bacterial activity.

Substrate and material balance of biogas production

In principle, all organic materials can ferment or be digested. However, only homogenous and liquid substrates can be considered for simple biogas plants: faeces and urine from cattle, pigs and possibly from poultry and the wastewater from toilets. When the plant is filled, the excrement has to be diluted with about the same quantity of liquid, if possible, the urine should be used. Waste and wastewater from food-processing industries are only suitable for simple plants if they are homogenous and in liquid form. The maximum of gas-production from a given amount of raw material depends on the type of substrate.

Composition and properties of biogas

Biogas is a mixture of gases that is composed chiefly of:

Like those of any pure gas, the characteristic properties of biogas are pressure and temperature-dependent. They are also affected by the moisture content. The factors of main interest are:

The calorific value of biogas is about 6 kWh/m3 - this corresponds to about half a litre of diesel oil. The net calorific value depends on the efficiency of the burners or appliances. Methane is the valuable component under the aspect of using biogas as a fuel.


[IMAGE] Biogas is used as an ecologically friendly and future oriented technology in many countries
Photo: Krieg

Utilization

The history of biogas utilization shows independent developments in various developing and industrialized countries. The European biogas-history and that of Germany in particular, as well as developments in Asian countries form the background of German efforts and programmes to promote biogas technology worldwide.

Normally, the biogas produced by a digester can be used as it is, just in the same way as any other combustible gas. But it is possible that a further treatment or conditioning is necessary, for example, to reduce the hydrogen-sulfide content in the gas. When biogas is mixed with air at a ratio of 1:20, a highly explosive gas forms. Leaking gas pipes in enclosed spaces constitute, therefore, a hazard. However, there have been no reports of dangerous explosions caused by biogas so far.

A first overview of the physical appearance of different types of biogas plants describes the three main types of simple biogas plants, namely balloon plants, fixed-dome plants and floating-drum plants.

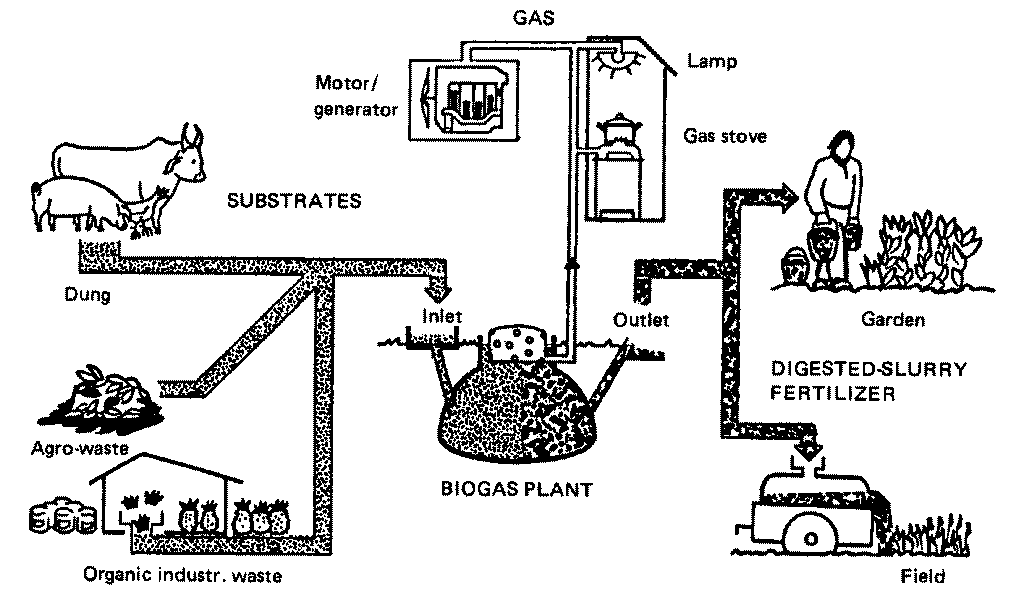

[IMAGE] A typical biogas system configuration
Source: OEKOTOP

The Benefits of Biogas Technology

Well-functioning biogas systems can yield a whole range of benefits for their users, the society and the environment in general:

Thus, biogas technology can substancially contribute to conservation and development, if the concrete conditions are favorable. However, the required high investment capital and other limitations of biogas technology should be thoroughly considered.

The Costs of Biogas Technology

An obvious obstacle to the large-scale introduction of biogas technology is the fact that the poorer strata of rural populations often cannot afford the investment cost for a biogas plant. This is despite the fact that biogas systems have proven economically viable investments in many cases.

Efforts have to be made to reduce construction cost but also to develop credit and other financing systems. A larger numbers of biogas operators ensures that, apart from the private user, the society as a whole can benefit from biogas. Financial support from the government can be seen as an investment to reduce future costs, incurred through the importation of petrol products and inorganic fertilizers, through increasing costs for health and hygiene and through natural resource degradation.

Fuel and Fertilizer

In developing countries, there is a direct link between the problem of fertilization and progressive deforestation due to high demand for firewood. In many rural areas, most of the inhabitants are dependant on dung and organic residue as fuel for cooking and heating. Such is the case, for example, in the treeless regions of India (Ganges plains, central highlands), Nepal and other countries of Asia, as well as in the Andes Mountains of South America and wide expanses of the African Continent. According to data published by the FAO, some 78 million tons of cow dung and 39 million tons of phytogenic waste were burned in India alone in 1970. That amounts to approximately 35% of India's total noncommercial/nonconventional energy consumption.

The burning of dung and plant residue is a considerable waste of plant nutrients. Farmers in developing countries are in dire need of fertilizer for maintaining cropland productivity. Nonetheless, many small farmers continue to burn potentially valuable fertilizers, even though they cannot afford to buy chemical fertilizers. At the same time, the amount of technically available nitrogen, pottasium and phosphorous in the form of organic materials is around eight times as high as the quantity of chemical fertilizers actually consumed in developing countries. Especially for small farmers, biogas technology is a suitable tool for making maximum use of scarce resources: After extraction of the energy content of dung and other organic waste material, the resulting sludge is still a good fertilizer, supporting general soil quality as well as higher crop yields.

Public and Political Awareness

Popularization of biogas technology has to go hand in hand with the actual construction of plants in the field. Without the public awareness of biogas technology, its benefits and pitfalls, there will be no sufficient basis to disseminate biogas technology at grassroots level. At the same time, awareness within the government is essential. Since impacts and aspects of biogas technology concern so many different governmental institutions (e.g. agriculture, environment, energy, economics), it is necessary to identify and include all responsible government departments in the dissemination and awareness-raising process.
